Bosch
Angle Grinder

Model # 1375-01 Official Bosch angle grinder

Here are the diagrams and repair parts for Official Bosch 1375-01 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Cover Disc 1600100033
#37

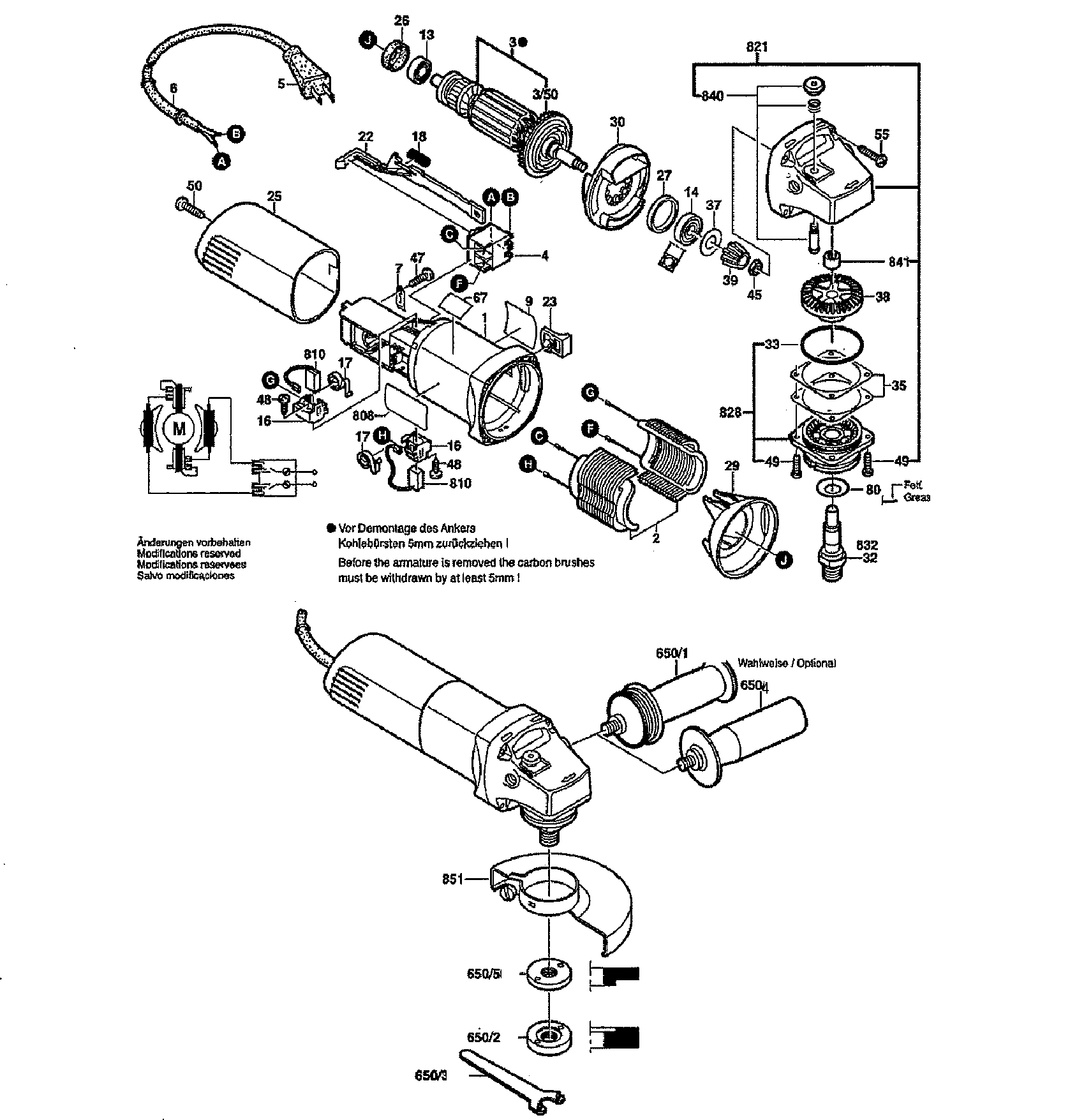

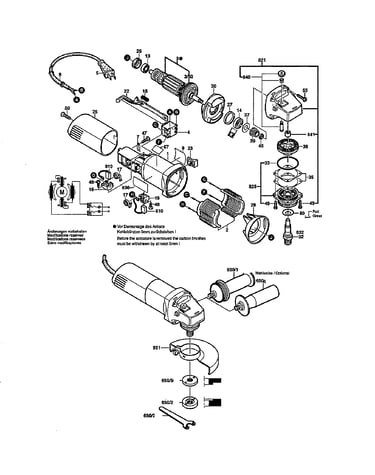

Main asy diagram

Cover disc

Part #1600100033

The manufacturer no longer makes this part, and there's no substitute part

Switch Button 2609100017
#23

Main asy diagram

Switch button

Part #2609100017

The manufacturer no longer makes this part, and there's no substitute part

Switch 1602319009
#22

Main asy diagram

Switch

Part #1602319009

The manufacturer no longer makes this part, and there's no substitute part

Crown Gear 2609110150
#38

Main asy diagram

Crown gear

Part #2609110150

The manufacturer no longer makes this part, and there's no substitute part

Shim 1600136016
#35

Main asy diagram

Shim

Part #1600136016

The manufacturer no longer makes this part, and there's no substitute part

Dremel Power Cord 2604460122
#5

Main asy diagram

Dremel power cord

Part #2604460122

The manufacturer no longer makes this part, and there's no substitute part

Gear Housing 1605806466
#821

Main asy diagram

Gear housing

Part #1605806466

The manufacturer no longer makes this part, and there's no substitute part

Rubbr Ring 1600206025
#27

Main asy diagram

Rubbr ring

Part #1600206025

The manufacturer no longer makes this part, and there's no substitute part

Screw 2609110052
#47

Main asy diagram

Screw

Part #2609110052

The manufacturer no longer makes this part, and there's no substitute part

Bosch Wrench 1619P08927
#6503

Main asy diagram

Bosch wrench

Part #1619P08927

The manufacturer no longer makes this part, and there's no substitute part
