Model # KD923DTX2 Official Hotpoint room air conditioner

Here are the diagrams and repair parts for Official Hotpoint KD923DTX2 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Screw WZ4X32

#977

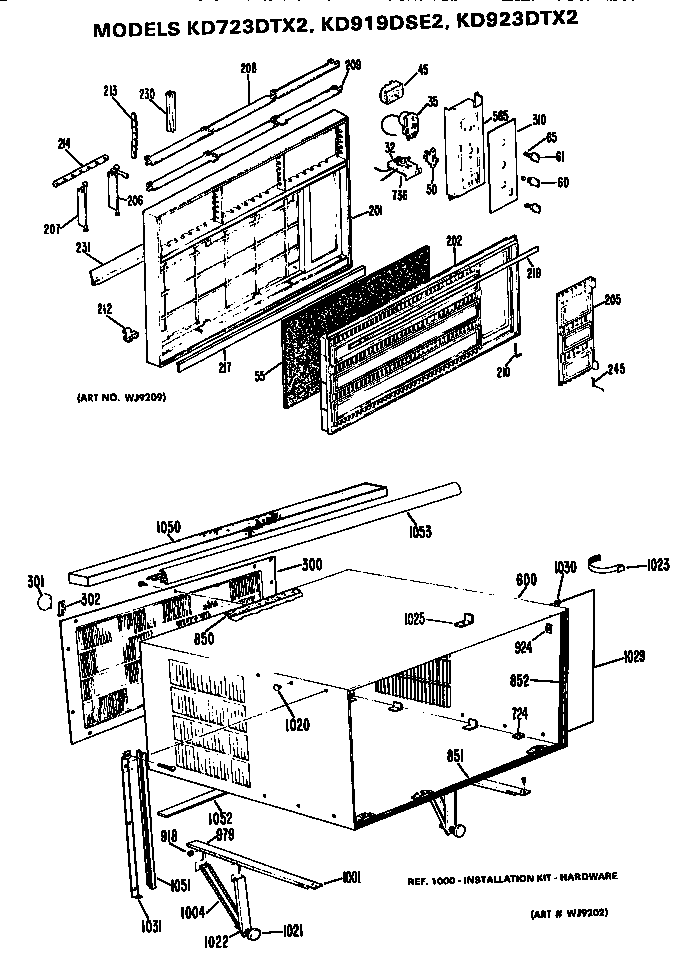

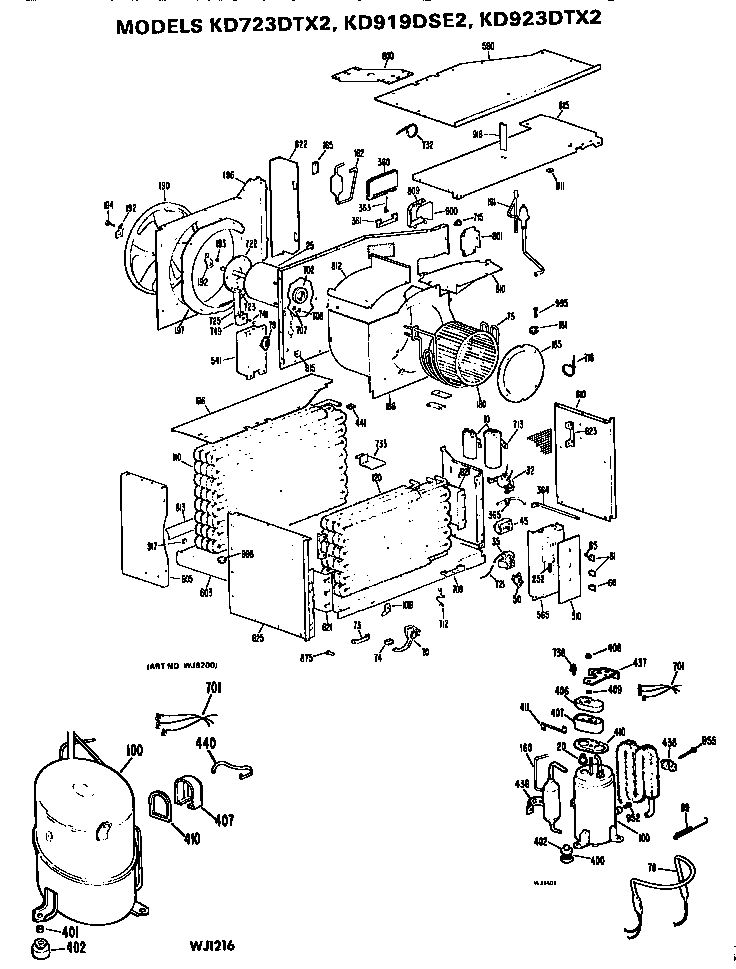

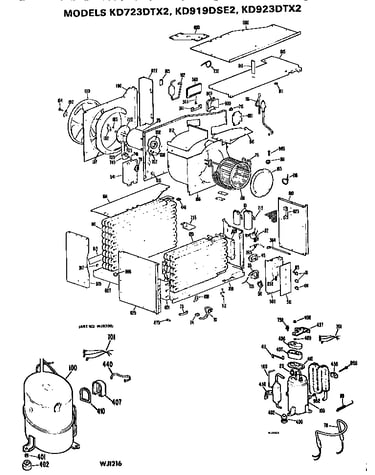

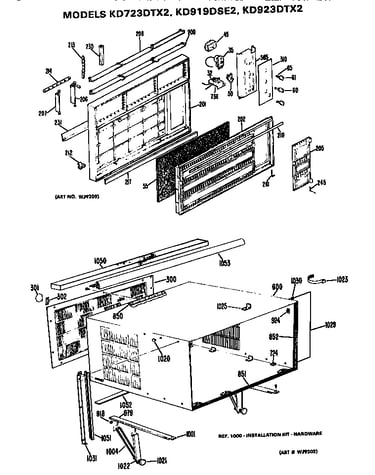

All parts diagram

Screw

Part #WZ4X32

This item is not returnable
$6.49
In Stock
Screw WZ4X288

#724

All parts diagram

Screw

Part #WZ4X288

This item is not returnable
$3.49
In Stock
Screw WZ4X386

#NI

All parts diagram

Screw

Part #WZ4X386

This item is not returnable
$3.49
In Stock
Nut WZ8X11

#NI

All parts diagram

Nut

Part #WZ8X11

This item is not returnable
$4.49
In Stock
Screw WZ4X362

#NI

All parts diagram

Screw

Part #WZ4X362

This item is not returnable
$4.99
In Stock
Seal WJ44X71

#NI

All parts diagram

Seal

Part #WJ44X71

The manufacturer no longer makes this part, and there's no substitute part

Cable Damper WJ14X95

#365

All parts diagram

Cable damper

Part #WJ14X95

The manufacturer no longer makes this part, and there's no substitute part

Fan WJ73X115

#190

All parts diagram

Fan

Part #WJ73X115

The manufacturer no longer makes this part, and there's no substitute part

Shaft WJ14X97

#364

All parts diagram

Shaft

Part #WJ14X97

The manufacturer no longer makes this part, and there's no substitute part

Condenser Cover Assembly WJ79X396

#616

All parts diagram

Condenser cover assembly

Part #WJ79X396

The manufacturer no longer makes this part, and there's no substitute part
