Kenmore
Room Air Conditioner

Model # 58075130700 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58075130700 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Room Air Conditioner Air Filter 5230A20041A
#3A

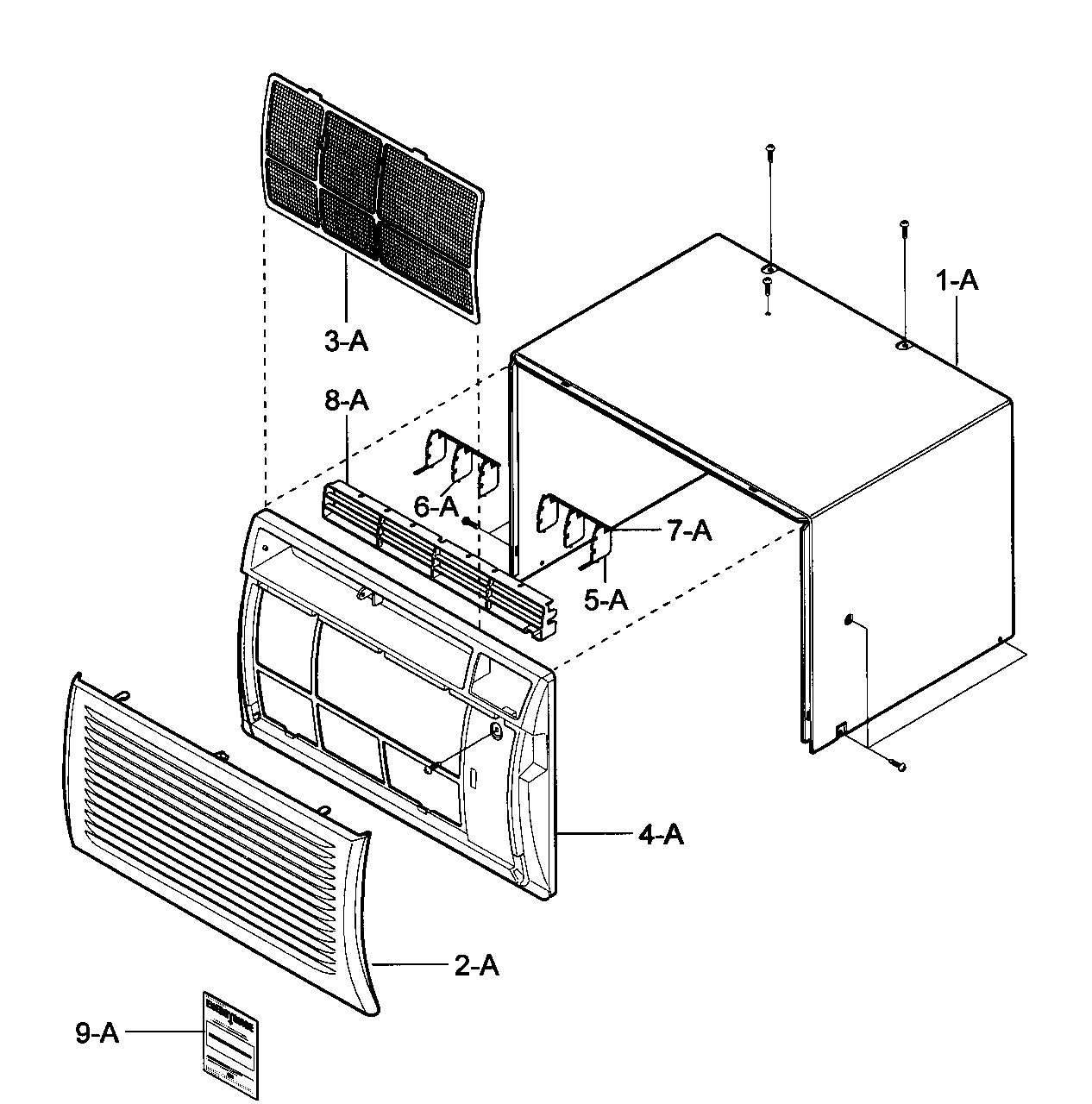

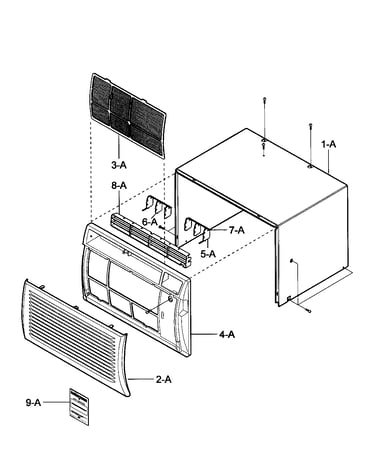

Cabinet/front grille assy diagram

Room air conditioner air filter

Part #5230A20041A

Replaced by #5230A20041D

?
Manufacturer substitution
This part replaces 5230A20041A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$11.29 |
15% OFF Phone Price : $13.29
In Stock
Remote Control 6711A20056T
#13B

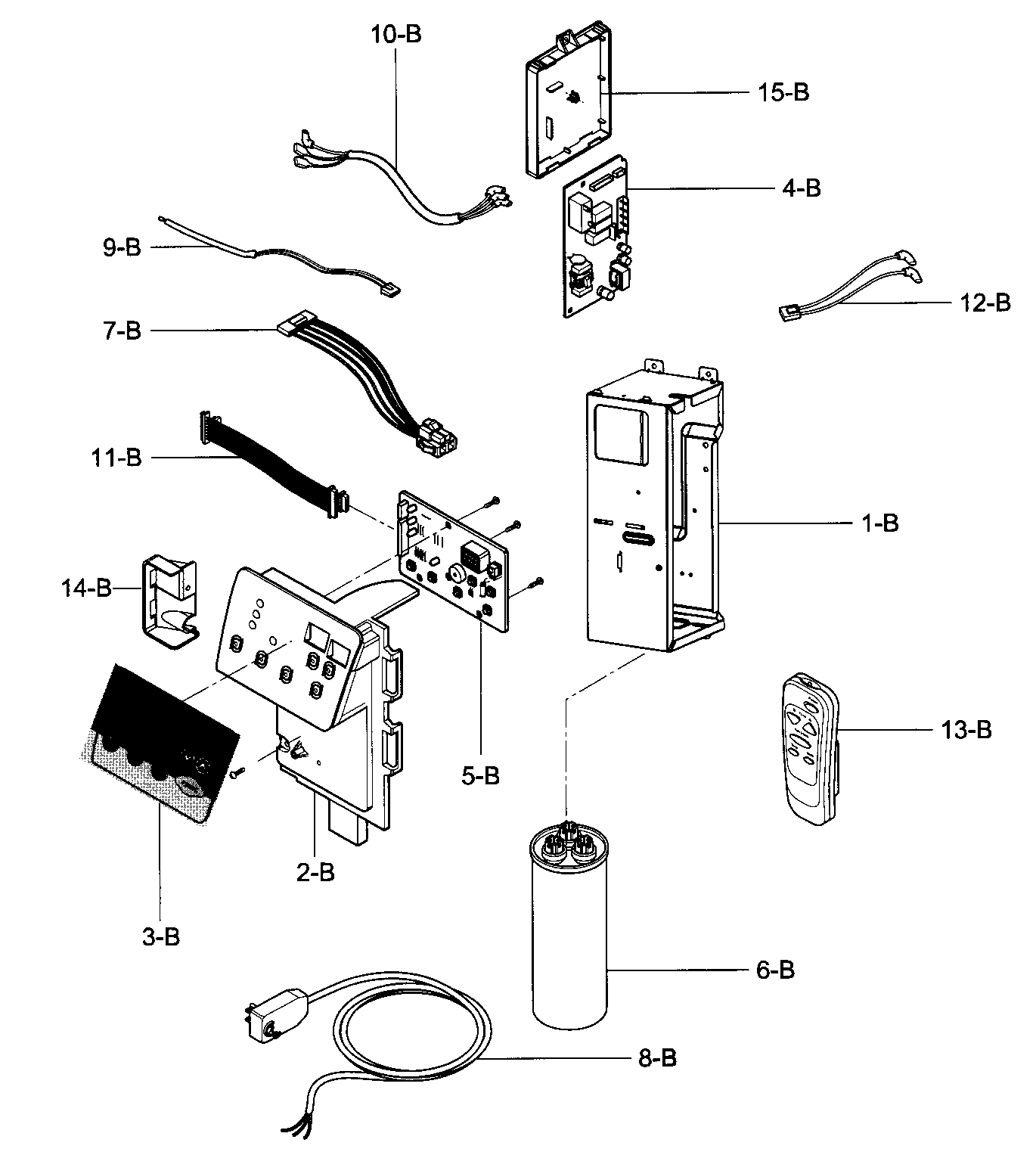

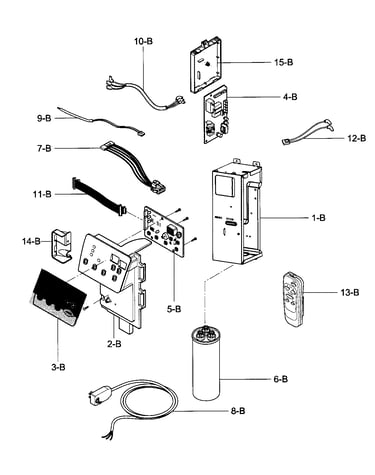

Control box assy diagram

Remote control

Part #6711A20056T

Replaced by #AKB73795706

?
Manufacturer substitution
This part replaces 6711A20056T. Substitute parts can look different from the original.
$31.05 |
16% OFF Phone Price : $37.05
In Stock
Room Air Conditioner Evaporator Fan Blade 5900A20009A
#3C

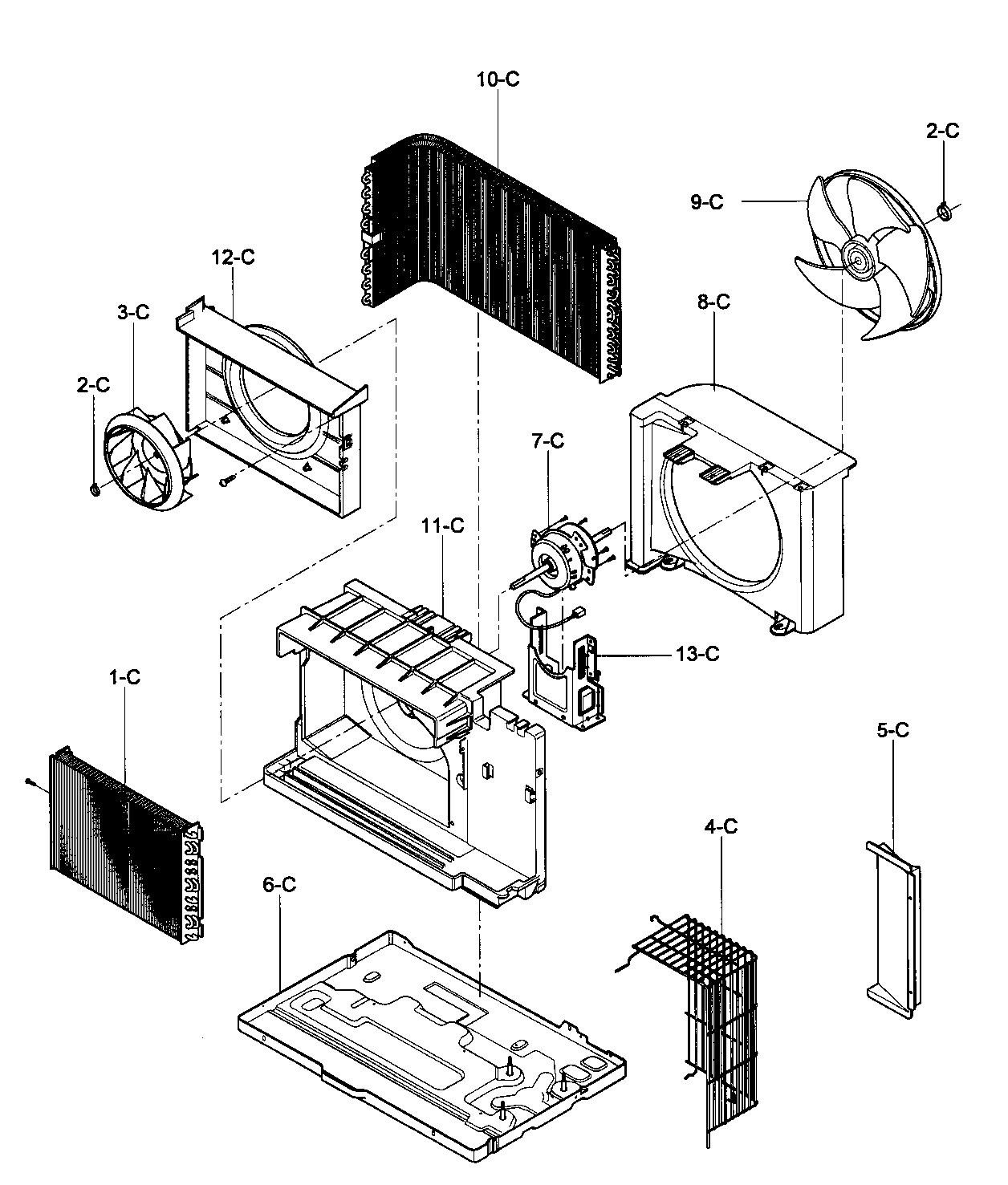

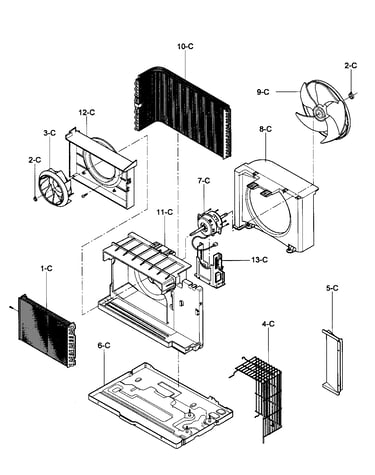

Air handling/cycle parts diagram

Room air conditioner evaporator fan blade

Part #5900A20009A

Replaced by #5900A20009E

?
Manufacturer substitution
This part replaces 5900A20009A. Substitute parts can look different from the original.
$29.57 |
17% OFF Phone Price : $35.57
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#2C

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Sleeve Front Trim 3210A20075A
#1E

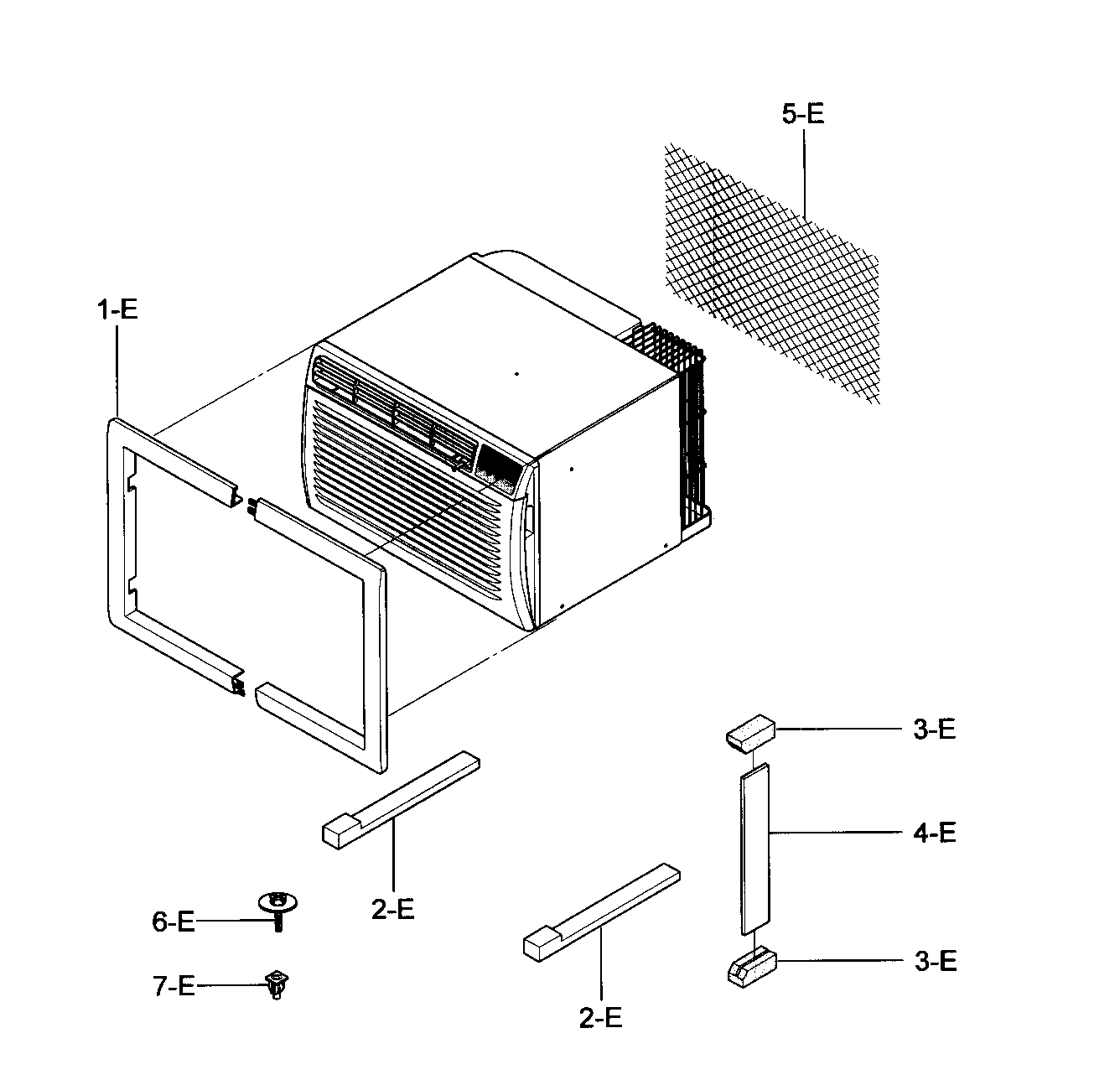

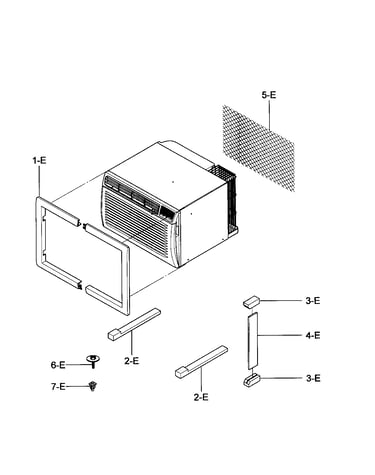

Installation kit assy diagram

Room air conditioner sleeve front trim

Part #3210A20075A

Replaced by #3210A20075B

?
Manufacturer substitution
This part replaces 3210A20075A. Substitute parts can look different from the original.
This item is not returnable
$20.55 |
23% OFF Phone Price : $26.55
In Stock
Comfort-aire Room Air Conditioner Dual Capacitor 0CZZA10002C
#6B

Control box assy diagram

Comfort-aire room air conditioner dual capacitor

Part #0CZZA10002C

$30.65 |
16% OFF Phone Price : $36.65
In Stock
Louver 4758A20058A
#8A

Cabinet/front grille assy diagram

Louver

Part #4758A20058A

Replaced by #4758A20058E

?
Manufacturer substitution
This part replaces 4758A20058A. Substitute parts can look different from the original.
This item is not returnable
$4.51
In Stock
Room Air Conditioner Compressor Grommet 4H00982C
#9D

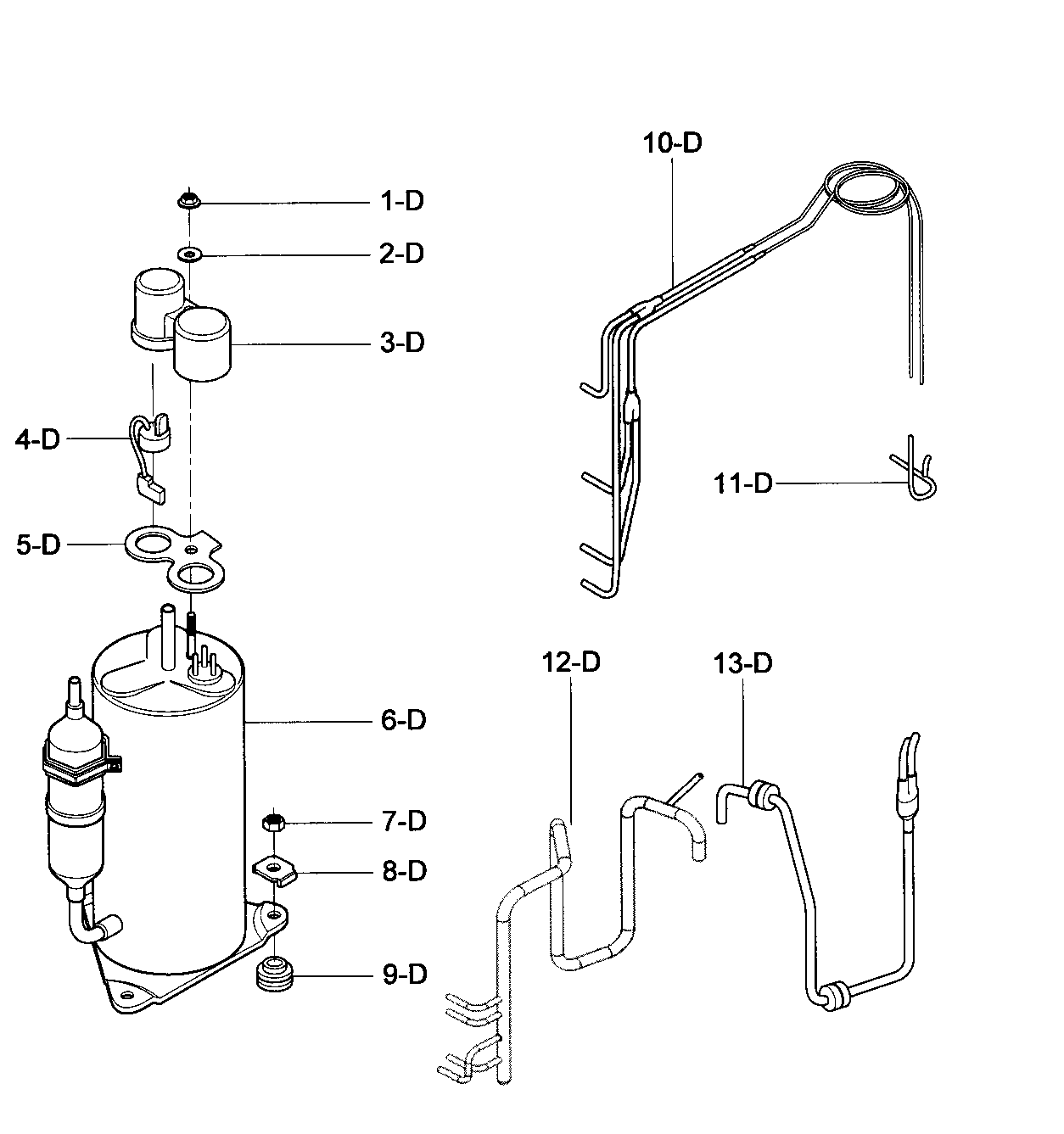

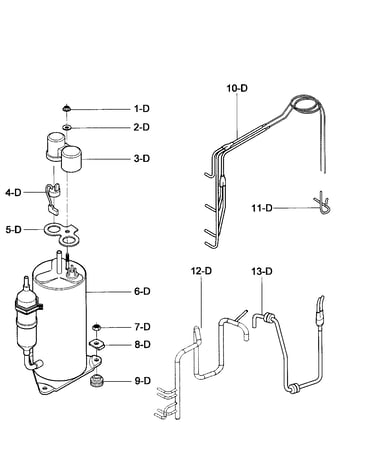

Compressor parts diagram

Room air conditioner compressor grommet

Part #4H00982C

Replaced by #4H00982E

?
Manufacturer substitution
This part replaces 4H00982C. Substitute parts can look different from the original.
This item is not returnable
$3.51 |
22% OFF Phone Price : $4.51
In Stock
Connector 6631A10011K
#11B

Control box assy diagram

Connector

Part #6631A10011K

$23.07
In Stock
Guide 4974A30053A
#7E

Installation kit assy diagram

Guide

Part #4974A30053A

This item is not returnable
$4.51
In Stock
