GE
Built-In Microwave

Model # PEB7227DL4BB Official GE built-in microwave

Here are the diagrams and repair parts for Official GE PEB7227DL4BB built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Microwave Door Interlock Switch (replaces Wb24x28941) WB24X10146
#1446

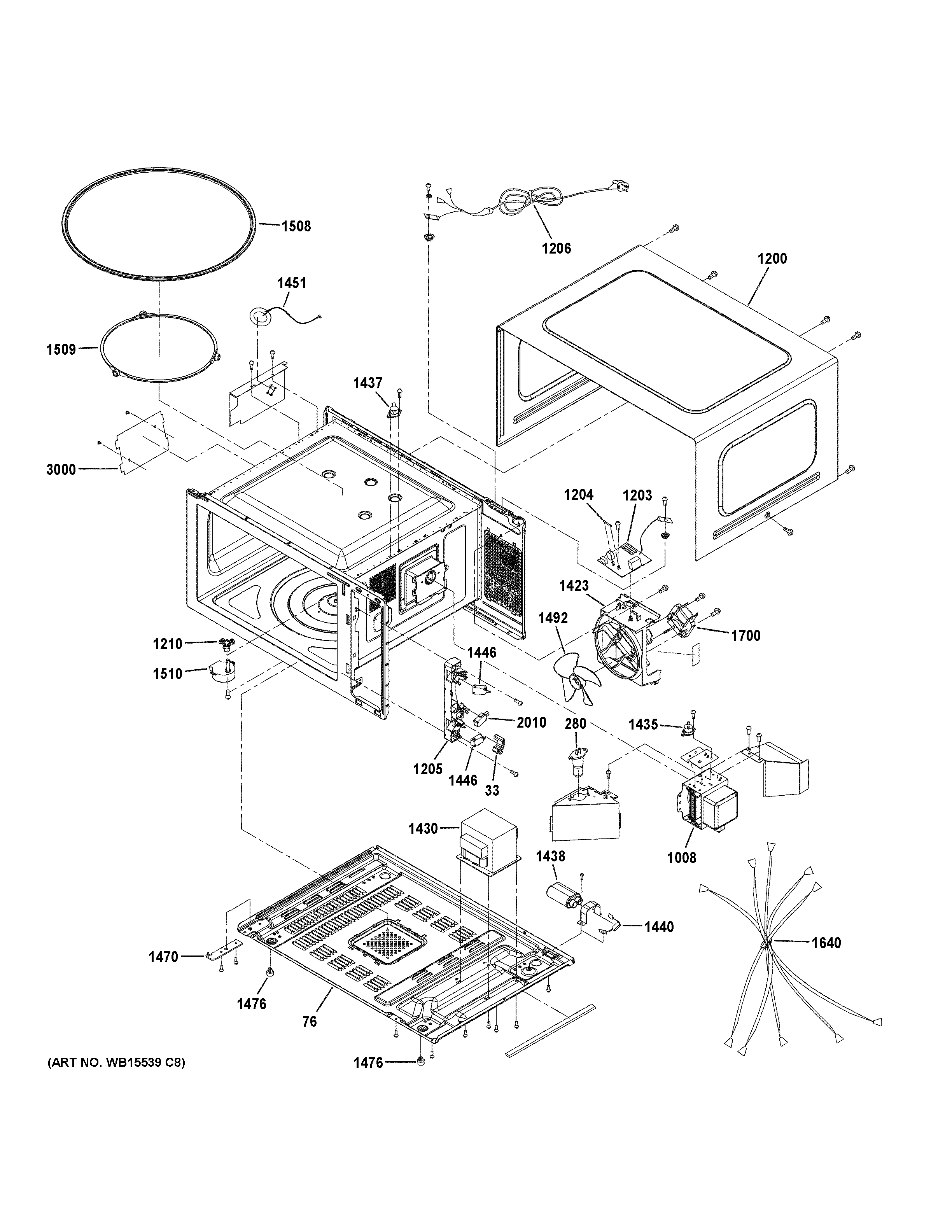

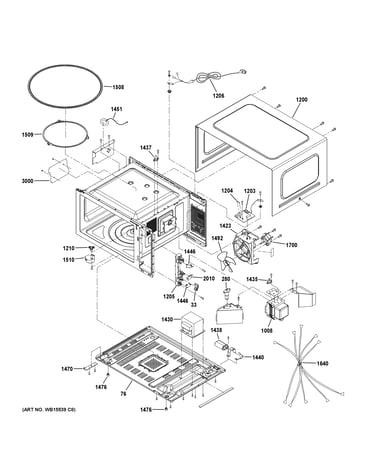

Oven cavity parts diagram

Microwave door interlock switch (replaces wb24x28941)

Part #WB24X10146

BEST SELLER
$32.79 |
15% OFF Phone Price : $38.79
In Stock
Microwave Door Interlock Switch Bracket WB14X10049
#1205

Oven cavity parts diagram

Microwave door interlock switch bracket

Part #WB14X10049

BEST SELLER
$39.59 |
13% OFF Phone Price : $45.59
In Stock
Microwave Noise Filter WB27X11140
#1203

Oven cavity parts diagram

Microwave noise filter

Part #WB27X11140

BEST SELLER
$136.07 |
10% OFF Was : $151.19
In Stock
Microwave Thermostat WB27X11210
#1435

Oven cavity parts diagram

Microwave thermostat

Part #WB27X11210

BEST SELLER
$69.28 |
8% OFF Phone Price : $75.28
In Stock
High-voltage Diode WB27X25616
#1440

Oven cavity parts diagram

High-voltage diode

Part #WB27X25616

BEST SELLER
$47.34 |
11% OFF Phone Price : $53.34
In Stock
Microwave Magnetron WB27X11135
#1008

Oven cavity parts diagram

Microwave magnetron

Part #WB27X11135

Replaced by #WB27X41826

?
Manufacturer substitution
This part replaces WB27X11135. Substitute parts can look different from the original.
BEST SELLER
$269.25
In Stock
H.v. Capacitor WB27X29988
#1438

Oven cavity parts diagram

H.v. capacitor

Part #WB27X29988

$88.14 |
6% OFF Phone Price : $94.14
In Stock
Mainboard WB27X29710
#1655

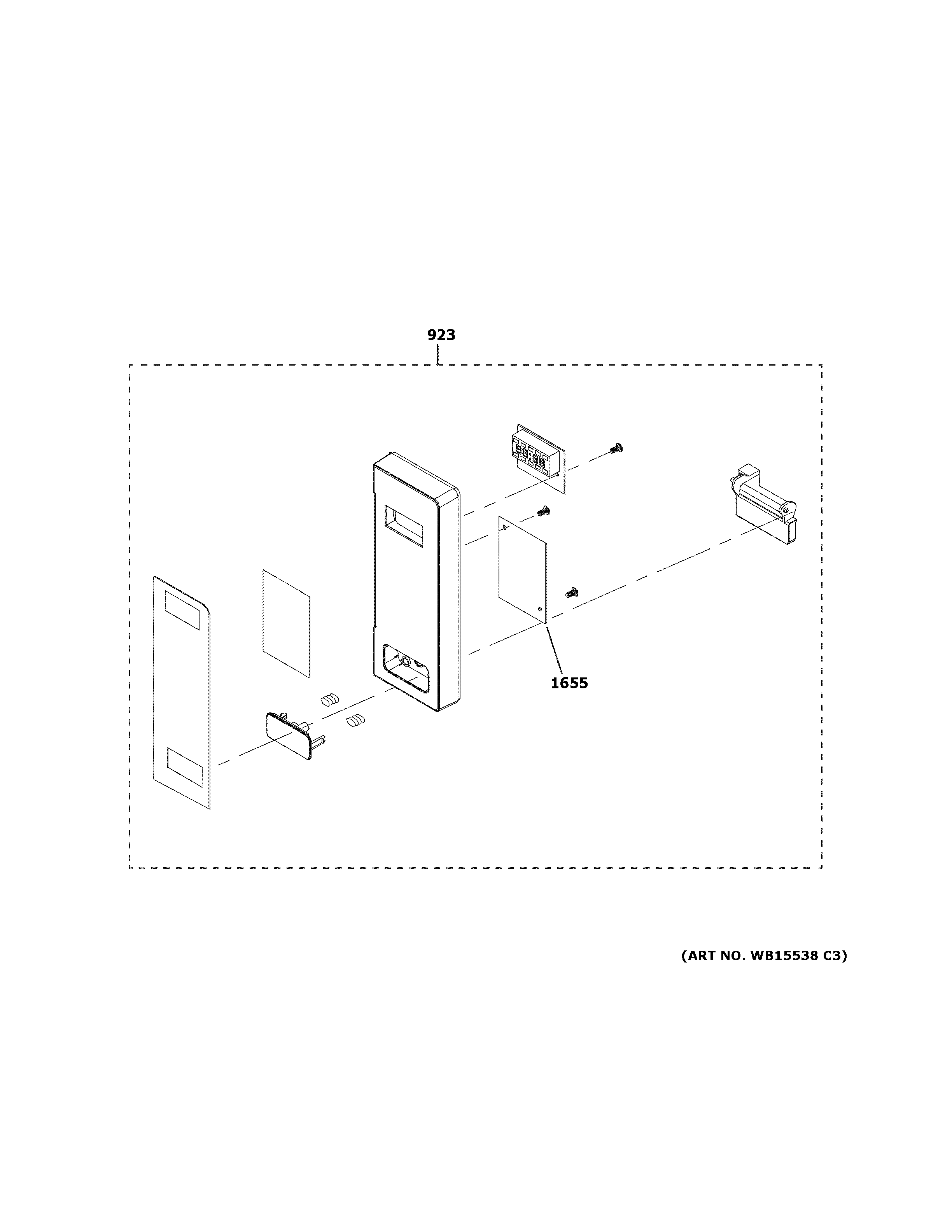

Control parts diagram

Mainboard

Part #WB27X29710

$93.80 |
6% OFF Phone Price : $99.80
In Stock
Door Latch WB10X27074
#5007

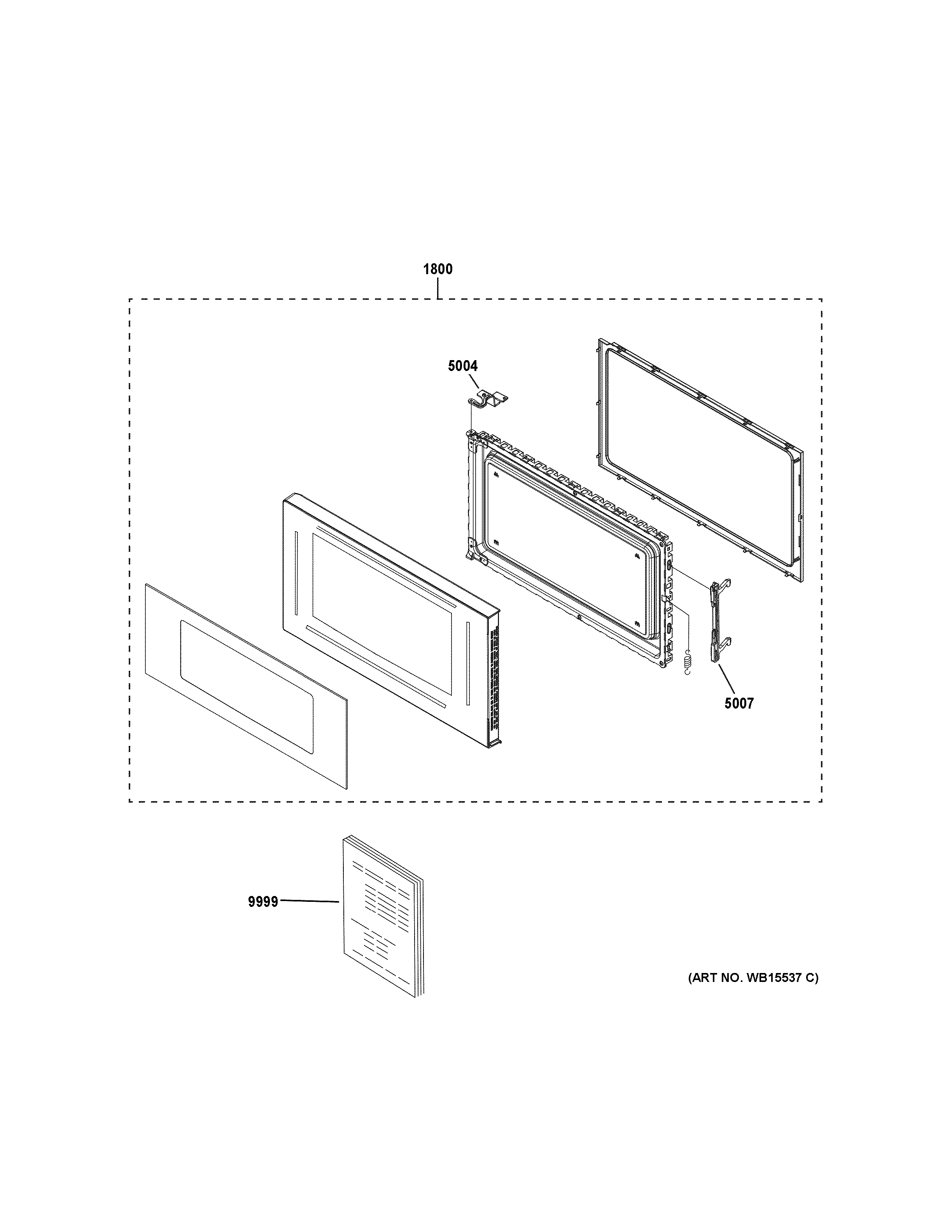

Door parts diagram

Door latch

Part #WB10X27074

Replaced by #WB10X30407

?
Manufacturer substitution
This part replaces WB10X27074. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Black Control Panel Asm WB56X34986
#923

Control parts diagram

Black control panel asm

Part #WB56X34986

$151.69 |
7% OFF Phone Price : $163.69
In Stock
