Porter Cable
Reciprocating Saw

Model # 747 Official Porter Cable tiger reciprocating saw

Here are the diagrams and repair parts for Official Porter Cable 747 tiger reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

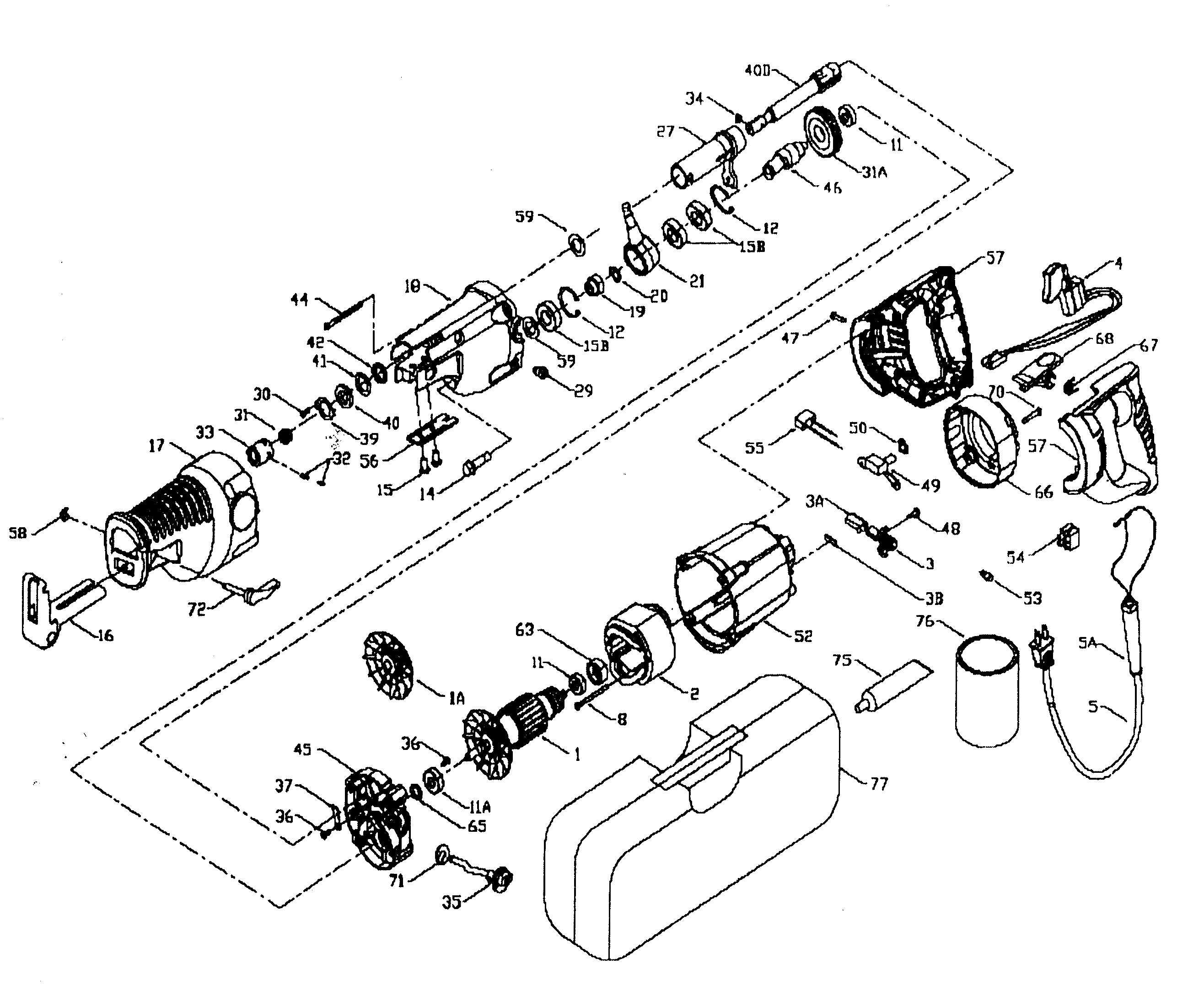

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Craftsman Oil Seal 902998
#42

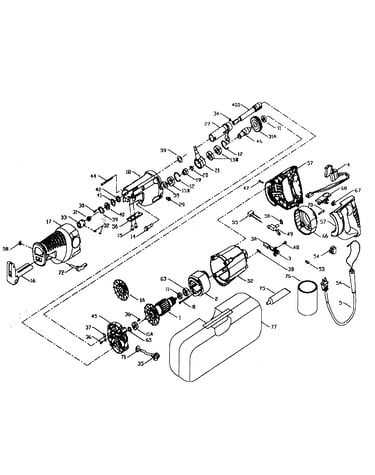

Saw diagram

Craftsman oil seal

Part #902998

The manufacturer no longer makes this part, and there's no substitute part

Retaining 853246
#20

Saw diagram

Retaining

Part #853246

The manufacturer no longer makes this part, and there's no substitute part

Felt Seal 882348
#59

Saw diagram

Felt seal

Part #882348

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Insulator 865321
#3B

Saw diagram

Craftsman insulator

Part #865321

The manufacturer no longer makes this part, and there's no substitute part

Tube 883098
#27

Saw diagram

Tube

Part #883098

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Holder 865323
#3A

Saw diagram

Craftsman holder

Part #865323

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Field 898876
#2

Saw diagram

Craftsman field

Part #898876

The manufacturer no longer makes this part, and there's no substitute part

Armature 898877
#1

Saw diagram

Armature

Part #898877

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Shoe Lock Plate 906043
#56

Saw diagram

Porter cable shoe lock plate

Part #906043

The manufacturer no longer makes this part, and there's no substitute part

Sears Reciprocating Saw Motor Brush 874289
#3

Saw diagram

Sears reciprocating saw motor brush

Part #874289

The manufacturer no longer makes this part, and there's no substitute part
