Kenmore
Furnace

Model # 867779020 Official Kenmore condensing gas furnace

Here are the diagrams and repair parts for Official Kenmore 867779020 condensing gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

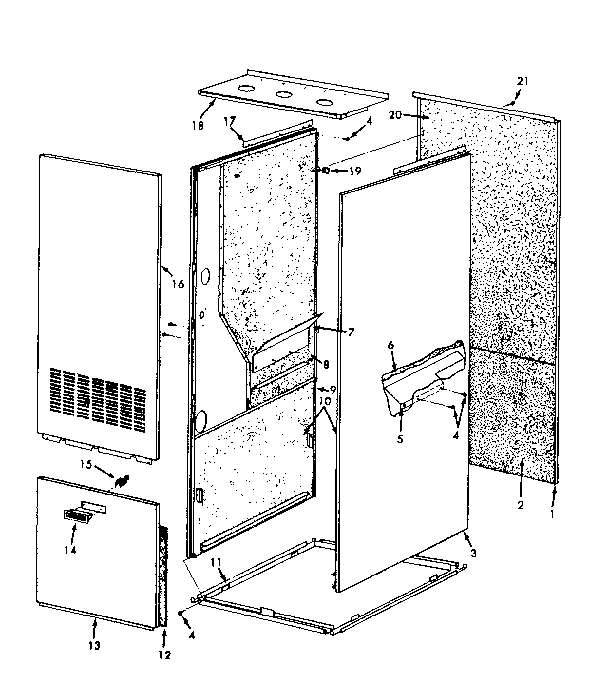

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Transformer 612850
#38

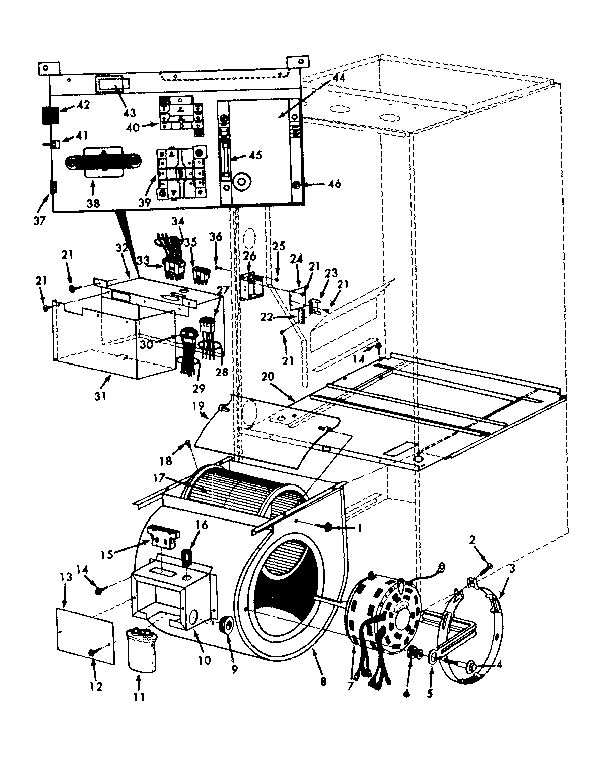

Blower assembly diagram

Transformer

Part #612850

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 91593
#11A

Blower assembly diagram

Capacitor

Part #91593

Replaced by #12908

?
Manufacturer substitution
This part replaces 91593. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Capacitor 706338
#11

Blower assembly diagram

Capacitor

Part #706338

Replaced by #12907

?
Manufacturer substitution
This part replaces 706338. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Capacitor 602974
#12

Heat exchanger diagram

Capacitor

Part #602974

Replaced by #12005

?
Manufacturer substitution
This part replaces 602974. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Central Air Conditioner Air Handler Blower Wheel 96839
#17

Blower assembly diagram

Central air conditioner air handler blower wheel

Part #96839

$148.95 |
7% OFF Phone Price : $160.95
In Stock
Central Air Conditioner Air Handler Blower Motor Relay 611891
#39

Blower assembly diagram

Central air conditioner air handler blower motor relay

Part #611891

$106.55 |
10% OFF Phone Price : $118.55
In Stock
Flame Sensor 612921
#9

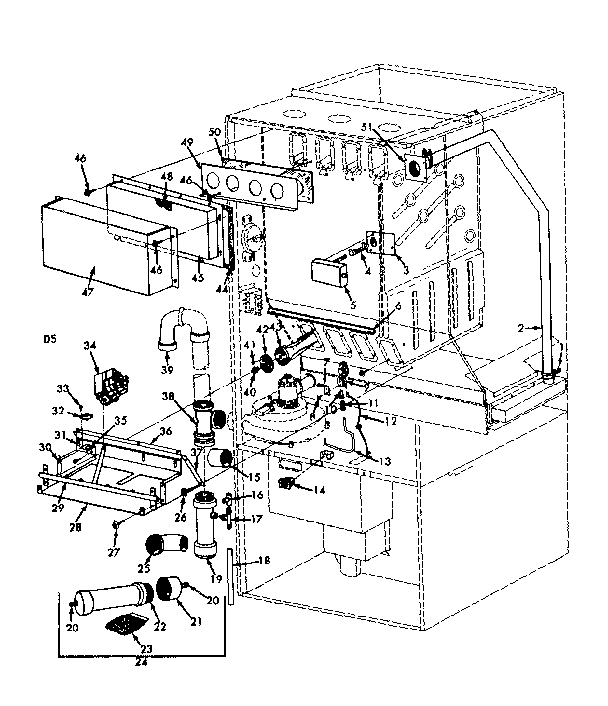

Functional replacement parts diagram

Flame sensor

Part #612921

The manufacturer no longer makes this part, and there's no substitute part

Module 612920
#44A

Blower assembly diagram

Module

Part #612920

Replaced by #BG1600M51EF-1AA

?
Manufacturer substitution
This part replaces 612920. Substitute parts can look different from the original.
$191.94 |
6% OFF Phone Price : $203.94
In Stock
Furnace Blower 611878
#7

Heat exchanger diagram

Furnace blower

Part #611878

Replaced by #1011350

?
Manufacturer substitution
This part replaces 611878. Substitute parts can look different from the original.
$636.16 |
$12.00 OFF Phone Price : $648.16
In Stock
Flame Sensor 612922
#9A

Functional replacement parts diagram

Flame sensor

Part #612922

Replaced by #1149944

?
Manufacturer substitution
This part replaces 612922. Substitute parts can look different from the original.
$118.36 |
9% OFF Phone Price : $130.36
In Stock
