Model # PLHV42P8CC Official Electrolux range hood

Here are the diagrams and repair parts for Official Electrolux PLHV42P8CC range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

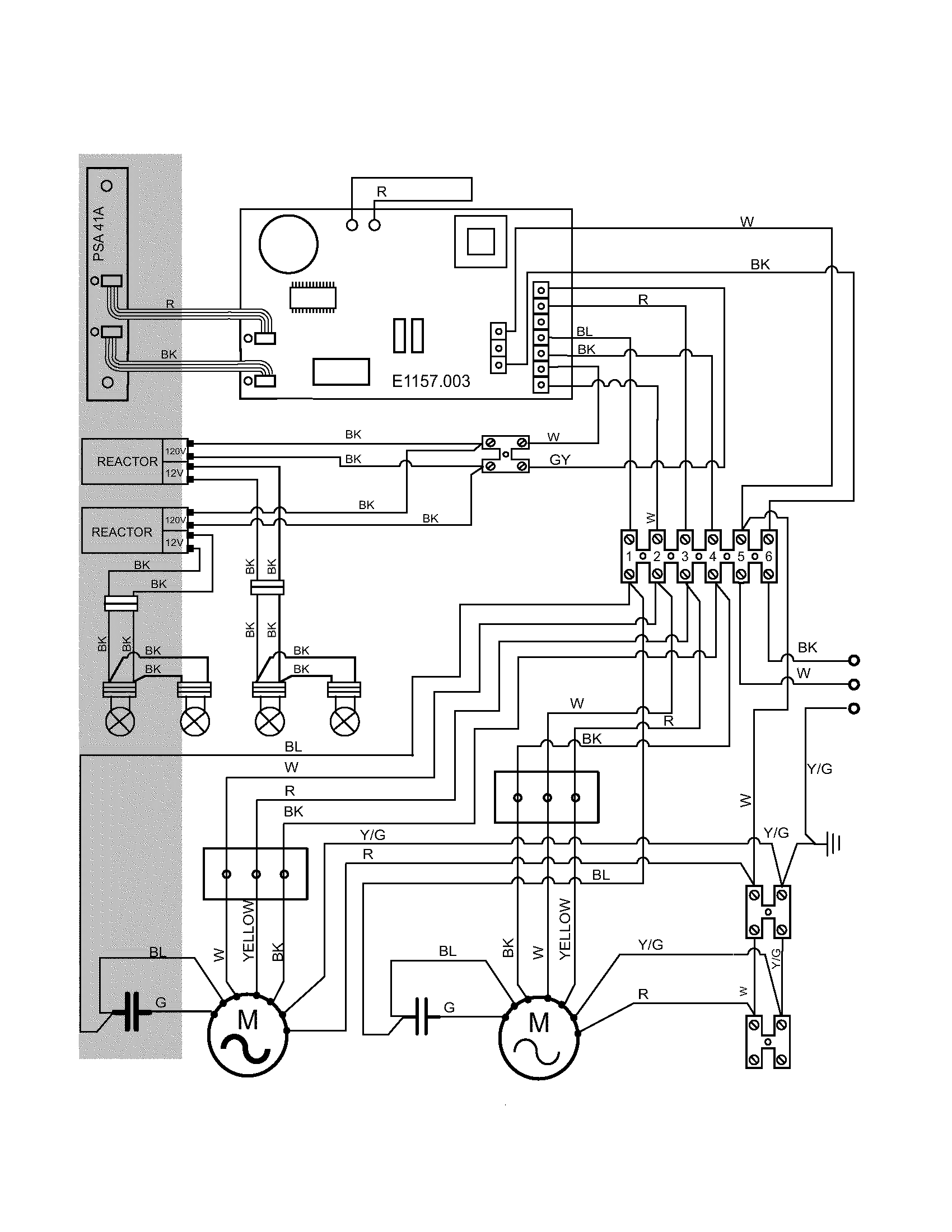

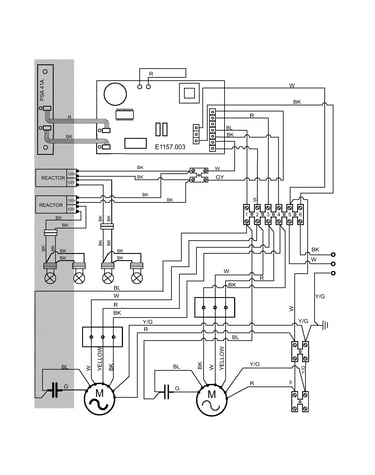

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Electrolux Control Panel 5304425266
#41

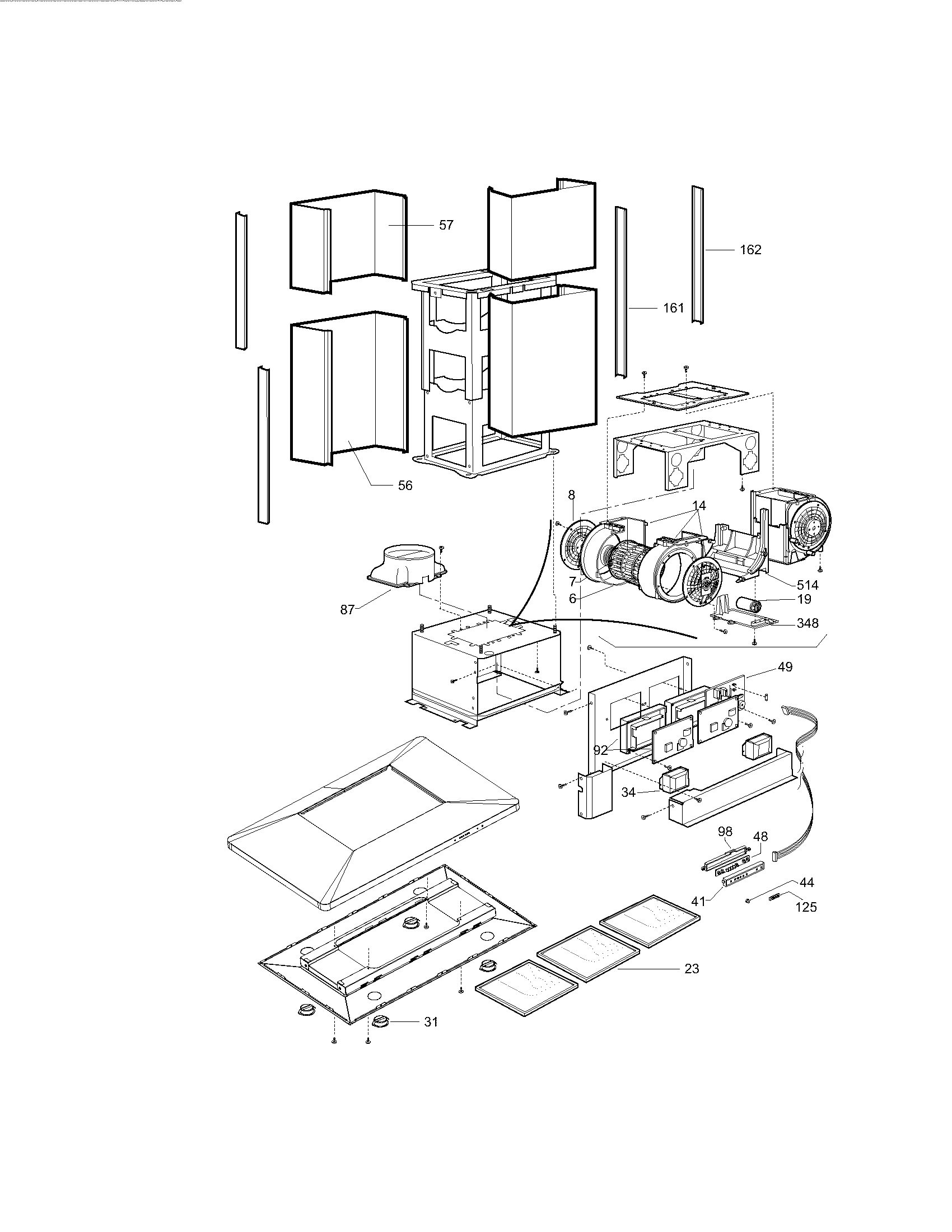

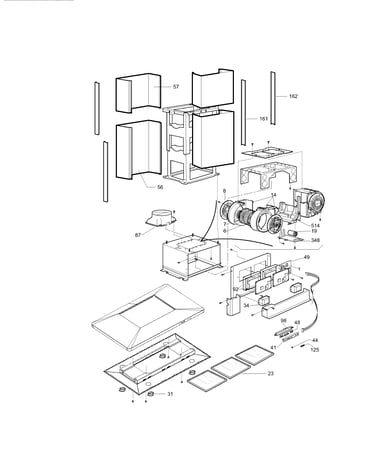

Replacement parts diagram

Electrolux control panel

Part #5304425266

$54.85
In Stock
Cover 5304425277
#125

Replacement parts diagram

Cover

Part #5304425277

The manufacturer no longer makes this part, and there's no substitute part

Cover 5304425276
#98

Replacement parts diagram

Cover

Part #5304425276

The manufacturer no longer makes this part, and there's no substitute part

Transformer 5304435068
#34

Replacement parts diagram

Transformer

Part #5304435068

The manufacturer no longer makes this part, and there's no substitute part

Module 5304425269
#49

Replacement parts diagram

Module

Part #5304425269

The manufacturer no longer makes this part, and there's no substitute part

Up Duct Covr 5304435070
#57

Replacement parts diagram

Up duct covr

Part #5304435070

The manufacturer no longer makes this part, and there's no substitute part

Molding 5304435071
#161

Replacement parts diagram

Molding

Part #5304435071

The manufacturer no longer makes this part, and there's no substitute part

Control Box 5304425274
#92

Replacement parts diagram

Control box

Part #5304425274

The manufacturer no longer makes this part, and there's no substitute part

Housing 5304425291
#514

Replacement parts diagram

Housing

Part #5304425291

The manufacturer no longer makes this part, and there's no substitute part

Halogen Bulb 5304425242
#31

Replacement parts diagram

Halogen bulb

Part #5304425242

The manufacturer no longer makes this part, and there's no substitute part
