Model # 38BYG024 SERIES300 Official Carrier heat pump

Here are the diagrams and repair parts for Official Carrier 38BYG024-SERIES300 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |

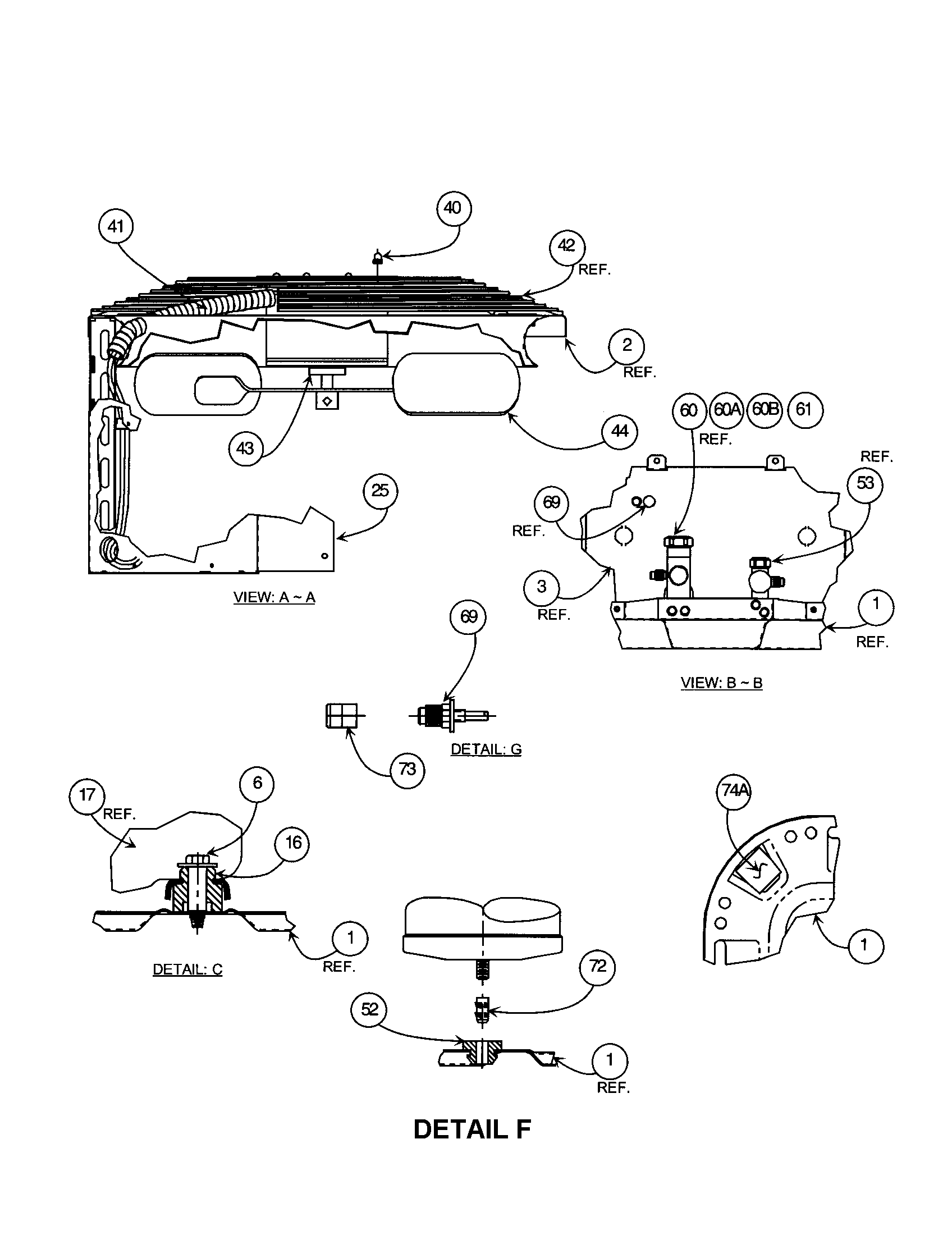

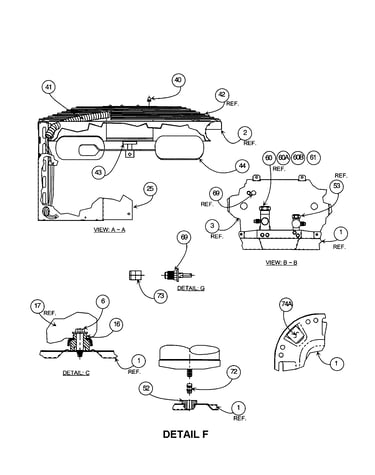

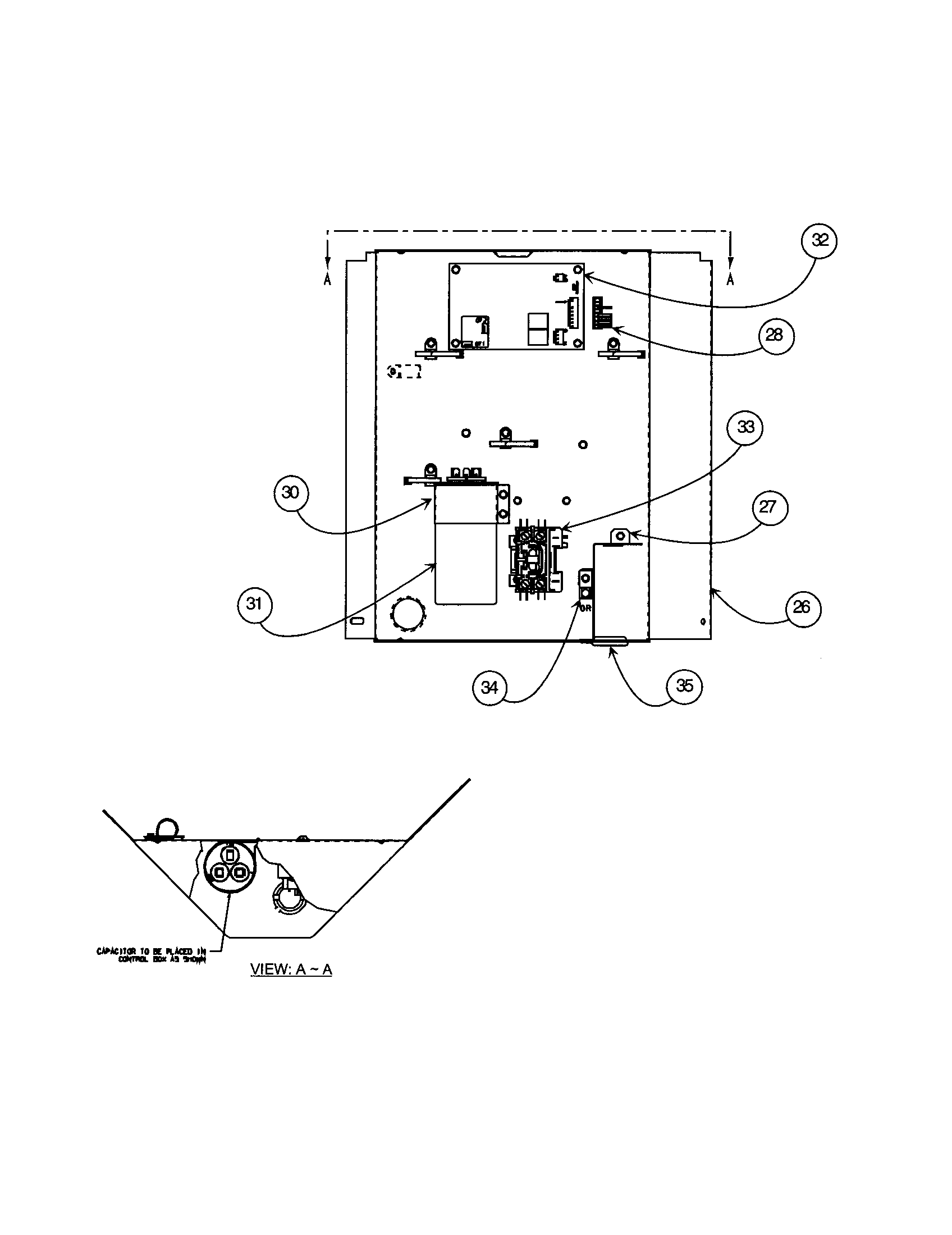

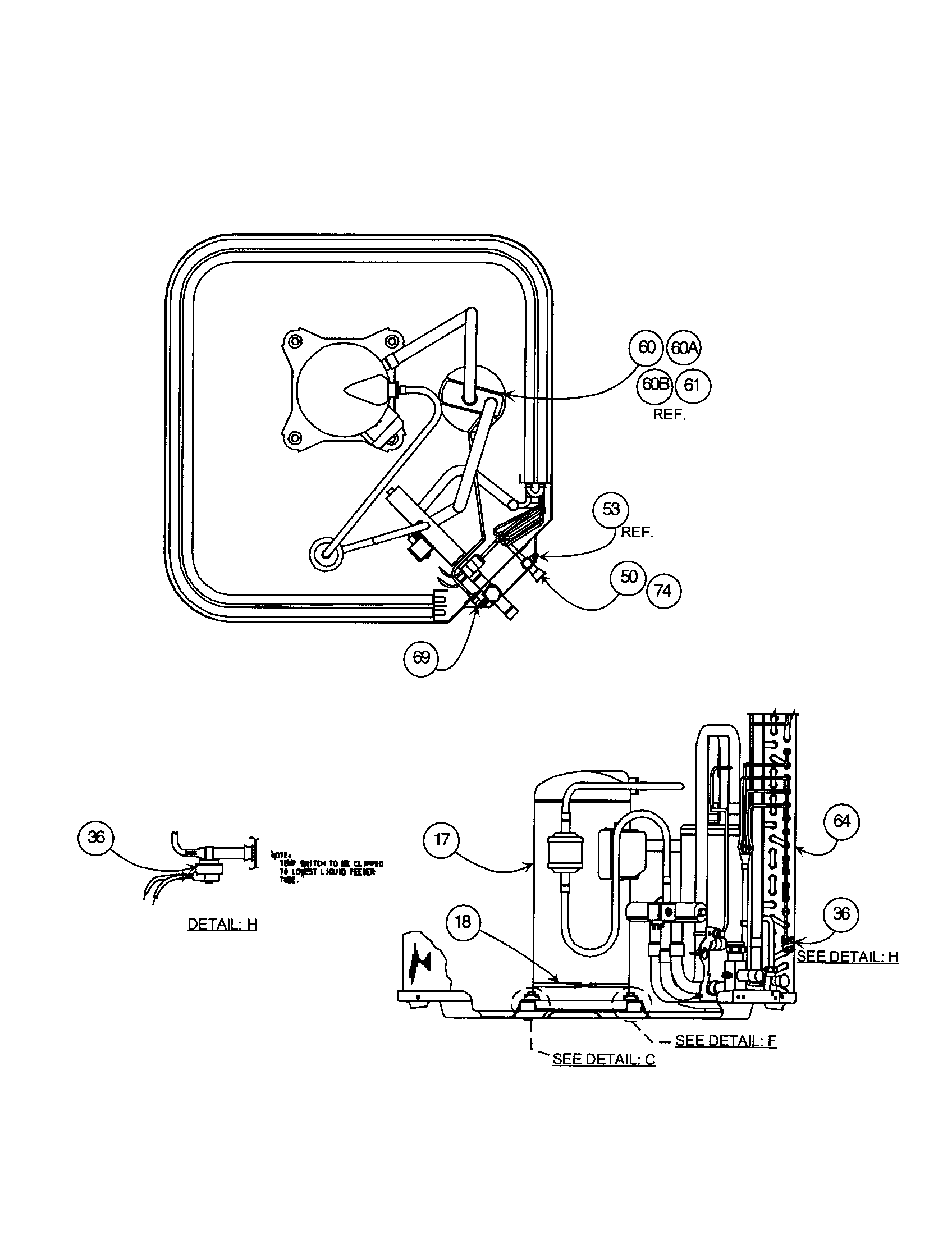

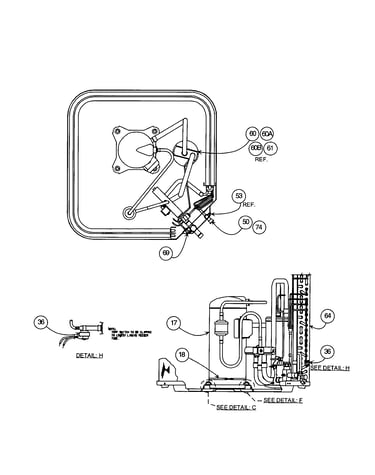

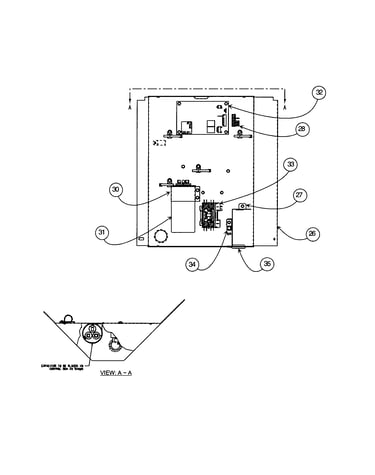

Contactor HN51KB024

#33

All parts diagram

Contactor

Part #HN51KB024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51KB024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Central Air Conditioner Start Capacitor (replaces Hc95de088, P281-8805) P281-8806

#130

All parts diagram

Central air conditioner start capacitor (replaces hc95de088, p281-8805)

Part #P281-8806

$36.73
In Stock
Central Air Conditioner Condenser Fan Motor (replaces Hc376e210a) HC37GE210

#43

All parts diagram

Central air conditioner condenser fan motor (replaces hc376e210a)

Part #HC37GE210

$557.77
In Stock

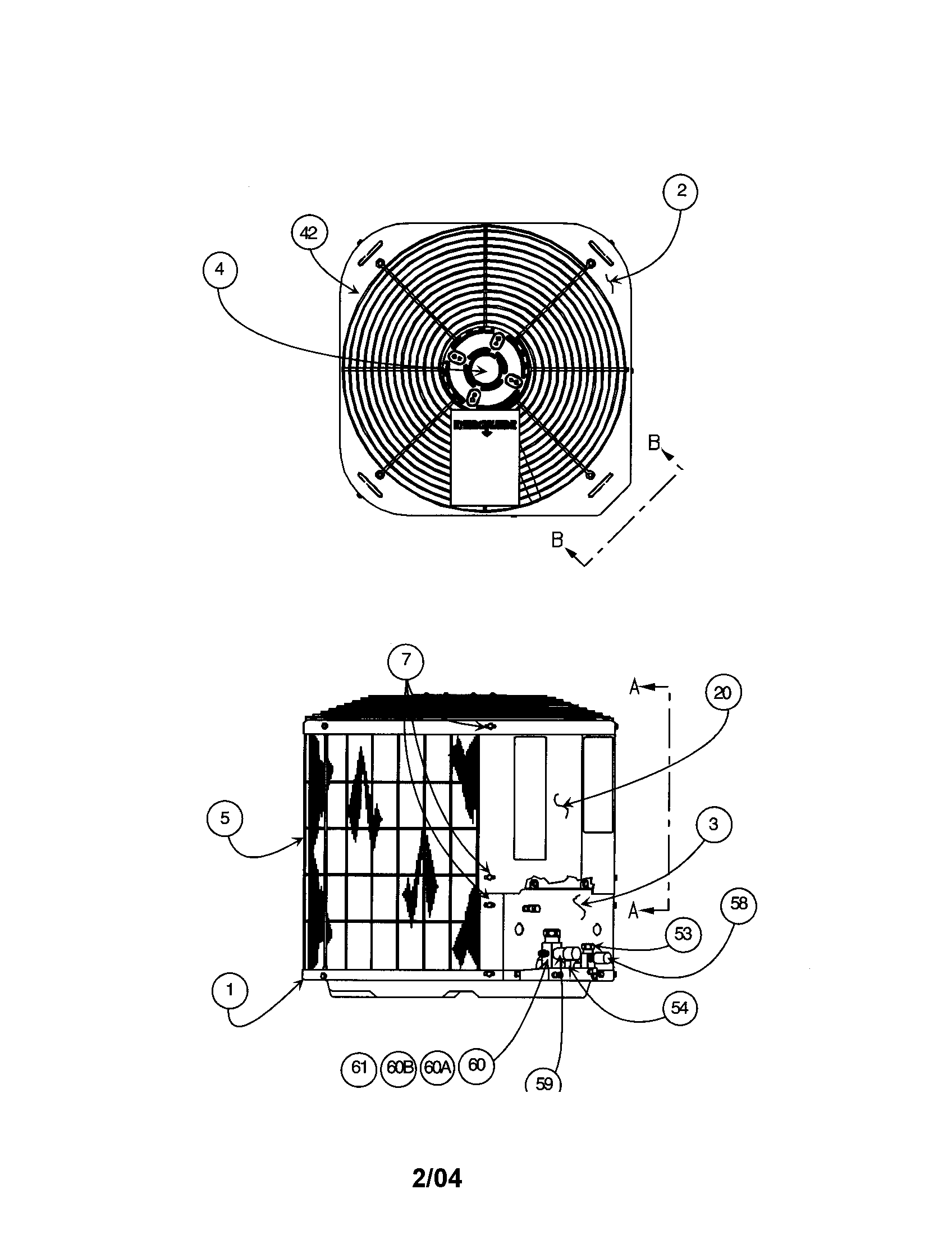

Fan Guard 323745-401

#42

All parts diagram

Fan guard

Part #323745-401

Replaced by #323745-412

?
Manufacturer substitution
This part replaces 323745-401. Substitute parts can look different from the original.
$245.56 |
5% OFF Phone Price : $257.56
In Stock
Payne Central Air Conditioner Condenser Fan Motor Control 32LT660004

#89

All parts diagram

Payne central air conditioner condenser fan motor control

Part #32LT660004

$1092.97
In Stock
Payne Box, Ctrl 317407-401

#26

All parts diagram

Payne box, ctrl

Part #317407-401

$23.53
In Stock
Strap 312256-302

#129

All parts diagram

Strap

Part #312256-302

$148.60
In Stock
Central Air Conditioner Nameplate 323761-101

#4

All parts diagram

Central air conditioner nameplate

Part #323761-101

$26.14
In Stock
Relay P283-9930

#131

All parts diagram

Relay

Part #P283-9930

$101.98
In Stock
Harness 325766-704

#22

All parts diagram

Harness

Part #325766-704

$56.13
In Stock
