Makita
Hammer Drill

Model # HP2040 Official Makita hammer drill

Here are the diagrams and repair parts for Official Makita HP2040 hammer drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Makita Gear Set 226130-1
#26

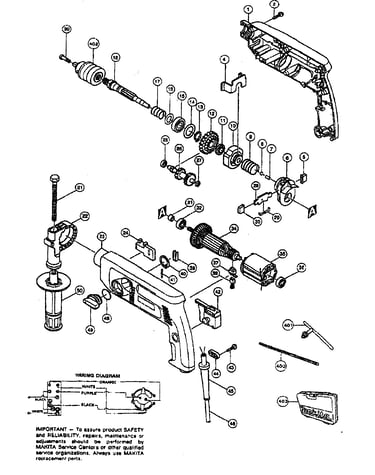

Drill assy diagram

Makita gear set

Part #226130-1

The manufacturer no longer makes this part, and there's no substitute part

Bearing 211028-5
#36

Drill assy diagram

Bearing

Part #211028-5

The manufacturer no longer makes this part, and there's no substitute part

Makita Spring 232134-3
#29

Drill assy diagram

Makita spring

Part #232134-3

The manufacturer no longer makes this part, and there's no substitute part

Ball 216001-0
#8

Drill assy diagram

Ball

Part #216001-0

The manufacturer no longer makes this part, and there's no substitute part

Makita Cam A 223118-2
#11

Drill assy diagram

Makita cam a

Part #223118-2

The manufacturer no longer makes this part, and there's no substitute part

Makita Field 115v 633346-5
#35

Drill assy diagram

Makita field 115v

Part #633346-5

The manufacturer no longer makes this part, and there's no substitute part

Makita Armature 517211-5
#34

Drill assy diagram

Makita armature

Part #517211-5

The manufacturer no longer makes this part, and there's no substitute part

Makita Chuck 763114-3
#402

Drill assy diagram

Makita chuck

Part #763114-3

The manufacturer no longer makes this part, and there's no substitute part

Rtnng Ring 961055-9
#13

Drill assy diagram

Rtnng ring

Part #961055-9

The manufacturer no longer makes this part, and there's no substitute part

Makita Chuck Key 763430-3
#401

Drill assy diagram

Makita chuck key

Part #763430-3

The manufacturer no longer makes this part, and there's no substitute part
