Model # FAH105N1T Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAH105N1T air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

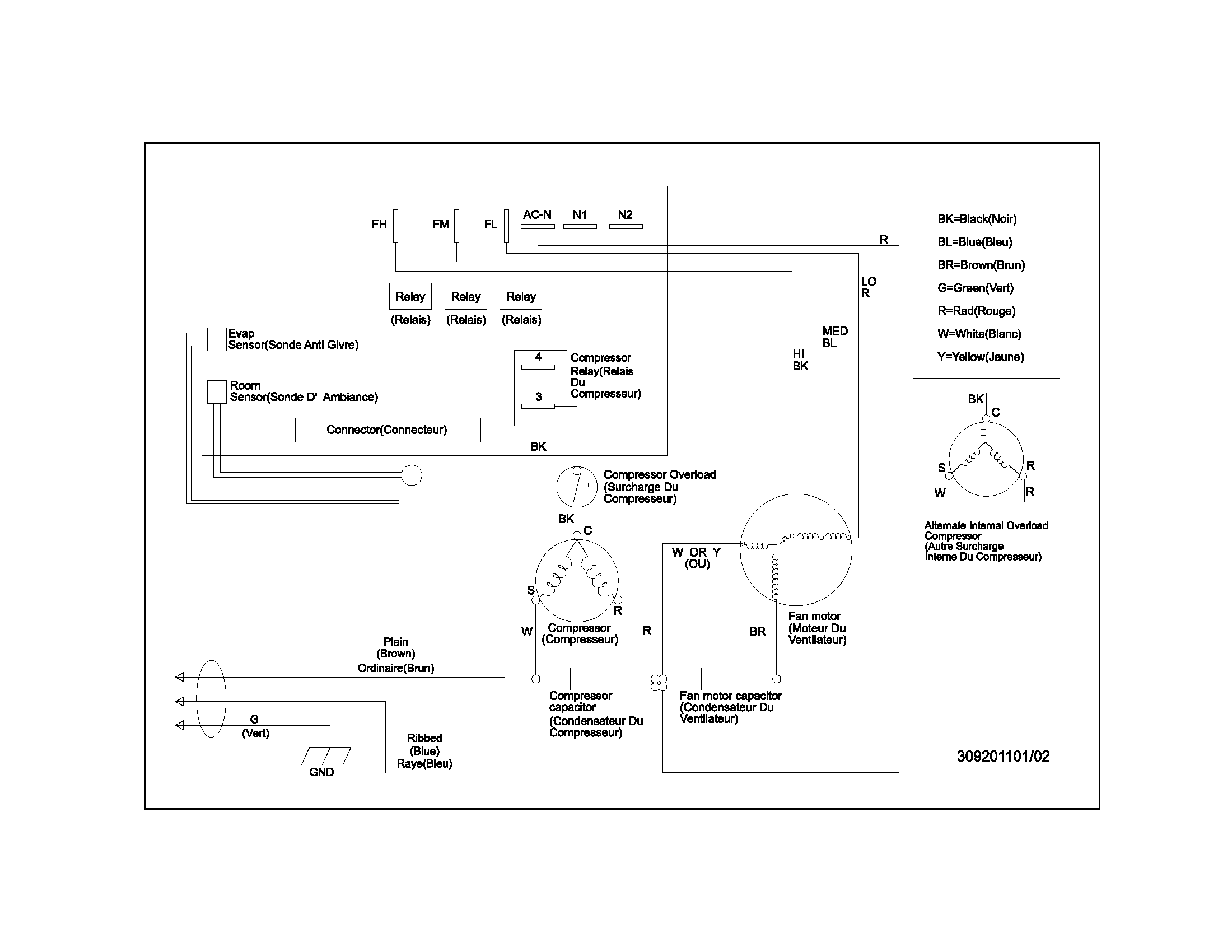

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Scroll-18.5 309622801
#36

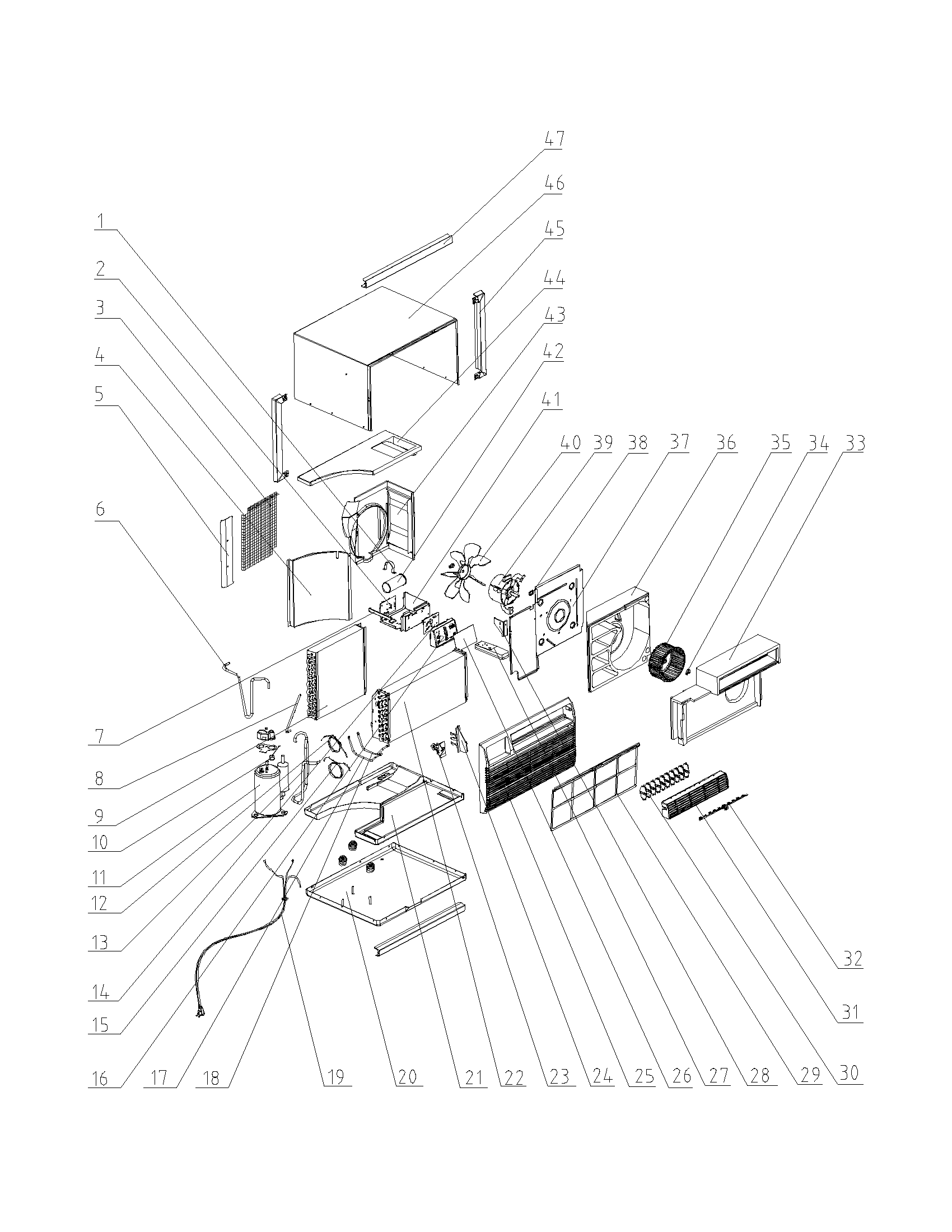

Recommended spare parts diagram

Scroll-18.5

Part #309622801

The manufacturer no longer makes this part, and there's no substitute part

Tray,evap Ba 309628705
#21

Recommended spare parts diagram

Tray,evap ba

Part #309628705

The manufacturer no longer makes this part, and there's no substitute part

Safety Scren 309636101
#3

Recommended spare parts diagram

Safety scren

Part #309636101

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Air Filter 309628204
#29

Recommended spare parts diagram

Room air conditioner air filter

Part #309628204

The manufacturer no longer makes this part, and there's no substitute part

Process Tube 5304417604
#8

Recommended spare parts diagram

Process tube

Part #5304417604

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 309632307
#9

Recommended spare parts diagram

Evaporator

Part #309632307

The manufacturer no longer makes this part, and there's no substitute part

Air Baffle 309335201
#5

Recommended spare parts diagram

Air baffle

Part #309335201

The manufacturer no longer makes this part, and there's no substitute part

Strap 5303303077
#1

Recommended spare parts diagram

Strap

Part #5303303077

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel 309631701
#35

Recommended spare parts diagram

Air conditioner blower wheel

Part #309631701

The manufacturer no longer makes this part, and there's no substitute part

Grommet Wire 309111201
#38

Recommended spare parts diagram

Grommet wire

Part #309111201

The manufacturer no longer makes this part, and there's no substitute part
