Kenmore
Canister Vacuum

Model # 20829281 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 20829281 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |

Wand 60811
#29

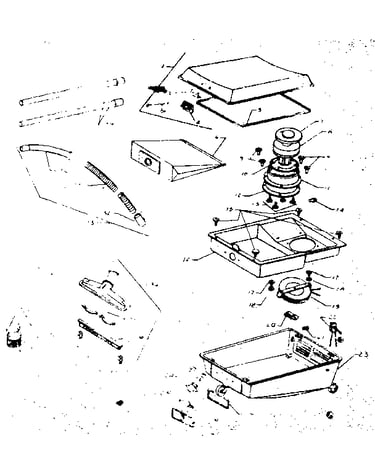

Unit parts diagram

Wand

Part #60811

The manufacturer no longer makes this part, and there's no substitute part

Wand 61738
#30

Unit parts diagram

Wand

Part #61738

The manufacturer no longer makes this part, and there's no substitute part

Switch 60845-B
#22

Unit parts diagram

Switch

Part #60845-B

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly 61753-A
#1

Unit parts diagram

Cover assembly

Part #61753-A

The manufacturer no longer makes this part, and there's no substitute part

Guard 61622-A
#5

Unit parts diagram

Guard

Part #61622-A

The manufacturer no longer makes this part, and there's no substitute part

Clip PIP-720624
#37

Unit parts diagram

Clip

Part #PIP-720624

The manufacturer no longer makes this part, and there's no substitute part

Gasket 61751
#26

Unit parts diagram

Gasket

Part #61751

The manufacturer no longer makes this part, and there's no substitute part

Filter, 1-pack 61693
#7

Unit parts diagram

Filter, 1-pack

Part #61693

The manufacturer no longer makes this part, and there's no substitute part

Screw 60641
#17

Unit parts diagram

Screw

Part #60641

The manufacturer no longer makes this part, and there's no substitute part

Dustng Brush 60815-F
#38

Unit parts diagram

Dustng brush

Part #60815-F

The manufacturer no longer makes this part, and there's no substitute part
