Countertop Microwave

Model # 2236.101 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 2236101 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

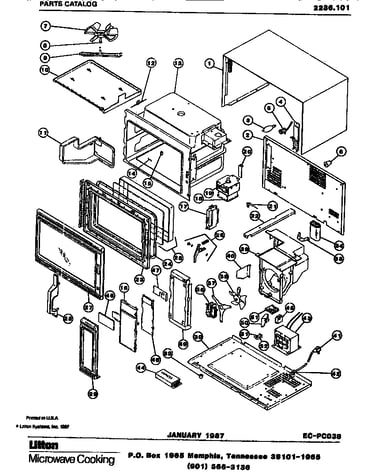

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Keps Nut 8-32 M1D763
#41C

Microwave parts diagram

Keps nut 8-32

Part #M1D763

The manufacturer no longer makes this part, and there's no substitute part

Intrusion Barrier M8D342
#47

Microwave parts diagram

Intrusion barrier

Part #M8D342

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Frame M7D813
#29A

Microwave parts diagram

Control panel frame

Part #M7D813

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Duct M65D339
#11A

Microwave parts diagram

Exhaust duct

Part #M65D339

The manufacturer no longer makes this part, and there's no substitute part

Inner Door Assembly (incl. No. 23 And 24) M70D160
#23A

Microwave parts diagram

Inner door assembly (incl. no. 23 and 24)

Part #M70D160

The manufacturer no longer makes this part, and there's no substitute part

Capacitor (.955 Mfd.) M10D118
#34

Microwave parts diagram

Capacitor (.955 mfd.)

Part #M10D118

The manufacturer no longer makes this part, and there's no substitute part

Microwave Blower Duct Assembly M65D338
#39A

Microwave parts diagram

Microwave blower duct assembly

Part #M65D338

The manufacturer no longer makes this part, and there's no substitute part

Fuse M4D34
#31

Microwave parts diagram

Fuse

Part #M4D34

The manufacturer no longer makes this part, and there's no substitute part

H.v. Lead Kit M5D350
#44B

Microwave parts diagram

H.v. lead kit

Part #M5D350

The manufacturer no longer makes this part, and there's no substitute part

Door Stop Cushion M1D239
#33C

Microwave parts diagram

Door stop cushion

Part #M1D239

The manufacturer no longer makes this part, and there's no substitute part
