Model # 2750TY101 Official Black & Decker angle grinder

Here are the diagrams and repair parts for Official Black & Decker 2750TY101 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Black & Decker Bearing 150057-00
#11

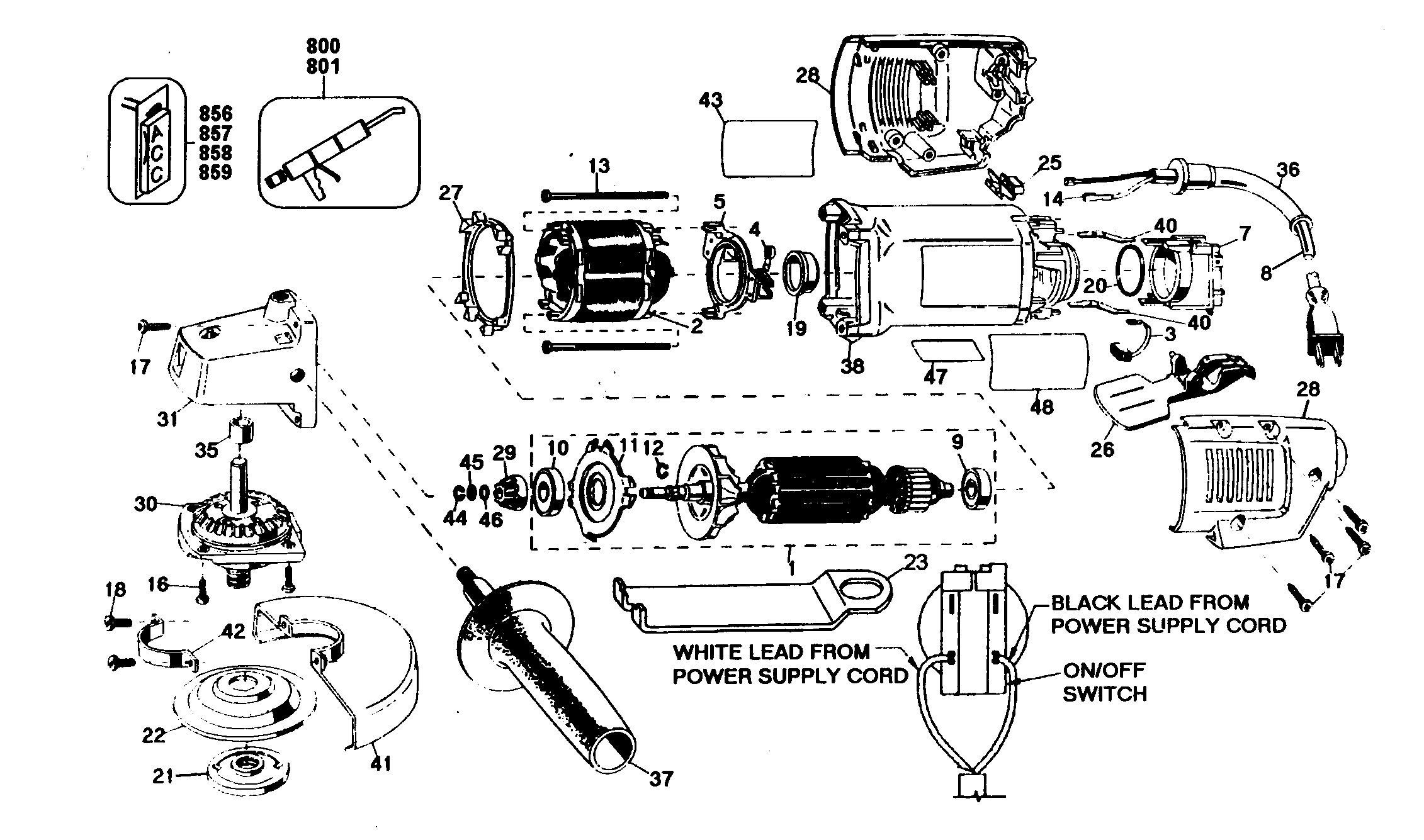

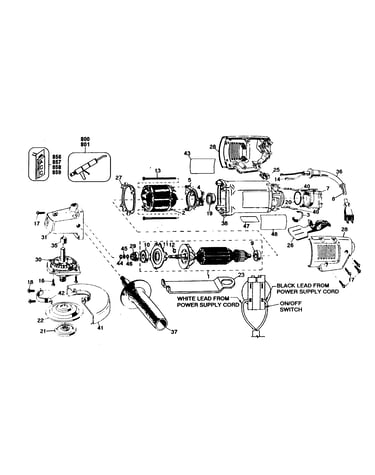

Grinder assy diagram

Black & decker bearing

Part #150057-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#36

Grinder assy diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 445217-02
#19

Grinder assy diagram

Sleeve

Part #445217-02

The manufacturer no longer makes this part, and there's no substitute part

Screw 445880-00
#13

Grinder assy diagram

Screw

Part #445880-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Guard Clamp 146954-00
#42

Grinder assy diagram

Angle grinder guard clamp

Part #146954-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Cutting Wheel Flange 51816-01
#858

Grinder assy diagram

Angle grinder cutting wheel flange

Part #51816-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Angle Grinder Wrench 149645-00
#23

Grinder assy diagram

Black & decker angle grinder wrench

Part #149645-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Grinder Gear Case 5140001-91
#30

Grinder assy diagram

Black & decker grinder gear case

Part #5140001-91

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Angle Grinder Screw, #10-32 X 1/2-in 99284-08
#18

Grinder assy diagram

Black & decker angle grinder screw, #10-32 x 1/2-in

Part #99284-08

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Screw 146929-00
#16

Grinder assy diagram

Black & decker screw

Part #146929-00

The manufacturer no longer makes this part, and there's no substitute part
