Model # S1075 Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S1075 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Armature 44765171
#16

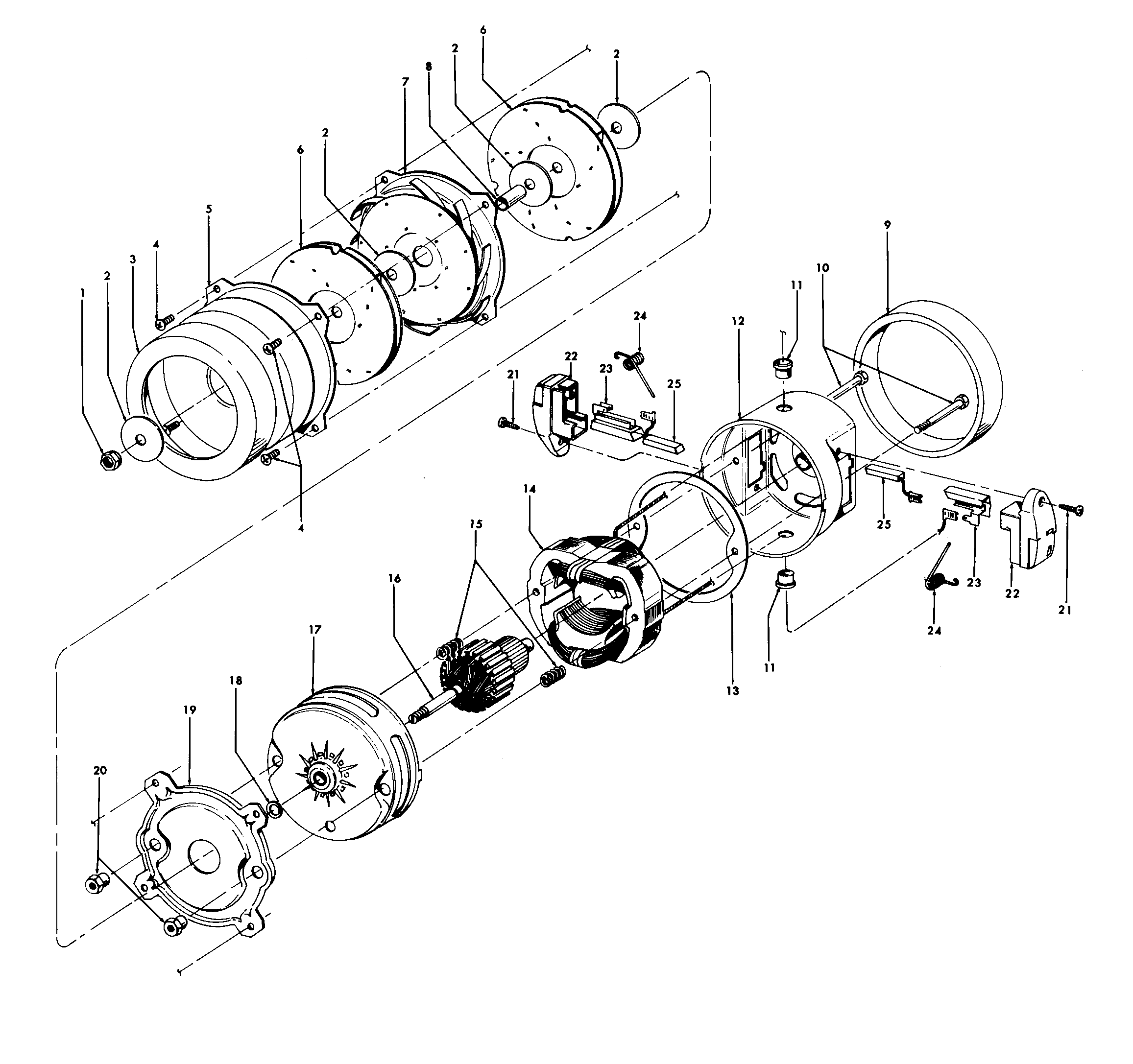

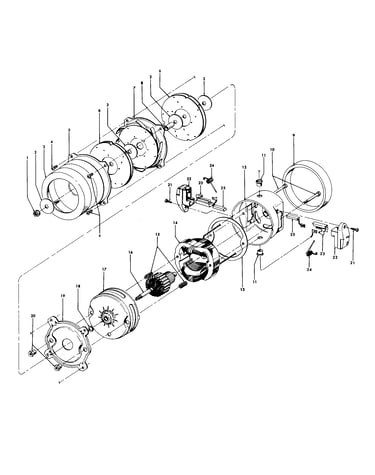

Motor assembly diagram

Armature

Part #44765171

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount 31328002
#3

Motor assembly diagram

Motor mount

Part #31328002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Diffuser 34366001
#9

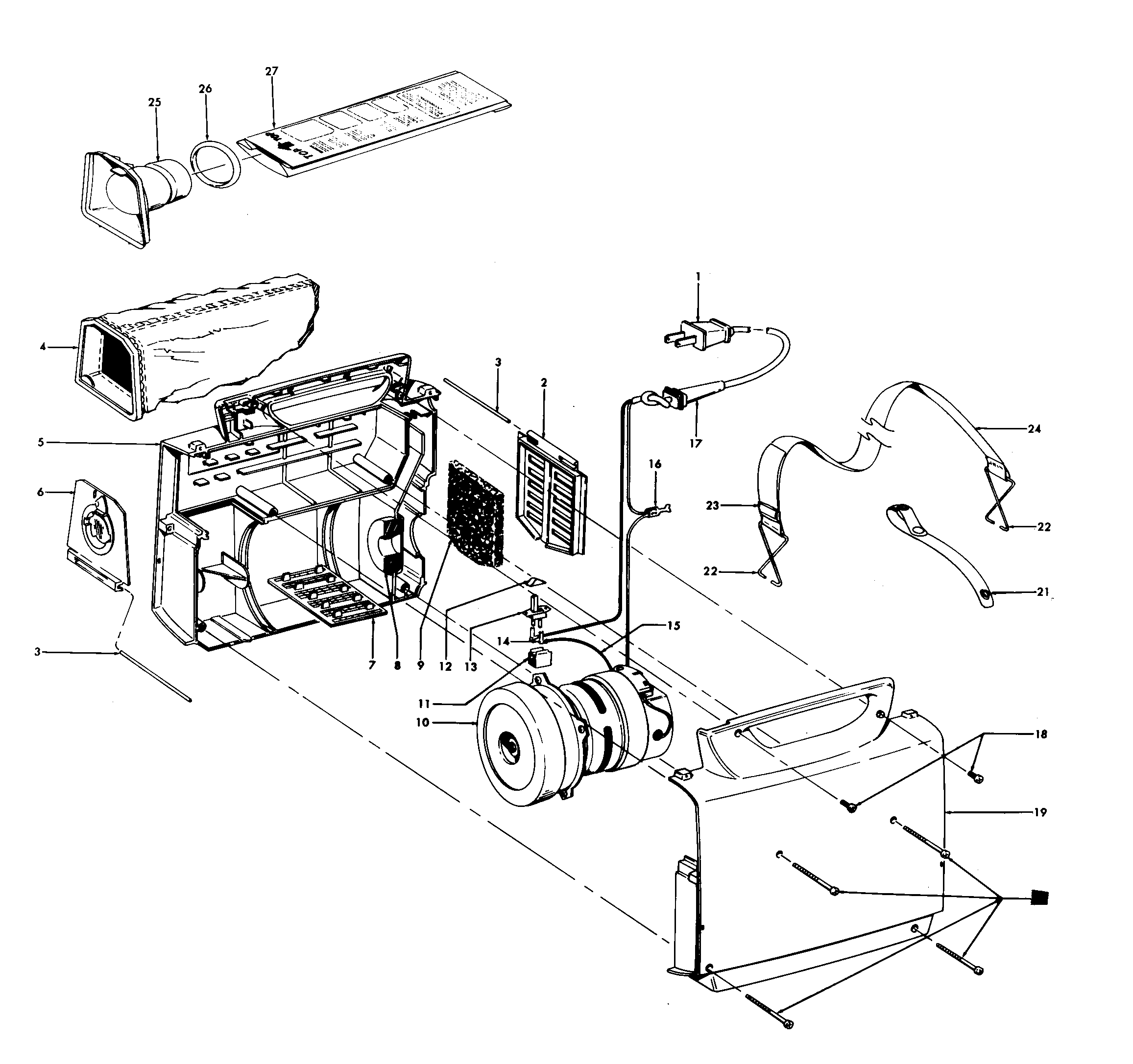

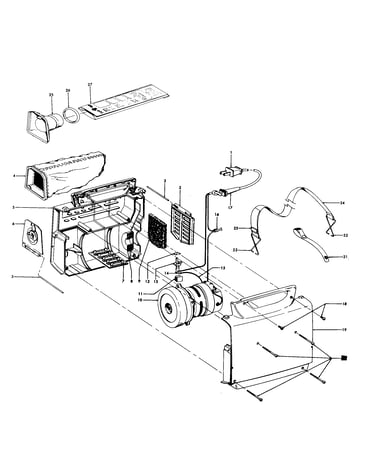

Mainhousing diagram

Vacuum diffuser

Part #34366001

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Sleeve Hose 32156010
#25

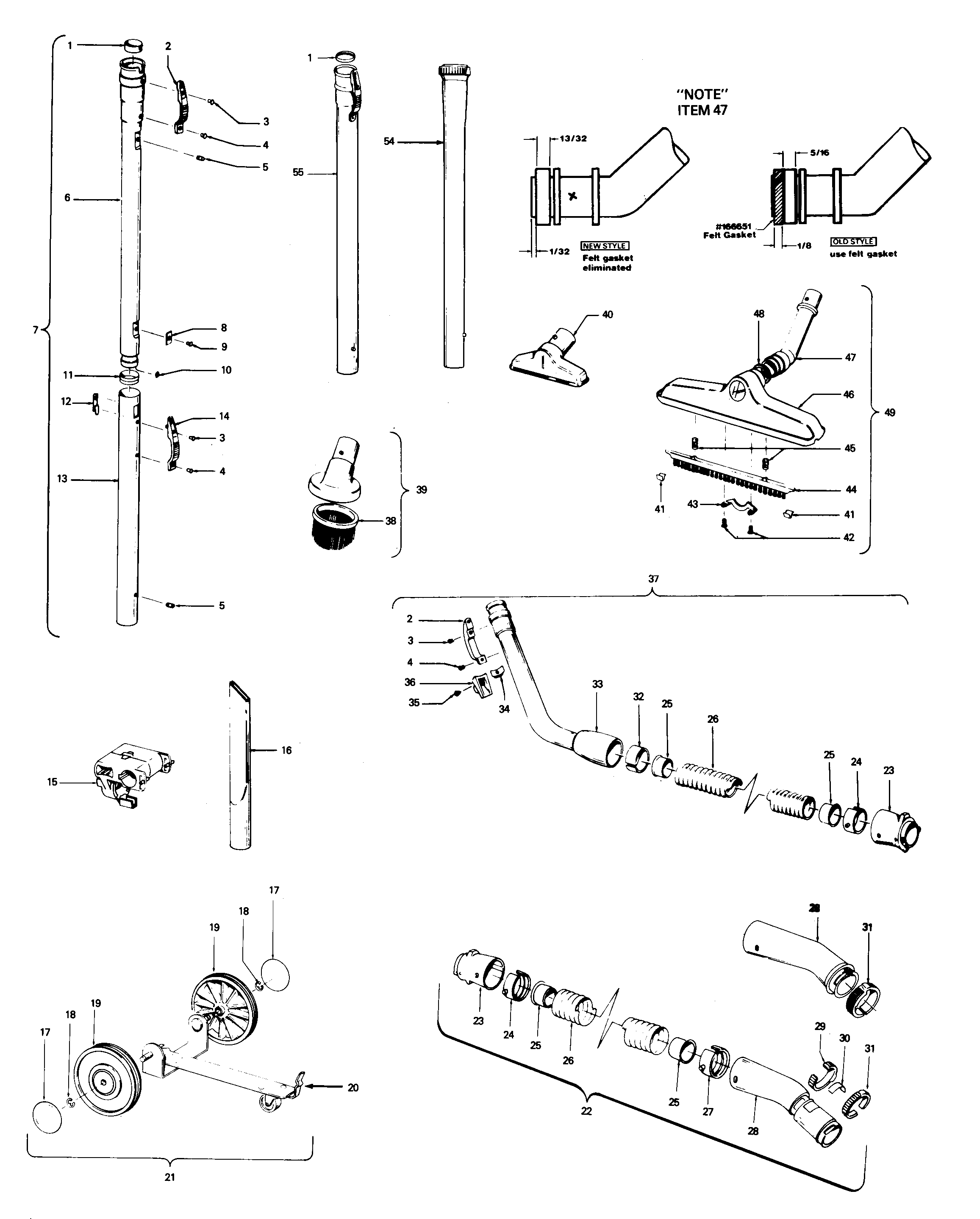

Hose, cleaningtools diagram

Kenmore sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part

Screw 21479573
#20

Mainhousing diagram

Screw

Part #21479573

The manufacturer no longer makes this part, and there's no substitute part

Spring 38353004
#24

Motor assembly diagram

Spring

Part #38353004

The manufacturer no longer makes this part, and there's no substitute part

Strap 48615001
#24

Mainhousing diagram

Strap

Part #48615001

The manufacturer no longer makes this part, and there's no substitute part

Pressure Pad 33712005
#8

Mainhousing diagram

Pressure pad

Part #33712005

The manufacturer no longer makes this part, and there's no substitute part

Shield 37922002
#11

Mainhousing diagram

Shield

Part #37922002

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Crevice Tool 38617017
#16

Hose, cleaningtools diagram

Kenmore vacuum crevice tool

Part #38617017

The manufacturer no longer makes this part, and there's no substitute part
