Digital Camcorder

Model # ELURA60A Official Canon digital video camera

Here are the diagrams and repair parts for Official Canon ELURA60A digital video camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

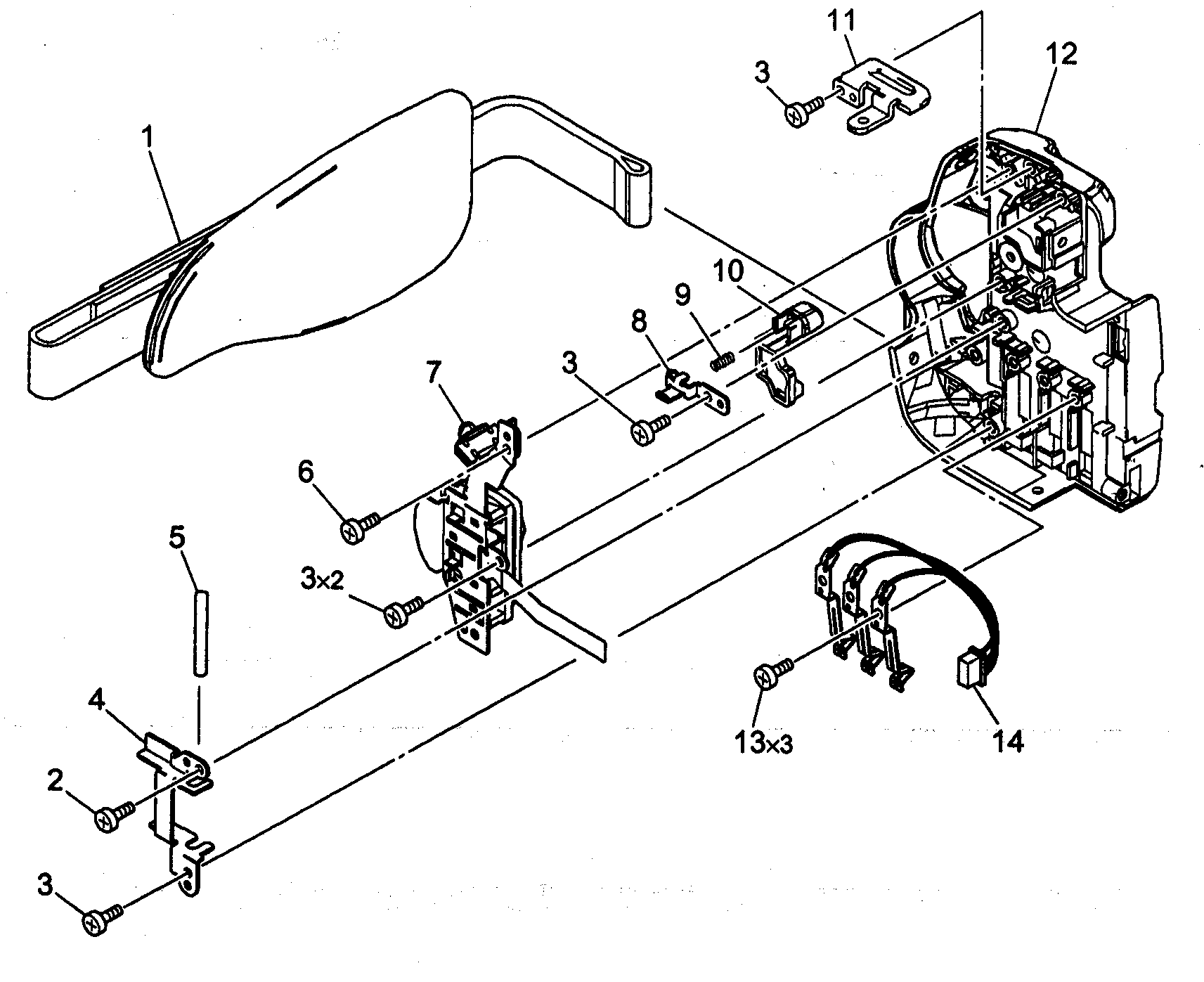

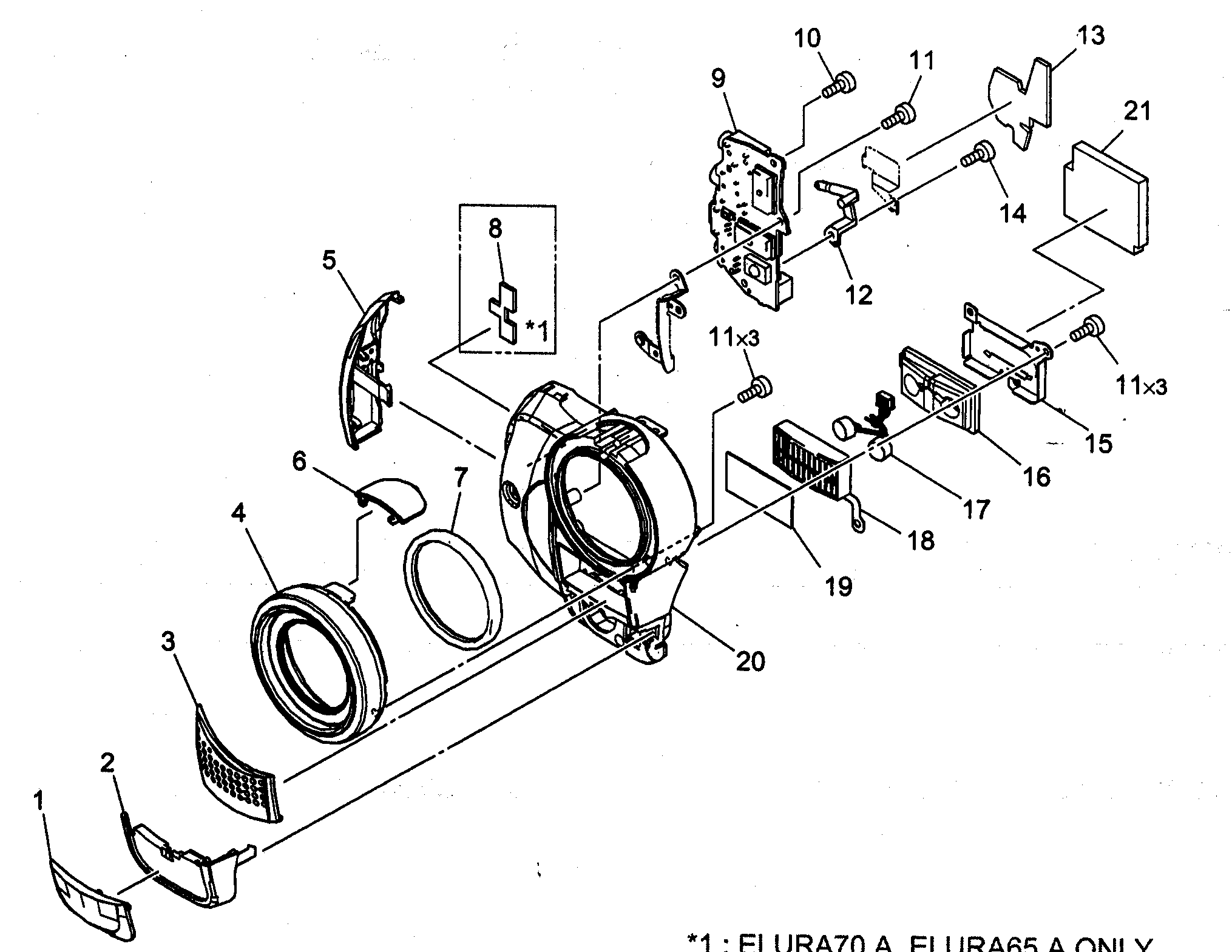

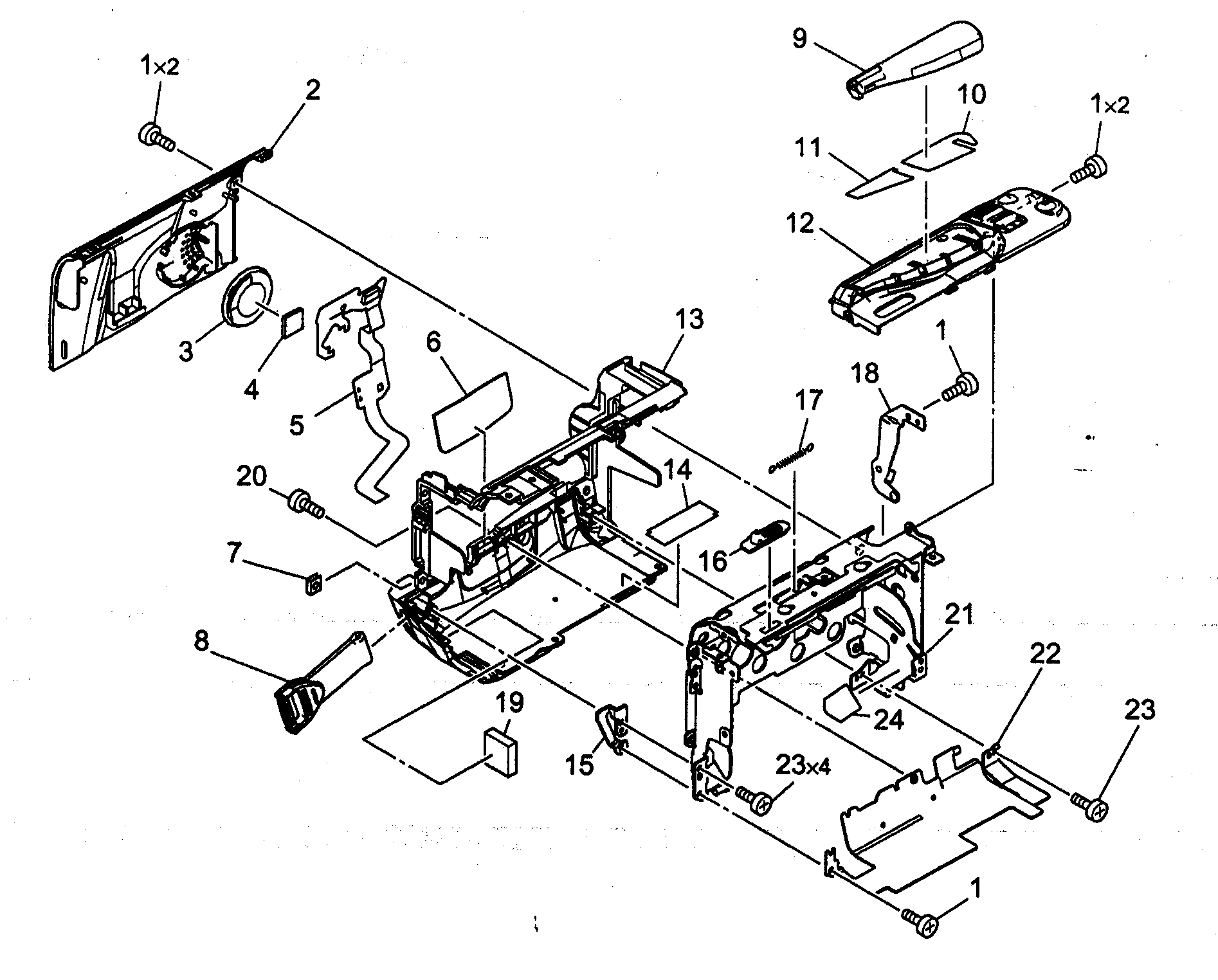

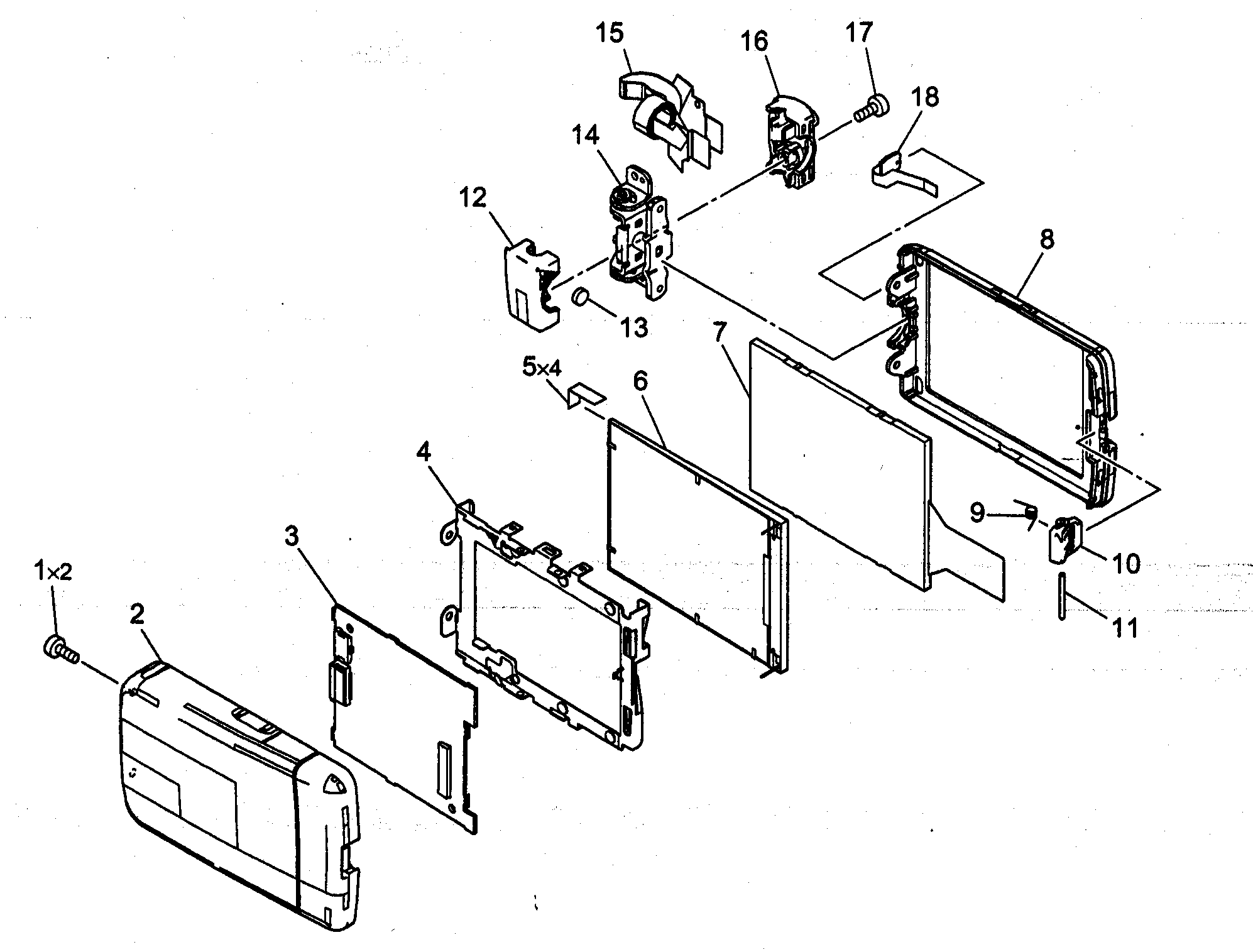

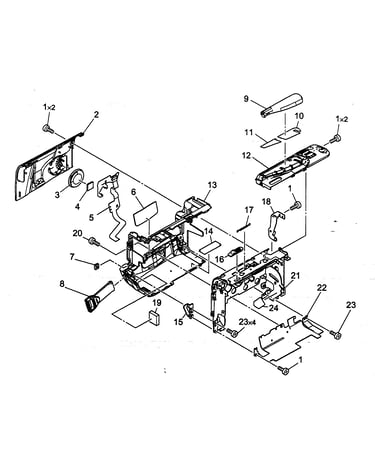

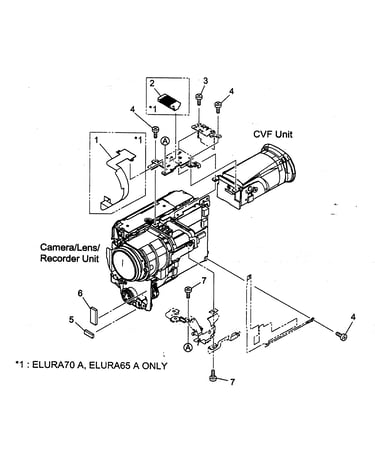

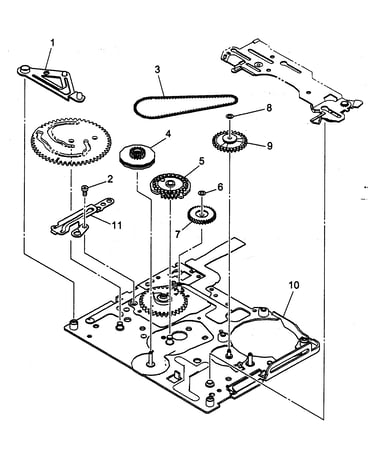

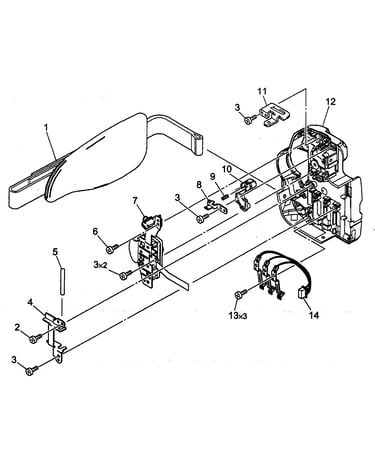

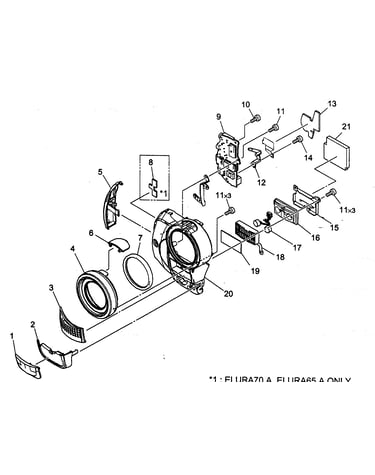

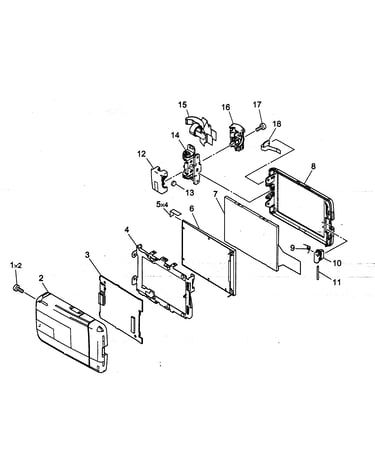

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Drum Assembly DY1-8500-000
#4

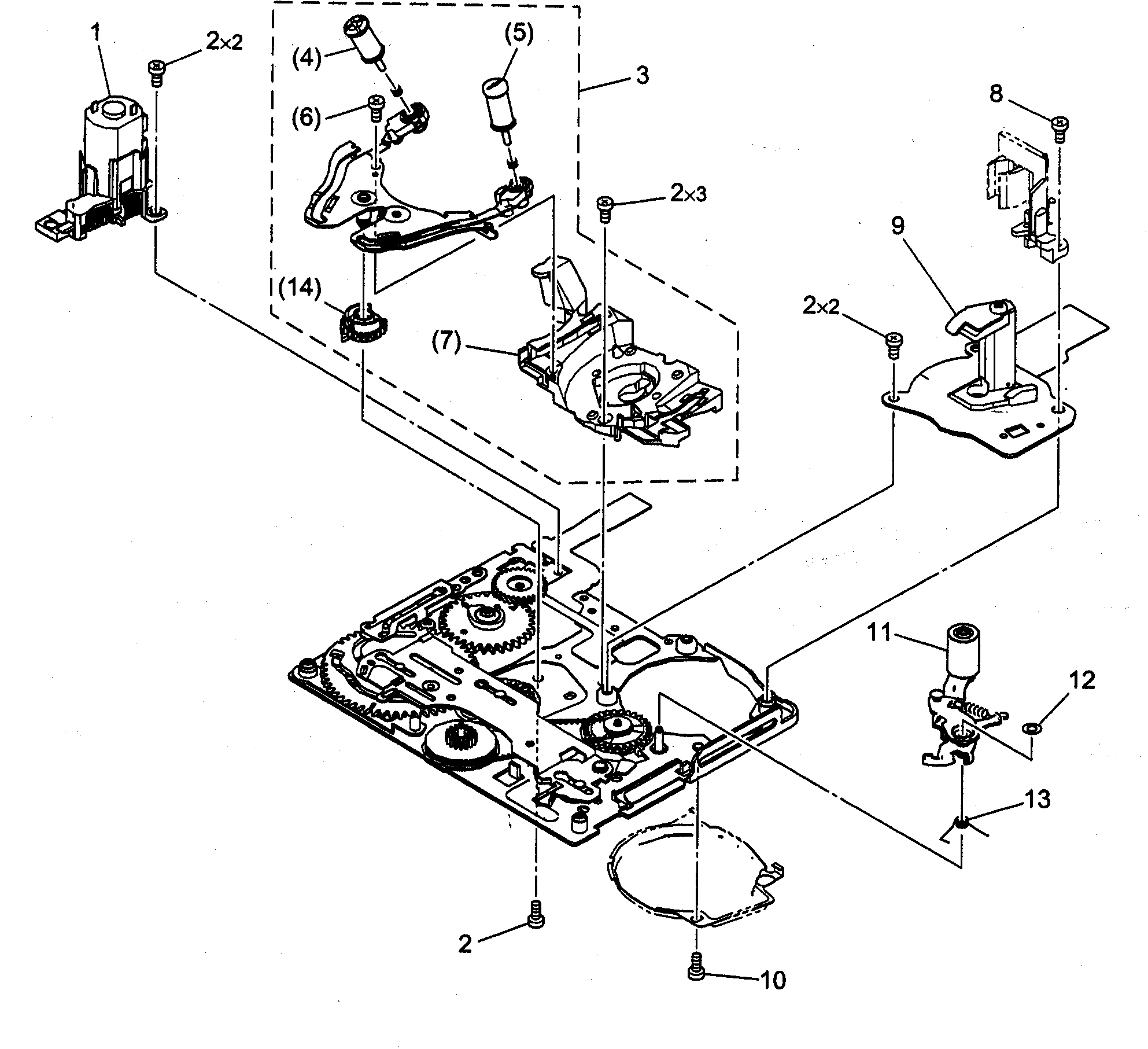

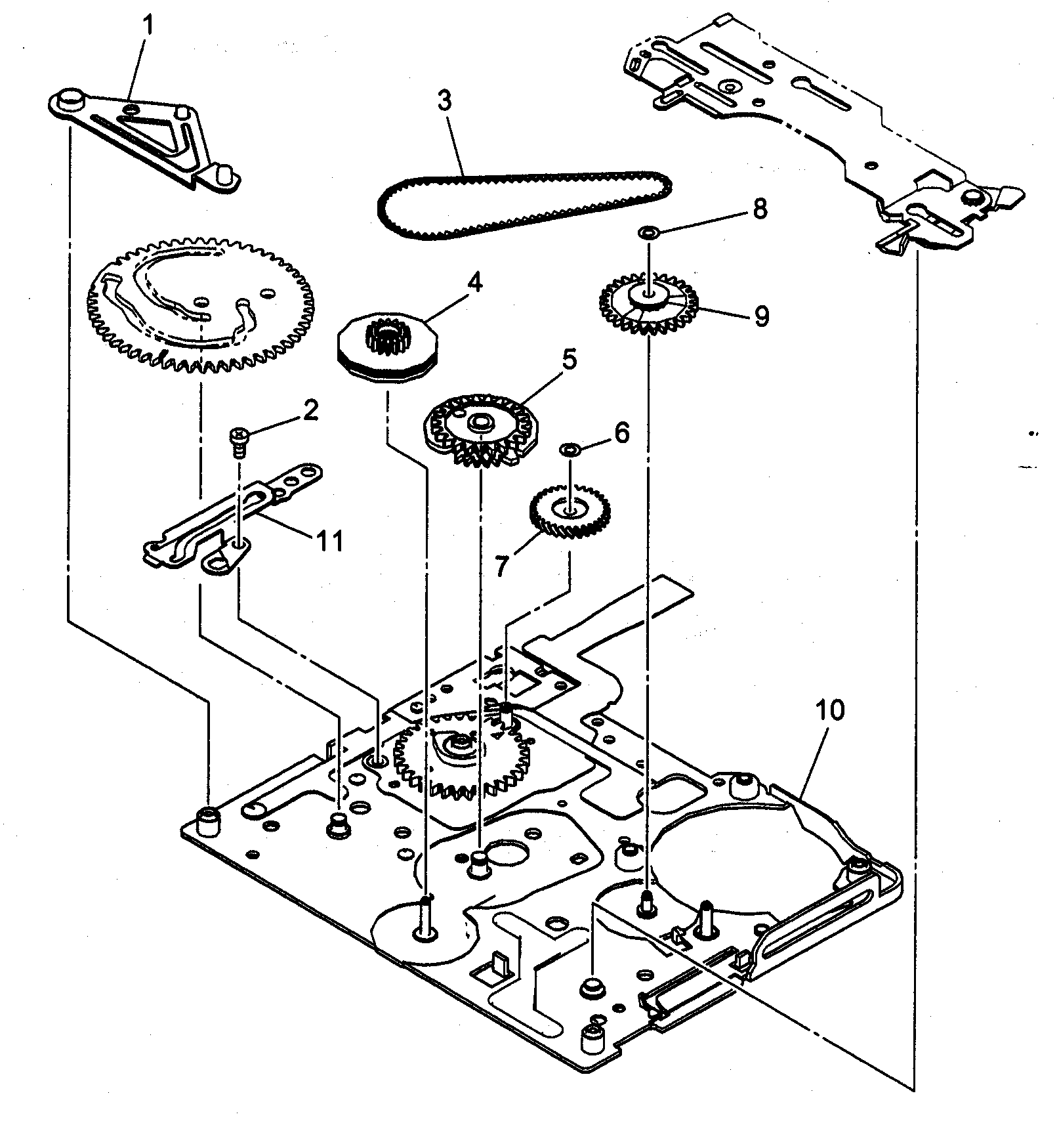

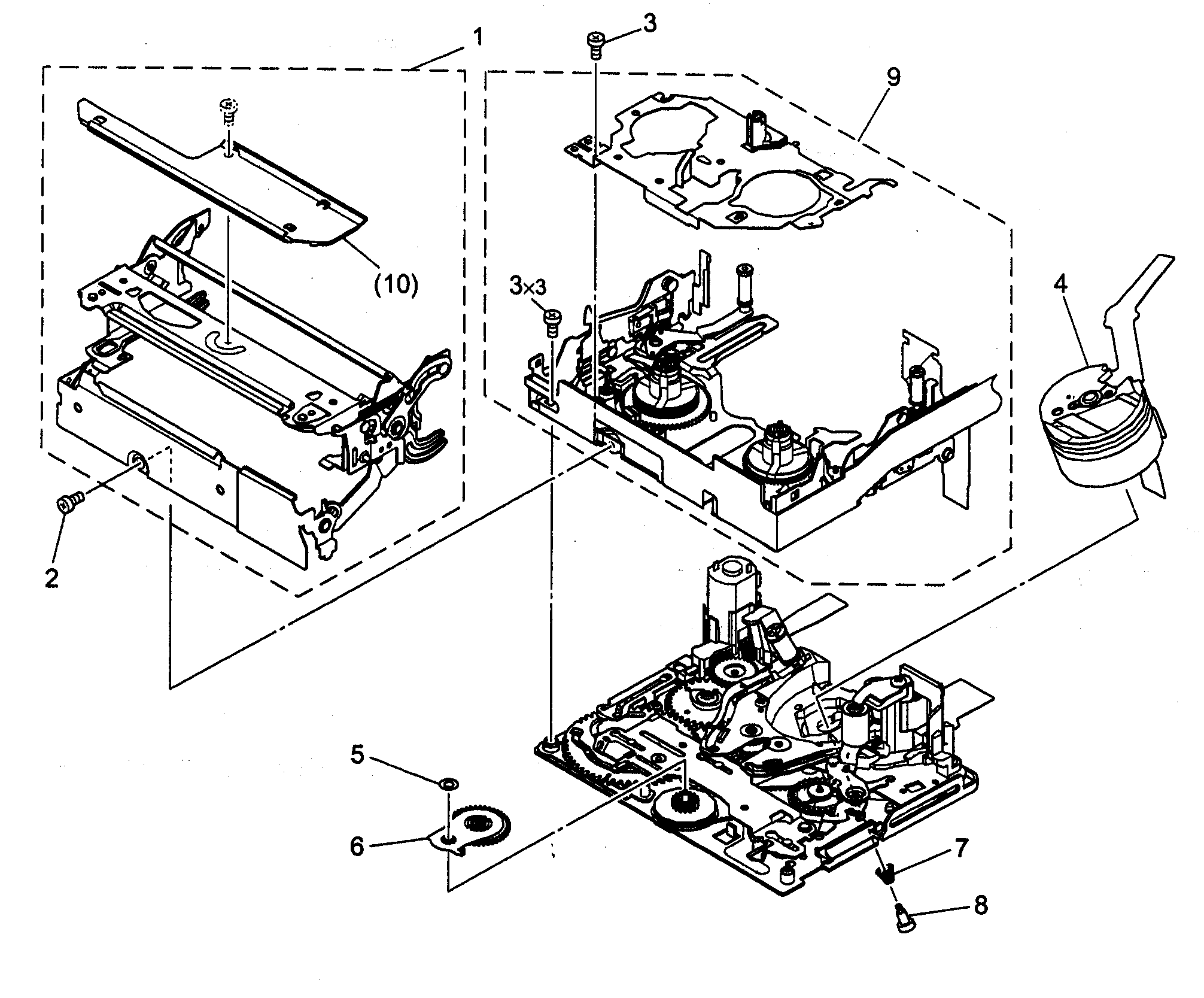

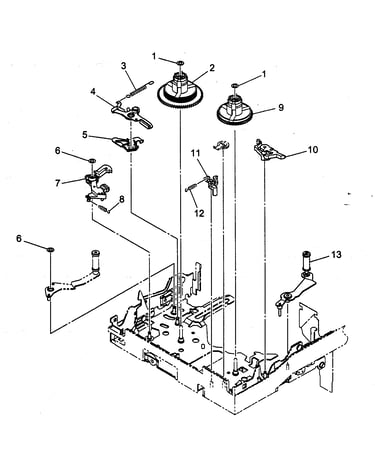

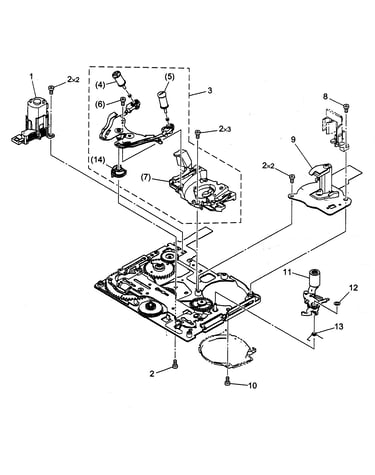

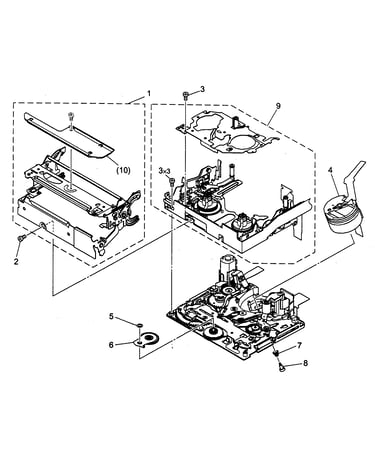

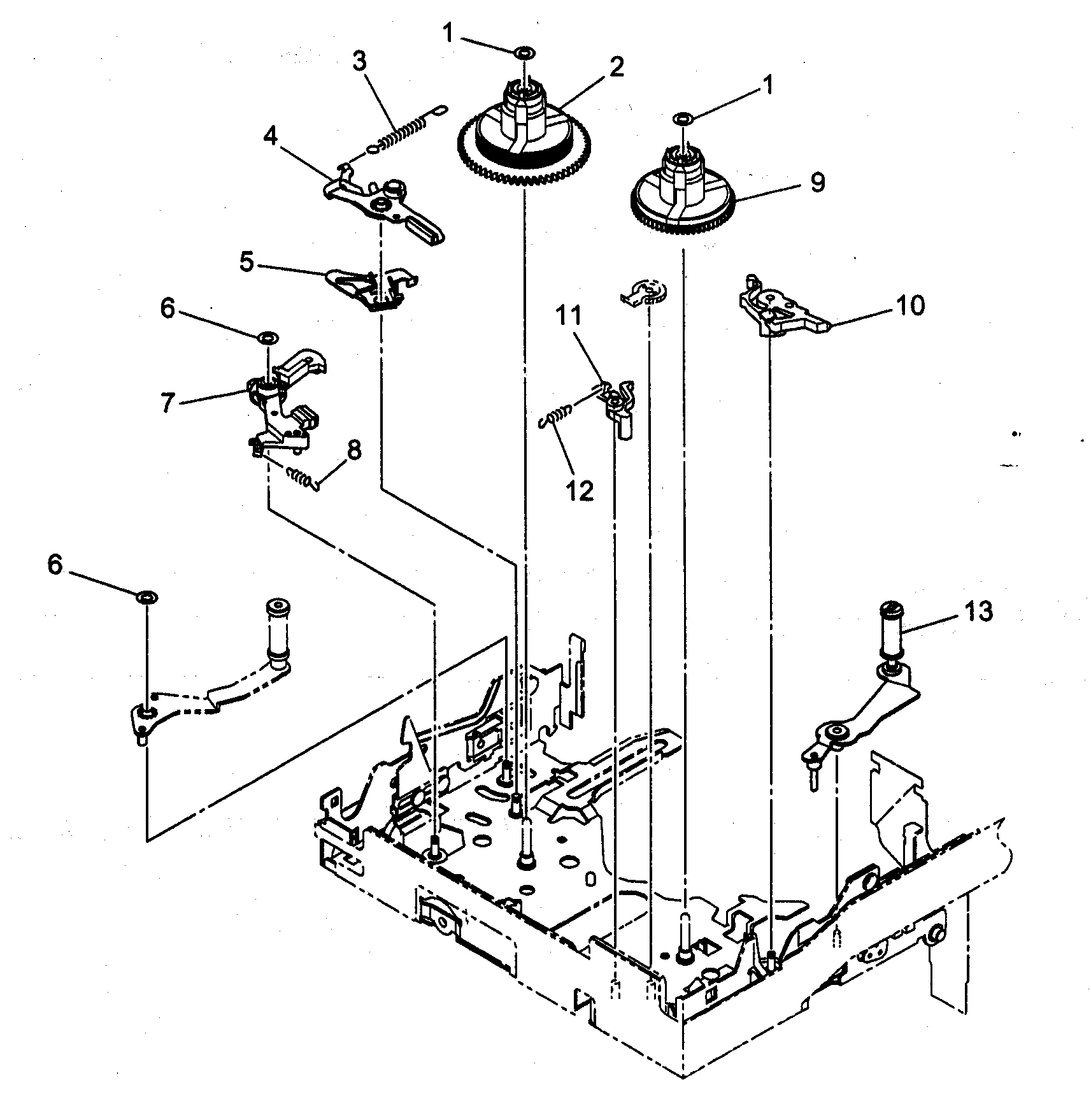

Mechanical chassis 1 diagram

Drum assembly

Part #DY1-8500-000

The manufacturer no longer makes this part, and there's no substitute part

Capacitor DA3-2338-000
#3

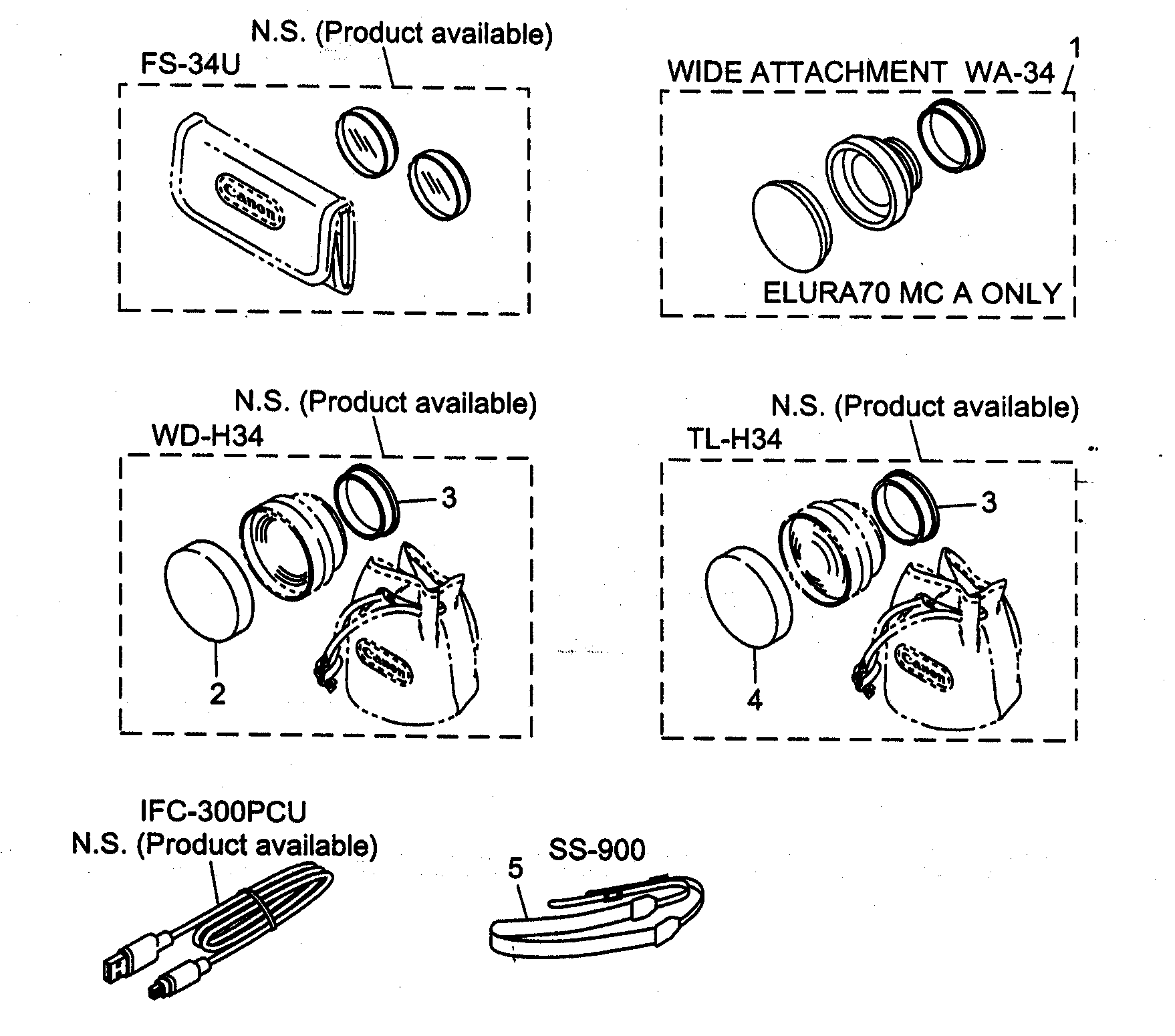

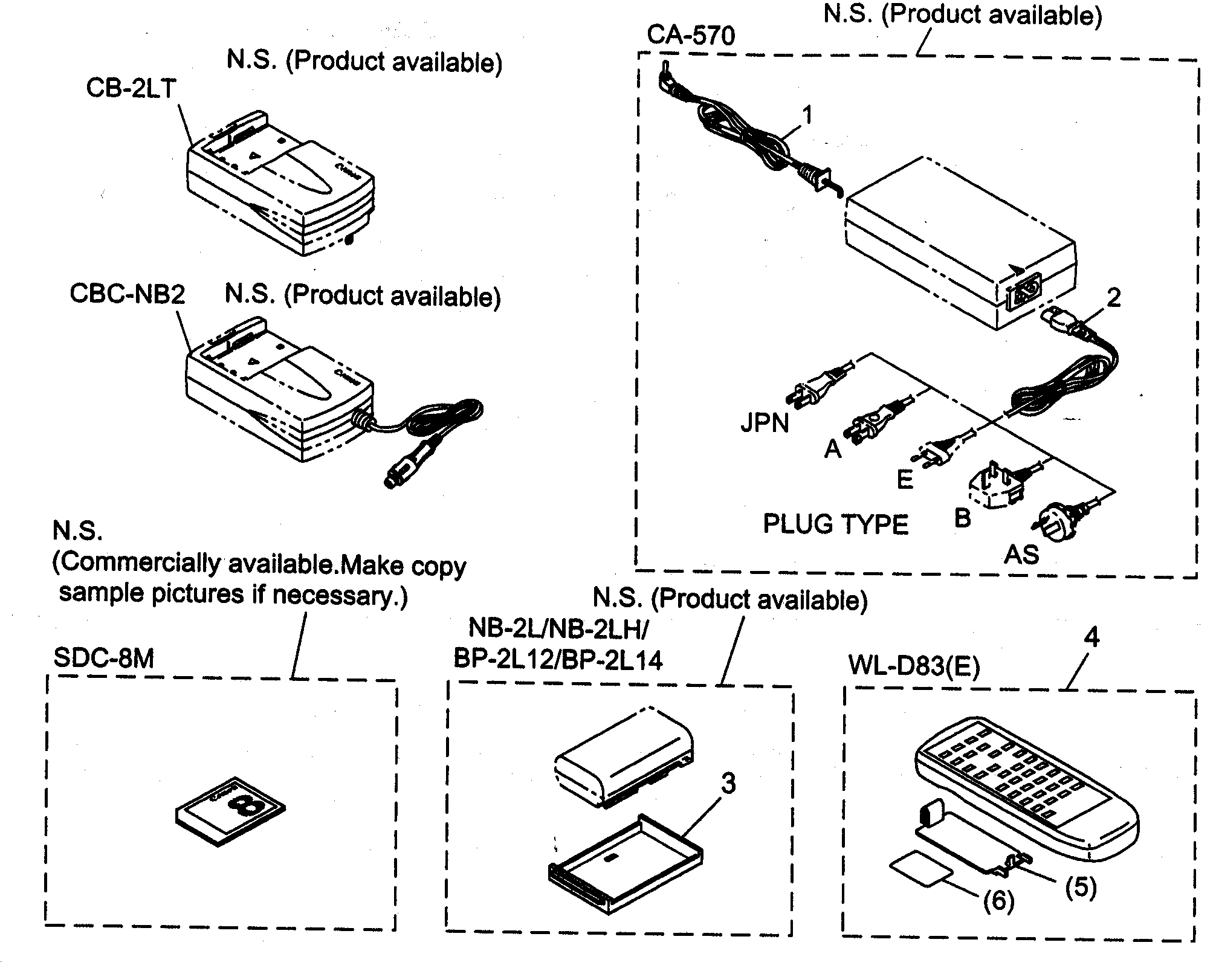

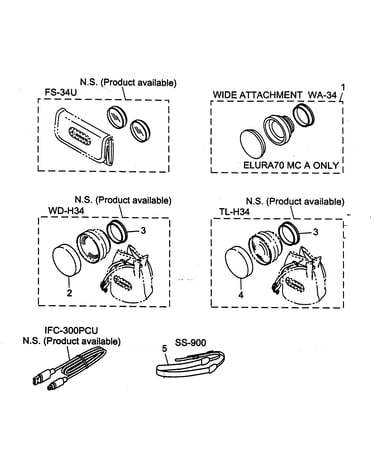

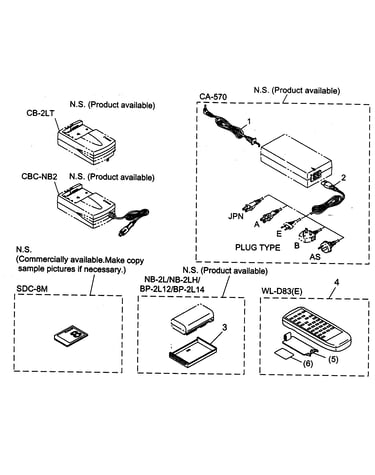

Accessory 2 diagram

Capacitor

Part #DA3-2338-000

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Assembly DY1-8671-000
#3

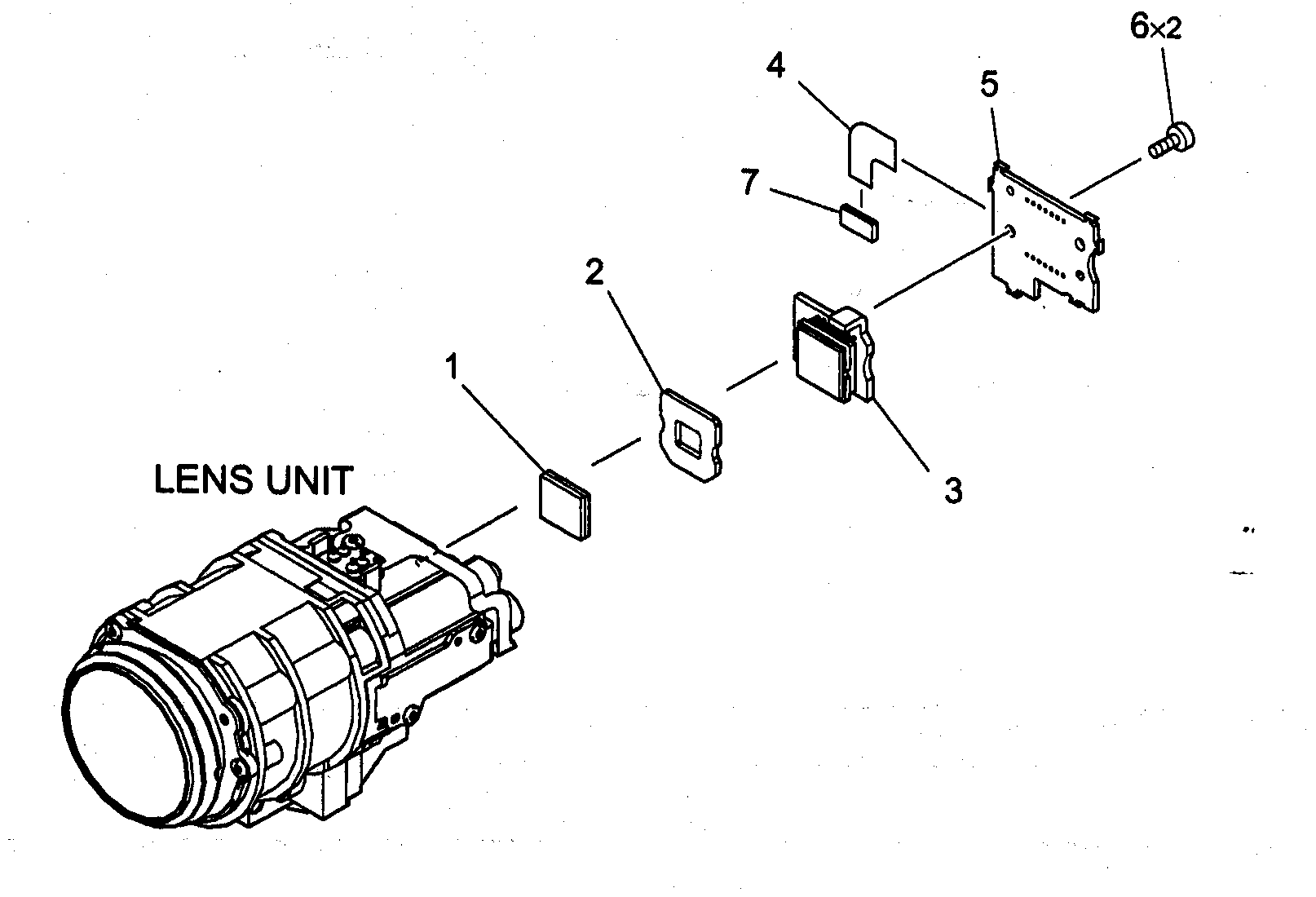

Camera assy diagram

Camcorder assembly

Part #DY1-8671-000

The manufacturer no longer makes this part, and there's no substitute part

Holder DA3-1439-000
#15

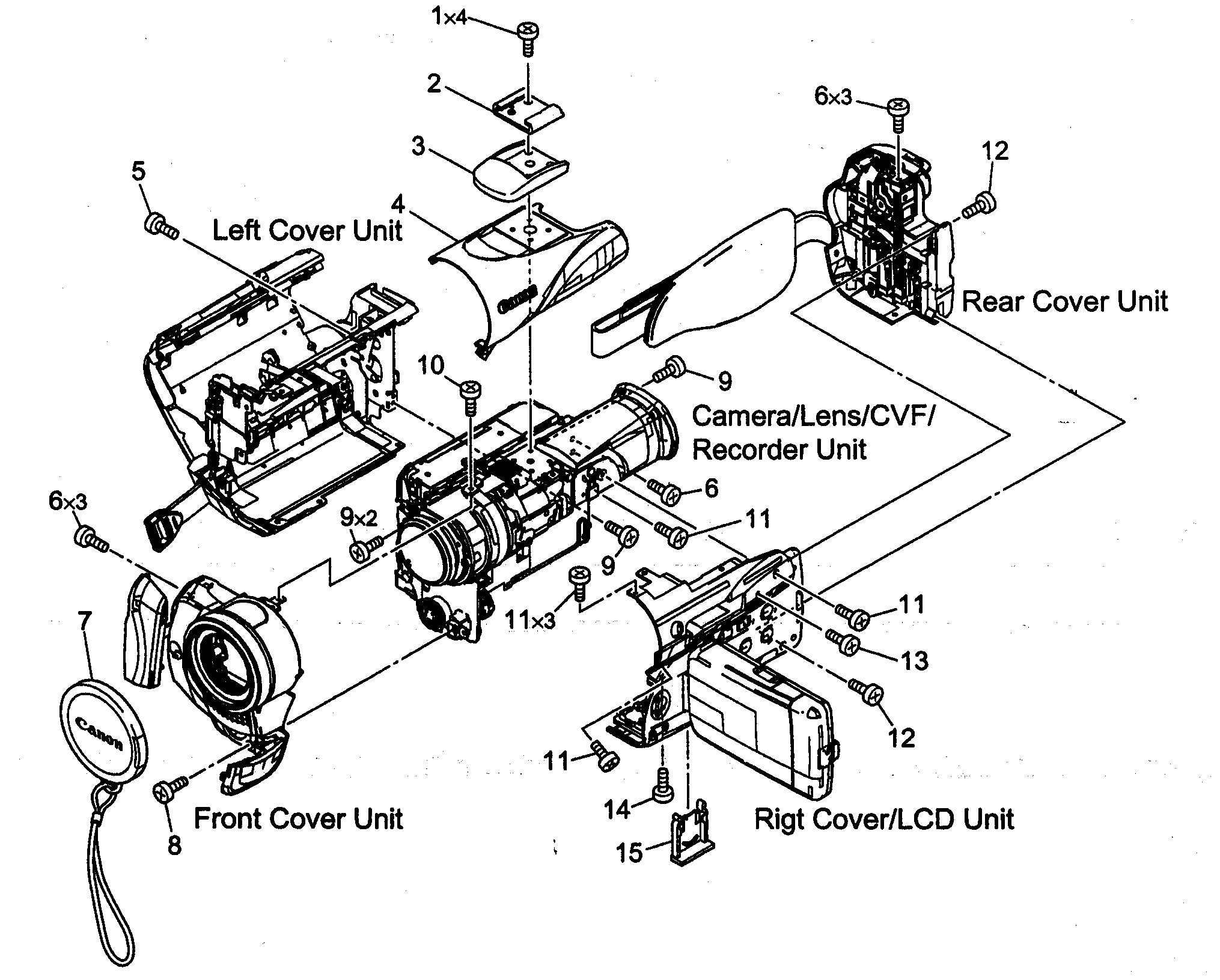

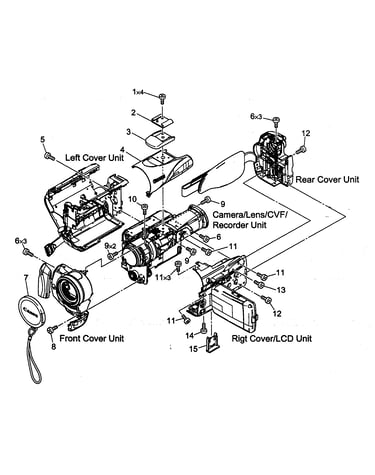

Casing assy diagram

Holder

Part #DA3-1439-000

The manufacturer no longer makes this part, and there's no substitute part

Diffuser DA3-1523-000
#9

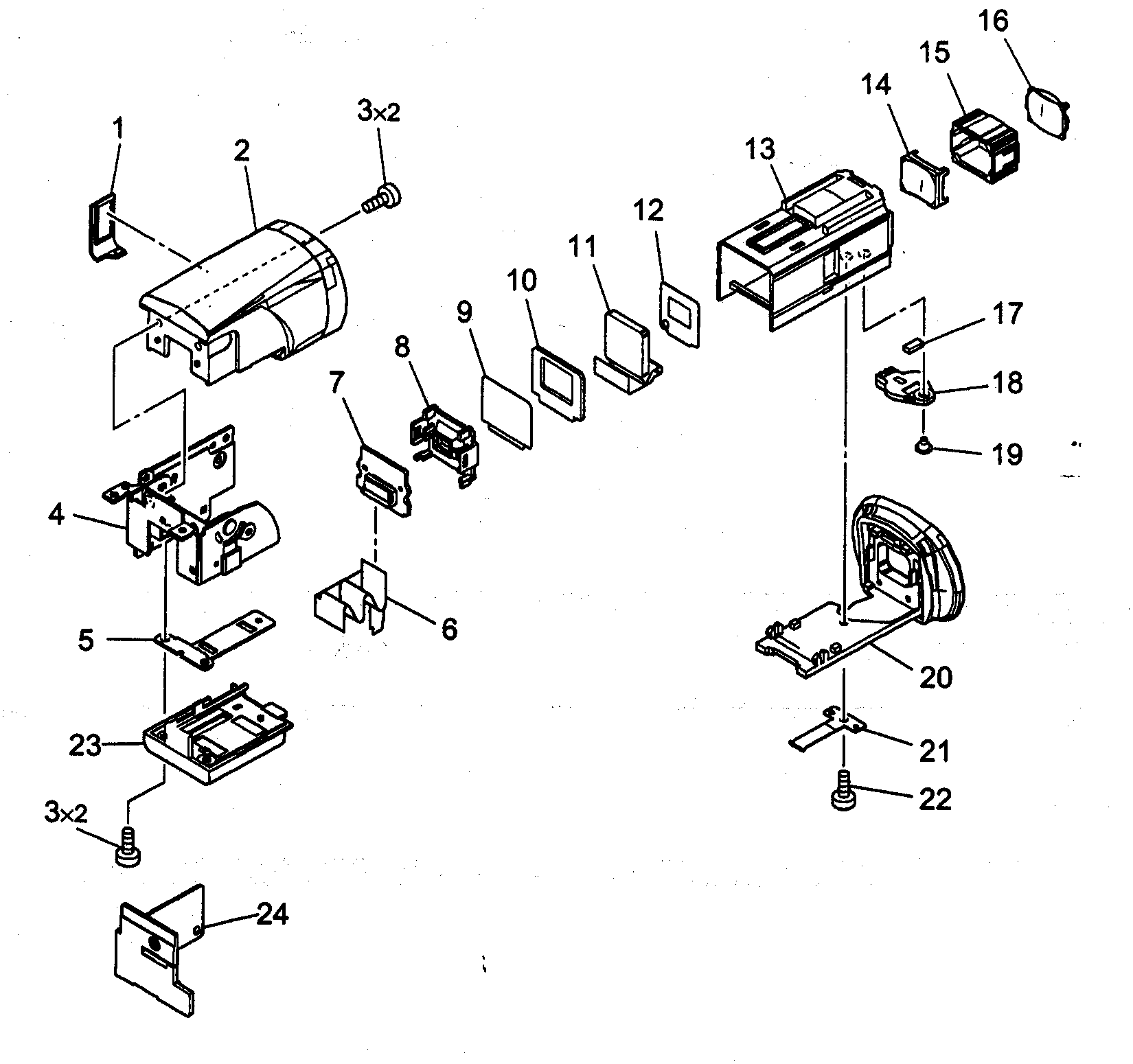

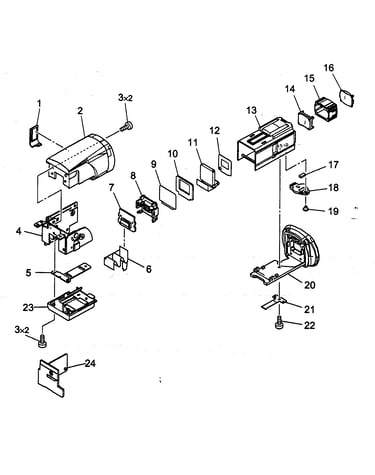

Cvf assy diagram

Diffuser

Part #DA3-1523-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA3-1512-000
#23

Cvf assy diagram

Cover

Part #DA3-1512-000

The manufacturer no longer makes this part, and there's no substitute part

Lens YN1-3090-000
#14

Cvf assy diagram

Lens

Part #YN1-3090-000

The manufacturer no longer makes this part, and there's no substitute part

Meter Assembly YH8-2015-000
#5

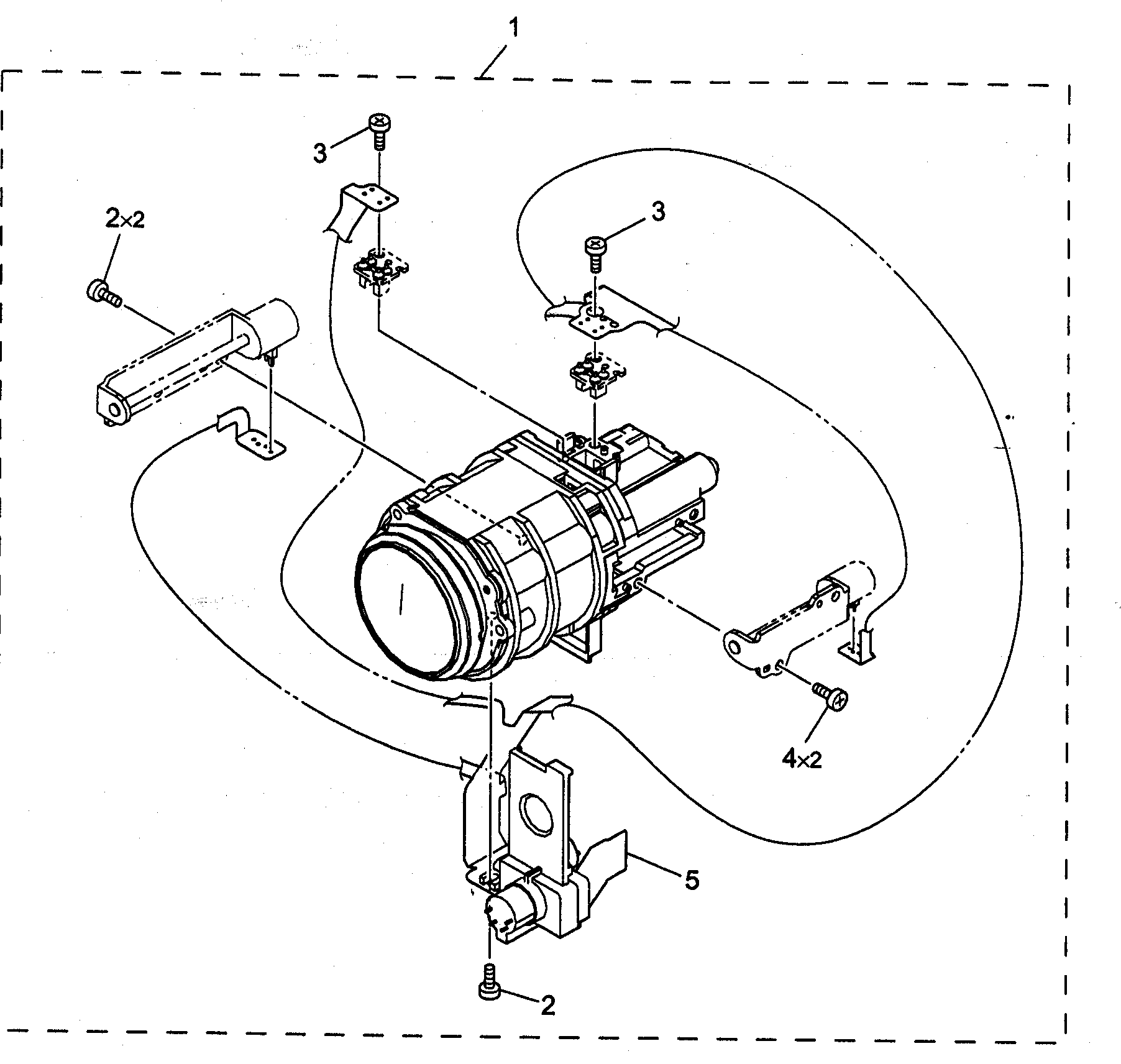

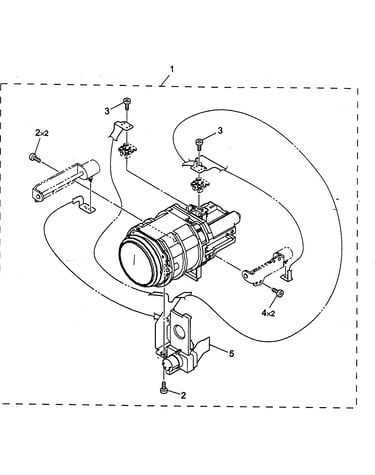

Lens assy diagram

Meter assembly

Part #YH8-2015-000

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly DG3-0402-000
#3

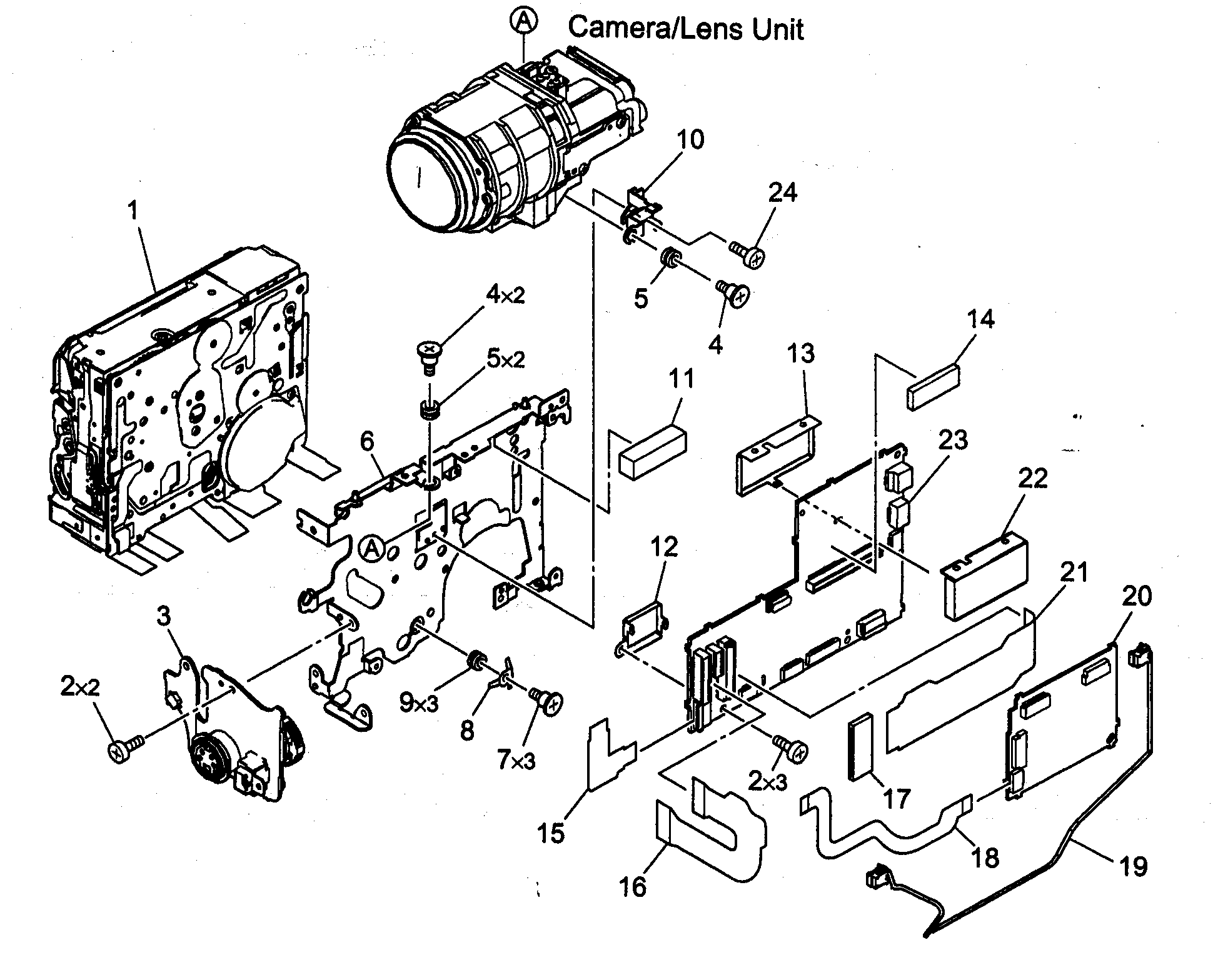

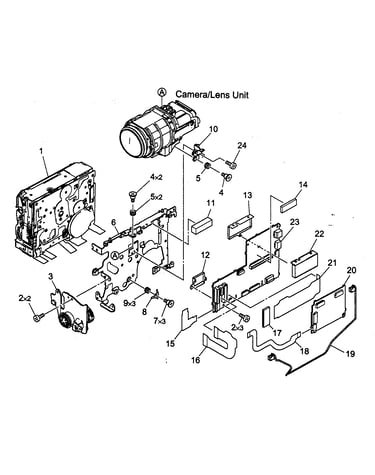

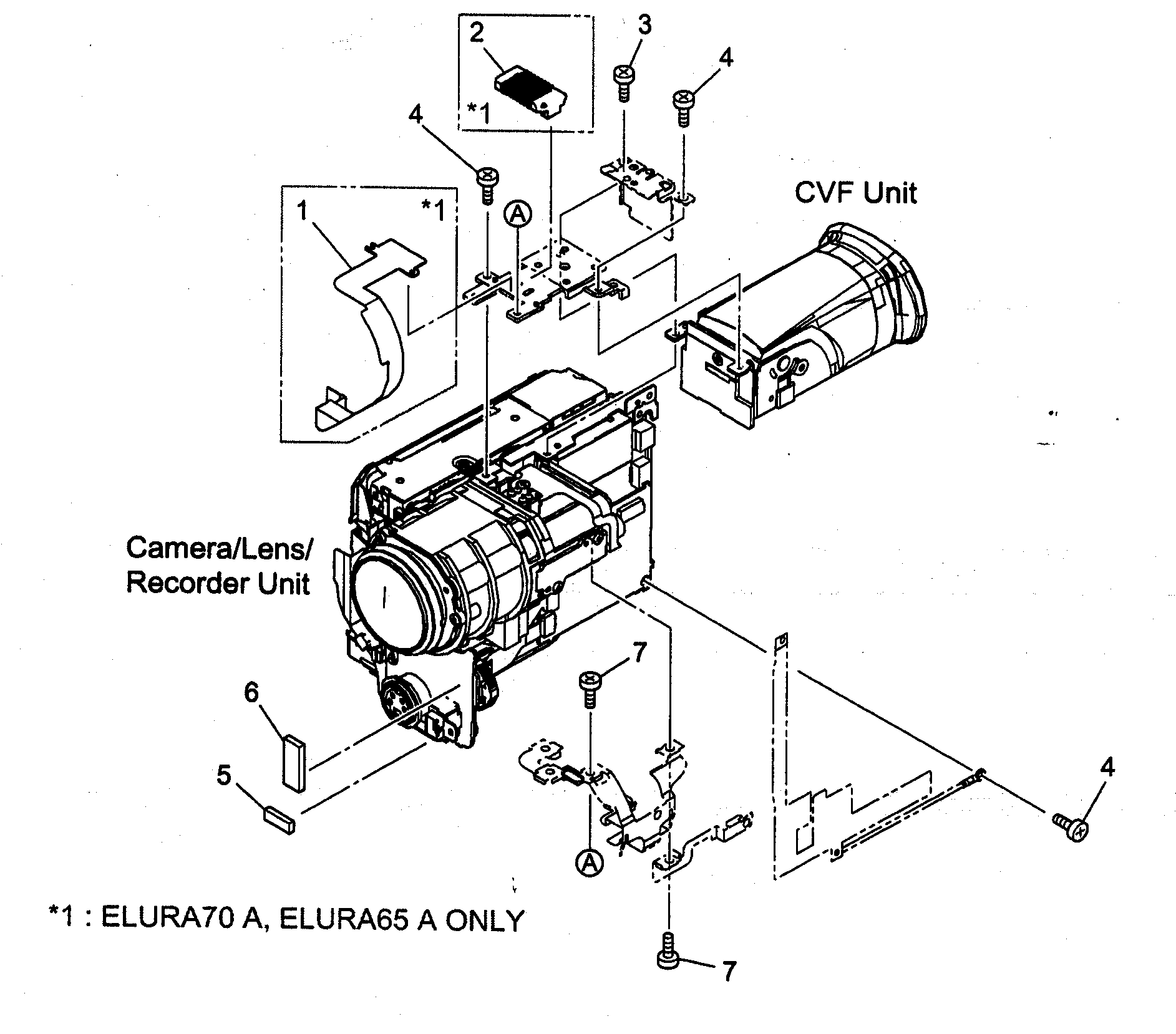

Recorder assy 2 diagram

Pcb assembly

Part #DG3-0402-000

The manufacturer no longer makes this part, and there's no substitute part

Base DA3-1443-000
#7

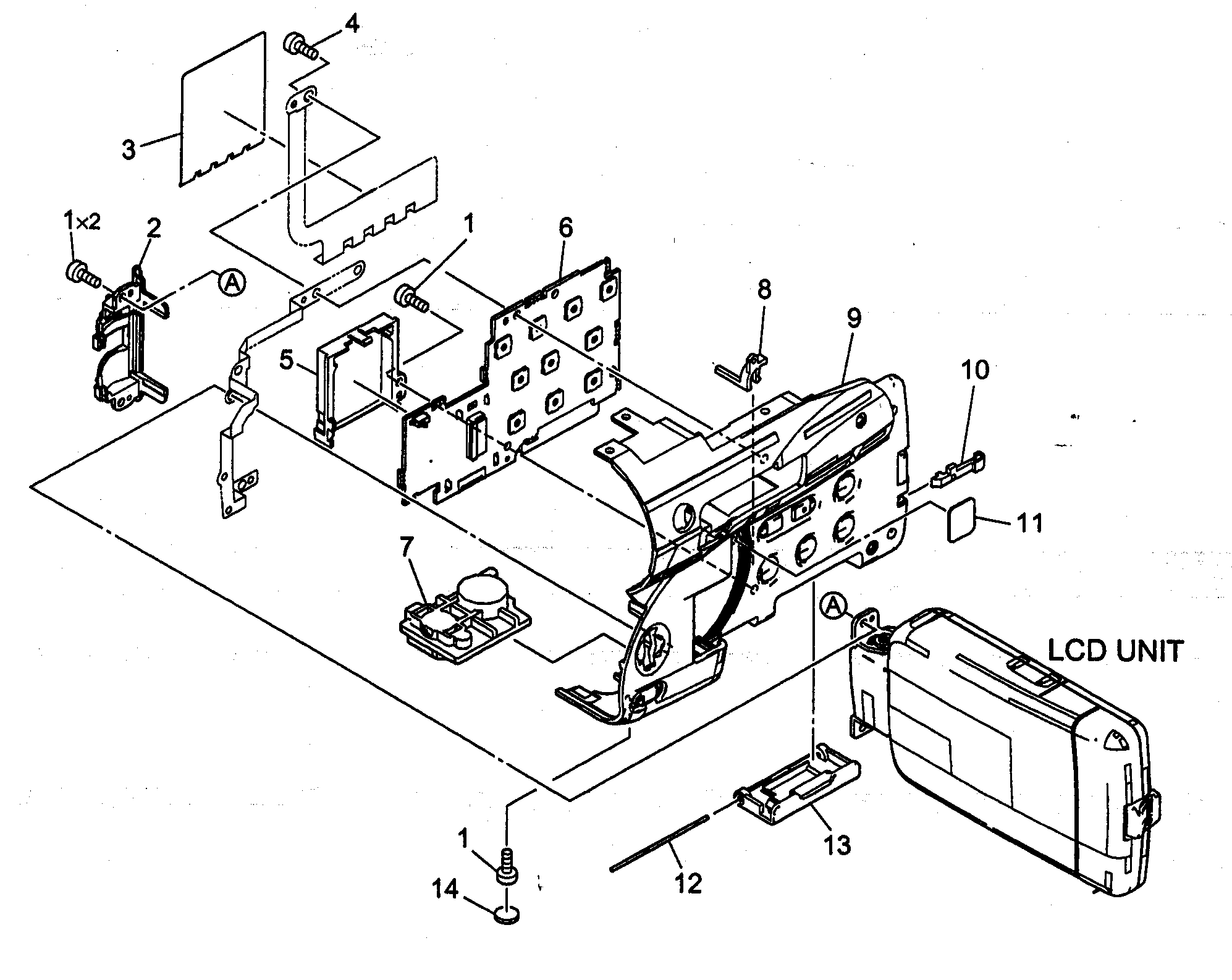

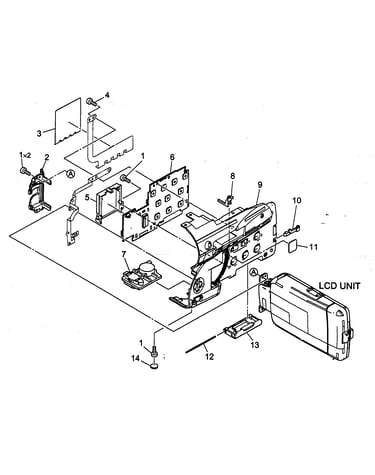

Right cover assy diagram

Base

Part #DA3-1443-000

The manufacturer no longer makes this part, and there's no substitute part
