Kenmore
Electric Water Heater

Model # 153335470 Official Kenmore power miser 8 gas water heater

Here are the diagrams and repair parts for Official Kenmore 153335470 power miser 8 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Gas Valve F145-0842
#15

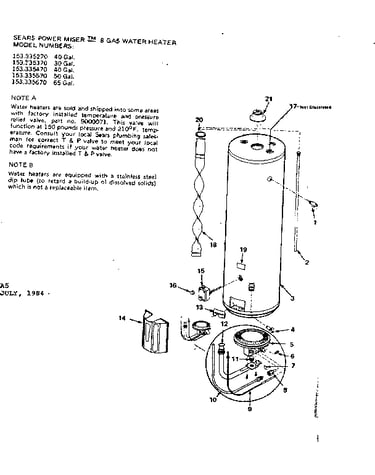

Replacement parts diagram

Gas valve

Part #F145-0842

The manufacturer no longer makes this part, and there's no substitute part

Flue Baffle 9000276
#18B

Replacement parts diagram

Flue baffle

Part #9000276

$24.99
In Stock
Flue Baffle 9000419
#18E

Replacement parts diagram

Flue baffle

Part #9000419

$17.85
In Stock
Anode 33 In 0160124
#2A

Replacement parts diagram

Anode 33 in

Part #0160124

Replaced by #100108571

?
Manufacturer substitution
This part replaces 0160124. Substitute parts can look different from the original.
$90.00
In Stock
Ring 9000275
#20

Replacement parts diagram

Ring

Part #9000275

Replaced by #100108369

?
Manufacturer substitution
This part replaces 9000275. Substitute parts can look different from the original.
$27.78
In Stock
Water Heater Pilot Tube Assembly (replaces Std317025, Std317255) 9000278
#10

Replacement parts diagram

Water heater pilot tube assembly (replaces std317025, std317255)

Part #9000278

Replaced by #100108370

?
Manufacturer substitution
This part replaces 9000278. Substitute parts can look different from the original.
$36.67
In Stock
Knob F145-0697
#16

Replacement parts diagram

Knob

Part #F145-0697

The manufacturer no longer makes this part, and there's no substitute part

Manifold 0220104
#12C

Replacement parts diagram

Manifold

Part #0220104

Replaced by #100108784

?
Manufacturer substitution
This part replaces 0220104. Substitute parts can look different from the original.
$55.56
In Stock
Orifice 0230130
#11A

Replacement parts diagram

Orifice

Part #0230130

Replaced by #100108672

?
Manufacturer substitution
This part replaces 0230130. Substitute parts can look different from the original.
$22.86
In Stock
Orifice 0230120
#11B

Replacement parts diagram

Orifice

Part #0230120

Replaced by #100108635

?
Manufacturer substitution
This part replaces 0230120. Substitute parts can look different from the original.
$24.29
In Stock
