Model # 1753260180 Official Kenmore upright vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1753260180 upright vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Screw 640033-005
#69

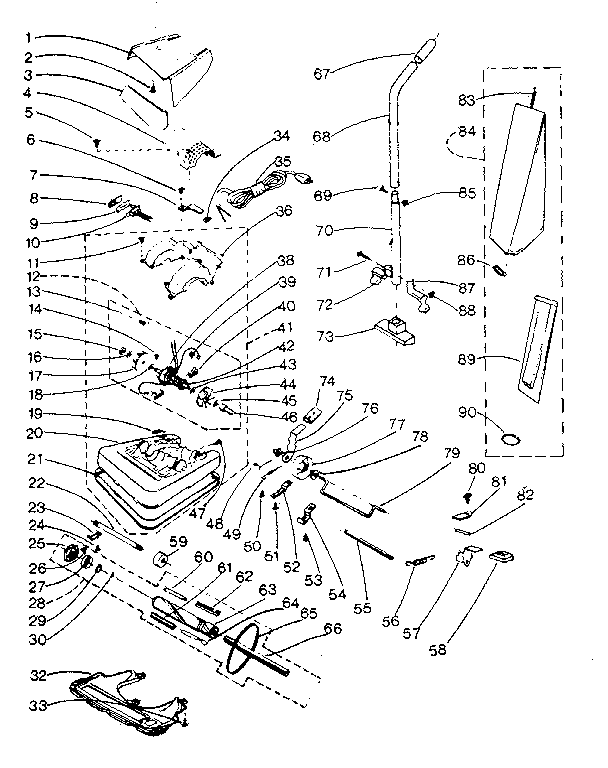

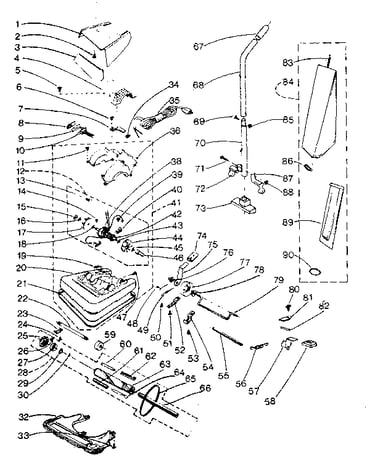

Unit parts diagram

Screw

Part #640033-005

The manufacturer no longer makes this part, and there's no substitute part

Cord 620864-031
#35

Unit parts diagram

Cord

Part #620864-031

The manufacturer no longer makes this part, and there's no substitute part

Wiring Cover 643040-000
#7

Unit parts diagram

Wiring cover

Part #643040-000

The manufacturer no longer makes this part, and there's no substitute part

Retainer Plate 643015-000
#23

Unit parts diagram

Retainer plate

Part #643015-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 642409-001
Screw

Part #642409-001

The manufacturer no longer makes this part, and there's no substitute part

Indicator Spring 642383-312
#48

Unit parts diagram

Indicator spring

Part #642383-312

The manufacturer no longer makes this part, and there's no substitute part

Wheel 966774-001
#77

Unit parts diagram

Wheel

Part #966774-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 643875-001
#39

Unit parts diagram

Screw

Part #643875-001

The manufacturer no longer makes this part, and there's no substitute part

Lock Plate 642385-000
#52

Unit parts diagram

Lock plate

Part #642385-000

The manufacturer no longer makes this part, and there's no substitute part

Shouldr Wash 643044-001
#43

Unit parts diagram

Shouldr wash

Part #643044-001

The manufacturer no longer makes this part, and there's no substitute part
