Model # E6119L025DV Official American Water Heaters water heater

Here are the diagrams and repair parts for Official American Water Heaters E6119L025DV water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Top T-stat 6900803
#3

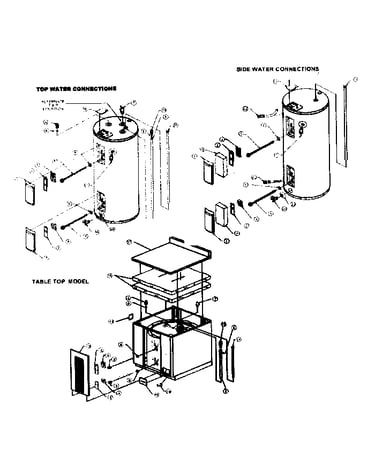

Water heater diagram

Top t-stat

Part #6900803

Replaced by #9001954015

?
Manufacturer substitution
This part replaces 6900803. Substitute parts can look different from the original.
BEST SELLER
$28.93 |
17% OFF Phone Price : $34.93
In Stock
T&p Valve 6900745
#7

Water heater diagram

T&p valve

Part #6900745

Replaced by #9000071015

?
Manufacturer substitution
This part replaces 6900745. Substitute parts can look different from the original.
BEST SELLER
$14.36 |
12% OFF Phone Price : $16.36
In Stock
Element 6900682
#5

Water heater diagram

Element

Part #6900682

$19.49
In Stock
Water Heater Thermostat Bracket 3900048
#NI

Water heater diagram

Water heater thermostat bracket

Part #3900048

$39.82
In Stock
Drain Valve 6900764
#14

Water heater diagram

Drain valve

Part #6900764

Replaced by #100109106

?
Manufacturer substitution
This part replaces 6900764. Substitute parts can look different from the original.
$31.11
In Stock
Lwr T-stat 6900802
#4

Water heater diagram

Lwr t-stat

Part #6900802

Replaced by #9000507015

?
Manufacturer substitution
This part replaces 6900802. Substitute parts can look different from the original.
$33.17 |
15% OFF Phone Price : $39.17
In Stock
Element Ga 4400032
#6

Water heater diagram

Element ga

Part #4400032

Replaced by #100108414

?
Manufacturer substitution
This part replaces 4400032. Substitute parts can look different from the original.
$21.43
In Stock
Cover 4810073
#2

Water heater diagram

Cover

Part #4810073

The manufacturer no longer makes this part, and there's no substitute part

Cover 4810074
#2A

Water heater diagram

Cover

Part #4810074

The manufacturer no longer makes this part, and there's no substitute part

Access Door 2610087
#1

Water heater diagram

Access door

Part #2610087

The manufacturer no longer makes this part, and there's no substitute part
