Hotpoint
Room Air Conditioner

Model # KCS18DBM1 Official Hotpoint room air conditioner

Here are the diagrams and repair parts for Official Hotpoint KCS18DBM1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

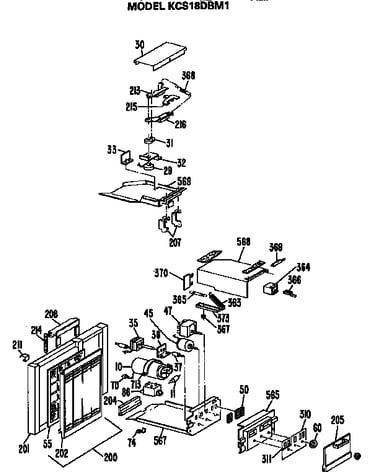

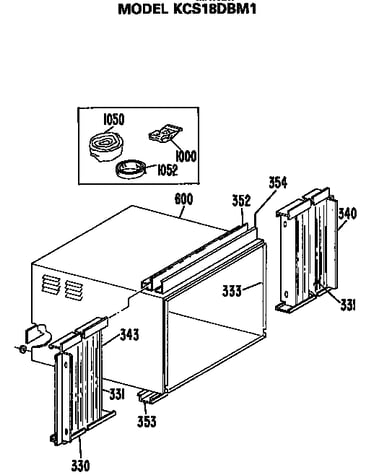

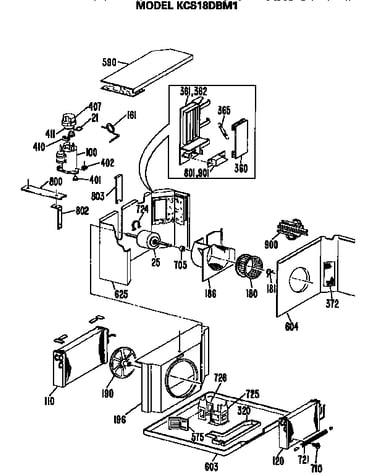

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Disch Lourer WJ71X2194

#208

All parts diagram

Disch lourer

Part #WJ71X2194

This item is not returnable
$2.49
In Stock
Door Damper WJ70X347

#360

All parts diagram

Door damper

Part #WJ70X347

$10.99
In Stock
Gang Bar WJ71X2201

#215

All parts diagram

Gang bar

Part #WJ71X2201

This item is not returnable
$2.99
In Stock
Pressure Bar WJ14X148

#213

All parts diagram

Pressure bar

Part #WJ14X148

This item is not returnable
$2.99
In Stock
Lever Damper WJ14X151

#366

All parts diagram

Lever damper

Part #WJ14X151

$19.99
In Stock
Grille Cl WJ2X524

#211

All parts diagram

Grille cl

Part #WJ2X524

This item is not returnable
$4.49
In Stock
Cabinet Seal WJ43X447

#1050

All parts diagram

Cabinet seal

Part #WJ43X447

This item is not returnable
$5.99
In Stock
Control Plate WJ79X497

#565

All parts diagram

Control plate

Part #WJ79X497

This item is not returnable
$3.99
In Stock
Compressor WJ98X1037

#100

All parts diagram

Compressor

Part #WJ98X1037

The manufacturer no longer makes this part, and there's no substitute part

Rocker Switch WJ26X240

#50

All parts diagram

Rocker switch

Part #WJ26X240

The manufacturer no longer makes this part, and there's no substitute part
