Model # 56-2090-10-01 Official Tappan microwave

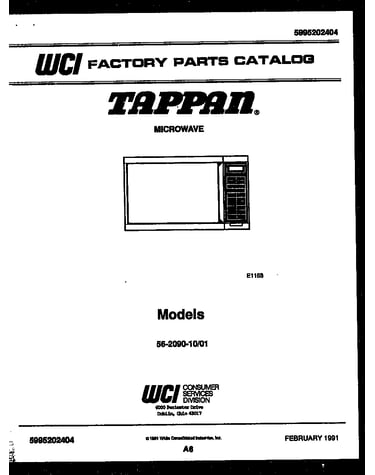

Here are the diagrams and repair parts for Official Tappan 56-2090-10-01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

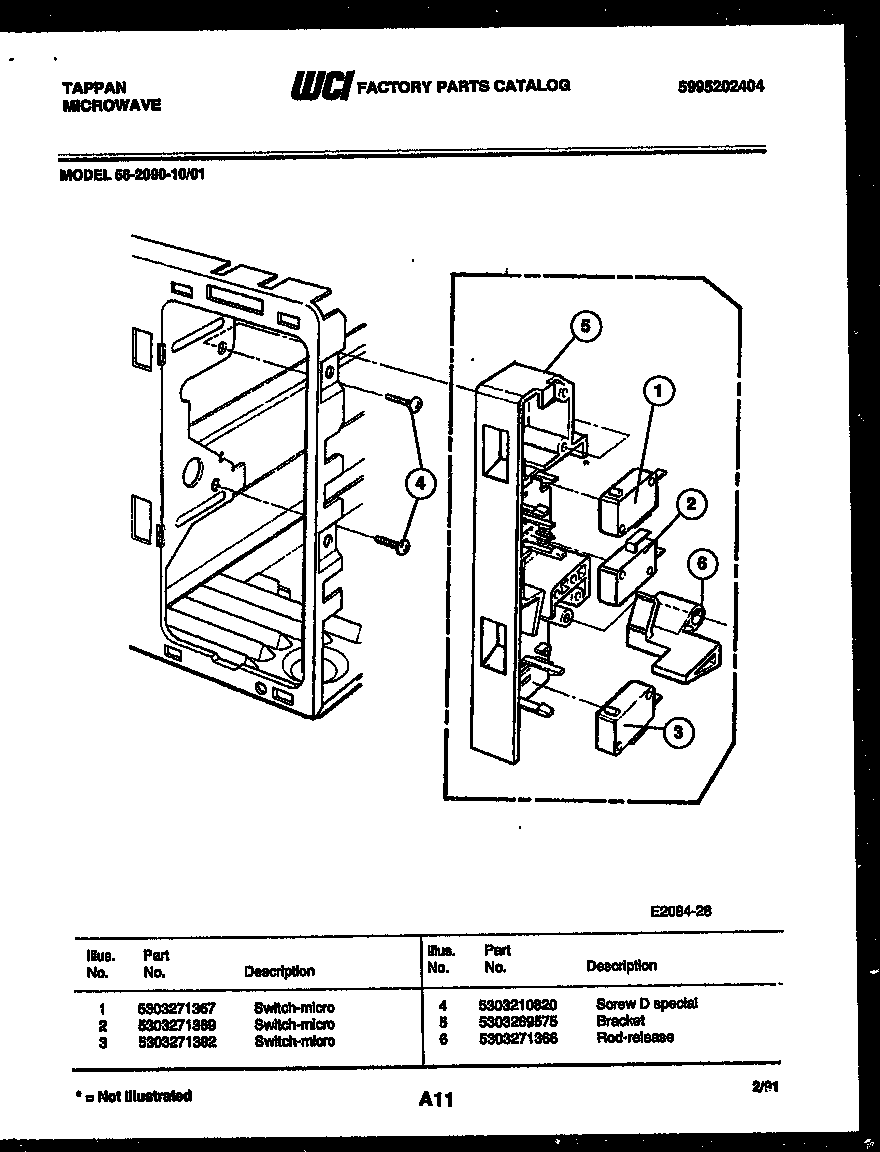

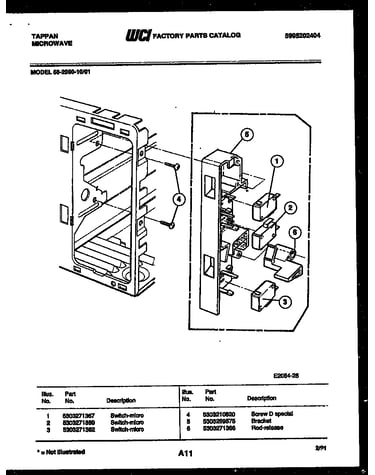

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |

Fuse 5303209174
#13

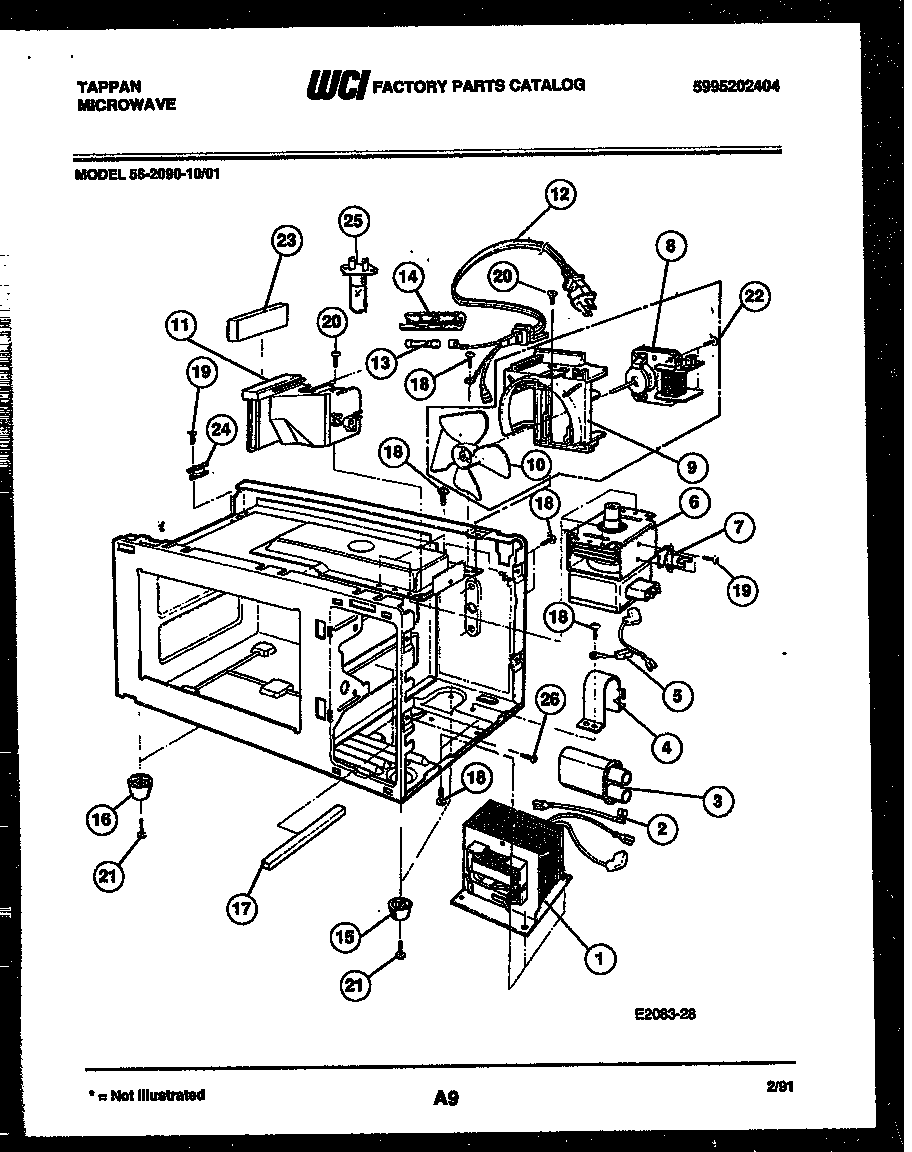

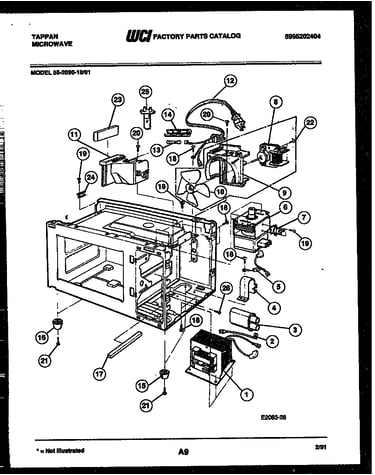

Power control diagram

Fuse

Part #5303209174

In Stock
Thermostat 5303271356
#7

Power control diagram

Thermostat

Part #5303271356

In Stock
Screw 5303208788
Screw

Part #5303208788

This item is not returnable
In Stock
Frigidaire Button 5303269573
#14

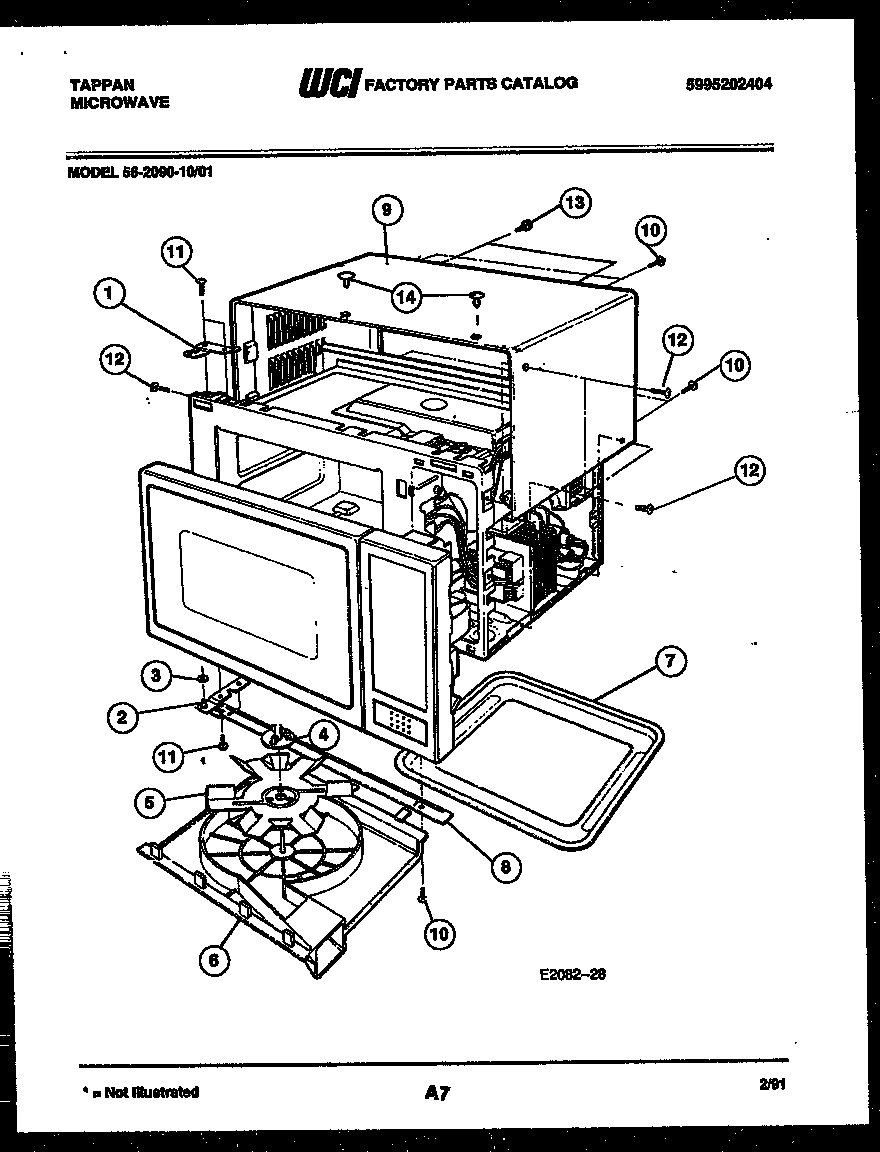

Body parts diagram

Frigidaire button

Part #5303269573

This item is not returnable
In Stock
Tappan Control Panel 5303271383
#1

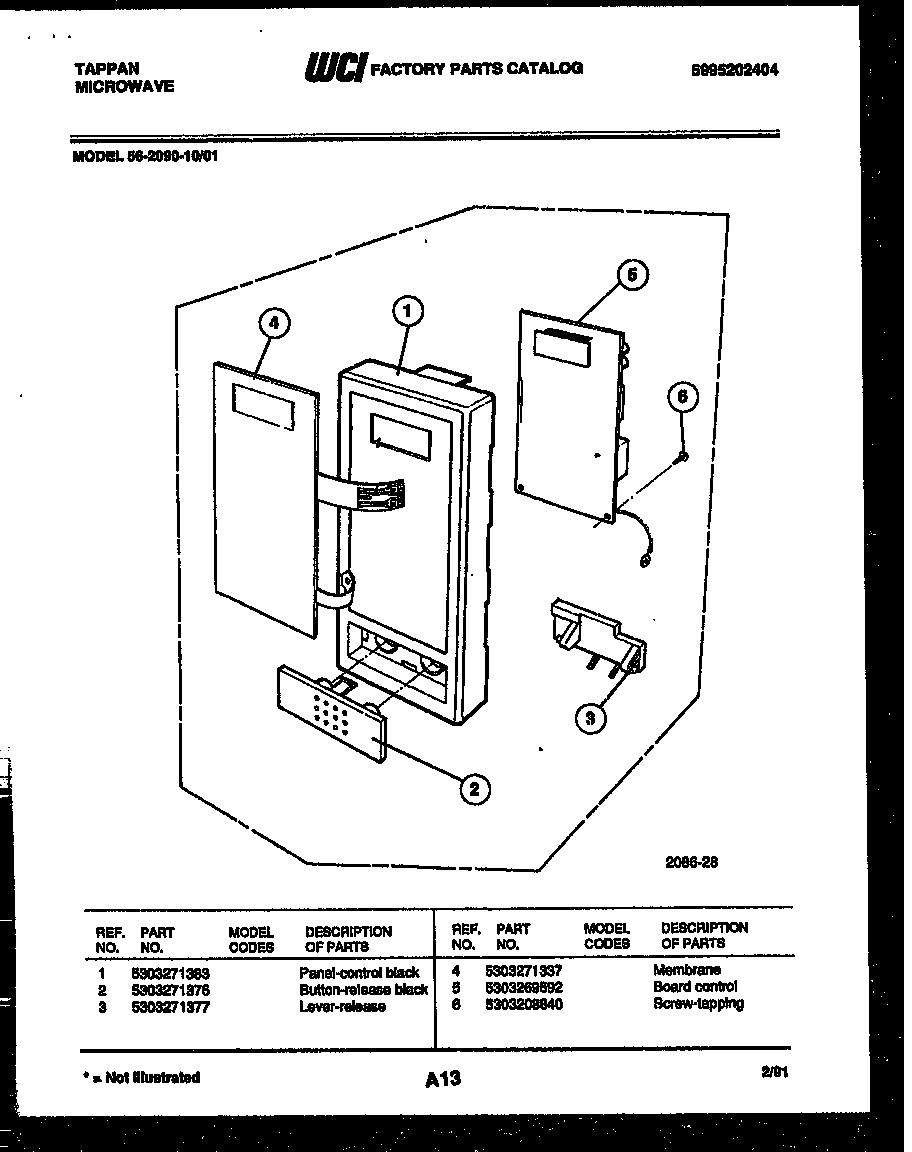

Control panel diagram

Tappan control panel

Part #5303271383

In Stock
White-westinghouse Cap 5303269580
#14

Power control diagram

White-westinghouse cap

Part #5303269580

This item is not returnable
In Stock
White-westinghouse Latch 5303269602
#3

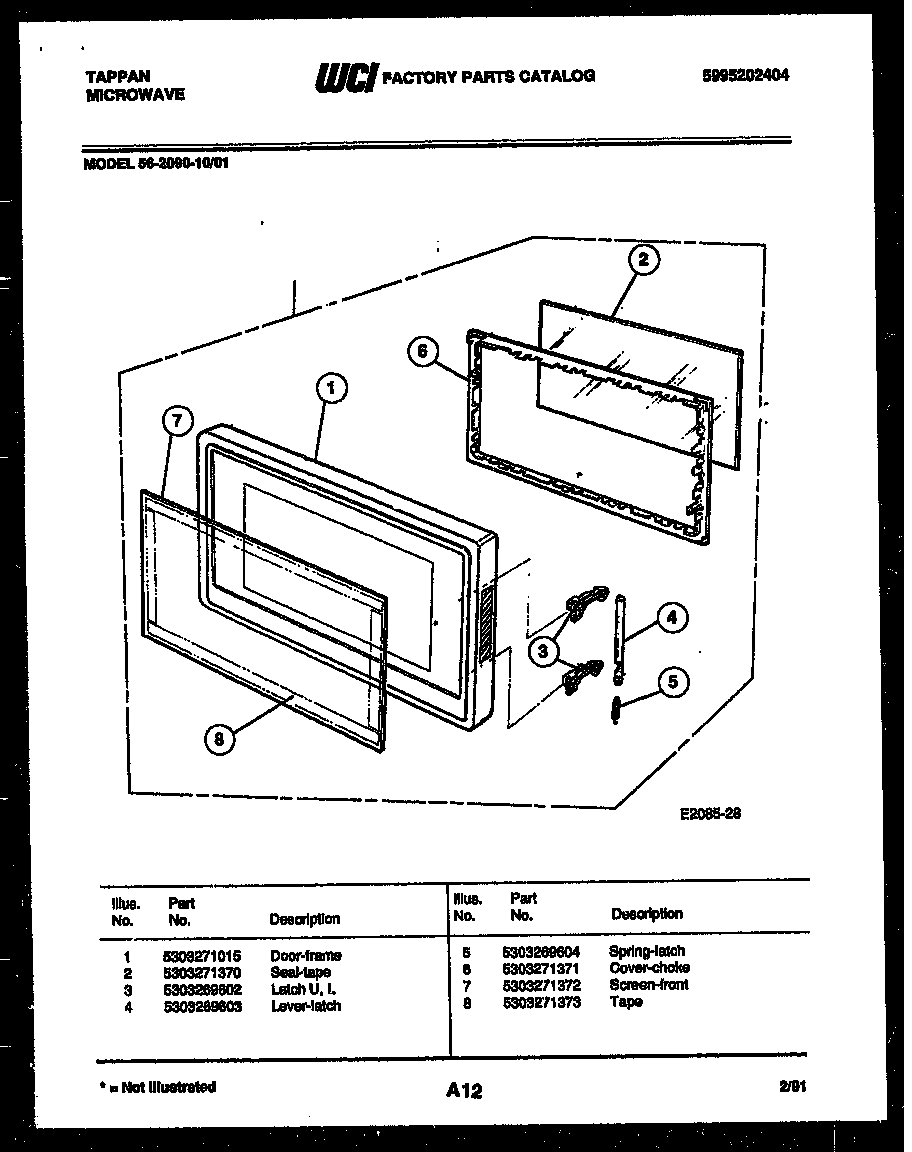

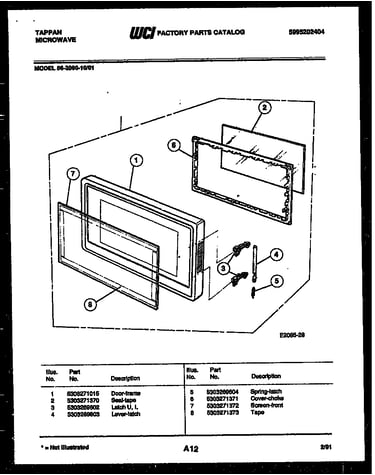

Door parts diagram

White-westinghouse latch

Part #5303269602

This item is not returnable
In Stock
Button 5303271376
#2

Control panel diagram

Button

Part #5303271376

This item is not returnable
In Stock
Frigidaire Harness 5303269590
#2

Power control diagram

Frigidaire harness

Part #5303269590

This item is not returnable
In Stock
Screen-front 5303271372
#7

Door parts diagram

Screen-front

Part #5303271372

The manufacturer no longer makes this part, and there's no substitute part
