Model # N2A460GKA200 Official ICP air conditioner

Here are the diagrams and repair parts for Official ICP N2A460GKA200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Condenser 1175052
#6

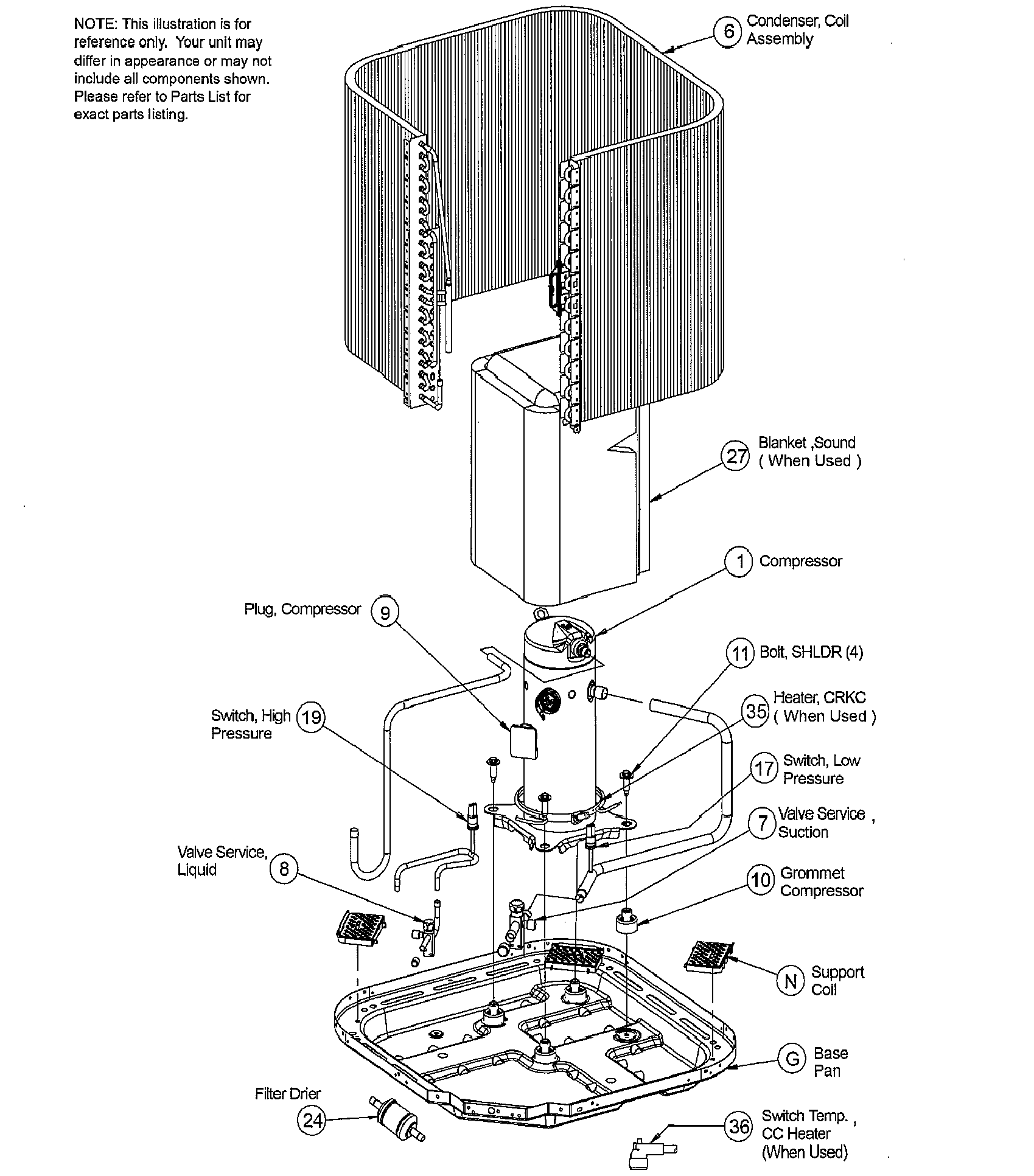

Inner parts diagram

Condenser

Part #1175052

$1579.72
In Stock
Central Air Conditioner Condenser Fan Motor 1173716
#3

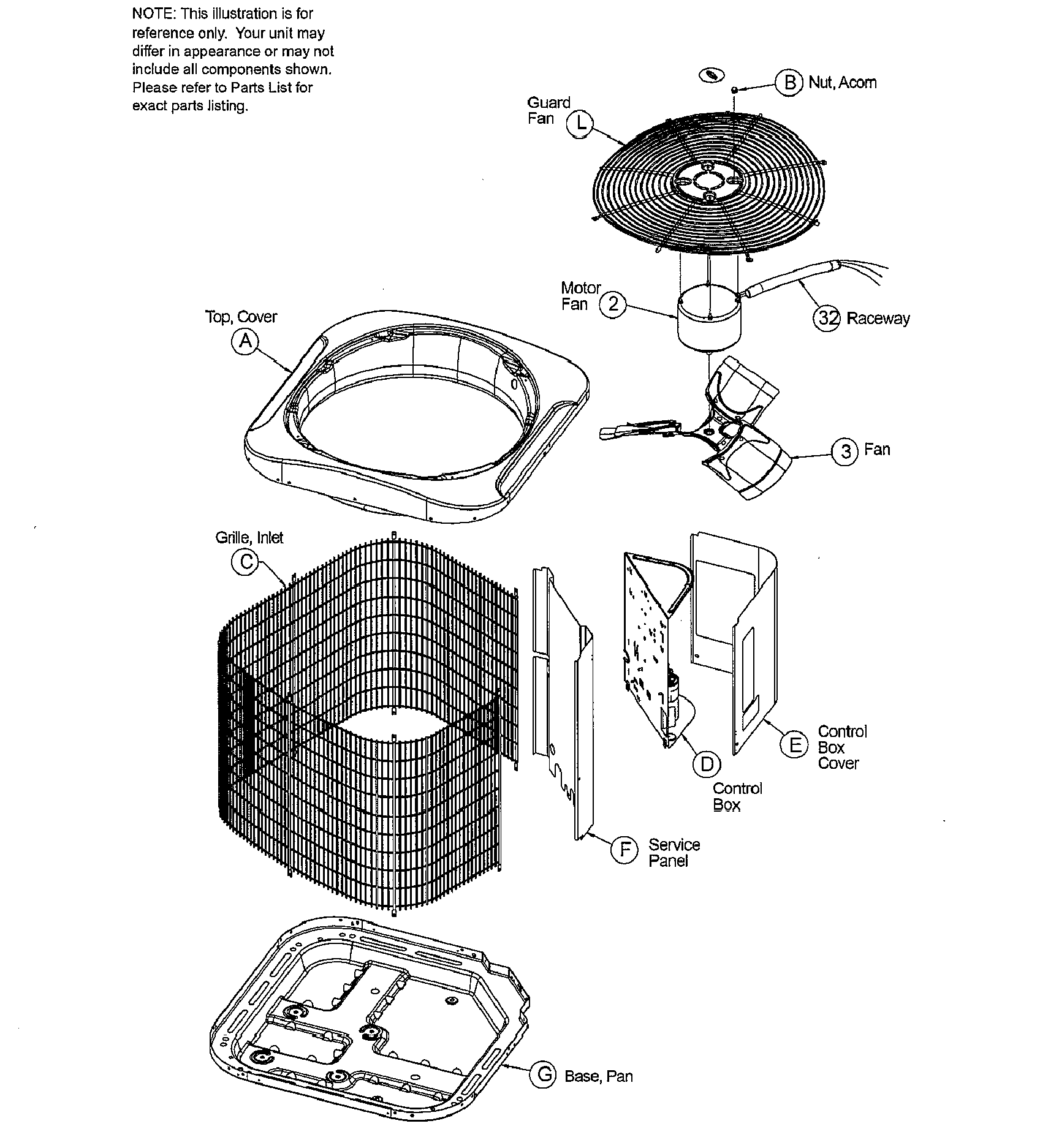

Outer parts diagram

Central air conditioner condenser fan motor

Part #1173716

$316.36 |
$12.00 OFF Phone Price : $328.36
In Stock
Paint 1174415
#NI

Outer parts diagram

Paint

Part #1174415

$42.98
In Stock
Plug Comp 1172793
#9

Inner parts diagram

Plug comp

Part #1172793

$49.38
In Stock
Suct Line 1174193
#24

Inner parts diagram

Suct line

Part #1174193

$308.05
In Stock
Lug Ground 1172300
#33

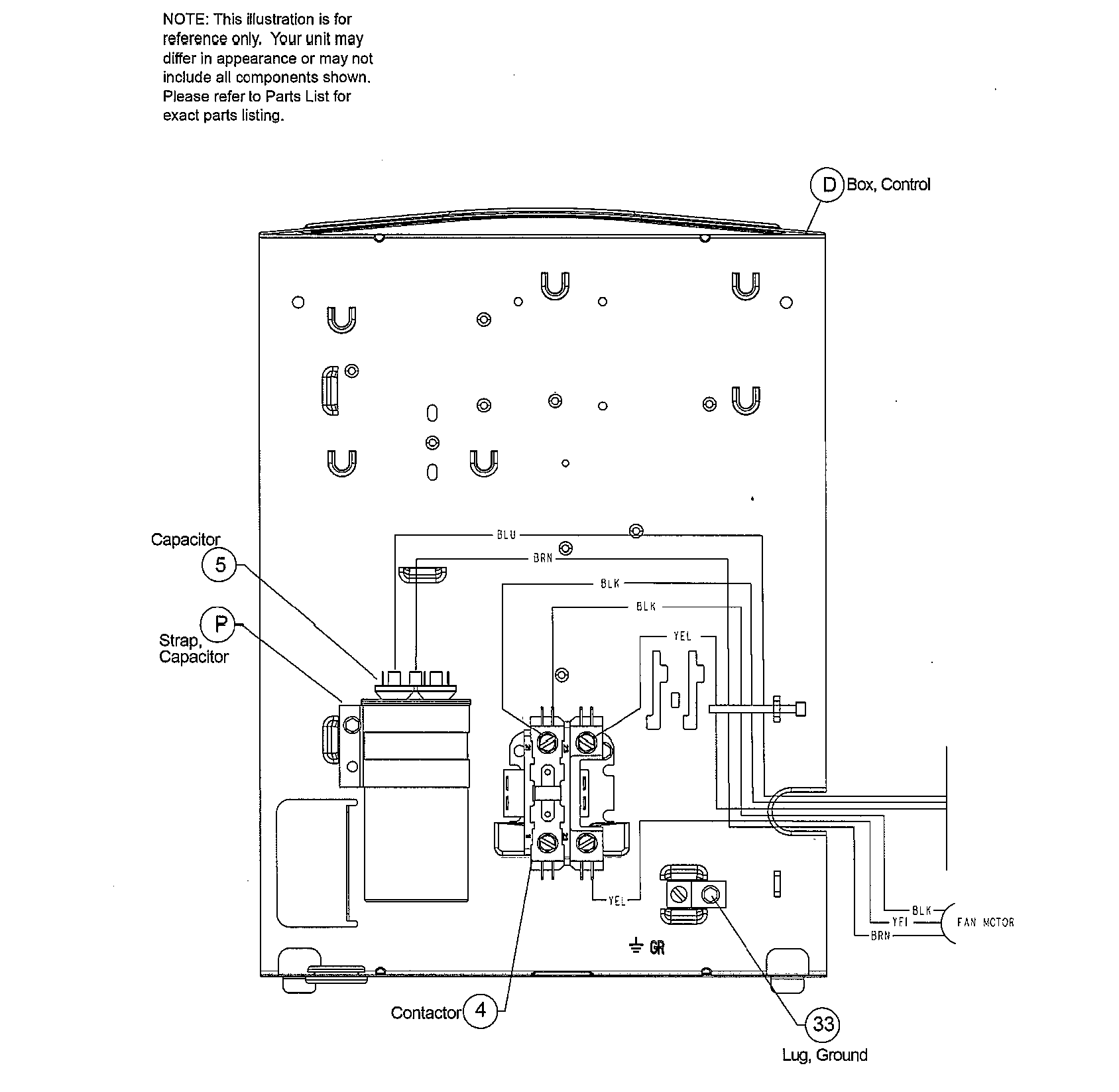

Control panel diagram

Lug ground

Part #1172300

This item is not returnable
$6.54
In Stock
Grommet 1171737
#NI

Outer parts diagram

Grommet

Part #1171737

This item is not returnable
$2.34
In Stock
Service Kit 1175651
#NI

Outer parts diagram

Service kit

Part #1175651

$96.16
In Stock
Carrier Heater 1173944
#35

Inner parts diagram

Carrier heater

Part #1173944

$67.11
In Stock
Clamp 1172735
#P

Inner parts diagram

Clamp

Part #1172735

$7.60
In Stock
