Model # T9MPV125L20C1 Official ICP 90+ 2-stage & variable-speed blower gas furnace

Here are the diagrams and repair parts for Official ICP T9MPV125L20C1 90+ 2-stage & variable-speed blower gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

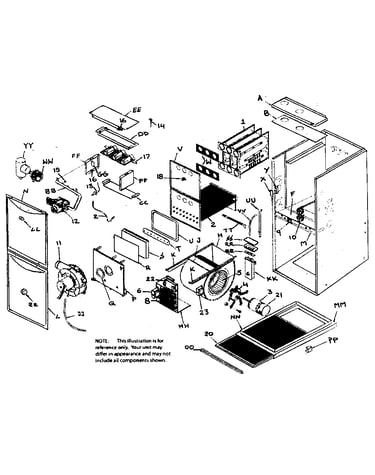

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Furnace Burner Flame Sensor 1172827
#13

Furnace diagram

Furnace burner flame sensor

Part #1172827

$14.96 |
12% OFF Phone Price : $16.96
In Stock
Furnace Temperature Limit Switch 1013102
#16

Furnace diagram

Furnace temperature limit switch

Part #1013102

$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Door Switch 1171981
#9

Furnace diagram

Furnace door switch

Part #1171981

$16.66
In Stock
Furnace Burner Igniter 1172533
#14

Furnace diagram

Furnace burner igniter

Part #1172533

$54.54 |
10% OFF Phone Price : $60.54
In Stock
Furnace User Interface Control Board 1172839
#22

Furnace diagram

Furnace user interface control board

Part #1172839

$198.84 |
6% OFF Phone Price : $210.84
In Stock
Furnace Inducer Vent Motor Assembly 1172826
#11

Furnace diagram

Furnace inducer vent motor assembly

Part #1172826

$343.85
In Stock
Coupling 1012284
#NI

Furnace diagram

Coupling

Part #1012284

$10.31
In Stock
Exhaust Gasket 1014425
#Q

Furnace diagram

Exhaust gasket

Part #1014425

$22.23
In Stock
Gasket 1171987
#SS

Furnace diagram

Gasket

Part #1171987

$27.76
In Stock
Furnace Blower Fan Housing Hanger Bracket 1012328
#K

Furnace diagram

Furnace blower fan housing hanger bracket

Part #1012328

$301.63 |
$12.00 OFF Phone Price : $313.63
In Stock
