Model # U6420-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U6420-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |

Vacuum Beater Bar Belt (replaces 11041084, 38520835) 38528035
#19

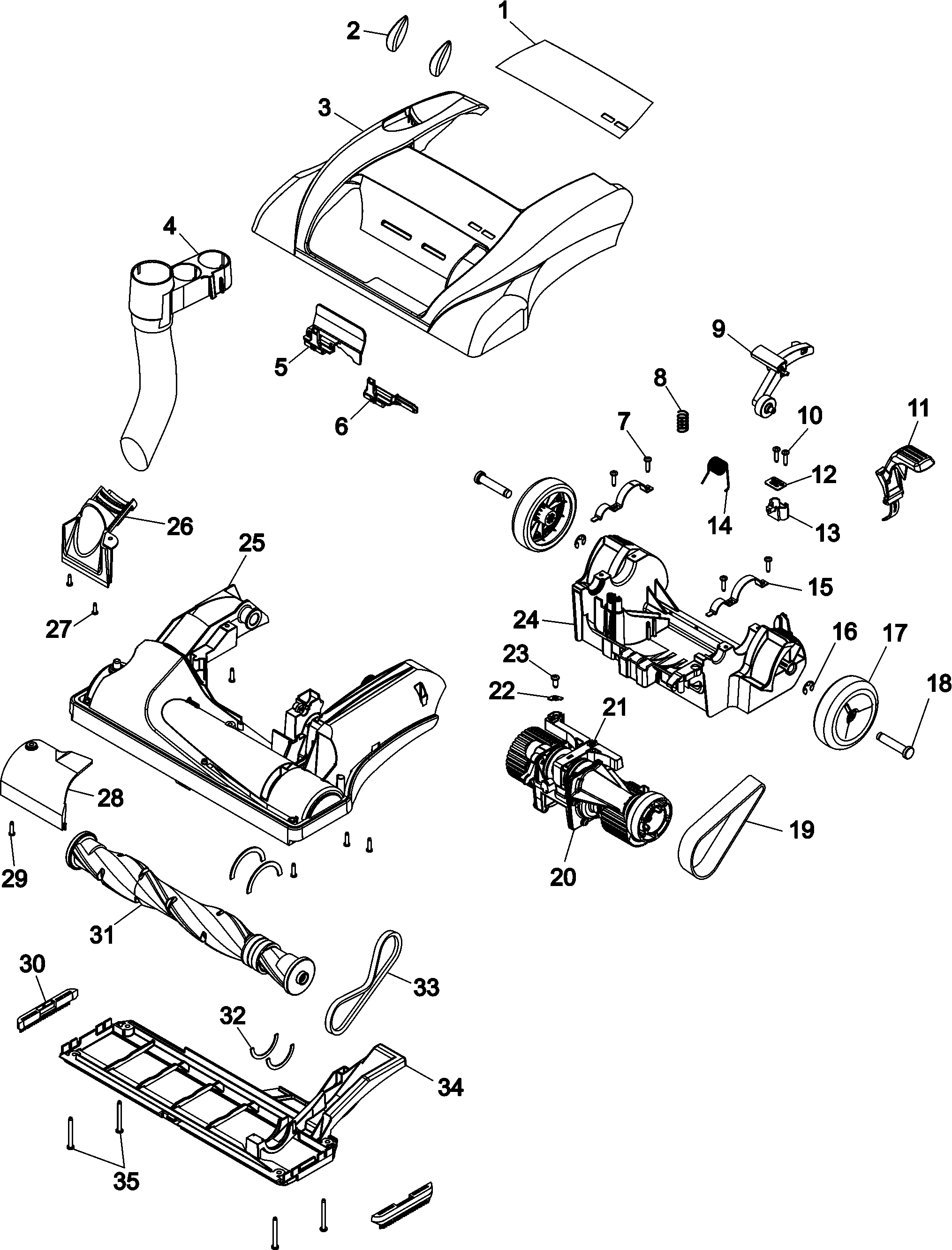

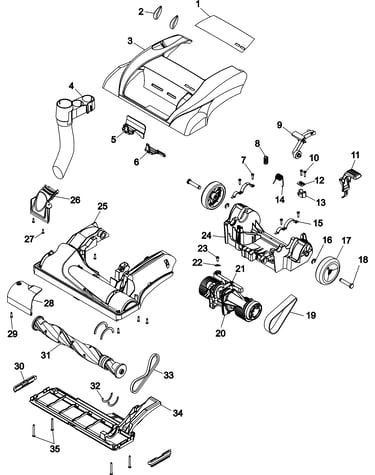

Foot diagram

Vacuum beater bar belt (replaces 11041084, 38520835)

Part #38528035

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Regina Vacuum Screw 21447072
Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Guide 36923003
#10

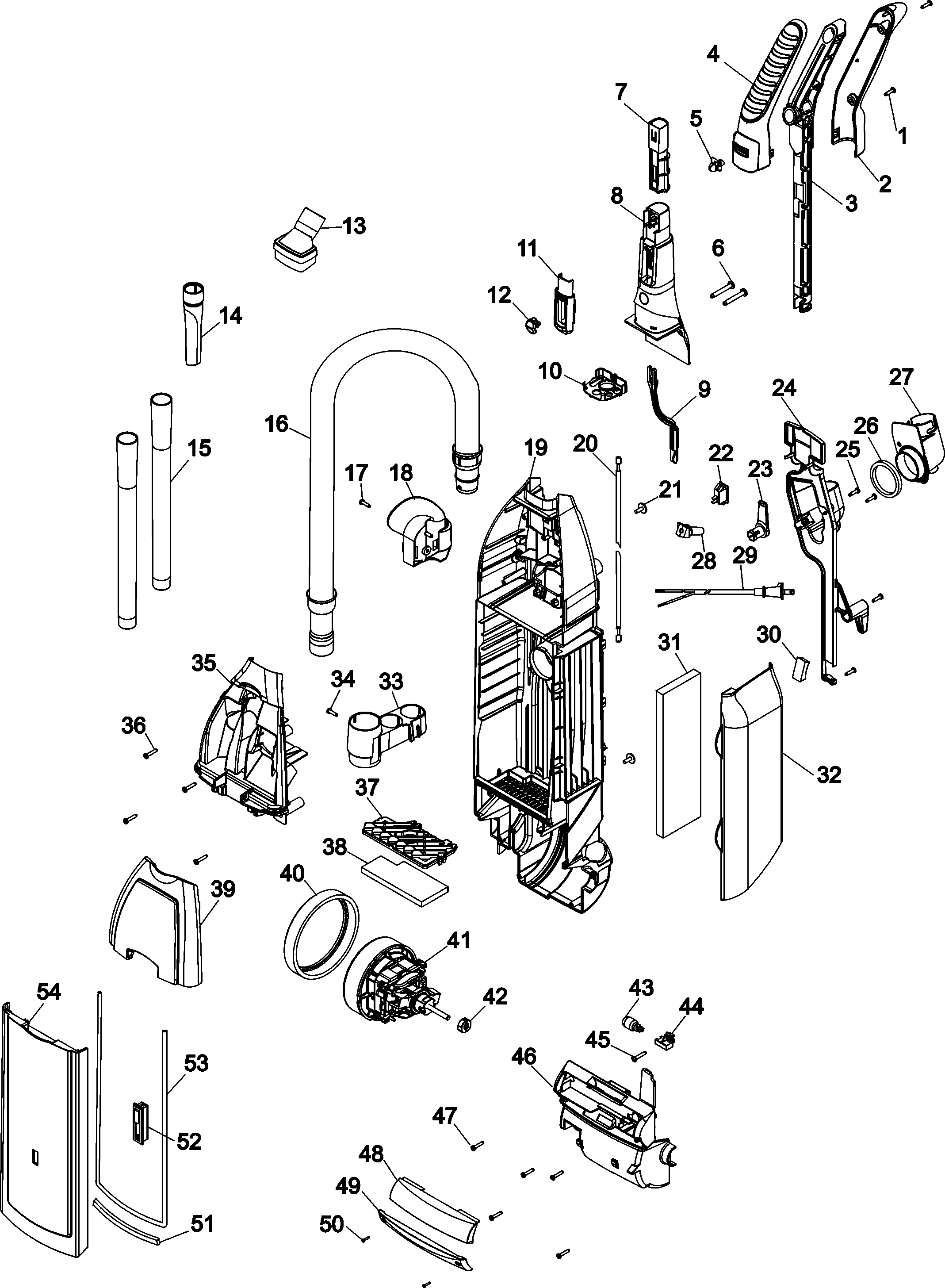

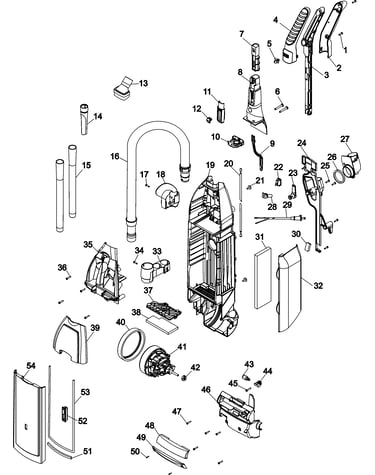

Upper assembly diagram

Guide

Part #36923003

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Base Plate 42245030
#34

Foot diagram

Vacuum base plate

Part #42245030

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447228
Regina vacuum screw

Part #21447228

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447121
#35

Foot diagram

Vacuum screw

Part #21447121

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21751010
#23

Foot diagram

Vacuum screw

Part #21751010

The manufacturer no longer makes this part, and there's no substitute part

Torsion Spring 38356014
#14

Foot diagram

Torsion spring

Part #38356014

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447242
Vacuum screw

Part #21447242

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Grip Rod 38512001
#3

Upper assembly diagram

Vacuum handle grip rod

Part #38512001

The manufacturer no longer makes this part, and there's no substitute part
