Model # AJCQ08ACEQ2 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCQ08ACEQ2 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Room Air Conditioner Ambient Thermistor WJ27X10139
#55

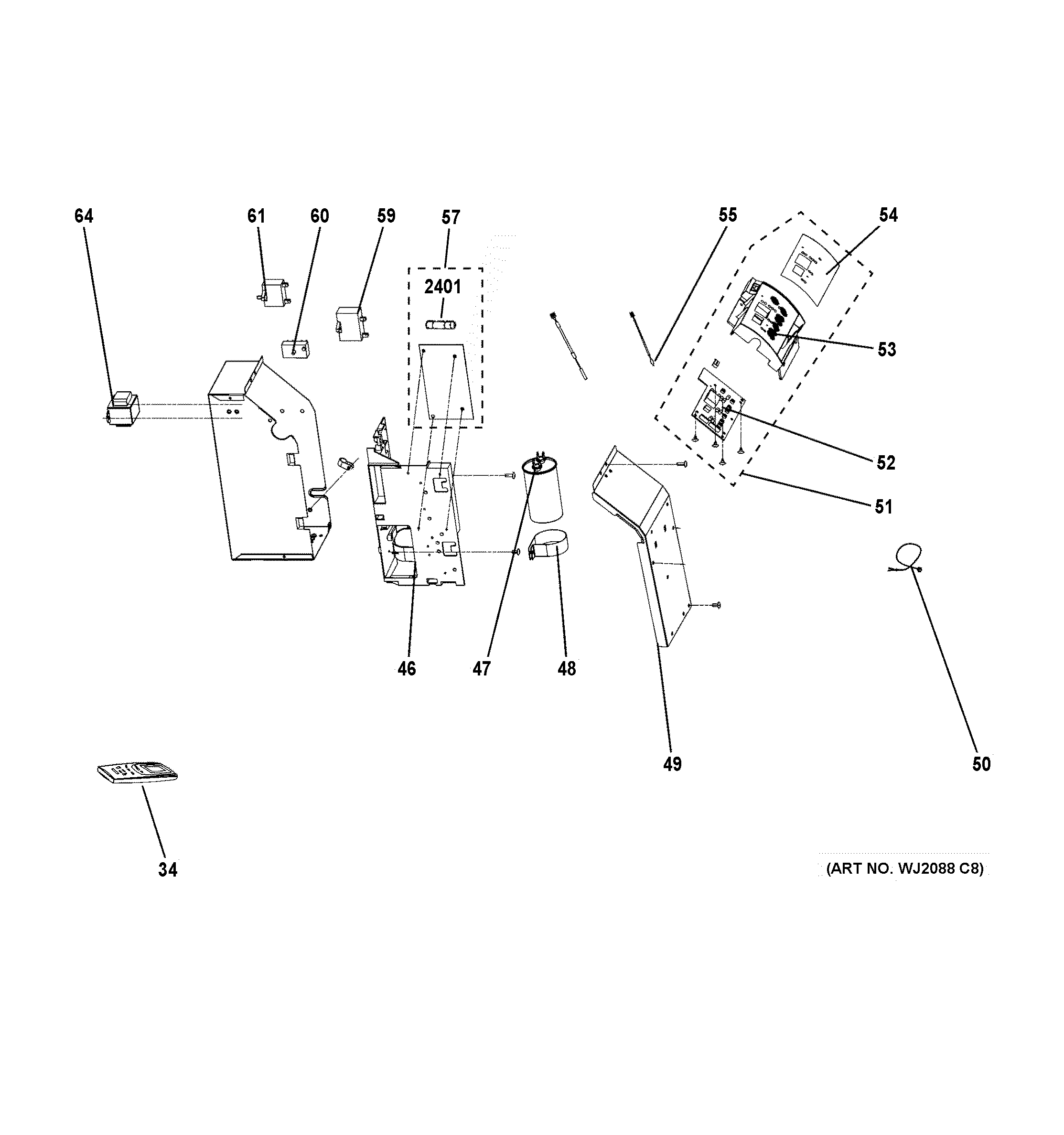

Control parts diagram

Room air conditioner ambient thermistor

Part #WJ27X10139

Replaced by #WJ26X25108

?
Manufacturer substitution
This part replaces WJ27X10139. Substitute parts can look different from the original.
This item is not returnable
$17.00 |
11% OFF Phone Price : $19.00
In Stock
Main Board WJ29X10047
#57

Control parts diagram

Main board

Part #WJ29X10047

$108.07 |
10% OFF Phone Price : $120.07
In Stock
Swing Clamp WJ01X10443
#2

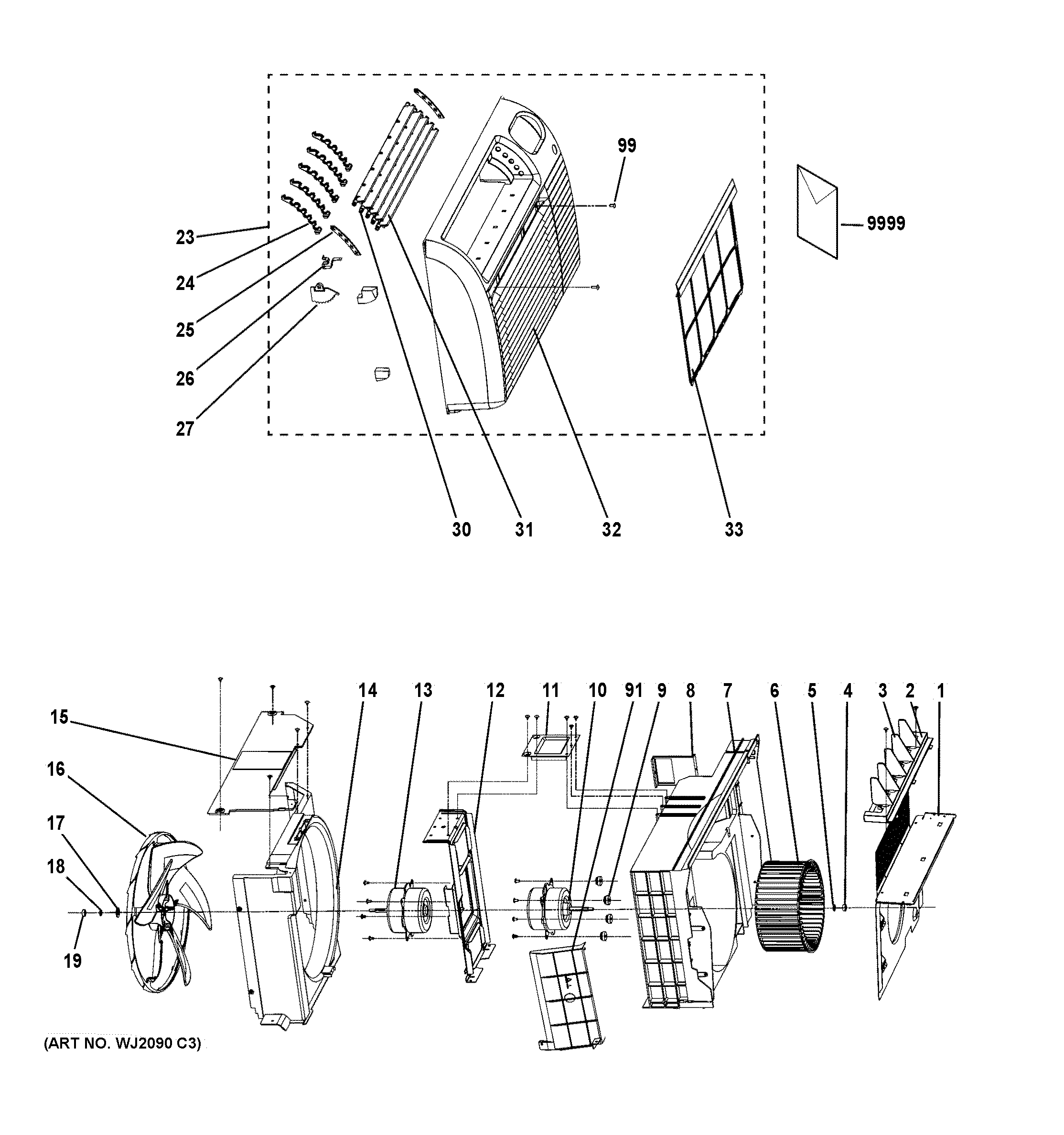

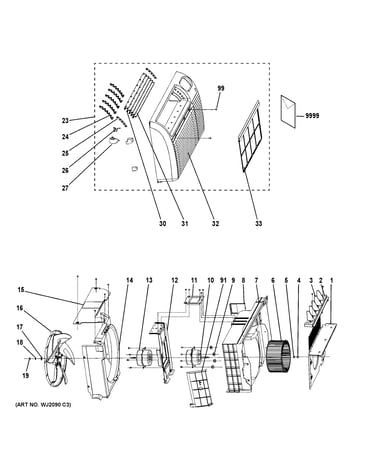

Grille & chassis parts diagram

Swing clamp

Part #WJ01X10443

$16.20
In Stock
Centrifugal WJ73X10216
#6

Grille & chassis parts diagram

Centrifugal

Part #WJ73X10216

$39.20
In Stock
Nut WJ01X10329
#19

Grille & chassis parts diagram

Nut

Part #WJ01X10329

$8.11
In Stock
Room Air Conditioner Control Panel Assembly WJ26X10363
#51

Control parts diagram

Room air conditioner control panel assembly

Part #WJ26X10363

$115.81 |
9% OFF Phone Price : $127.81
In Stock
Prop Housing WJ76X10339
#7

Grille & chassis parts diagram

Prop housing

Part #WJ76X10339

$135.46
In Stock
Washer WJ01X10312
#17

Grille & chassis parts diagram

Washer

Part #WJ01X10312

$7.51
In Stock
Fuse Main Bearing Assembly WJ23X10174
#2401

Control parts diagram

Fuse main bearing assembly

Part #WJ23X10174

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Shroud WJ76X10326
#14

Grille & chassis parts diagram

Shroud

Part #WJ76X10326

$39.44
In Stock
