Model # KB6525PK Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp KB6525PK microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Microwave Magnetron RV-MZA365WRZZ
#1-13

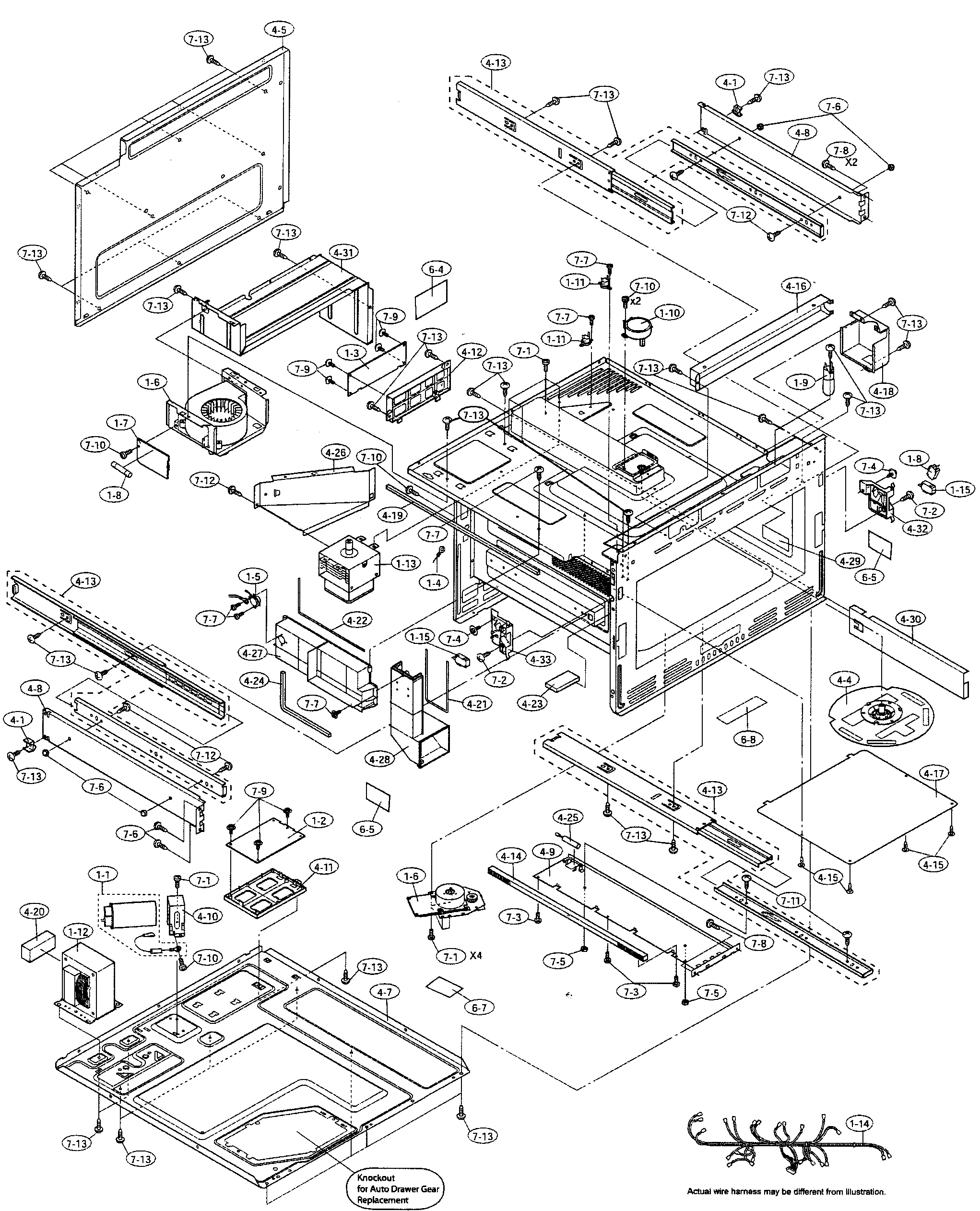

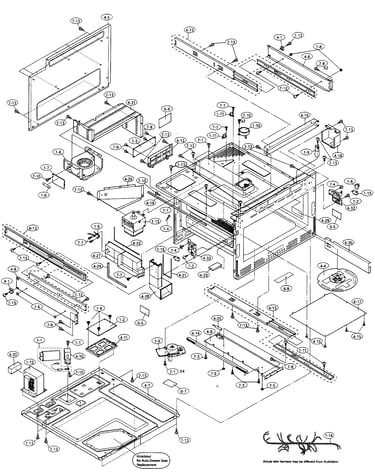

Cavity assy diagram

Microwave magnetron

Part #RV-MZA365WRZZ

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Capacitor Assembly FC-QZB054MRK0
#1-1

Cavity assy diagram

High-voltage capacitor assembly

Part #FC-QZB054MRK0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Power Control Board DPWBFC595WRKZ
#1-3

Cavity assy diagram

Microwave power control board

Part #DPWBFC595WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Electronic Control Board DPWBFB172MRU0
#3-1

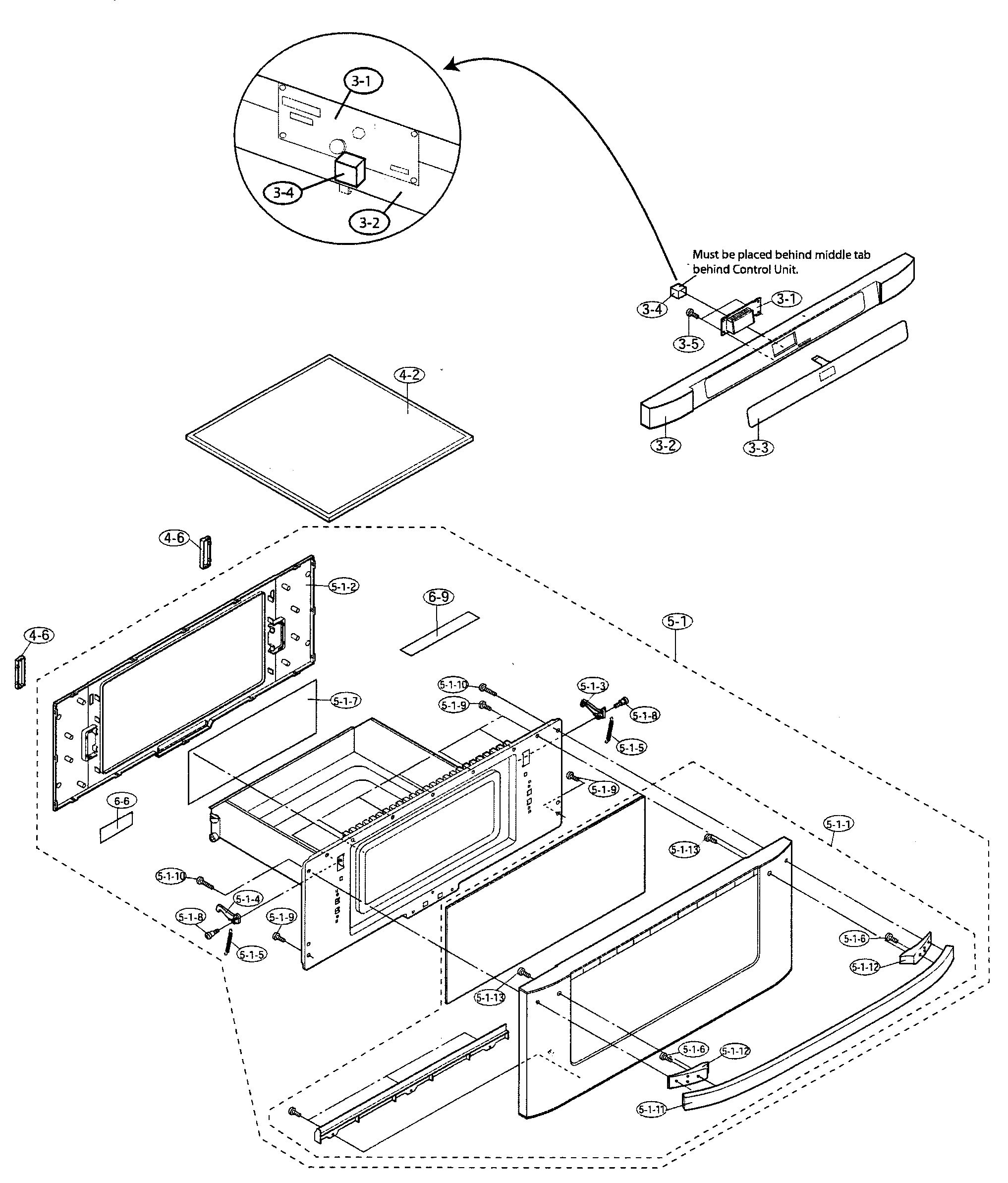

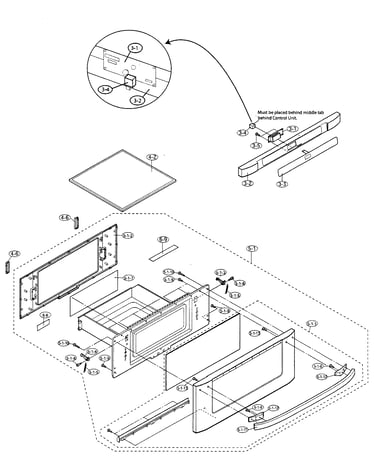

Drawer assy diagram

Microwave electronic control board

Part #DPWBFB172MRU0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Drawer Gear Assembly FANGTB020MRK1
#1-6A

Cavity assy diagram

Microwave drawer gear assembly

Part #FANGTB020MRK1

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly FANGTB020MRK0
#NI

Drawer assy diagram

Gear assembly

Part #FANGTB020MRK0

The manufacturer no longer makes this part, and there's no substitute part

Latch Hook PHOK-B031MRF0
#4-33

Cavity assy diagram

Latch hook

Part #PHOK-B031MRF0

The manufacturer no longer makes this part, and there's no substitute part

Latch Hook PHOK-B030MRF0
#4-32

Cavity assy diagram

Latch hook

Part #PHOK-B030MRF0

The manufacturer no longer makes this part, and there's no substitute part

Sharp Door Handle JHNDMB005MRT0
#5111

Drawer assy diagram

Sharp door handle

Part #JHNDMB005MRT0

The manufacturer no longer makes this part, and there's no substitute part

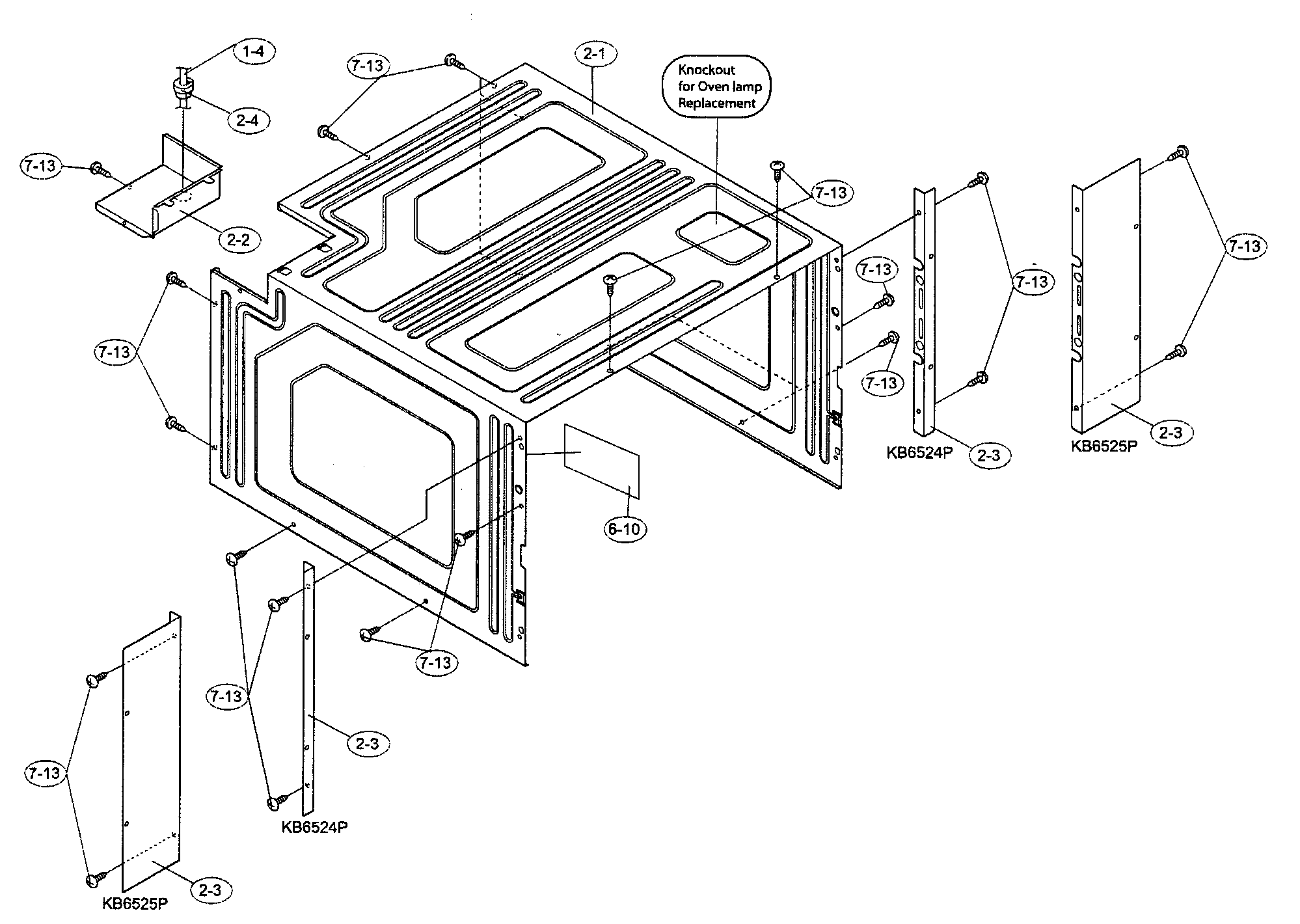

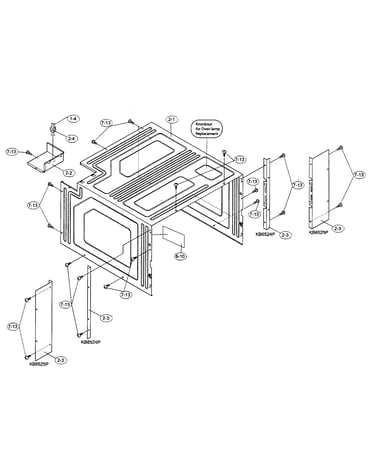

Sc Cabinet XOTS740P12000
#7-13

Cavity assy diagram

Sc cabinet

Part #XOTS740P12000

The manufacturer no longer makes this part, and there's no substitute part
