Model # 867772930 Official Kenmore gas-fired horizontal furnace

Here are the diagrams and repair parts for Official Kenmore 867772930 gas-fired horizontal furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

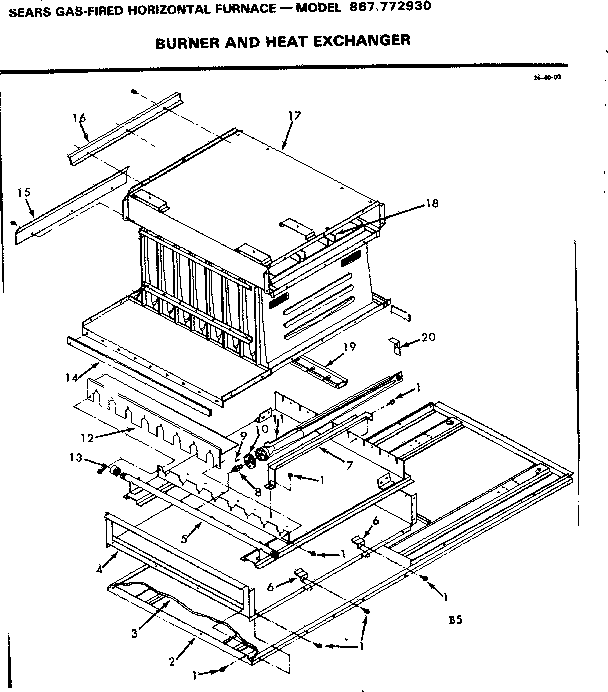

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Door Strike 610904
#7

Cabinet diagram

Door strike

Part #610904

Replaced by #279570

?
Manufacturer substitution
This part replaces 610904. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Catch Door 610905
#8

Cabinet diagram

Catch door

Part #610905

Replaced by #279570

?
Manufacturer substitution
This part replaces 610905. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#15

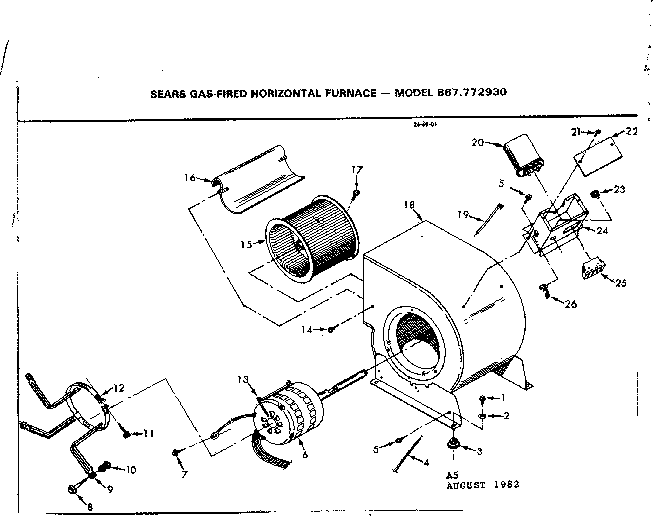

Blower diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Control 607421
#15

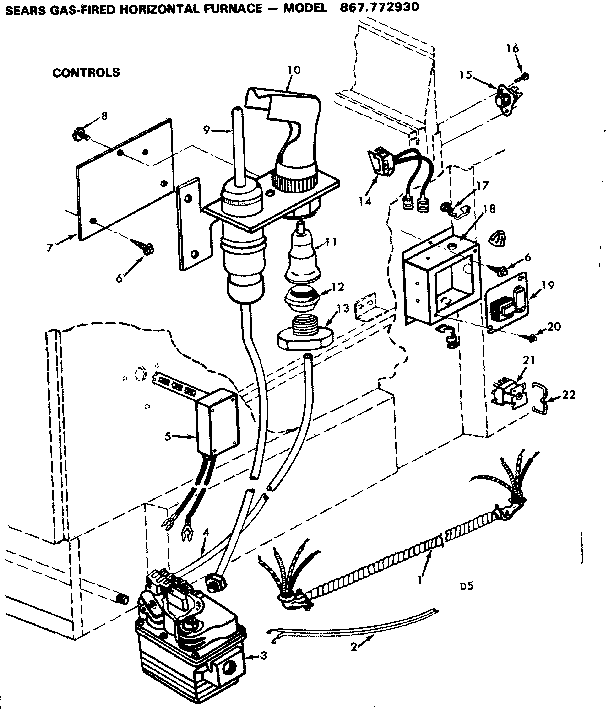

Controls diagram

Control

Part #607421

Replaced by #3L05-1

?
Manufacturer substitution
This part replaces 607421. Substitute parts can look different from the original.
$35.55 |
14% OFF Phone Price : $41.55
In Stock
Furnace Blower Fan Motor Mounting Kit 609227

#NI

All parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Furnace Door Switch 607900
#14

Controls diagram

Furnace door switch

Part #607900

$26.43 |
19% OFF Phone Price : $32.43
In Stock
Control F&l 610511
#5

Controls diagram

Control f&l

Part #610511

The manufacturer no longer makes this part, and there's no substitute part

Grommet 609194
#10

Blower diagram

Grommet

Part #609194

Replaced by #1149537

?
Manufacturer substitution
This part replaces 609194. Substitute parts can look different from the original.
$34.96
In Stock
Thermocouple 92097
#9

Controls diagram

Thermocouple

Part #92097

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 92097. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
Screw 609206
#8

Blower diagram

Screw

Part #609206

Replaced by #1050254

?
Manufacturer substitution
This part replaces 609206. Substitute parts can look different from the original.
$125.18
In Stock
