GE
Countertop Microwave

Model # JES1144WY01 Official GE microwave

Here are the diagrams and repair parts for Official GE JES1144WY01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

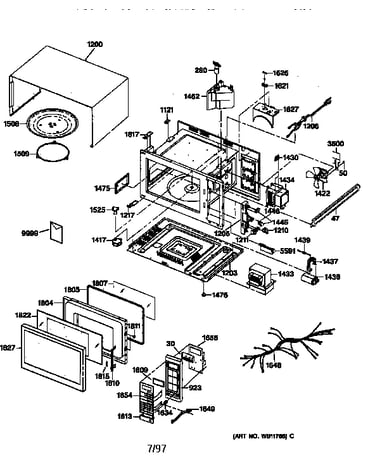

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Switch-micro WB24X0829
#1445

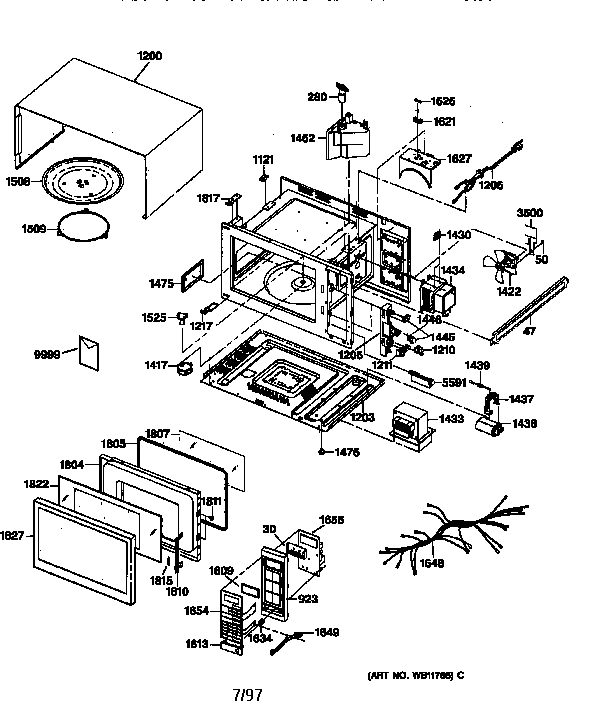

Microwave parts diagram

Switch-micro

Part #WB24X0829

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0829. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Microwave High-voltage Capacitor (replaces Wb27x585) WB27X10011
#1438

Microwave parts diagram

Microwave high-voltage capacitor (replaces wb27x585)

Part #WB27X10011

BEST SELLER
$46.74 |
11% OFF Phone Price : $52.74
In Stock
Monitor Switch WB24X0830
#1446

Microwave parts diagram

Monitor switch

Part #WB24X0830

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0830. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Microwave High-voltage Diode (replaces Wb27x608) WB27X1160
#1439

Microwave parts diagram

Microwave high-voltage diode (replaces wb27x608)

Part #WB27X1160

BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Cooking Tray WB49X10002
#1508

Microwave parts diagram

Cooking tray

Part #WB49X10002

Replaced by #WB39X10003

?
Manufacturer substitution
This part replaces WB49X10002. Substitute parts can look different from the original.
$68.03 |
8% OFF Phone Price : $74.03
In Stock
Magnetron WB27X1156
#1434

Microwave parts diagram

Magnetron

Part #WB27X1156

The manufacturer no longer makes this part, and there's no substitute part

Door Lever WB06X0534
#5591

Microwave parts diagram

Door lever

Part #WB06X0534

Replaced by #WB06X10186

?
Manufacturer substitution
This part replaces WB06X0534. Substitute parts can look different from the original.
$9.77
In Stock
Sleeve Motor WB06X10007
#3500

Microwave parts diagram

Sleeve motor

Part #WB06X10007

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor WB26X0194
#1417

Microwave parts diagram

Microwave turntable motor

Part #WB26X0194

The manufacturer no longer makes this part, and there's no substitute part

Frame I/door WB55X10010
#1805

Microwave parts diagram

Frame i/door

Part #WB55X10010

The manufacturer no longer makes this part, and there's no substitute part
