Kenmore
Electronic Sewing Machine

Model # 38519606400 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 38519606400 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 314 parts  |
Janome Oil Wick 820125008
#28

Feed rock shaft unit diagram

Janome oil wick

Part #820125008

The manufacturer no longer makes this part, and there's no substitute part

Ring 502064003
#17

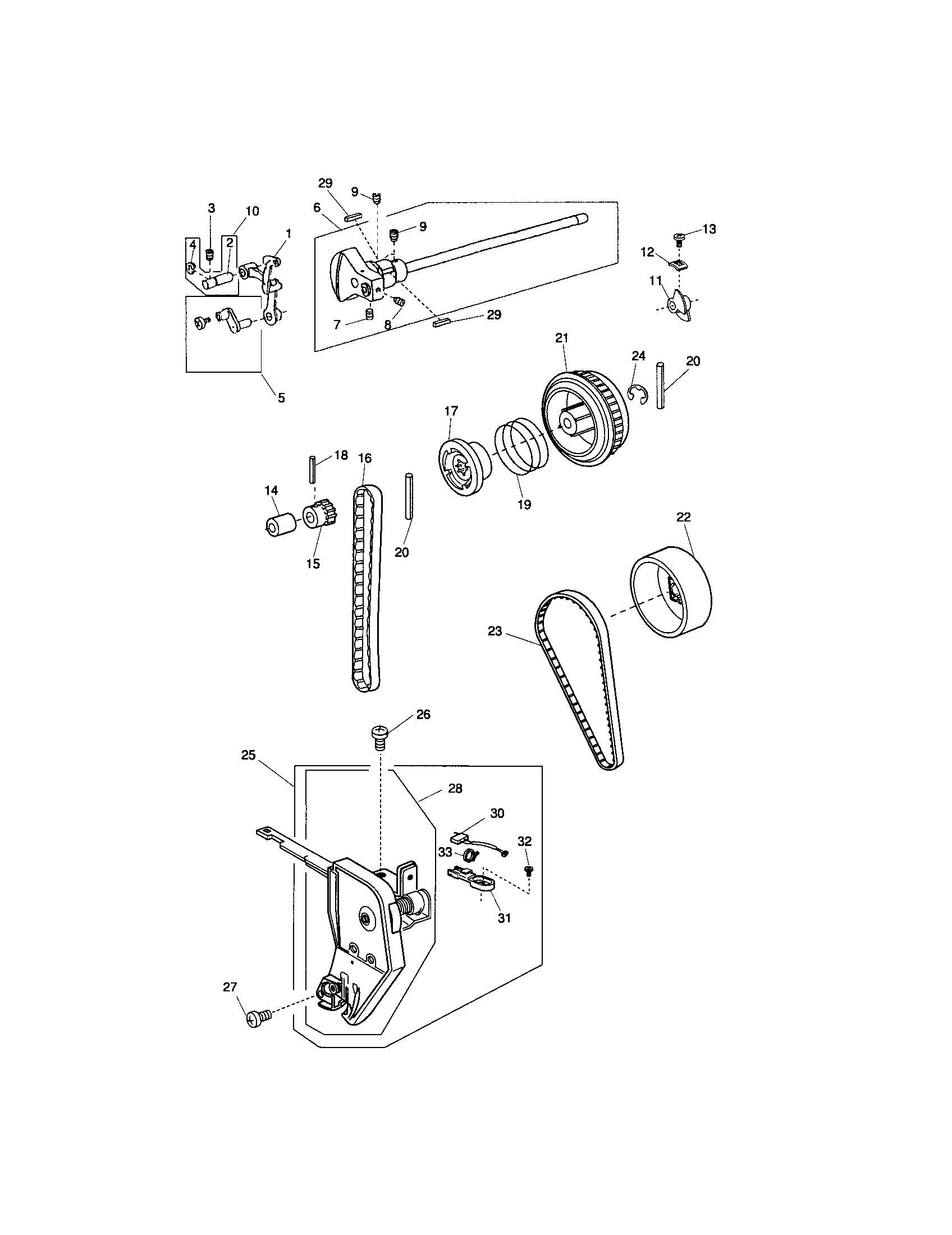

Upper shaft/thread tension diagram

Ring

Part #502064003

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Elite Guide Pin 827083004
#42

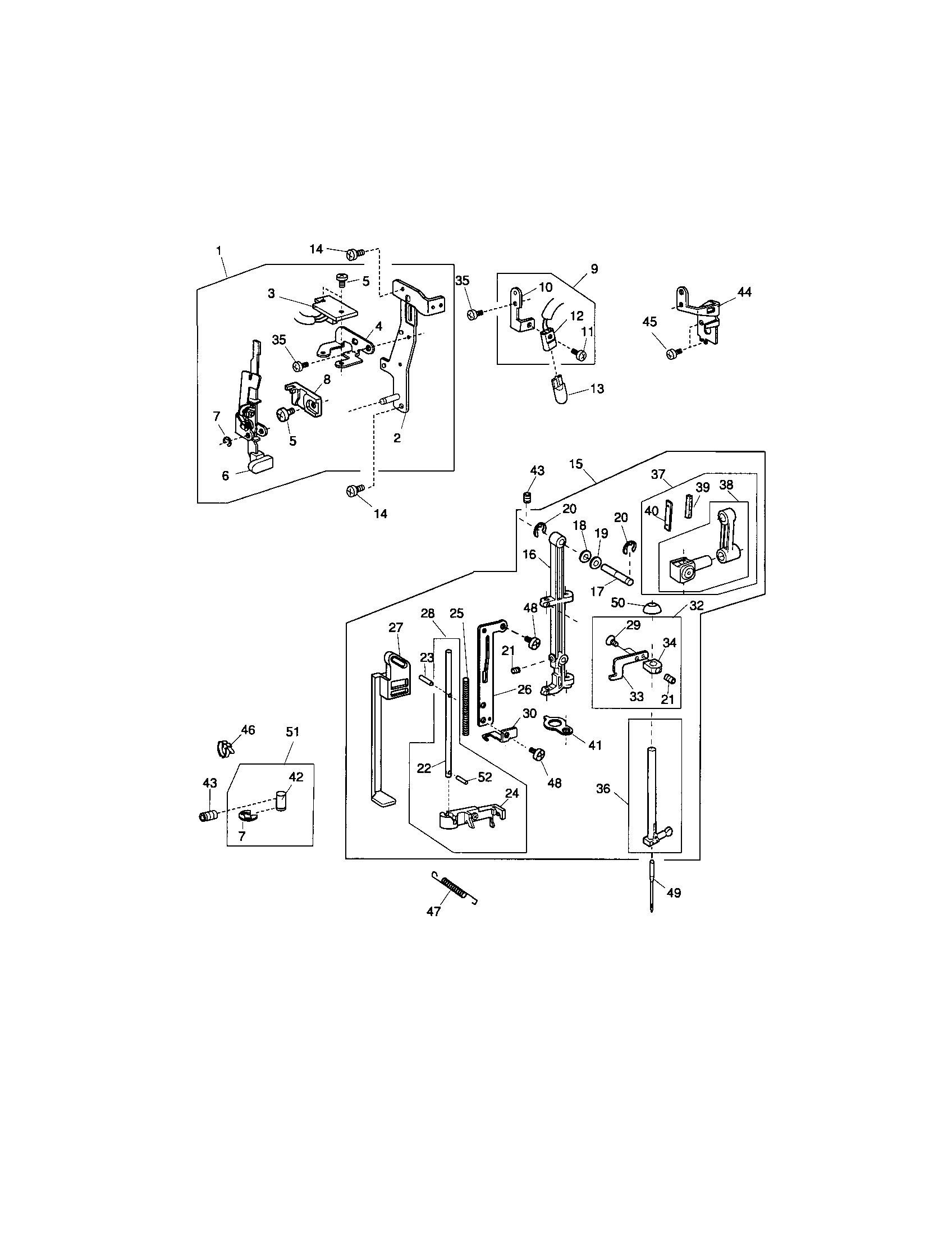

Front set plate/needlebar supporter diagram

Kenmore elite guide pin

Part #827083004

The manufacturer no longer makes this part, and there's no substitute part

Adjusting Ca 686027007
#26

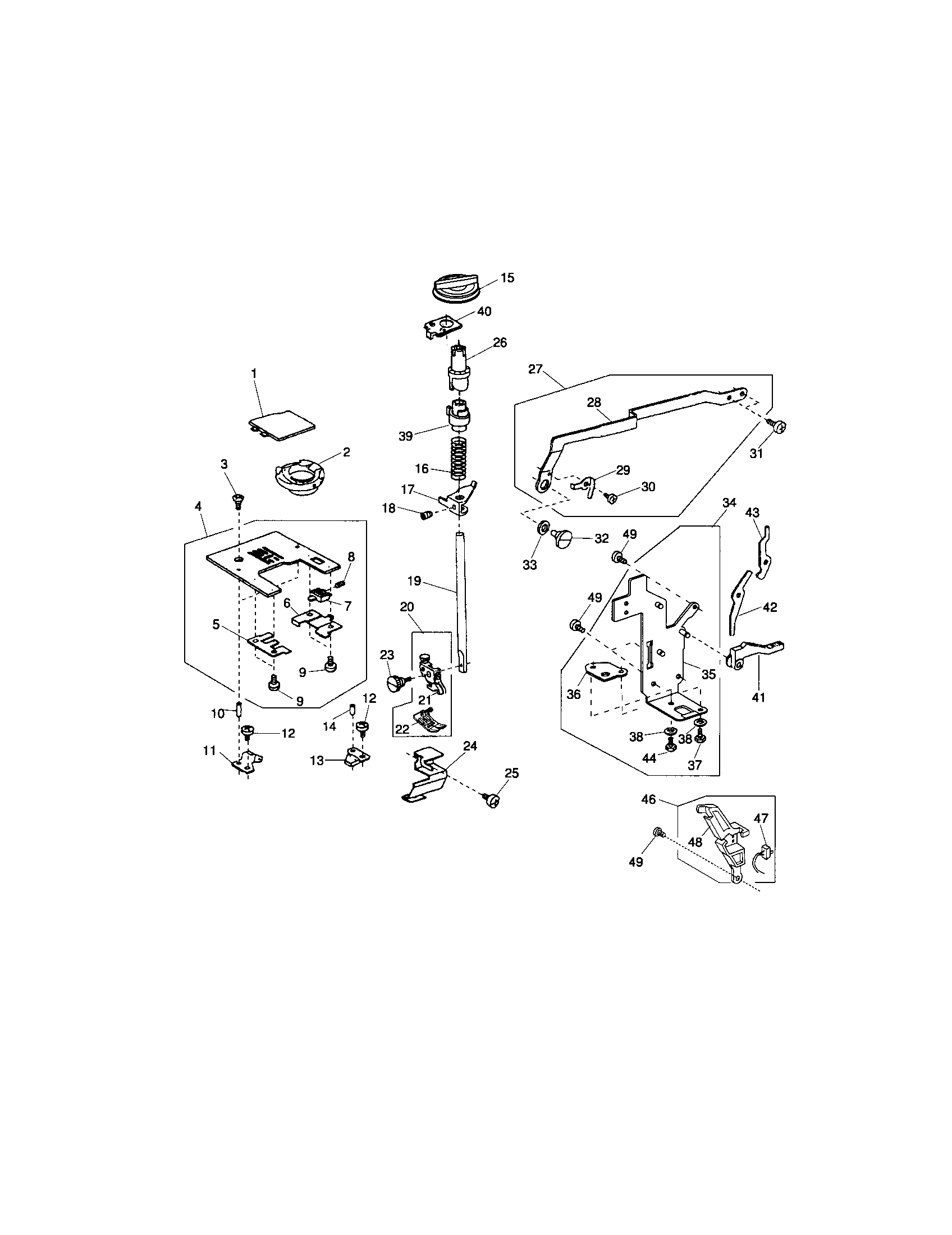

Slide plate set / zz rod diagram

Adjusting ca

Part #686027007

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Extension 848008000
#31

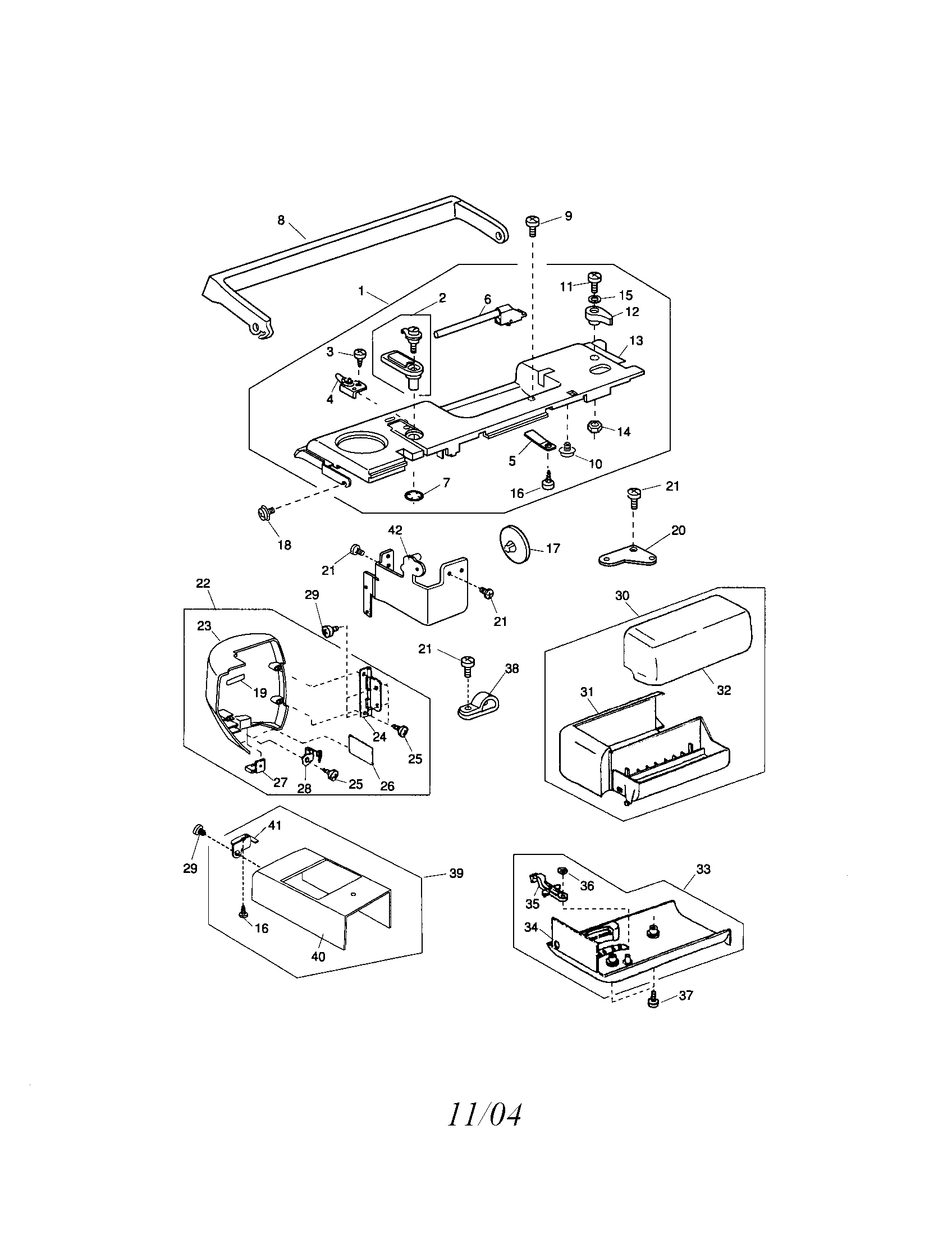

Top cover/handle diagram

Kenmore extension

Part #848008000

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Elite Leg Arm 828069007
#5

Stepping motor feed unit diagram

Kenmore elite leg arm

Part #828069007

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Set Screw 000101404
Sewing machine set screw

Part #000101404

The manufacturer no longer makes this part, and there's no substitute part

Janome Sewing Machine Hook Race Bottom Plate 627191000
#31

Feed rock shaft unit diagram

Janome sewing machine hook race bottom plate

Part #627191000

The manufacturer no longer makes this part, and there's no substitute part

Lower Shaft 827613009
#17

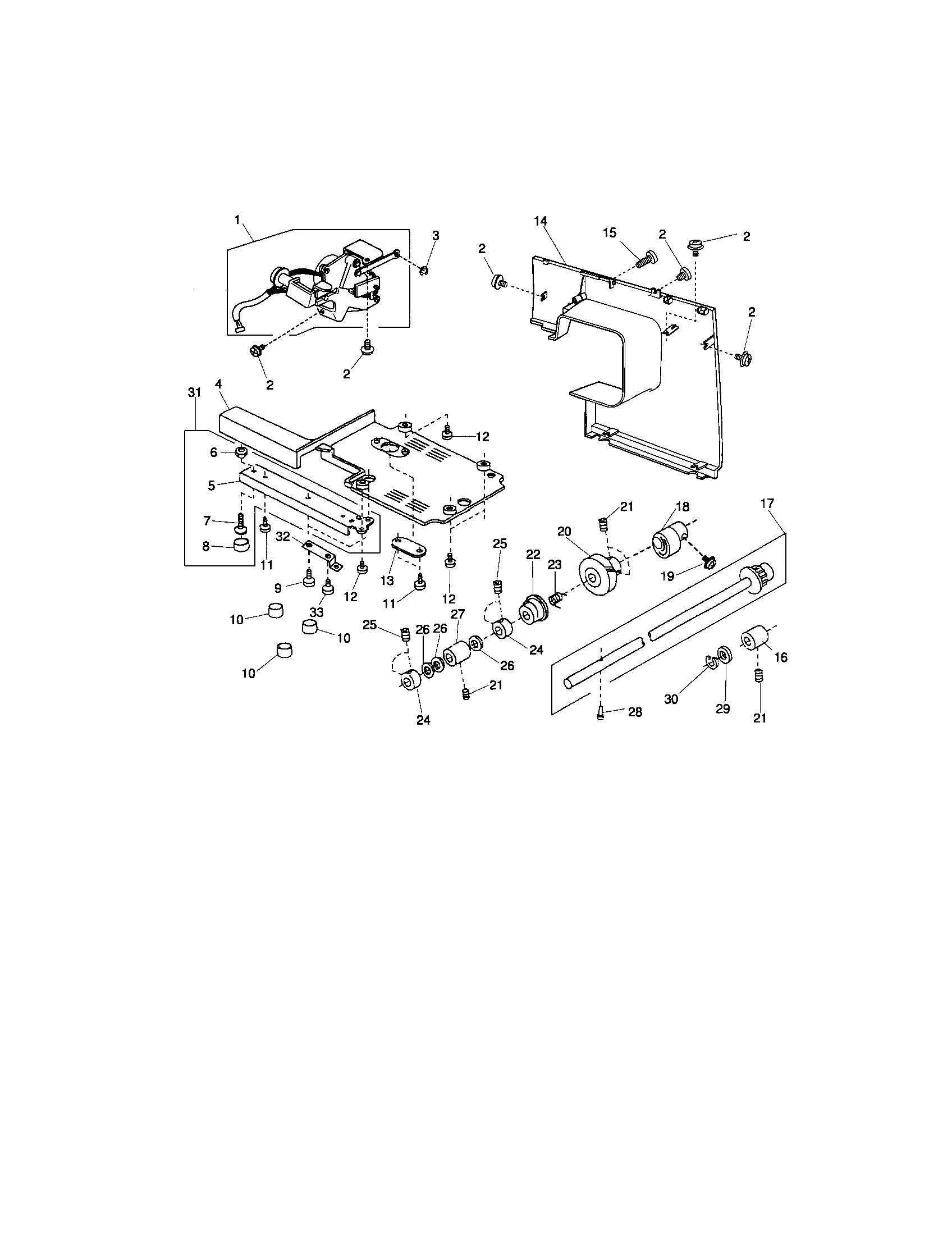

Stepping motor feed unit diagram

Lower shaft

Part #827613009

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Power Control Board Assembly 848003005
#16

Front panel/slide volume diagram

Kenmore power control board assembly

Part #848003005

The manufacturer no longer makes this part, and there's no substitute part
