Dirt Devil
Upright Vacuum

Model # 086900S Official Dirt Devil upright vacuum

Here are the diagrams and repair parts for Official Dirt Devil 086900S upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

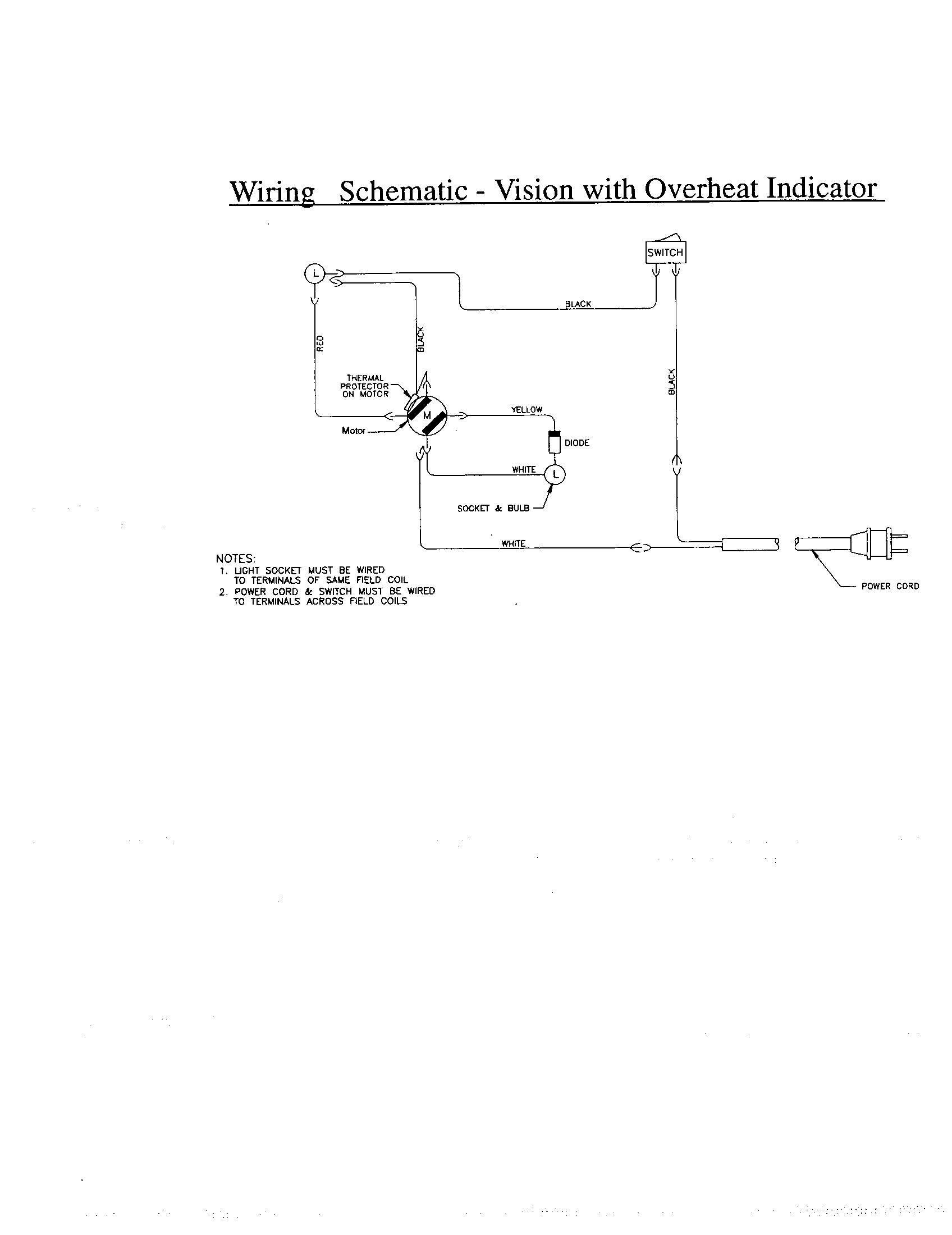

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Cover 2-690055-600
#38

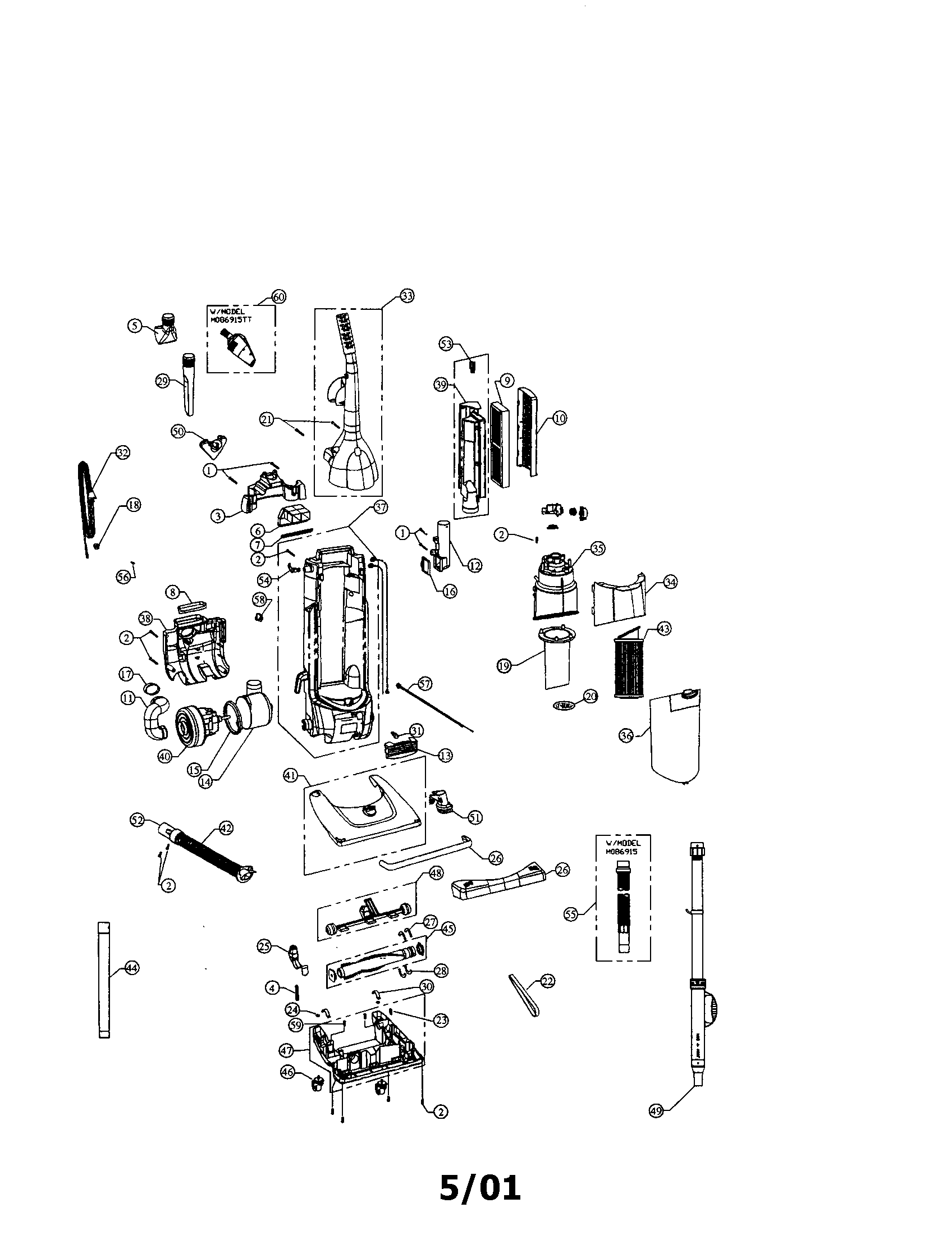

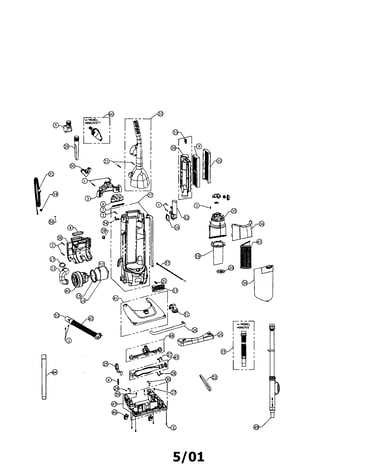

Vision frame assembly diagram

Cover

Part #2-690055-600

The manufacturer no longer makes this part, and there's no substitute part

Air Duct 1-690039-600
#6

Vision frame assembly diagram

Air duct

Part #1-690039-600

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 2-863005-000
#45

Vision frame assembly diagram

Vacuum beater bar

Part #2-863005-000

The manufacturer no longer makes this part, and there's no substitute part

Nut 1-863054-000
#24

Vision frame assembly diagram

Nut

Part #1-863054-000

The manufacturer no longer makes this part, and there's no substitute part

Motor 2-690172-000
#40

Vision frame assembly diagram

Motor

Part #2-690172-000

The manufacturer no longer makes this part, and there's no substitute part

Relief 1-690150-600
#18

Vision frame assembly diagram

Relief

Part #1-690150-600

The manufacturer no longer makes this part, and there's no substitute part

Motor 2-690174-000
#40A

Vision frame assembly diagram

Motor

Part #2-690174-000

The manufacturer no longer makes this part, and there's no substitute part

Cover Black 2-690035-600
#34C

Vision frame assembly diagram

Cover black

Part #2-690035-600

The manufacturer no longer makes this part, and there's no substitute part

Gasket 1-690054-000
#8

Vision frame assembly diagram

Gasket

Part #1-690054-000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 1-720430-000
#2

Vision frame assembly diagram

Vacuum screw

Part #1-720430-000

The manufacturer no longer makes this part, and there's no substitute part
