Treadmill

Model # IMTL14900 Official Image 10.6ql treadmill

Here are the diagrams and repair parts for Official Image IMTL14900 10.6ql treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

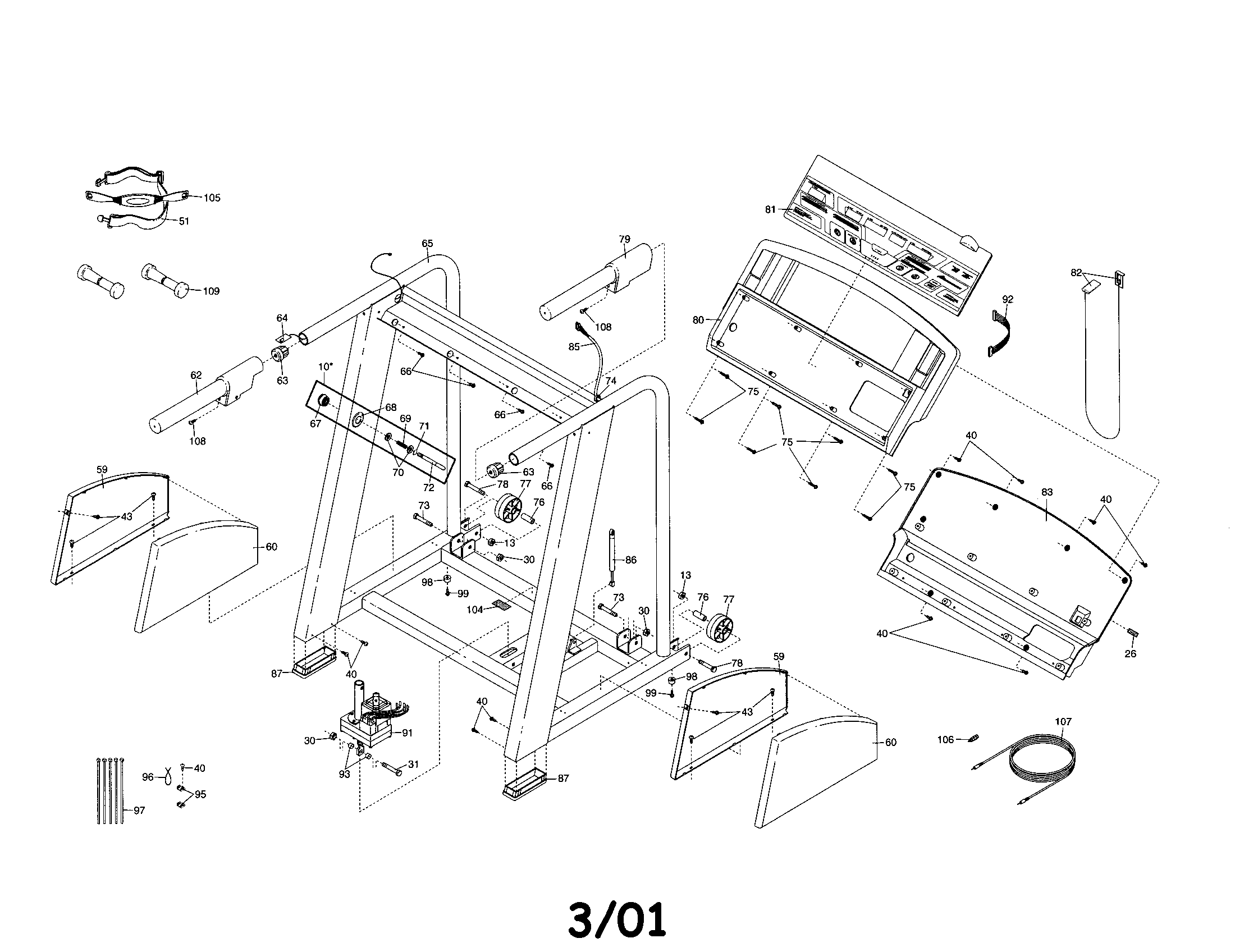

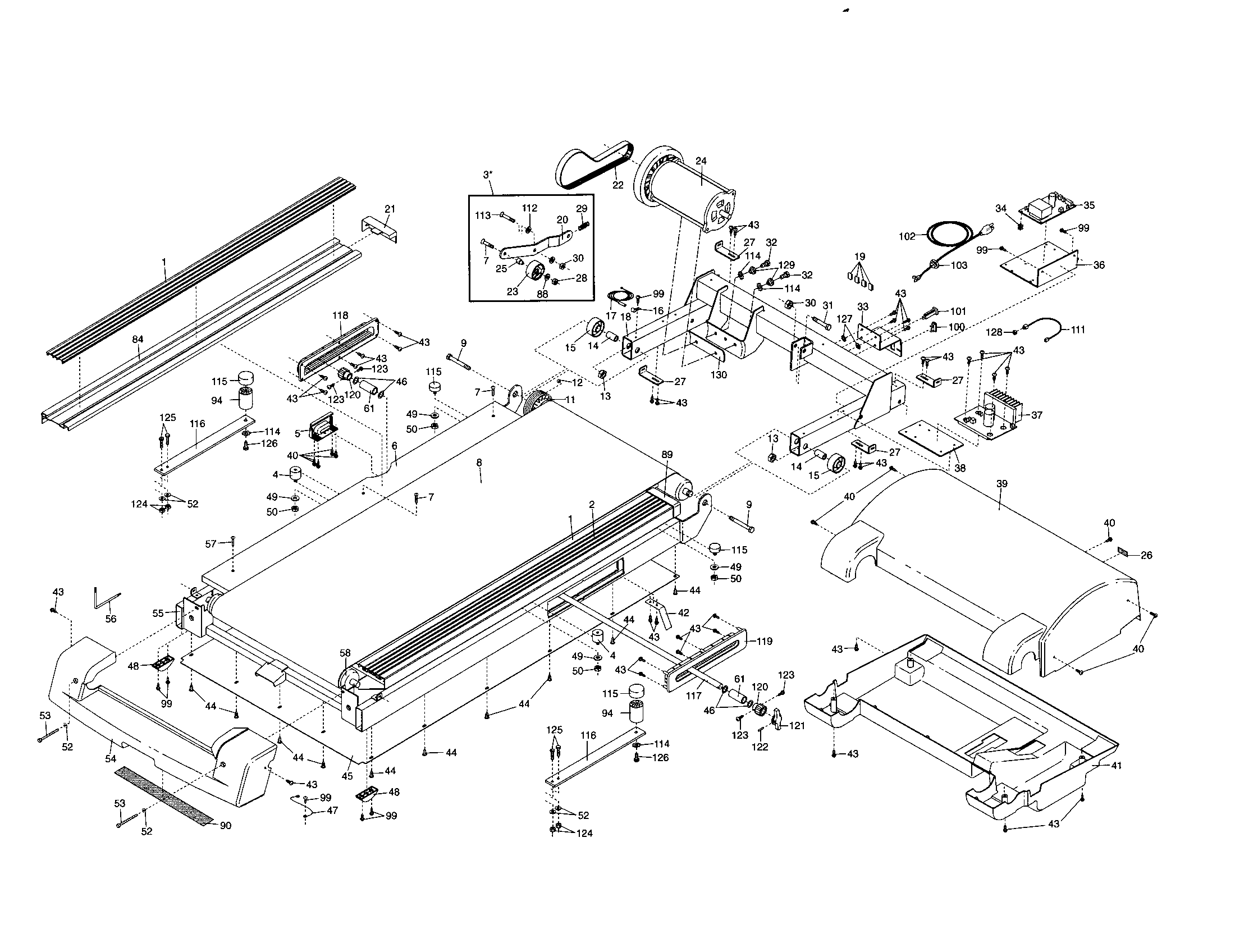

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038

#82

All parts diagram

Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
Back Order
Black & Decker Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229

#102

All parts diagram

Black & decker treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382

#101

All parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Magnet,rnd,m 100498

#12

All parts diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Black & Decker Exercise Equipment Reed Switch 157504

#17

All parts diagram

Black & decker exercise equipment reed switch

Part #157504

This item is not returnable
$10.99
In Stock
Lifestyler Exercise Equipment Screw 013607

#40

All parts diagram

Lifestyler exercise equipment screw

Part #013607

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Black & Decker Wire,jmpr,00 153458

#NI

All parts diagram

Black & decker wire,jmpr,00

Part #153458

This item is not returnable
$2.99
In Stock
Plate,rect,2 163869

#130

All parts diagram

Plate,rect,2

Part #163869

$13.99
In Stock
Weight,hand, 158384

#109

All parts diagram

Weight,hand,

Part #158384

$18.49
In Stock
Bshg,plst,.3 163870

#129

All parts diagram

Bshg,plst,.3

Part #163870

This item is not returnable
$2.16
In Stock

Symptoms for treadmills

Choose a symptom to see related treadmill repairs.

View all

Why won't my treadmill power up?

Main causes: no power, bad power cord, tripped or faulty overload switch, bad power switch, wiring failure, bad motor co…

Read more

Why is my treadmill's walking belt off center?

Main causes: rear roller out of alignment, damaged walking belt, bad roller…

Read more

Why won't my treadmill start even though the console display works?

Main causes: missing safety key, bad control console, wiring failure, faulty motor control board, bad drive motor…

Read more

Why is my treadmill's heart rate sensor not accurate?

Main causes: faulty sensors, wiring failure, bad control console…

Read more

Why does my treadmill have no display?

Main causes: bad control console, wiring failure, bad motor control board…

Read more

Why does my treadmill's walking belt slow down?

Main causes: damaged walking belt, improper belt tension, lack of belt lubricant, bad drive motor…

Read more

Why is my treadmill's walking belt slipping?

Main causes: damaged walking belt, improper belt tension, bad roller bearing…

Read more

Repair guides for treadmills
