Model # 6095DW Official Makita drill

Here are the diagrams and repair parts for Official Makita 6095DW drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Flat Washer 253842-3
#25

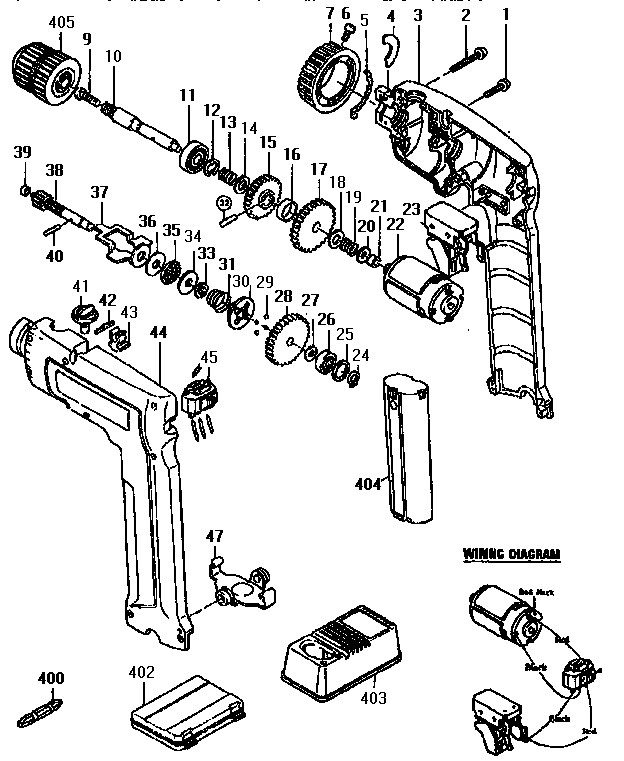

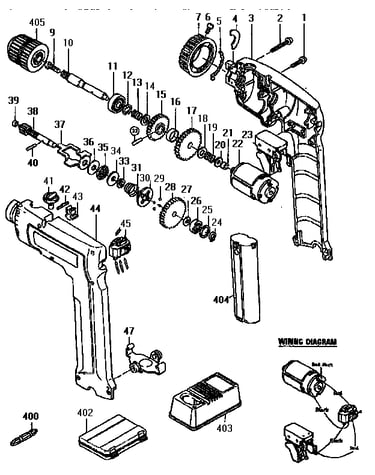

Cordless drill driver diagram

Flat washer

Part #253842-3

The manufacturer no longer makes this part, and there's no substitute part

Pln Bearing 214017-9
#21

Cordless drill driver diagram

Pln bearing

Part #214017-9

The manufacturer no longer makes this part, and there's no substitute part

Stip Ring 961015-1
#12

Cordless drill driver diagram

Stip ring

Part #961015-1

The manufacturer no longer makes this part, and there's no substitute part

Bearing 214019-5
#39

Cordless drill driver diagram

Bearing

Part #214019-5

The manufacturer no longer makes this part, and there's no substitute part

Switch 651872-2
#45

Cordless drill driver diagram

Switch

Part #651872-2

The manufacturer no longer makes this part, and there's no substitute part

Swtch Varabl 651343-9
#23

Cordless drill driver diagram

Swtch varabl

Part #651343-9

The manufacturer no longer makes this part, and there's no substitute part

Body 182141-5
Body

Part #182141-5

The manufacturer no longer makes this part, and there's no substitute part

Ring 961002-0
#24

Cordless drill driver diagram

Ring

Part #961002-0

The manufacturer no longer makes this part, and there's no substitute part

Cam Plate 343410-1
#5

Cordless drill driver diagram

Cam plate

Part #343410-1

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 253807-5
#20

Cordless drill driver diagram

Flat washer

Part #253807-5

The manufacturer no longer makes this part, and there's no substitute part
