Kenmore
Canister Vacuum

Model # 11629950 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 11629950 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |

Cover 741091
#5

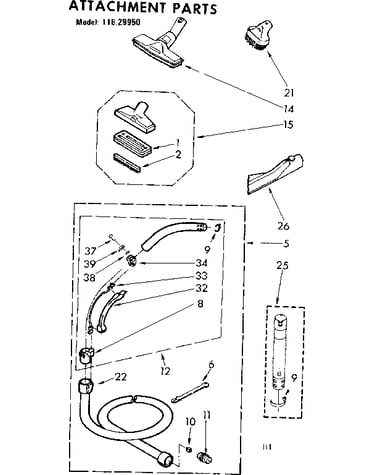

Attachment parts diagram

Cover

Part #741091

The manufacturer no longer makes this part, and there's no substitute part

Lid 704231
#4

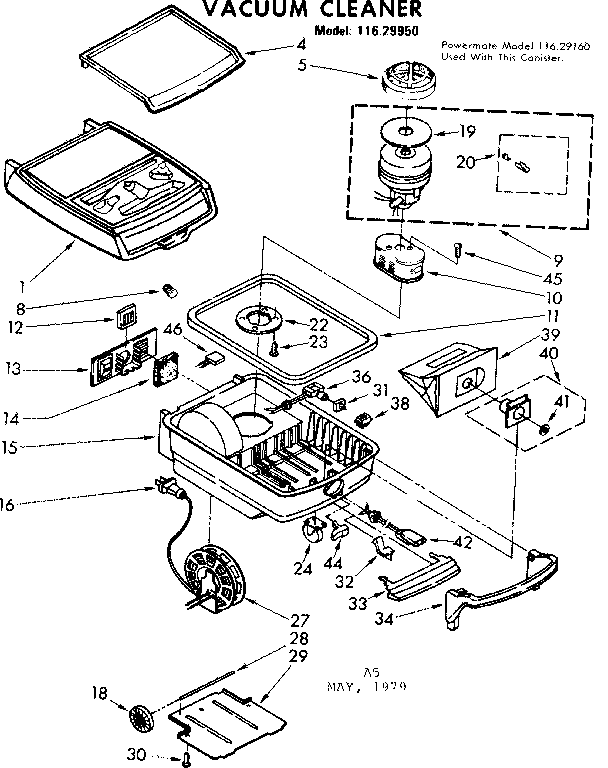

Base assembly diagram

Lid

Part #704231

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 764602
#42

Base assembly diagram

Receptacle

Part #764602

The manufacturer no longer makes this part, and there's no substitute part

Suction Control 722419
#39

Attachment parts diagram

Suction control

Part #722419

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Kit 569683
#1

Attachment parts diagram

Nozzle kit

Part #569683

The manufacturer no longer makes this part, and there's no substitute part

Brush 741122
#14

Attachment parts diagram

Brush

Part #741122

The manufacturer no longer makes this part, and there's no substitute part

Pan Base 704218
#29

Base assembly diagram

Pan base

Part #704218

The manufacturer no longer makes this part, and there's no substitute part

Seal 764546
#31

Base assembly diagram

Seal

Part #764546

The manufacturer no longer makes this part, and there's no substitute part

Insulation 764294
#14

Base assembly diagram

Insulation

Part #764294

The manufacturer no longer makes this part, and there's no substitute part

Cap 703272
#10

Base assembly diagram

Cap

Part #703272

The manufacturer no longer makes this part, and there's no substitute part
