Garage Door Opener

Model # 139655300 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139655300 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

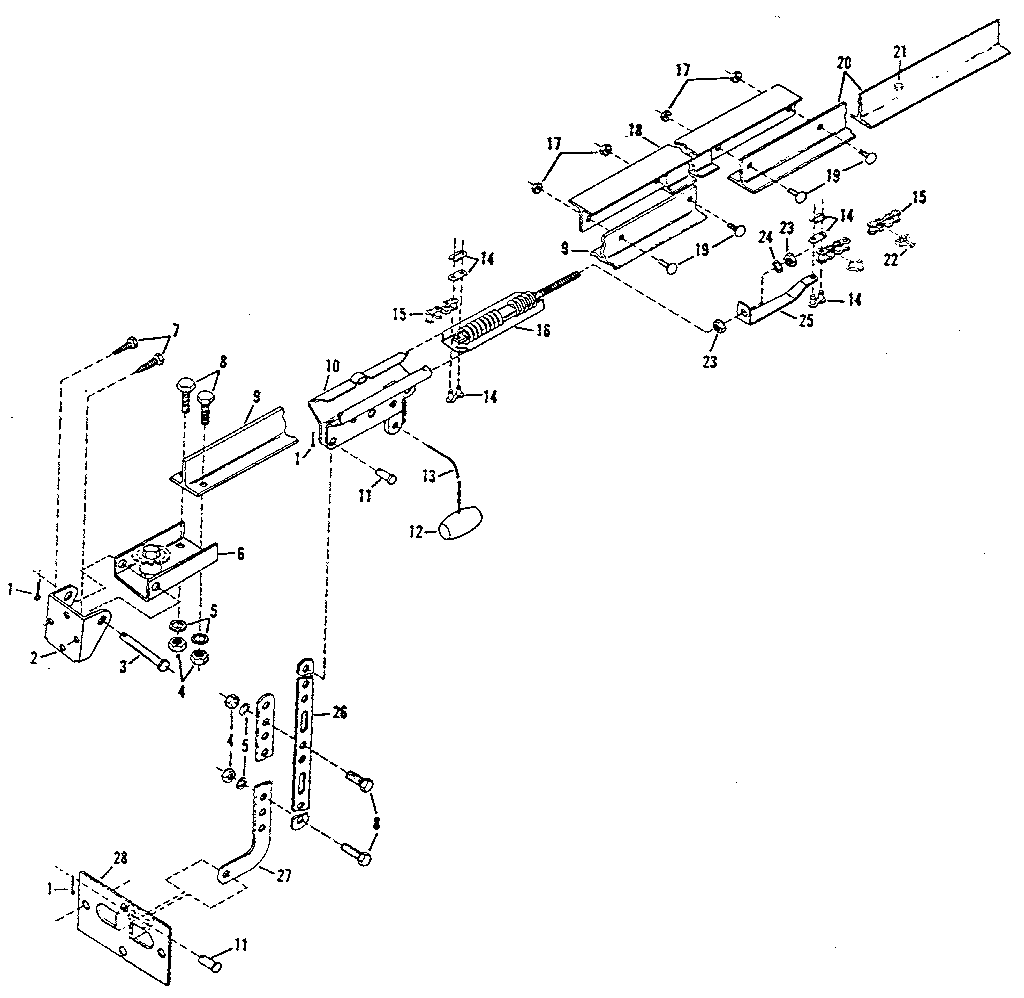

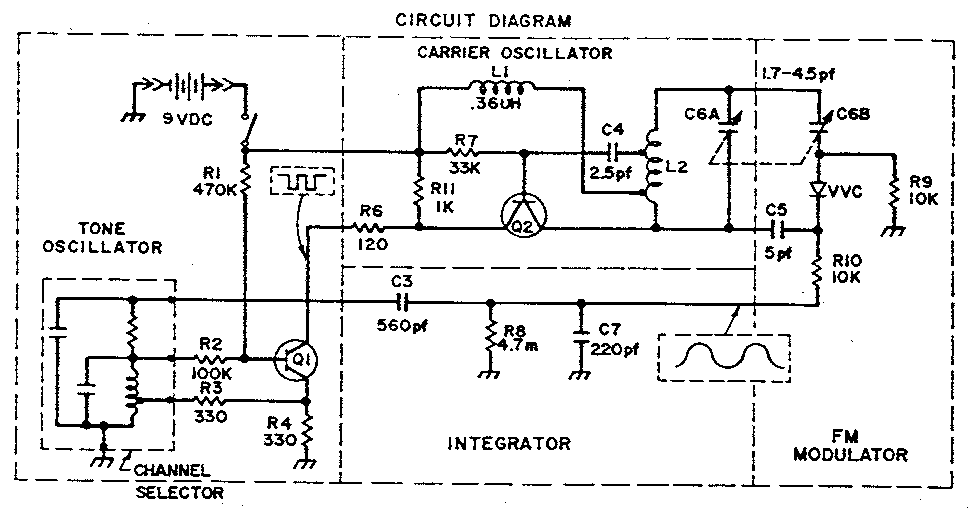

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Nut 133A106
#11

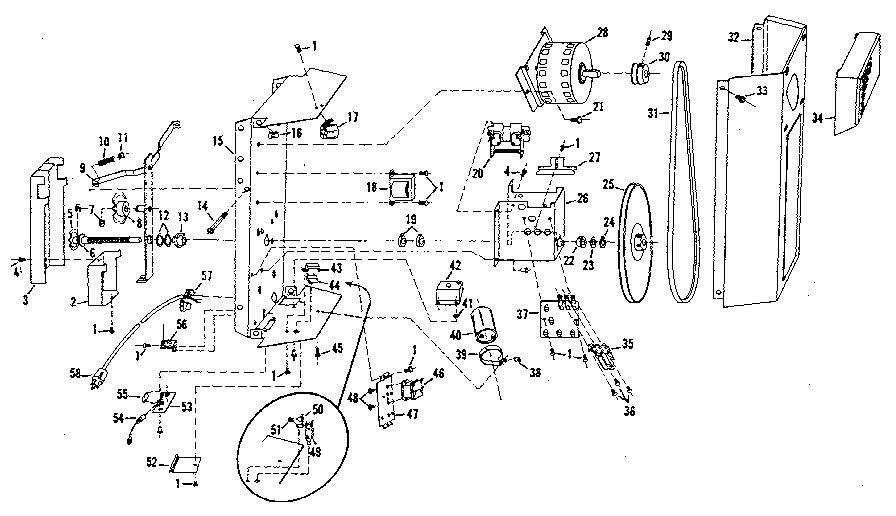

Chassis assembly diagram

Nut

Part #133A106

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A15
#48

Chassis assembly diagram

Screw

Part #171A15

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A184
#21

Chassis assembly diagram

Screw

Part #171A184

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A183
#1

Chassis assembly diagram

Screw

Part #171A183

The manufacturer no longer makes this part, and there's no substitute part

Transistor 207A14
#28

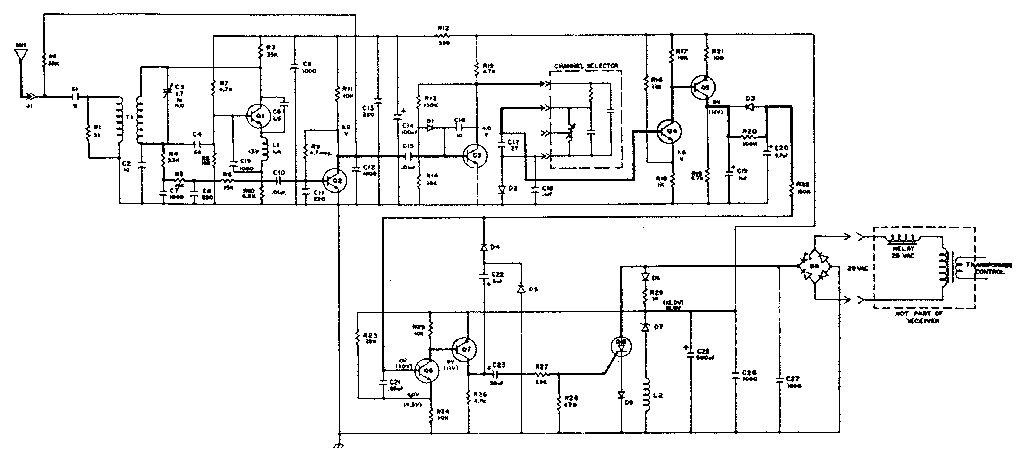

Wiring diagram diagram

Transistor

Part #207A14

The manufacturer no longer makes this part, and there's no substitute part

Receiver Circuit Board With Cover (specify N,w Or X) 1A1041-X
#4B

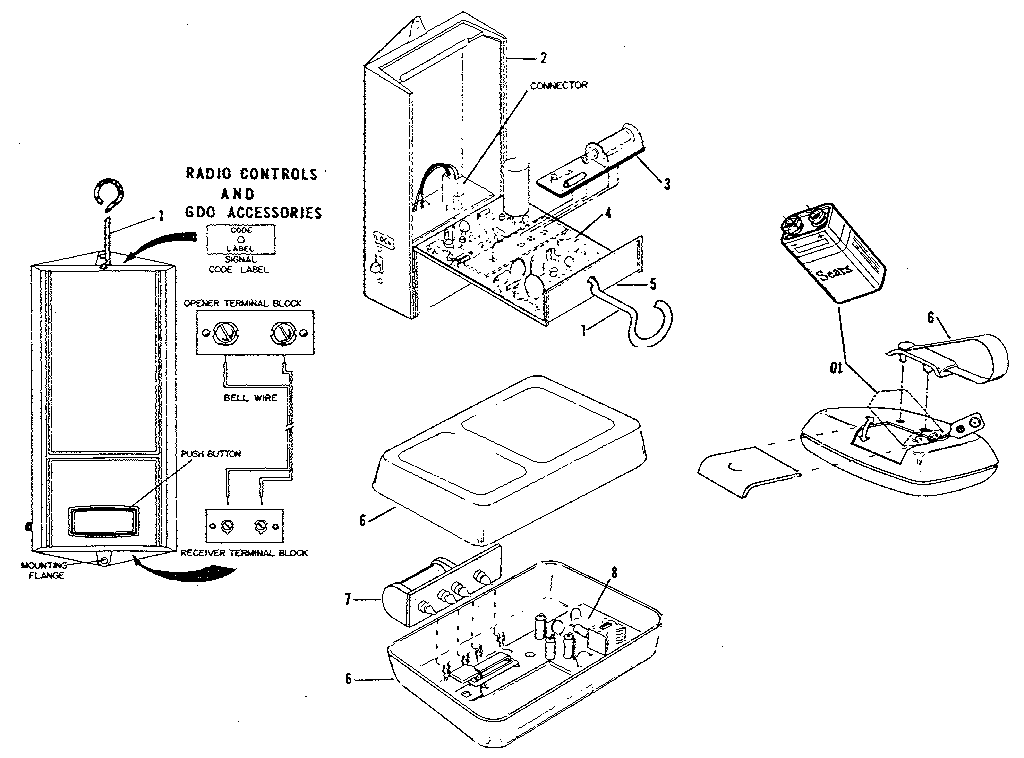

Radio control diagram

Receiver circuit board with cover (specify n,w or x)

Part #1A1041-X

The manufacturer no longer makes this part, and there's no substitute part

Rev Switch 31B129
#2

Chassis assembly diagram

Rev switch

Part #31B129

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A74
#4

Chassis assembly diagram

Screw

Part #171A74

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 30A197
#17

Wiring diagram diagram

Capacitor

Part #30A197

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A58
#29

Chassis assembly diagram

Screw

Part #171A58

The manufacturer no longer makes this part, and there's no substitute part
