Sharp
Countertop Microwave

Model # R-320BG Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-320BG microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

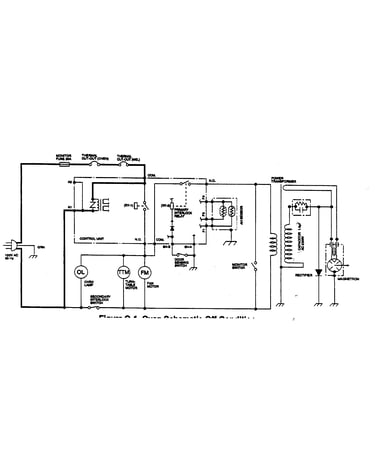

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Switch QSW-MA110WRE0
#1-1A

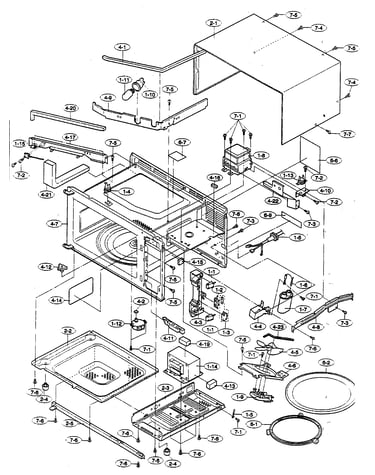

Oven/cabinet parts diagram

Switch

Part #QSW-MA110WRE0

The manufacturer no longer makes this part, and there's no substitute part

Fuse Kit FFS-BA021WRK0
#1-3

Oven/cabinet parts diagram

Fuse kit

Part #FFS-BA021WRK0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Support FROLPA079WRK0
#6-1

Oven/cabinet parts diagram

Microwave turntable support

Part #FROLPA079WRK0

The manufacturer no longer makes this part, and there's no substitute part

Thermal Cu RTHM-A078WRE0
#1-4

Oven/cabinet parts diagram

Thermal cu

Part #RTHM-A078WRE0

The manufacturer no longer makes this part, and there's no substitute part

Cushion PCUSGA399WRE0
#4-13

Oven/cabinet parts diagram

Cushion

Part #PCUSGA399WRE0

The manufacturer no longer makes this part, and there's no substitute part

Stopper LSTPPA139WRF0
#5-5

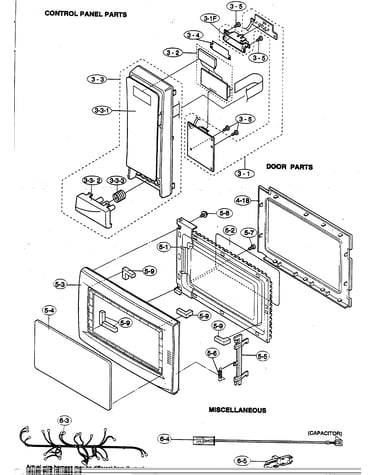

Control panel/door parts/miscellaneous diagram

Stopper

Part #LSTPPA139WRF0

The manufacturer no longer makes this part, and there's no substitute part

Motor RMOTDA161WRE0
#1-12

Oven/cabinet parts diagram

Motor

Part #RMOTDA161WRE0

The manufacturer no longer makes this part, and there's no substitute part

Transformer RTRN-A569WRE0
#1-14

Oven/cabinet parts diagram

Transformer

Part #RTRN-A569WRE0

The manufacturer no longer makes this part, and there's no substitute part

Pcb Control DPWBFB753WRK0
#3-2

Control panel/door parts/miscellaneous diagram

Pcb control

Part #DPWBFB753WRK0

The manufacturer no longer makes this part, and there's no substitute part

Sheet PSHEPA588WRE0
#3-4

Control panel/door parts/miscellaneous diagram

Sheet

Part #PSHEPA588WRE0

The manufacturer no longer makes this part, and there's no substitute part
