Model # 2538712584 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2538712584 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Screw 516353
#29

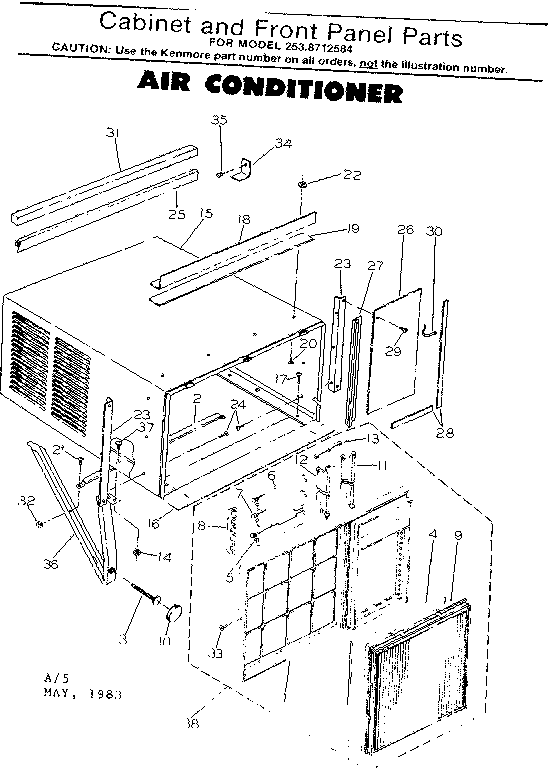

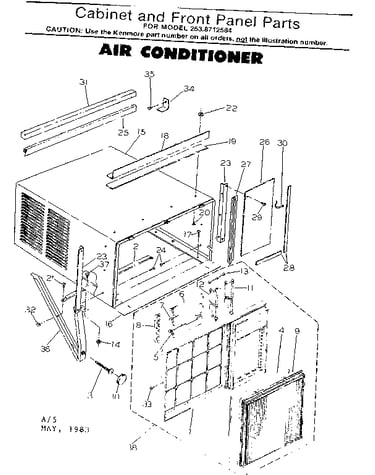

Cabinet & front panel parts diagram

Screw

Part #516353

Replaced by #154419403

?
Manufacturer substitution
This part replaces 516353. Substitute parts can look different from the original.
$12.69
In Stock
Link 100365
#13

Cabinet & front panel parts diagram

Link

Part #100365

Replaced by #08047498

?
Manufacturer substitution
This part replaces 100365. Substitute parts can look different from the original.
This item is not returnable
$2.22
In Stock
Clamp 96777
#26

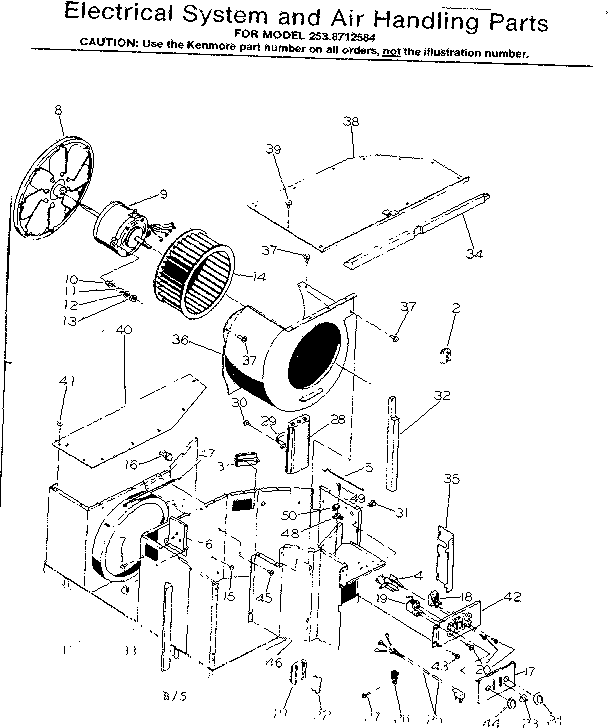

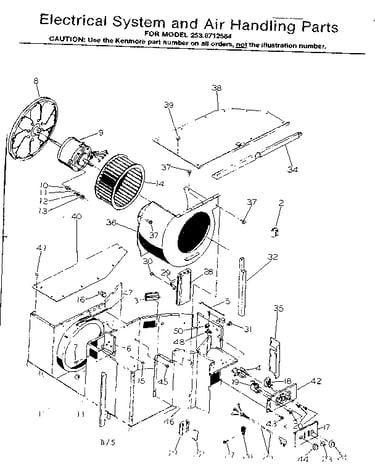

Electrical system & air handling parts diagram

Clamp

Part #96777

Replaced by #5303001199

?
Manufacturer substitution
This part replaces 96777. Substitute parts can look different from the original.
$50.60
In Stock
Air Conditioner Blower Wheel 149714-01
#14

Electrical system & air handling parts diagram

Air conditioner blower wheel

Part #149714-01

The manufacturer no longer makes this part, and there's no substitute part

Condenser 154989
#4

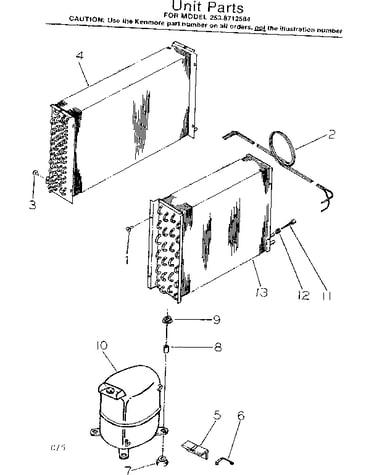

Unit parts diagram

Condenser

Part #154989

The manufacturer no longer makes this part, and there's no substitute part

Energy Guide 51666807

#NI

All parts diagram

Energy guide

Part #51666807

The manufacturer no longer makes this part, and there's no substitute part

Window Panel 149202-03
#26

Cabinet & front panel parts diagram

Window panel

Part #149202-03

The manufacturer no longer makes this part, and there's no substitute part

Carton 504100-60

#NI

All parts diagram

Carton

Part #504100-60

The manufacturer no longer makes this part, and there's no substitute part

Clip 117313
#30

Cabinet & front panel parts diagram

Clip

Part #117313

The manufacturer no longer makes this part, and there's no substitute part

Cab Shell 159566-10
#15

Cabinet & front panel parts diagram

Cab shell

Part #159566-10

The manufacturer no longer makes this part, and there's no substitute part
