Model # NUL5050BEA1 Official ICP gas fan assisted furnace

Here are the diagrams and repair parts for Official ICP NUL5050BEA1 gas fan assisted furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Module 1005651
#3

Functional diagram

Module

Part #1005651

The manufacturer no longer makes this part, and there's no substitute part

Control Pres 1093433
#25

Functional diagram

Control pres

Part #1093433

Replaced by #1174276

?
Manufacturer substitution
This part replaces 1093433. Substitute parts can look different from the original.
$62.55 |
9% OFF Phone Price : $68.55
In Stock
Control Elec 1005229
#9

Functional diagram

Control elec

Part #1005229

Replaced by #7070

?
Manufacturer substitution
This part replaces 1005229. Substitute parts can look different from the original.
$86.18 |
7% OFF Phone Price : $92.18
In Stock
Rail Galv Bl 57059

#NI

All parts diagram

Rail galv bl

Part #57059

$952.55
In Stock
Baffle 707010031
#26

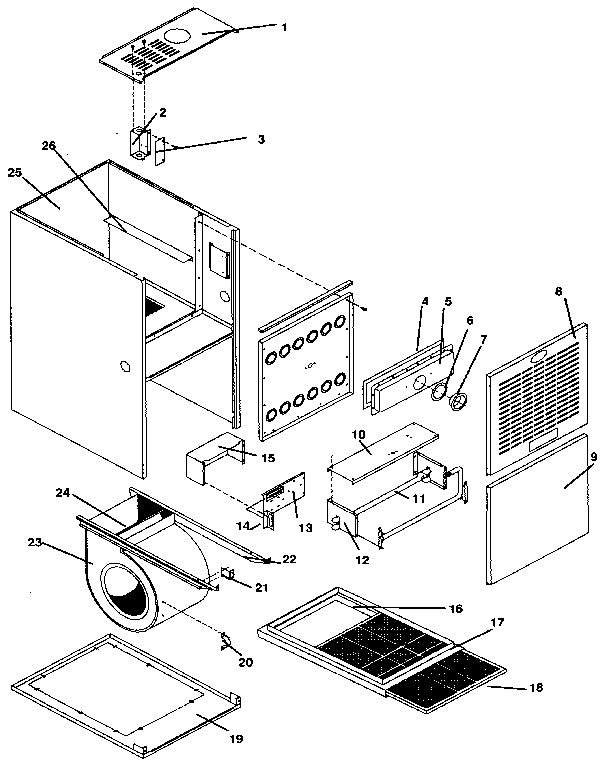

Non-functional diagram

Baffle

Part #707010031

$49.47
In Stock
Terminal Board 1820244
#10

Functional diagram

Terminal board

Part #1820244

$22.91
In Stock
Furnace Temperature Limit Switch 1320361
#17

Functional diagram

Furnace temperature limit switch

Part #1320361

$34.91
In Stock
Wheel .x.x. 2120144
#2

Functional diagram

Wheel .x.x.

Part #2120144

$178.12
In Stock
Grommet 609194
#24

Functional diagram

Grommet

Part #609194

Replaced by #1149537

?
Manufacturer substitution
This part replaces 609194. Substitute parts can look different from the original.
$34.96
In Stock
Flame Sensor 612922
#12

Functional diagram

Flame sensor

Part #612922

Replaced by #1149944

?
Manufacturer substitution
This part replaces 612922. Substitute parts can look different from the original.
$118.36 |
9% OFF Phone Price : $130.36
In Stock
