Sharp
Countertop Microwave

Model # R-4A98 Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-4A98 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

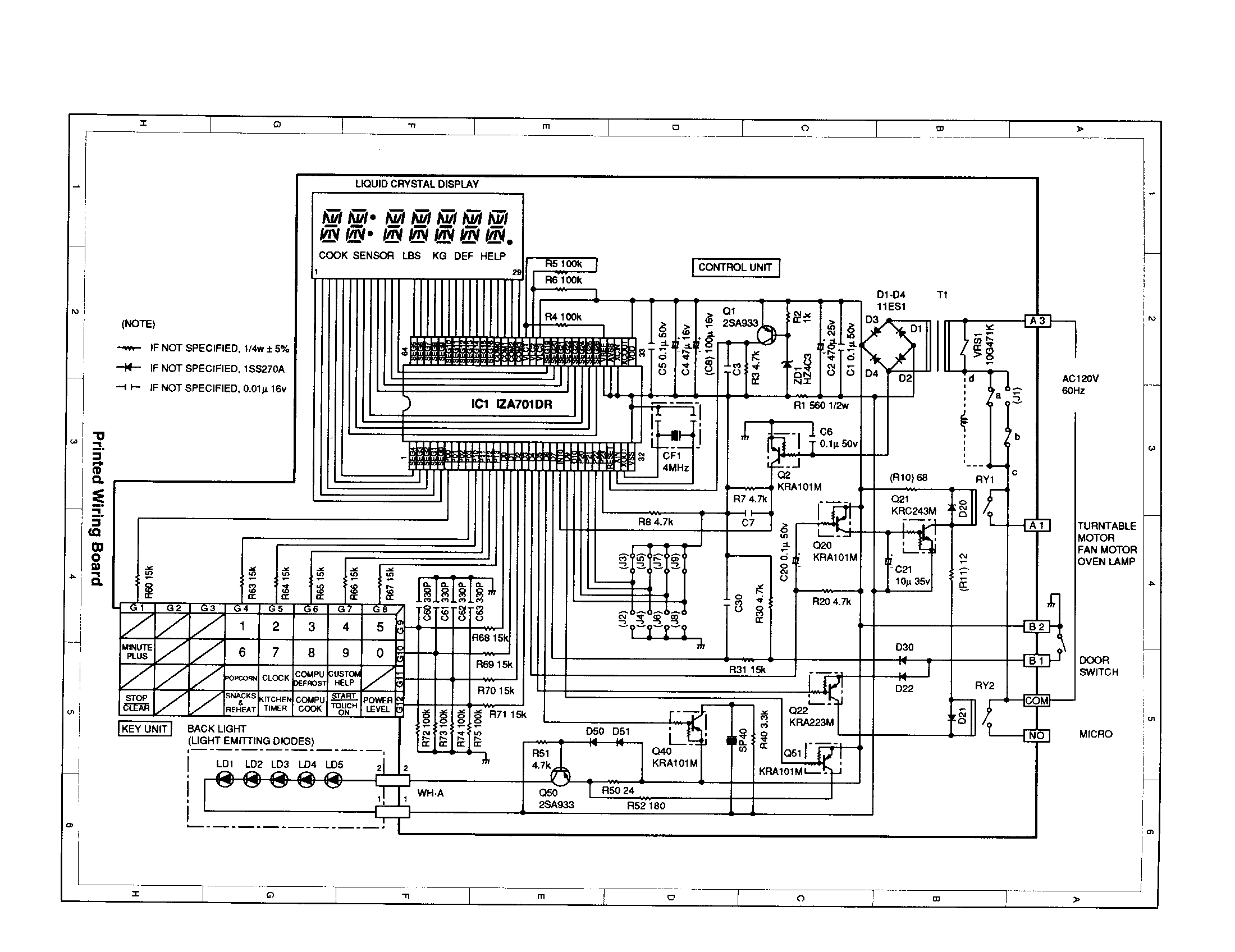

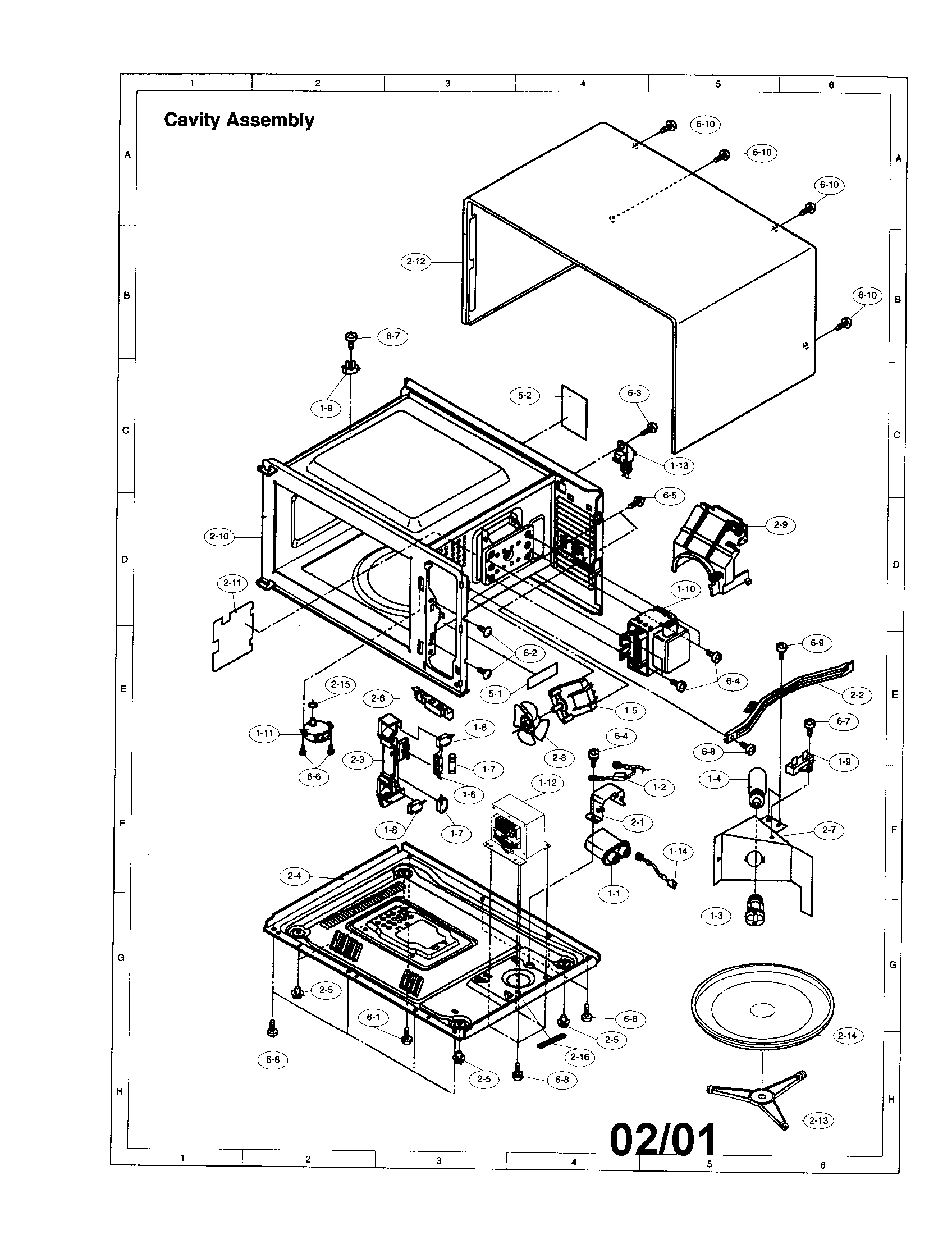

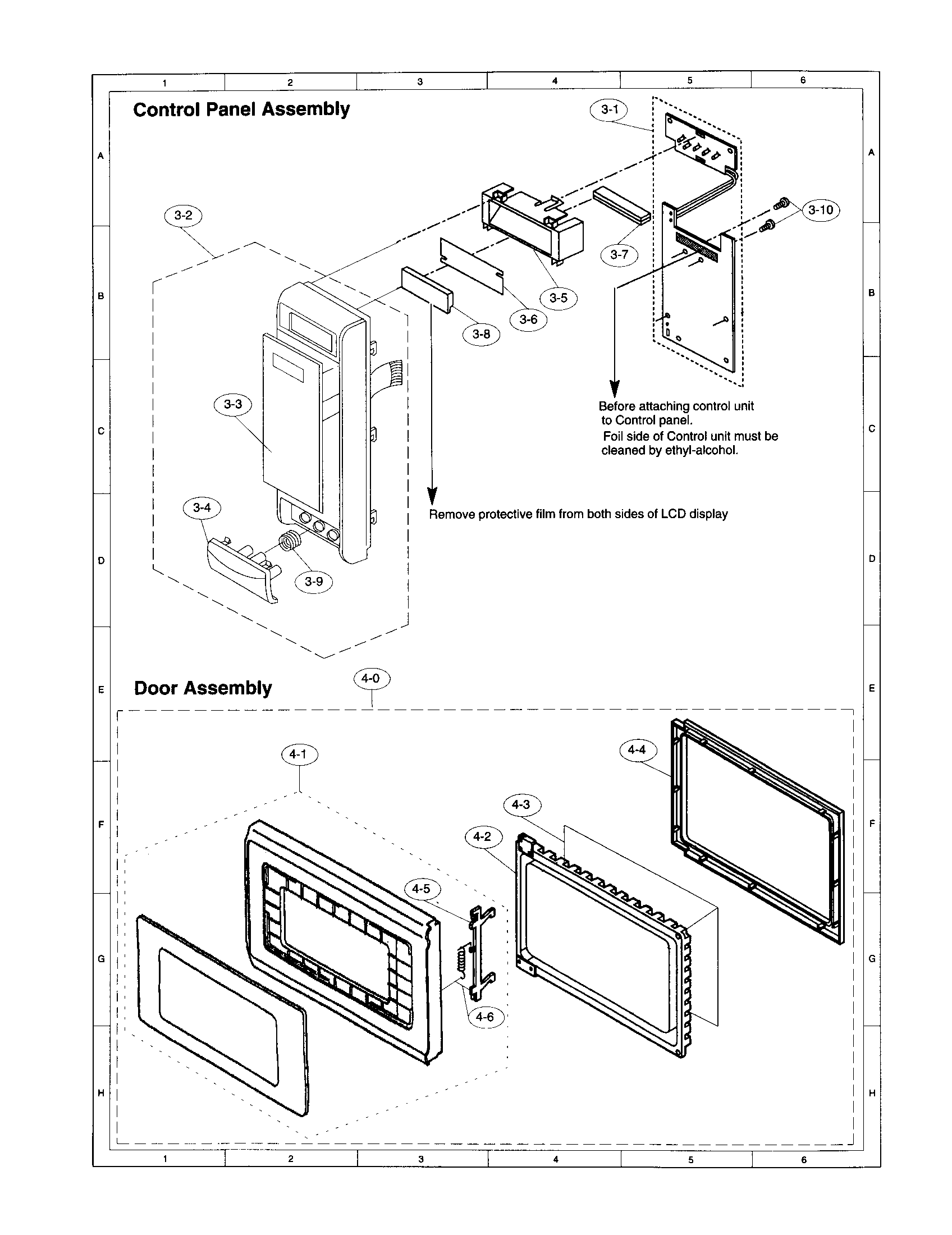

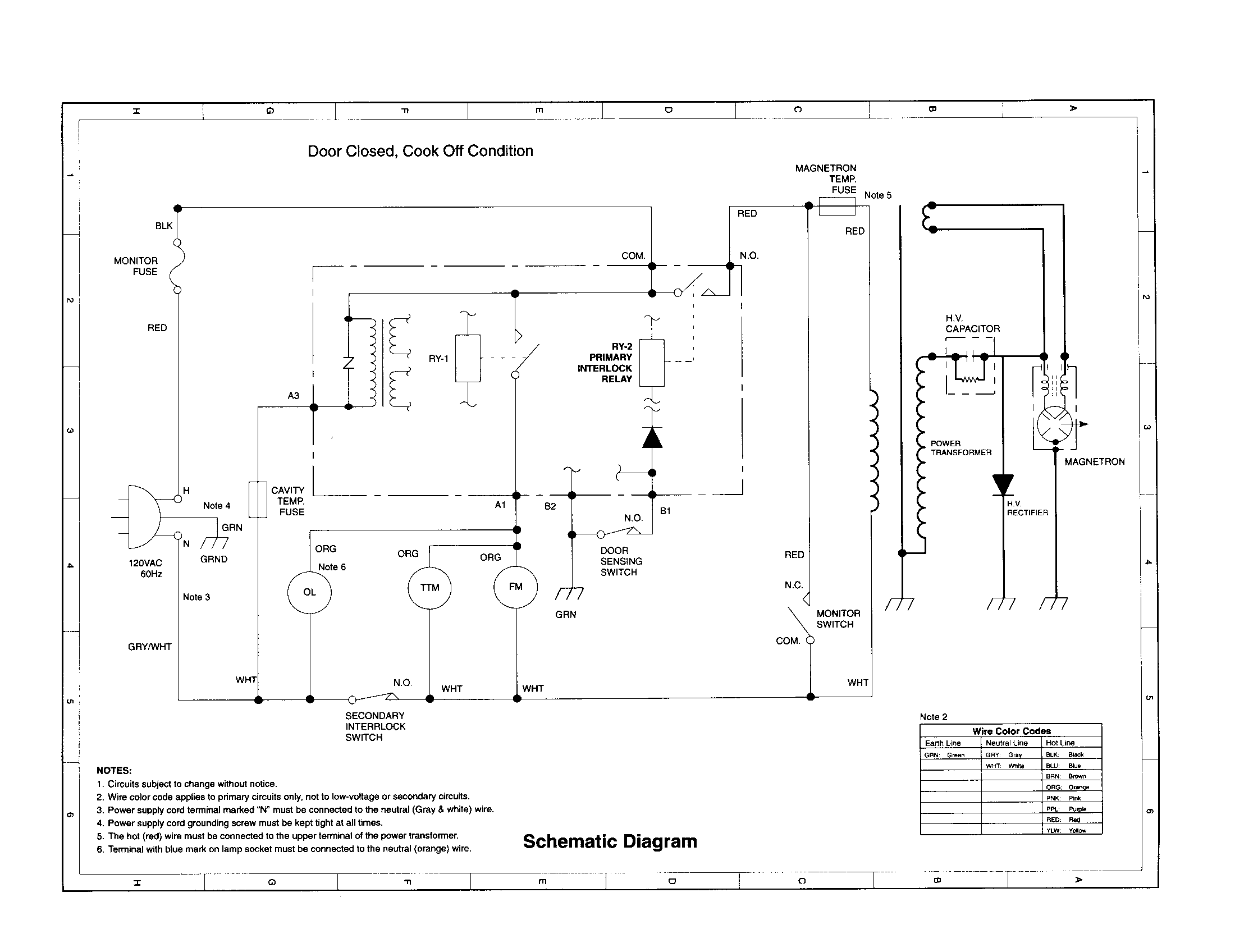

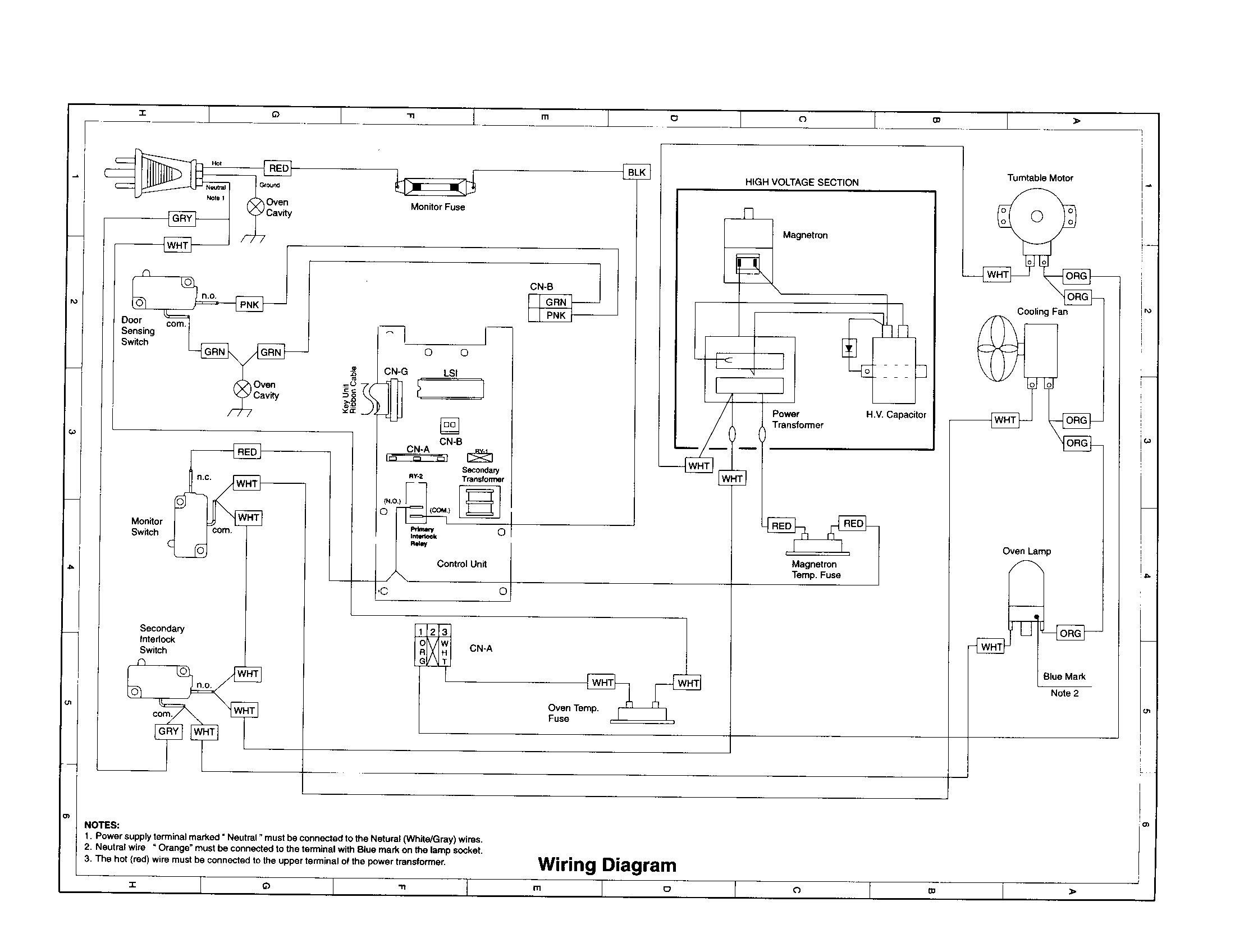

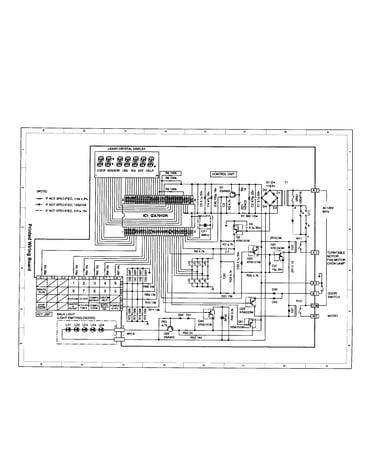

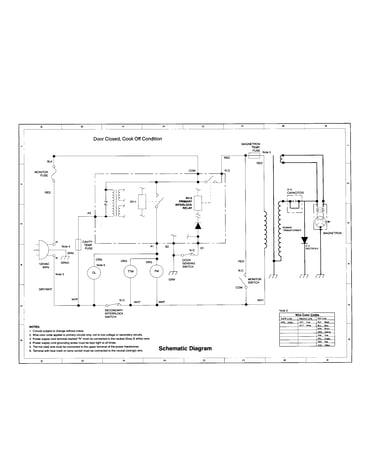

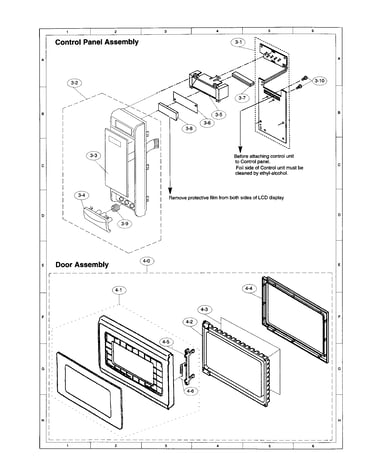

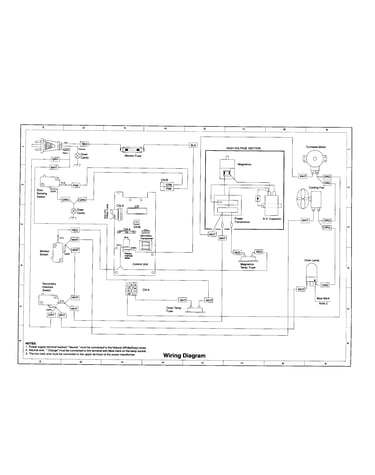

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Magnetron RV-MZA235WRE0

#1-10

All parts diagram

Magnetron

Part #RV-MZA235WRE0

The manufacturer no longer makes this part, and there's no substitute part

Switch FFS-BA016/KIT

#1-07

All parts diagram

Switch

Part #FFS-BA016/KIT

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDB001MRE0

#1-13

All parts diagram

Power cord

Part #FACCDB001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Thermal Cu QFS-TB006MRE0

#1-09

All parts diagram

Thermal cu

Part #QFS-TB006MRE0

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade NFANPB001MRE0

#2-08

All parts diagram

Fan blade

Part #NFANPB001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Resistor VRD-B12EF472J

#NI

All parts diagram

Resistor

Part #VRD-B12EF472J

The manufacturer no longer makes this part, and there's no substitute part

Transistor VS2SA933S//-3

#NI

All parts diagram

Transistor

Part #VS2SA933S//-3

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-CZA038WRE0

#6-10

All parts diagram

Screw

Part #LX-CZA038WRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor VCKYD11HB331K

#NI

All parts diagram

Capacitor

Part #VCKYD11HB331K

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket QSOCLB006MRE0

#1-03

All parts diagram

Lamp socket

Part #QSOCLB006MRE0

The manufacturer no longer makes this part, and there's no substitute part
