Model # MH312F2EA Official Kelvinator room air conditioner - lk34088140

Here are the diagrams and repair parts for Official Kelvinator MH312F2EA room air conditioner - lk34088140, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Gibson Wheel 3002428
#8

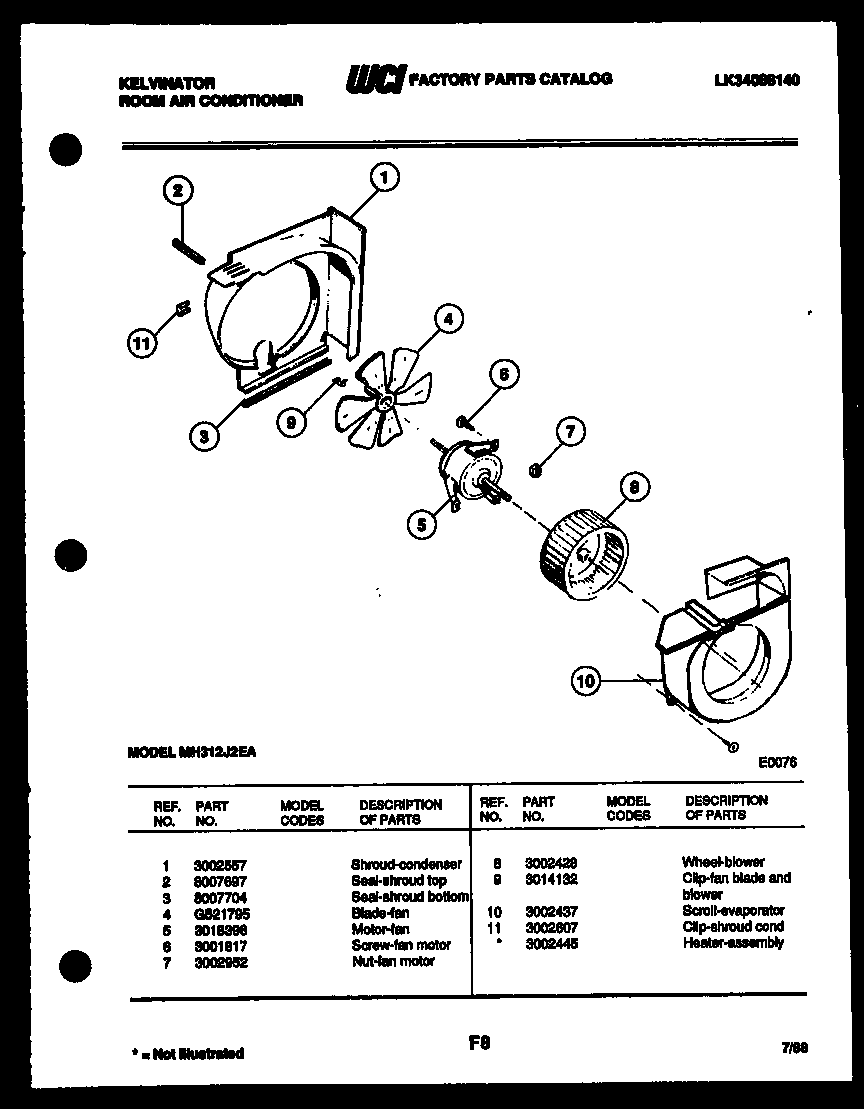

Air handling parts diagram

Gibson wheel

Part #3002428

$15.99
In Stock
Rear Grille 3015951
#2

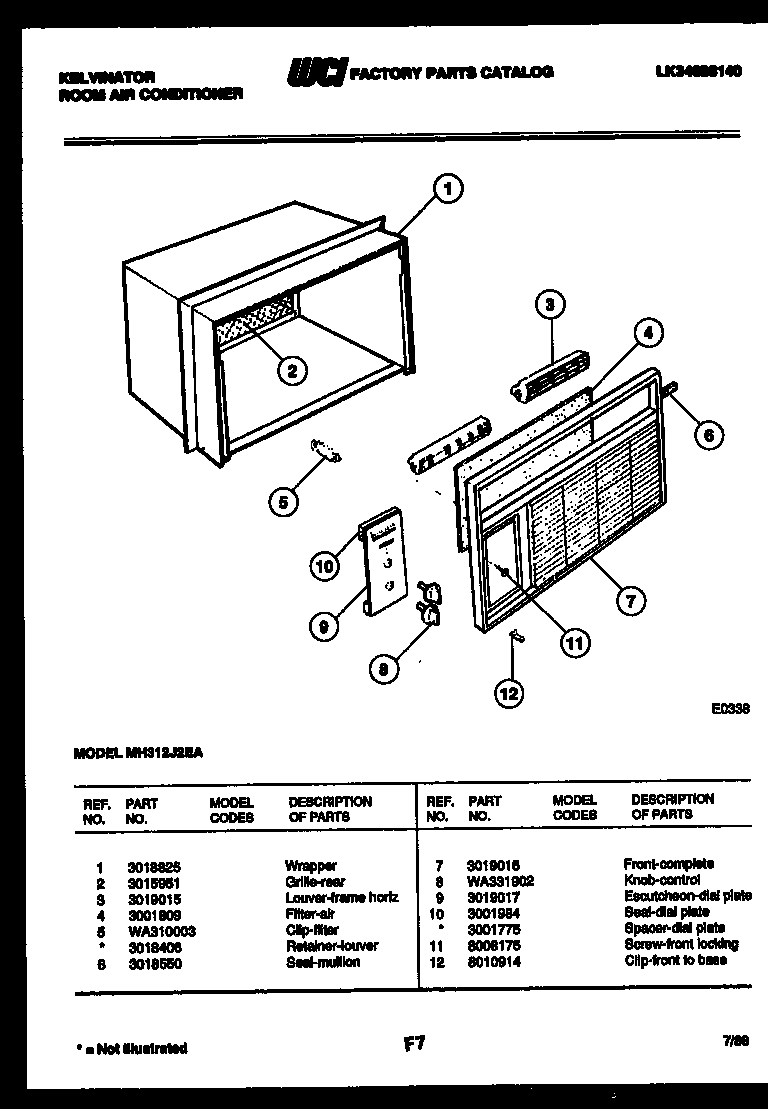

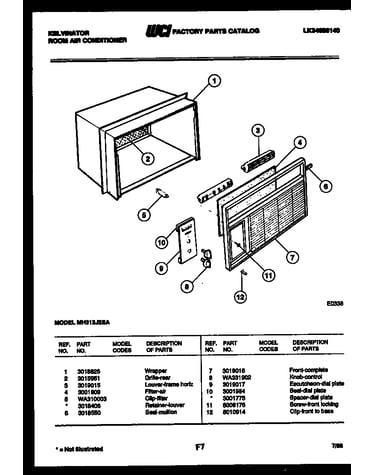

Cabinet parts diagram

Rear grille

Part #3015951

Replaced by #5308006428

?
Manufacturer substitution
This part replaces 3015951. Substitute parts can look different from the original.
$37.99
In Stock
Capacitor 3001902
#18

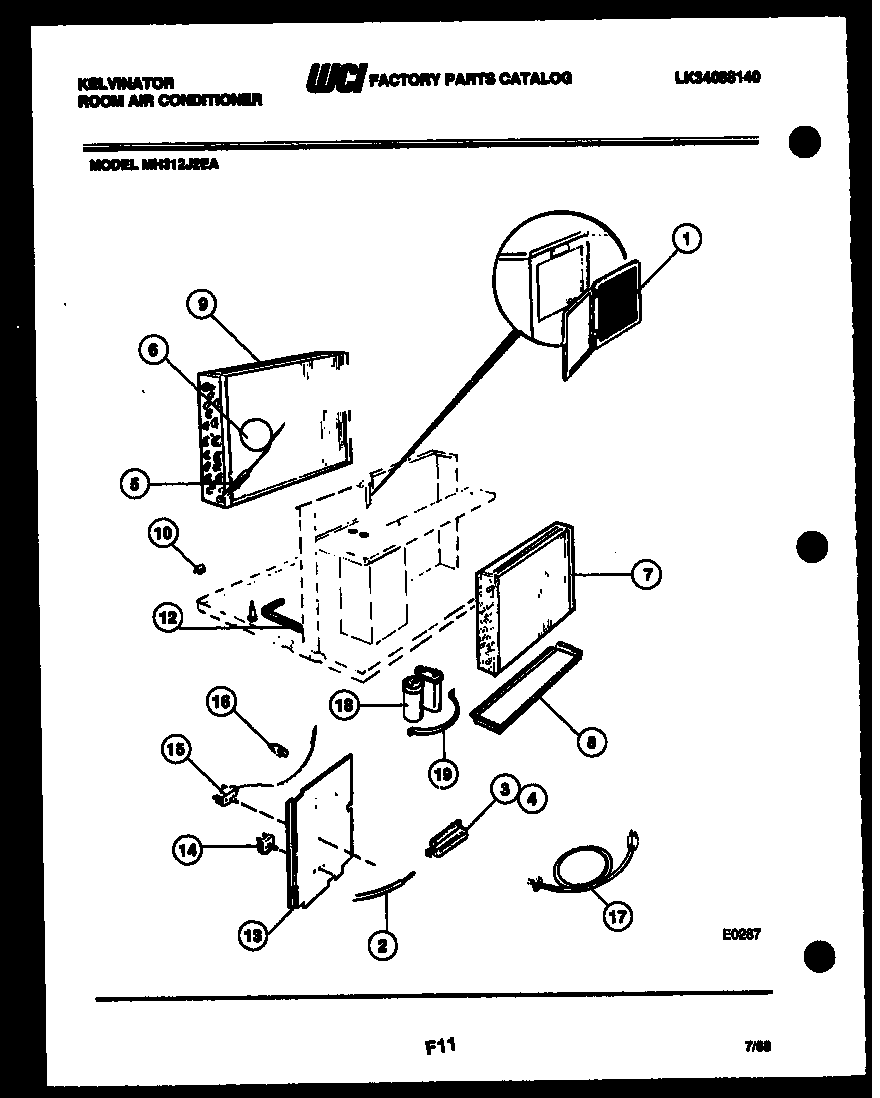

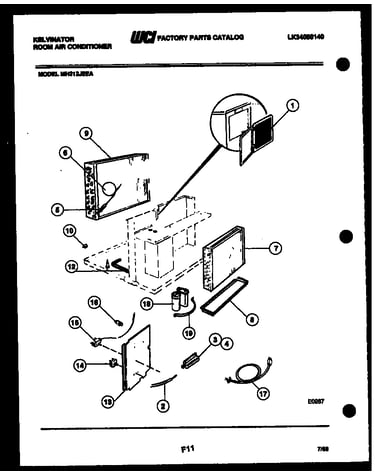

Electrical parts diagram

Capacitor

Part #3001902

Replaced by #5303001902

?
Manufacturer substitution
This part replaces 3001902. Substitute parts can look different from the original.
$115.24
In Stock
Lock Nut 3002952
#7

Air handling parts diagram

Lock nut

Part #3002952

Replaced by #5303002952

?
Manufacturer substitution
This part replaces 3002952. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Window Seal WC343655
#2A

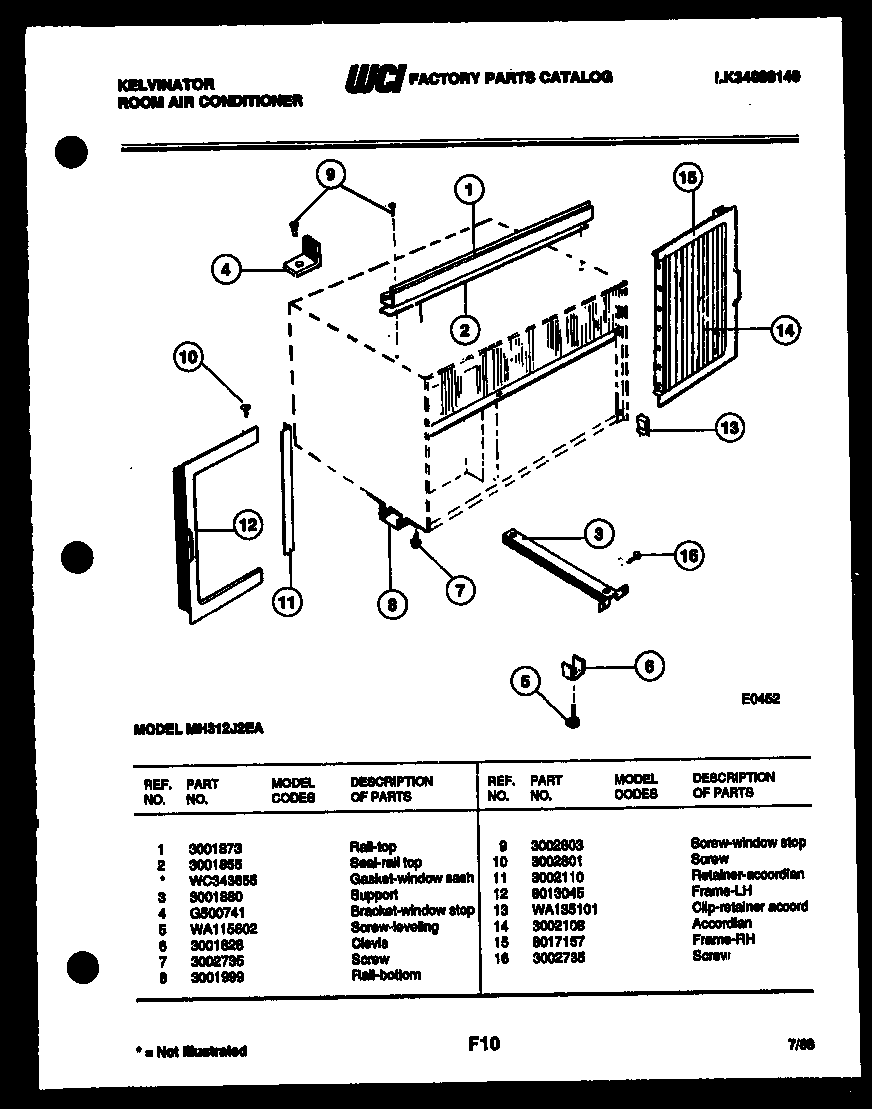

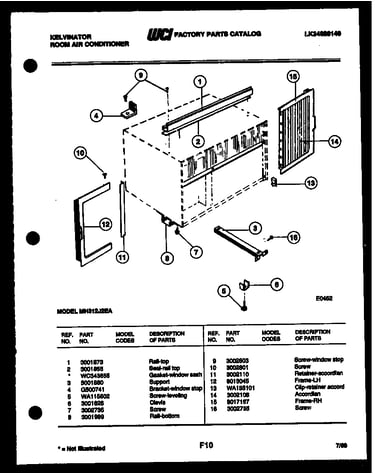

Cabinet and installation parts diagram

Window seal

Part #WC343655

Replaced by #5304407729

?
Manufacturer substitution
This part replaces WC343655. Substitute parts can look different from the original.
$25.17
In Stock
Strainer 3002484
#5

Electrical parts diagram

Strainer

Part #3002484

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 3002484. Substitute parts can look different from the original.
$212.62
In Stock
Door 3012455
#1

Electrical parts diagram

Door

Part #3012455

Replaced by #5303012455

?
Manufacturer substitution
This part replaces 3012455. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Rail 3001873
#1

Cabinet and installation parts diagram

Rail

Part #3001873

The manufacturer no longer makes this part, and there's no substitute part

Compressor G50195-02
#1

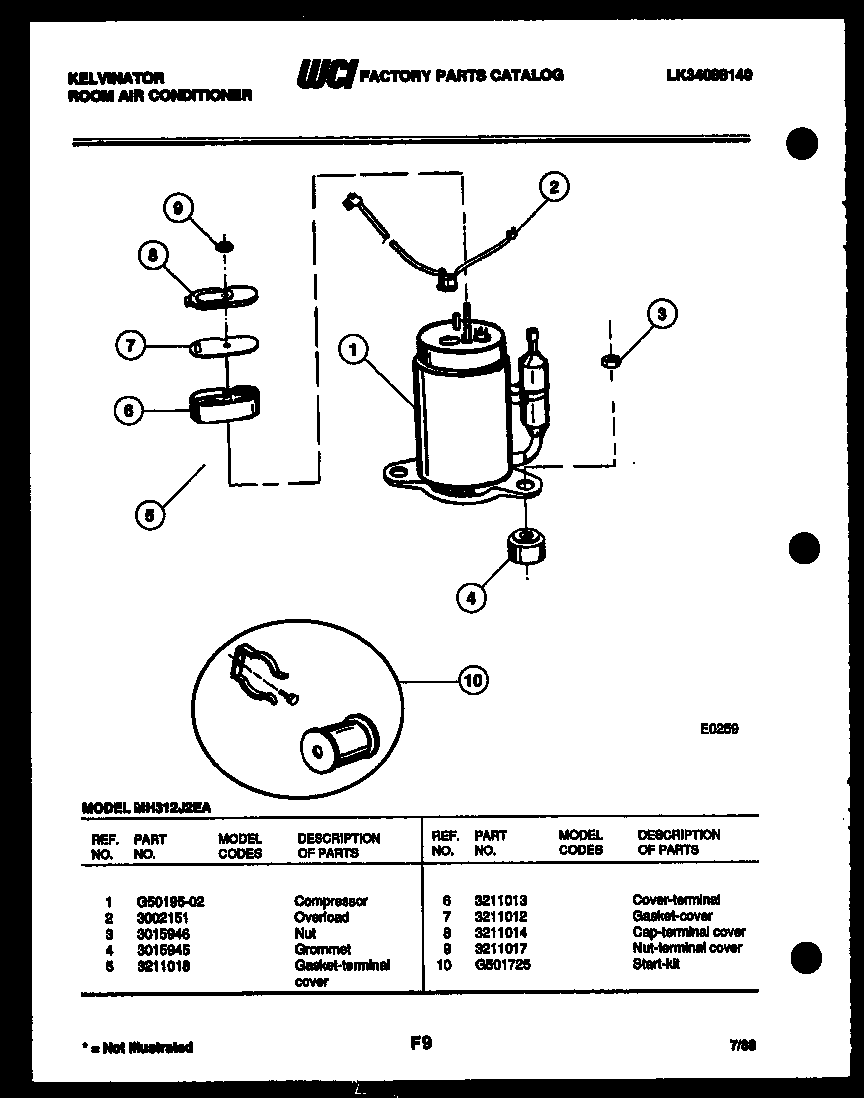

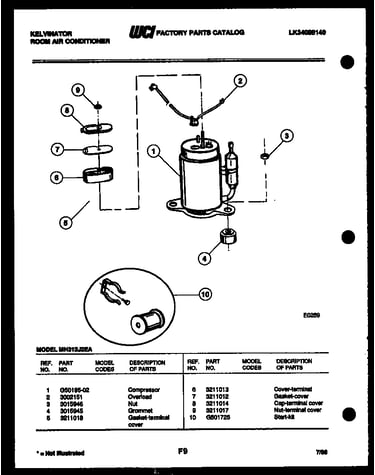

Compressor diagram

Compressor

Part #G50195-02

The manufacturer no longer makes this part, and there's no substitute part

Scroll 3002437
#10

Air handling parts diagram

Scroll

Part #3002437

The manufacturer no longer makes this part, and there's no substitute part
