Model # NUGM100EHB1 Official ICP furnace

Here are the diagrams and repair parts for Official ICP NUGM100EHB1 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Cap Rnrd 1094956
#16

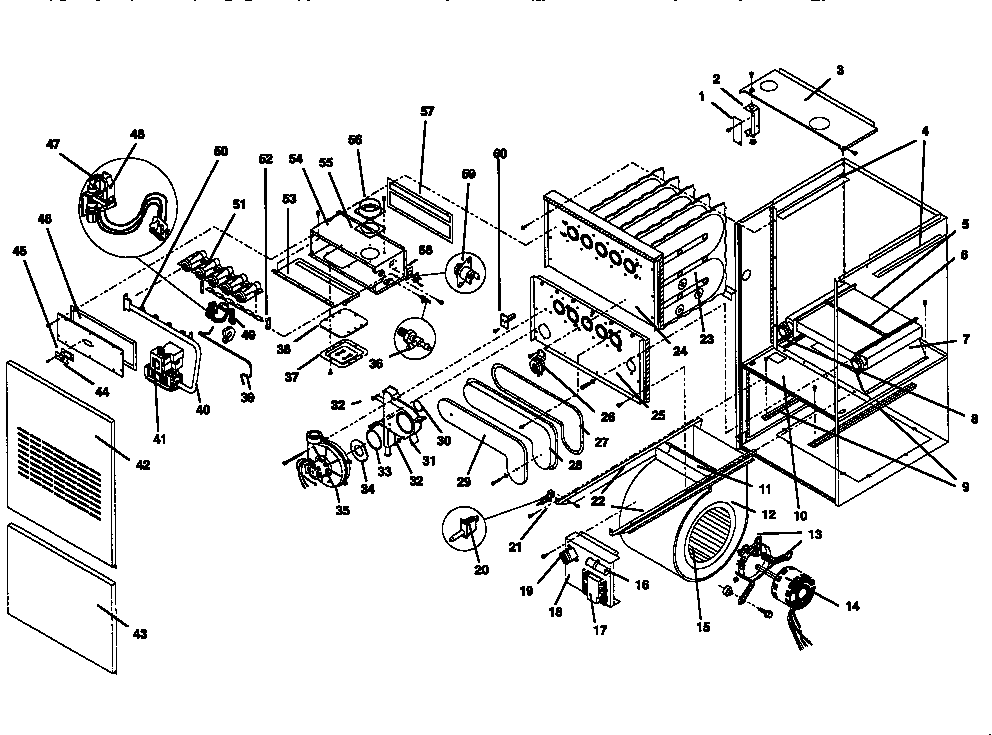

Replacement parts diagram

Cap rnrd

Part #1094956

Replaced by #12908

?
Manufacturer substitution
This part replaces 1094956. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Valve Lp Svm 1009090
#41A

Replacement parts diagram

Valve lp svm

Part #1009090

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1009090. Substitute parts can look different from the original.
$674.90 |
$12.00 OFF Phone Price : $686.90
In Stock
Limit Switch 1005549
#59

Replacement parts diagram

Limit switch

Part #1005549

Replaced by #1013102

?
Manufacturer substitution
This part replaces 1005549. Substitute parts can look different from the original.
$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Burner (replaces 1012384) 1008725
#51

Replacement parts diagram

Furnace burner (replaces 1012384)

Part #1008725

$129.04
In Stock
Transition 1008702
#31

Replacement parts diagram

Transition

Part #1008702

Replaced by #1011850

?
Manufacturer substitution
This part replaces 1008702. Substitute parts can look different from the original.
$131.64
In Stock
Valve Nat Sv 1009089
#41

Replacement parts diagram

Valve nat sv

Part #1009089

Replaced by #1170429

?
Manufacturer substitution
This part replaces 1009089. Substitute parts can look different from the original.
$765.63
In Stock
Box Collectr 1008671
#28

Replacement parts diagram

Box collectr

Part #1008671

$463.98
In Stock
Switch 611872
#20

Replacement parts diagram

Switch

Part #611872

$25.58
In Stock
Furnace Burner Enclosure 1008716
#54

Replacement parts diagram

Furnace burner enclosure

Part #1008716

$340.08
In Stock
Prssr Tap 1005606
#36

Replacement parts diagram

Prssr tap

Part #1005606

This item is not returnable
$3.46
In Stock
