Model # WAB077Y7B1 Official White-Westinghouse room air conditioner - 5995282448

Here are the diagrams and repair parts for Official White-Westinghouse WAB077Y7B1 room air conditioner - 5995282448, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

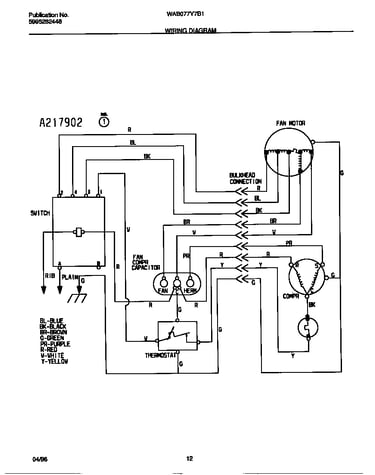

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#17

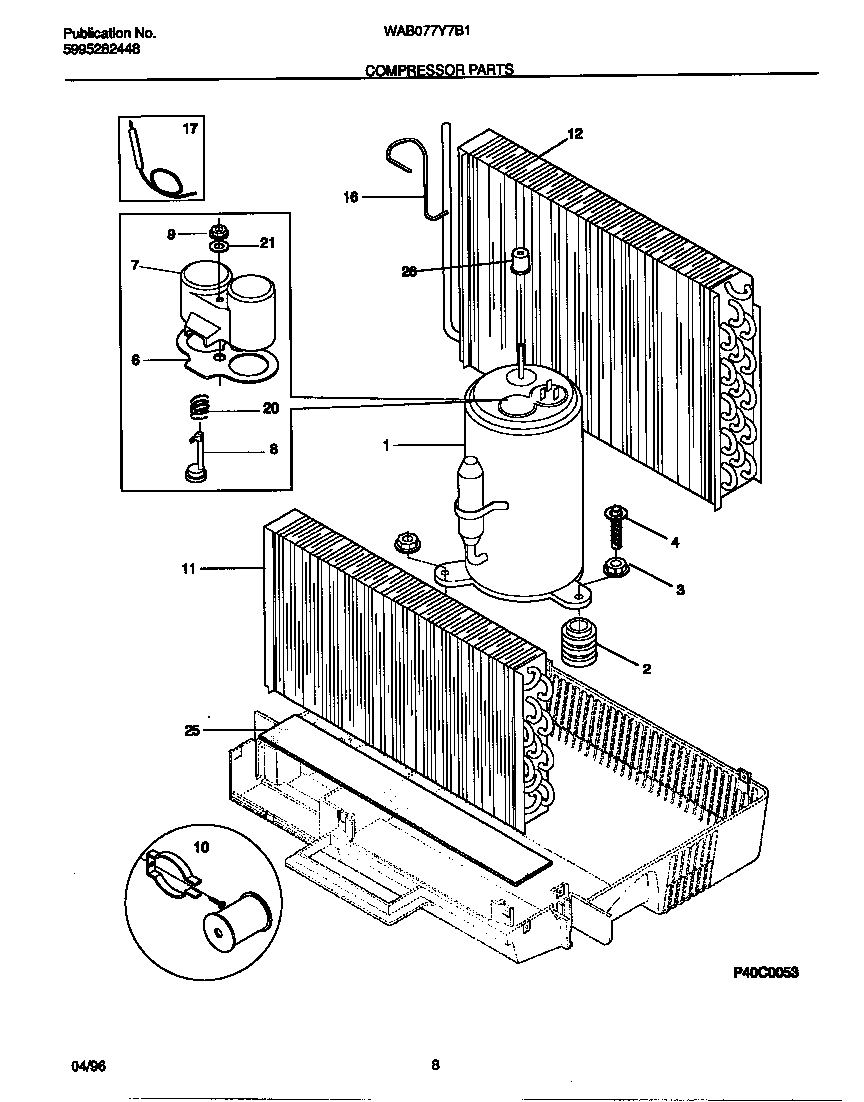

Compressor parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Capacitor 5303295749
#13

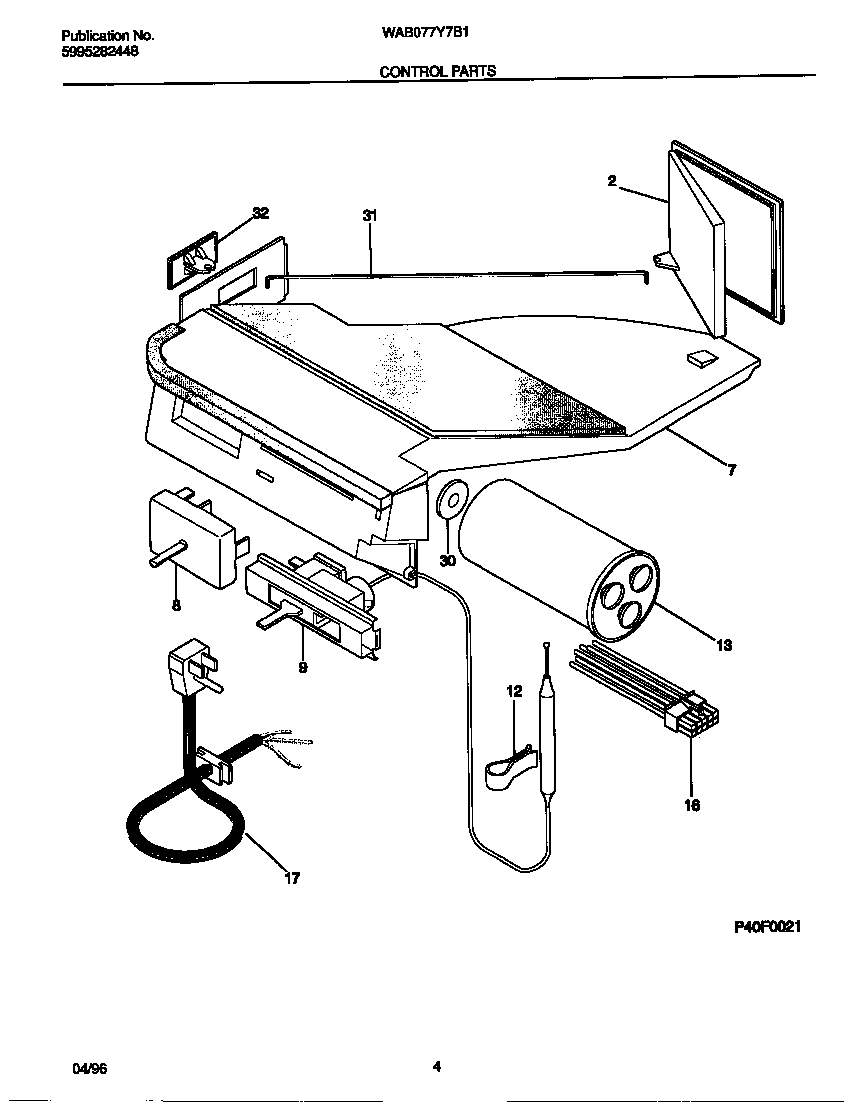

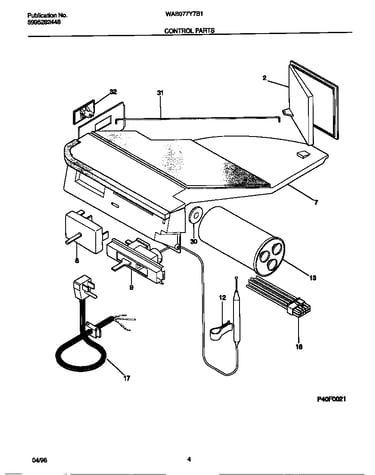

Control parts diagram

Capacitor

Part #5303295749

$122.96
In Stock
Westinghouse Plate-name F 5303289574
#27

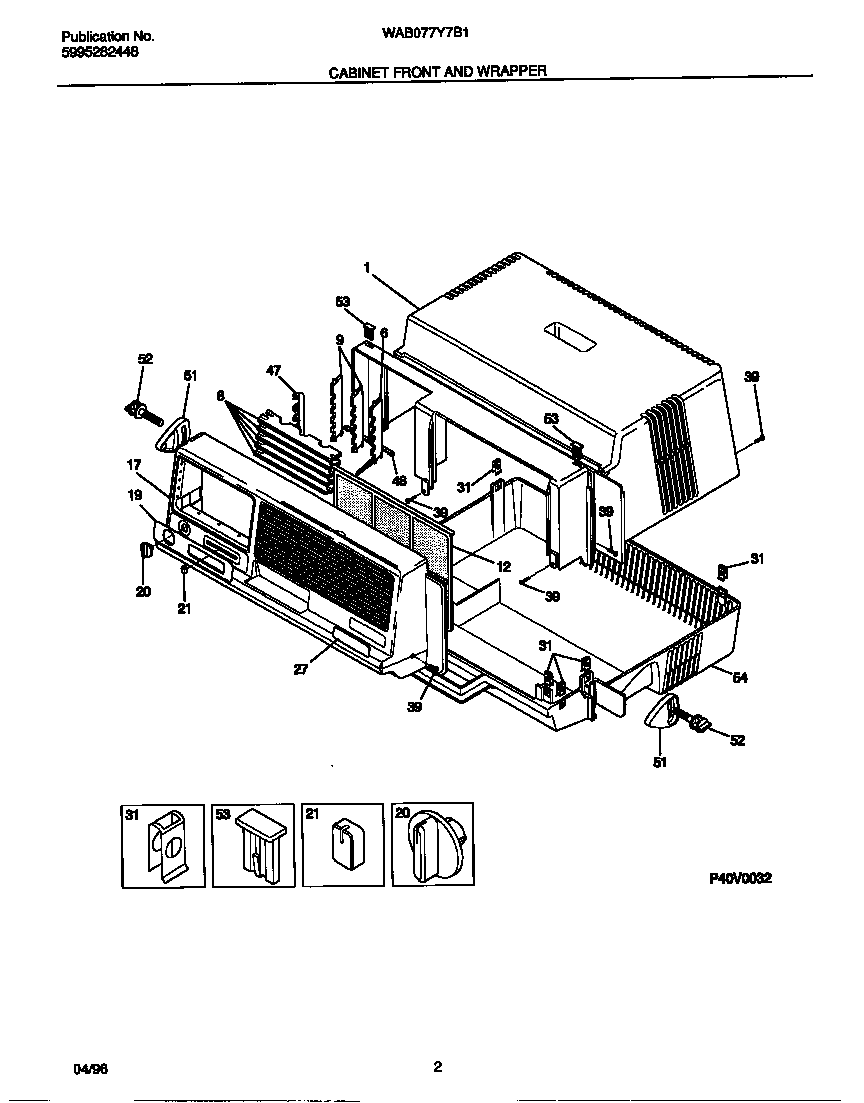

Cabinet front and wrapper diagram

Westinghouse plate-name f

Part #5303289574

This item is not returnable
$2.49
In Stock
Westinghouse Screw-wrapper 5303293767
#39

Cabinet front and wrapper diagram

Westinghouse screw-wrapper

Part #5303293767

This item is not returnable
$5.80
In Stock
Overload 5303270037
#8

Compressor parts diagram

Overload

Part #5303270037

$12.19
In Stock
Westinghouse Louver 5303285475
#8

Cabinet front and wrapper diagram

Westinghouse louver

Part #5303285475

This item is not returnable
$2.26
In Stock
Westinghouse Button 5303285480
#53

Cabinet front and wrapper diagram

Westinghouse button

Part #5303285480

This item is not returnable
$3.11
In Stock
Screw 3202975
#2

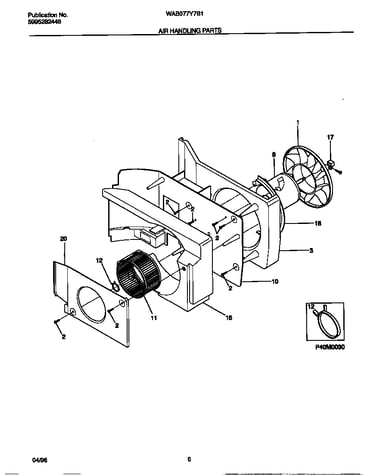

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Gasket 3002603
#1

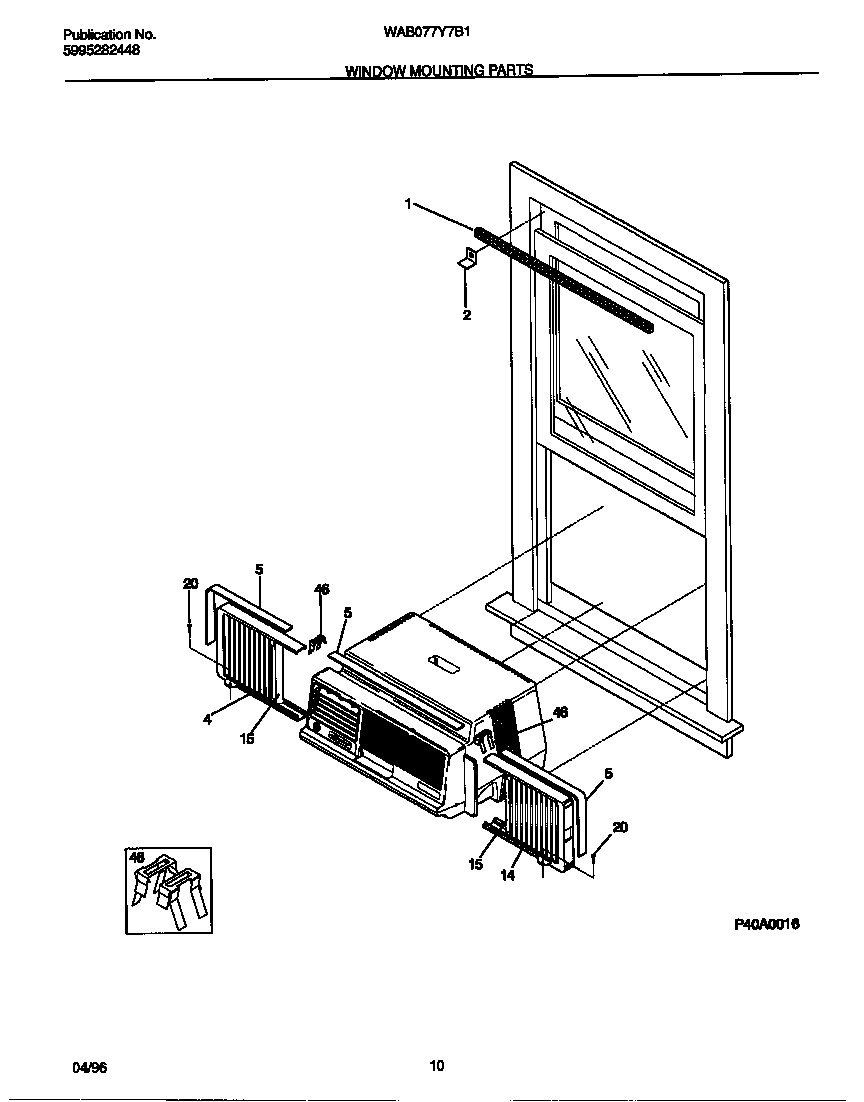

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Louver 5303285474
#6

Cabinet front and wrapper diagram

Louver

Part #5303285474

Replaced by #5304415084

?
Manufacturer substitution
This part replaces 5303285474. Substitute parts can look different from the original.
$8.92
In Stock
