Model # UN46F5500AFXZA-TS01 Official Samsung lcd television

Here are the diagrams and repair parts for Official Samsung UN46F5500AFXZA-TS01 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Television Screw 6003-000115
#NI

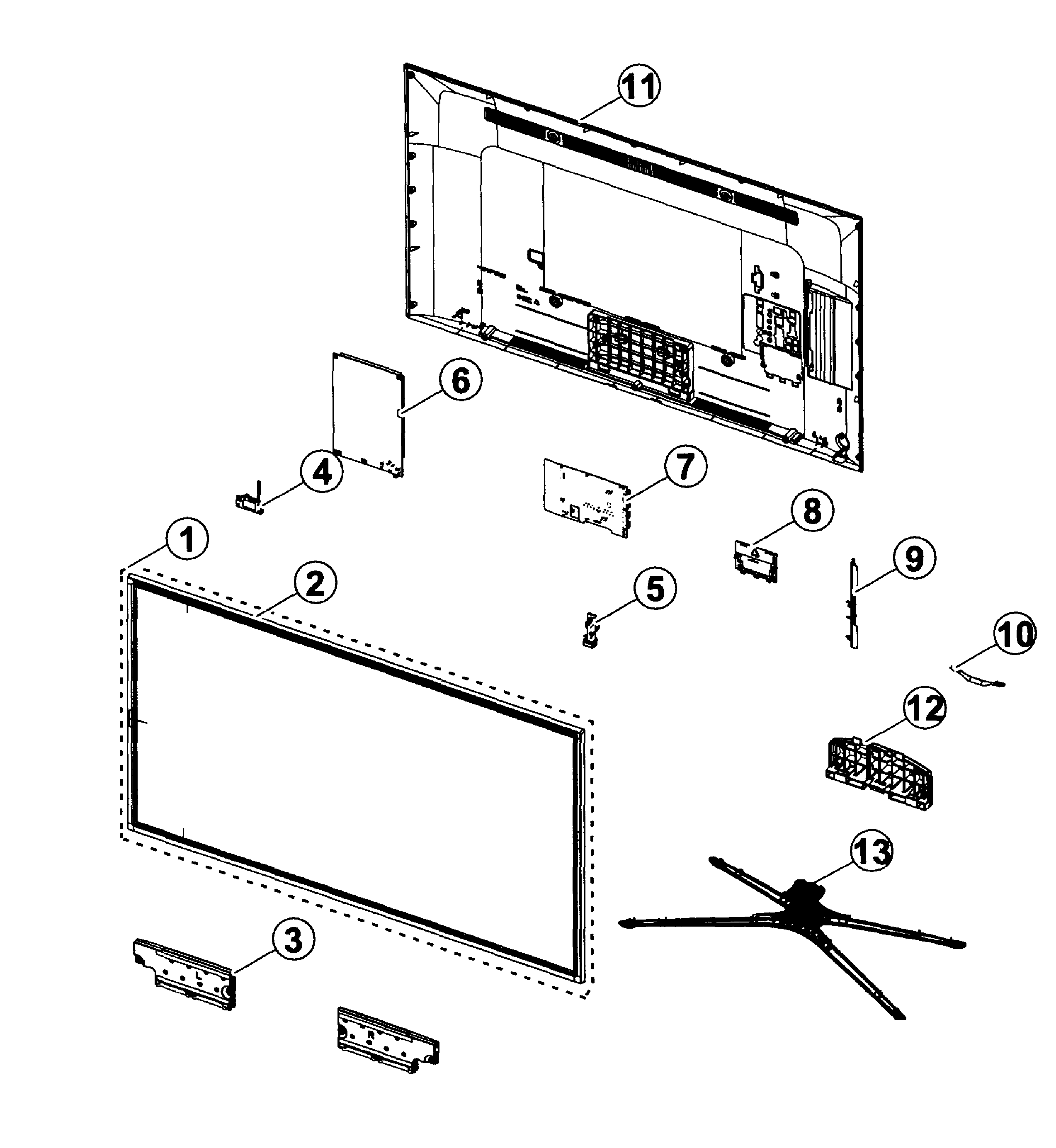

Cabinet parts diagram

Television screw

Part #6003-000115

The manufacturer no longer makes this part, and there's no substitute part

Cover BN96-25357R
#11

Cabinet parts diagram

Cover

Part #BN96-25357R

The manufacturer no longer makes this part, and there's no substitute part

Connector 3701-001861
#NI

Cabinet parts diagram

Connector

Part #3701-001861

The manufacturer no longer makes this part, and there's no substitute part

Header-51p 3711-005925
#NI

Cabinet parts diagram

Header-51p

Part #3711-005925

The manufacturer no longer makes this part, and there's no substitute part

Ic-asic BN13-00060A
#NI

Cabinet parts diagram

Ic-asic

Part #BN13-00060A

The manufacturer no longer makes this part, and there's no substitute part

Ic Analog 1001-001545
#NI

Cabinet parts diagram

Ic analog

Part #1001-001545

The manufacturer no longer makes this part, and there's no substitute part

Thread-cutting Screw 6002-001294
#NI

Cabinet parts diagram

Thread-cutting screw

Part #6002-001294

The manufacturer no longer makes this part, and there's no substitute part

Battery 4301-000103
#NI

Cabinet parts diagram

Battery

Part #4301-000103

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 6001-002757
#NI

Cabinet parts diagram

Television screw

Part #6001-002757

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker BN96-25565B
#3

Cabinet parts diagram

Television speaker

Part #BN96-25565B

The manufacturer no longer makes this part, and there's no substitute part
