Model # 371619681 Official Sears 500 & 750-lb boat trailer

Here are the diagrams and repair parts for Official Sears 371619681 500 & 750-lb boat trailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Bolt 1/2 X 4 30-25640
#2

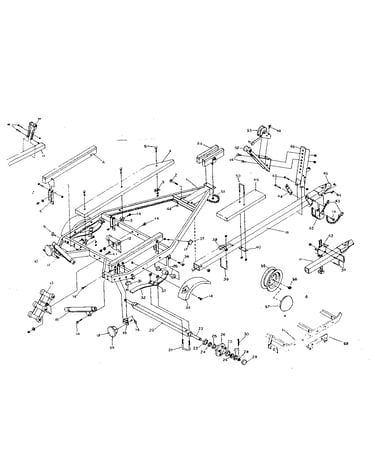

Boat trailer diagram

Bolt 1/2 x 4

Part #30-25640

The manufacturer no longer makes this part, and there's no substitute part

Bolt 30-25290
#65

Boat trailer diagram

Bolt

Part #30-25290

The manufacturer no longer makes this part, and there's no substitute part

Side Angle C1-1G
#68B

Boat trailer diagram

Side angle

Part #C1-1G

The manufacturer no longer makes this part, and there's no substitute part

Bearing/race B1-3
Bearing/race

Part #B1-3

The manufacturer no longer makes this part, and there's no substitute part

Frame Catwlk F25-3
#4

Boat trailer diagram

Frame catwlk

Part #F25-3

The manufacturer no longer makes this part, and there's no substitute part

License Brkt A5
#11

Boat trailer diagram

License brkt

Part #A5

The manufacturer no longer makes this part, and there's no substitute part

Harness/con A2-1
#44

Boat trailer diagram

Harness/con

Part #A2-1

The manufacturer no longer makes this part, and there's no substitute part

Bolt 30-25060
#7

Boat trailer diagram

Bolt

Part #30-25060

The manufacturer no longer makes this part, and there's no substitute part

Bushing B12
#35

Boat trailer diagram

Bushing

Part #B12

The manufacturer no longer makes this part, and there's no substitute part

Tongue F25-2
#49

Boat trailer diagram

Tongue

Part #F25-2

The manufacturer no longer makes this part, and there's no substitute part
