Household Fan

Model # 453810010 Official Kenmore 2-speed personal air circulator

Here are the diagrams and repair parts for Official Kenmore 453810010 2-speed personal air circulator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

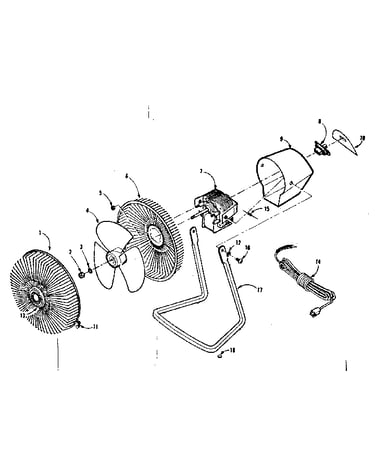

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Motor 203010
#7

Functional replacement parts diagram

Motor

Part #203010

The manufacturer no longer makes this part, and there's no substitute part

Nut 209040
#5

Functional replacement parts diagram

Nut

Part #209040

The manufacturer no longer makes this part, and there's no substitute part

Felt Pad 209065
#18

Functional replacement parts diagram

Felt pad

Part #209065

The manufacturer no longer makes this part, and there's no substitute part

Guard 209608
#1

Functional replacement parts diagram

Guard

Part #209608

The manufacturer no longer makes this part, and there's no substitute part

Steel Stand 206083
#17

Functional replacement parts diagram

Steel stand

Part #206083

The manufacturer no longer makes this part, and there's no substitute part

Blade 201215
#4

Functional replacement parts diagram

Blade

Part #201215

The manufacturer no longer makes this part, and there's no substitute part

Sears Ornmnt 201218
#13

Functional replacement parts diagram

Sears ornmnt

Part #201218

The manufacturer no longer makes this part, and there's no substitute part

Switch 205556
#8

Functional replacement parts diagram

Switch

Part #205556

The manufacturer no longer makes this part, and there's no substitute part

Switch Plate 206588
#10

Functional replacement parts diagram

Switch plate

Part #206588

The manufacturer no longer makes this part, and there's no substitute part

Cord Plug 205001
#14

Functional replacement parts diagram

Cord plug

Part #205001

The manufacturer no longer makes this part, and there's no substitute part
