Kenmore
Canister Vacuum

Model # 1162399181 Official Kenmore vacuum cleaner parts

Here are the diagrams and repair parts for Official Kenmore 1162399181 vacuum cleaner parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |

Muskin Lock 742802
#7

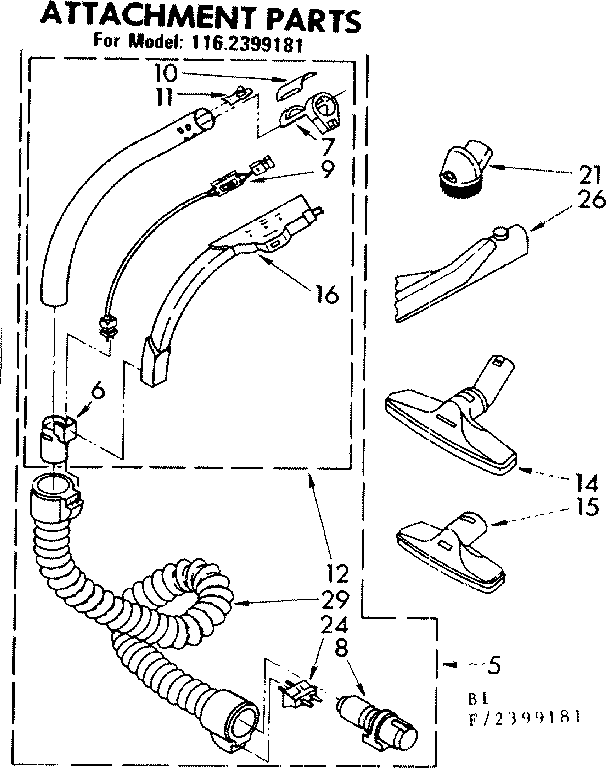

Attachment parts diagram

Muskin lock

Part #742802

The manufacturer no longer makes this part, and there's no substitute part

Gasket 706089
#11

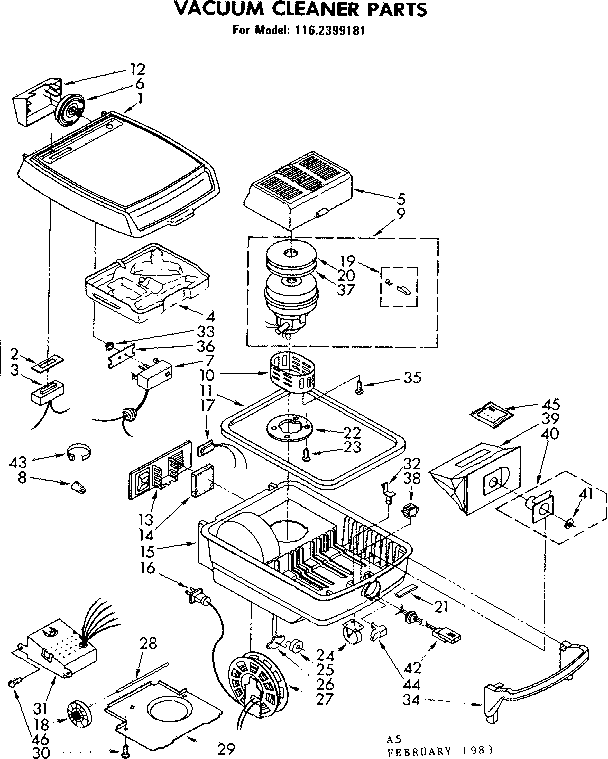

Base assembly diagram

Gasket

Part #706089

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 742749
#42

Base assembly diagram

Receptacle

Part #742749

The manufacturer no longer makes this part, and there's no substitute part

Terminal 742816
#8

Attachment parts diagram

Terminal

Part #742816

The manufacturer no longer makes this part, and there's no substitute part

Gasket 706239
#36

Base assembly diagram

Gasket

Part #706239

The manufacturer no longer makes this part, and there's no substitute part

Cord Reel 700851
#27

Base assembly diagram

Cord reel

Part #700851

The manufacturer no longer makes this part, and there's no substitute part

Plug 742777
#24

Attachment parts diagram

Plug

Part #742777

The manufacturer no longer makes this part, and there's no substitute part

Adapter 742804
#6

Attachment parts diagram

Adapter

Part #742804

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster 706031
#24

Base assembly diagram

Vacuum caster

Part #706031

The manufacturer no longer makes this part, and there's no substitute part

Base 706074
#15

Base assembly diagram

Base

Part #706074

The manufacturer no longer makes this part, and there's no substitute part
