Model # AMC7159TAS1 Official Amana convection microwave

Here are the diagrams and repair parts for Official Amana AMC7159TAS1 convection microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

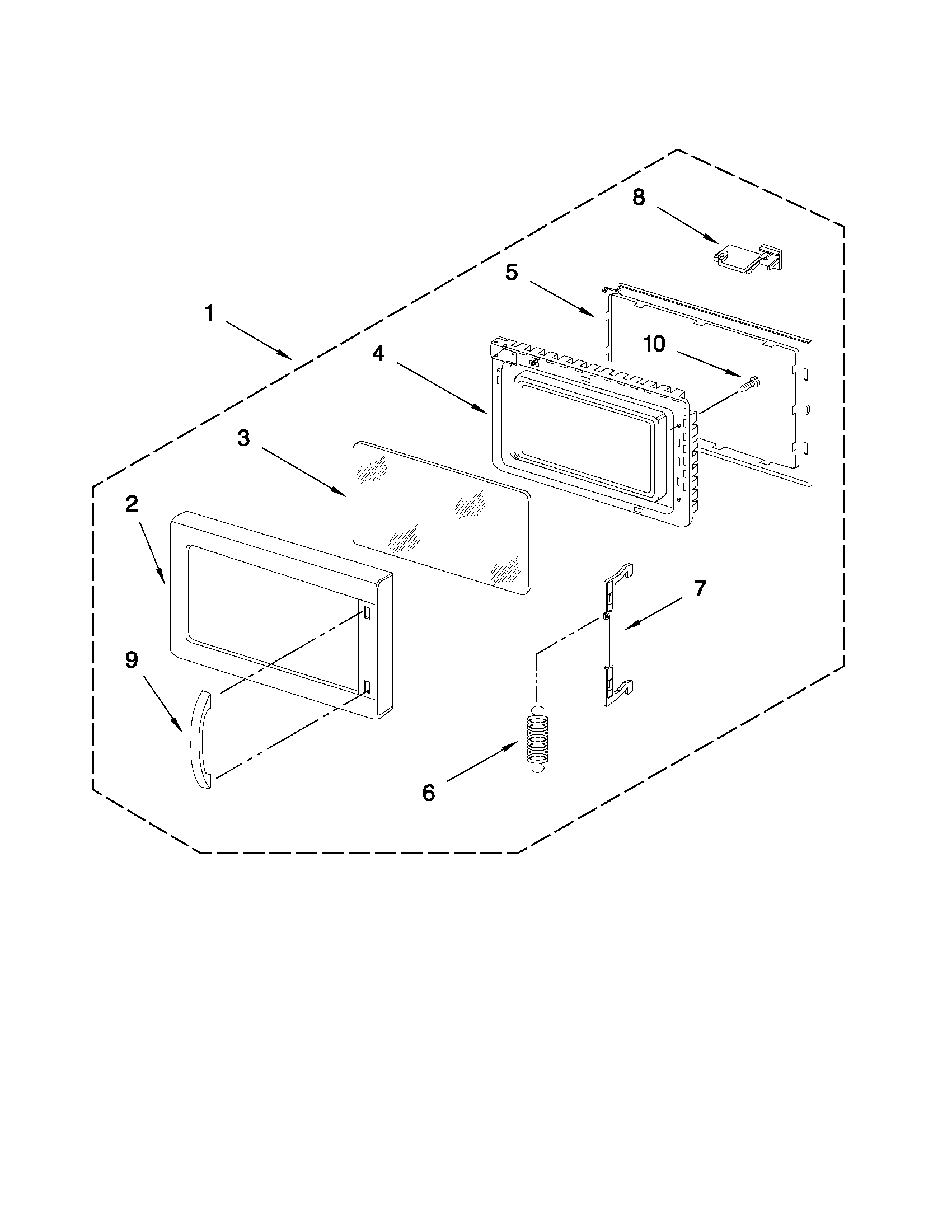

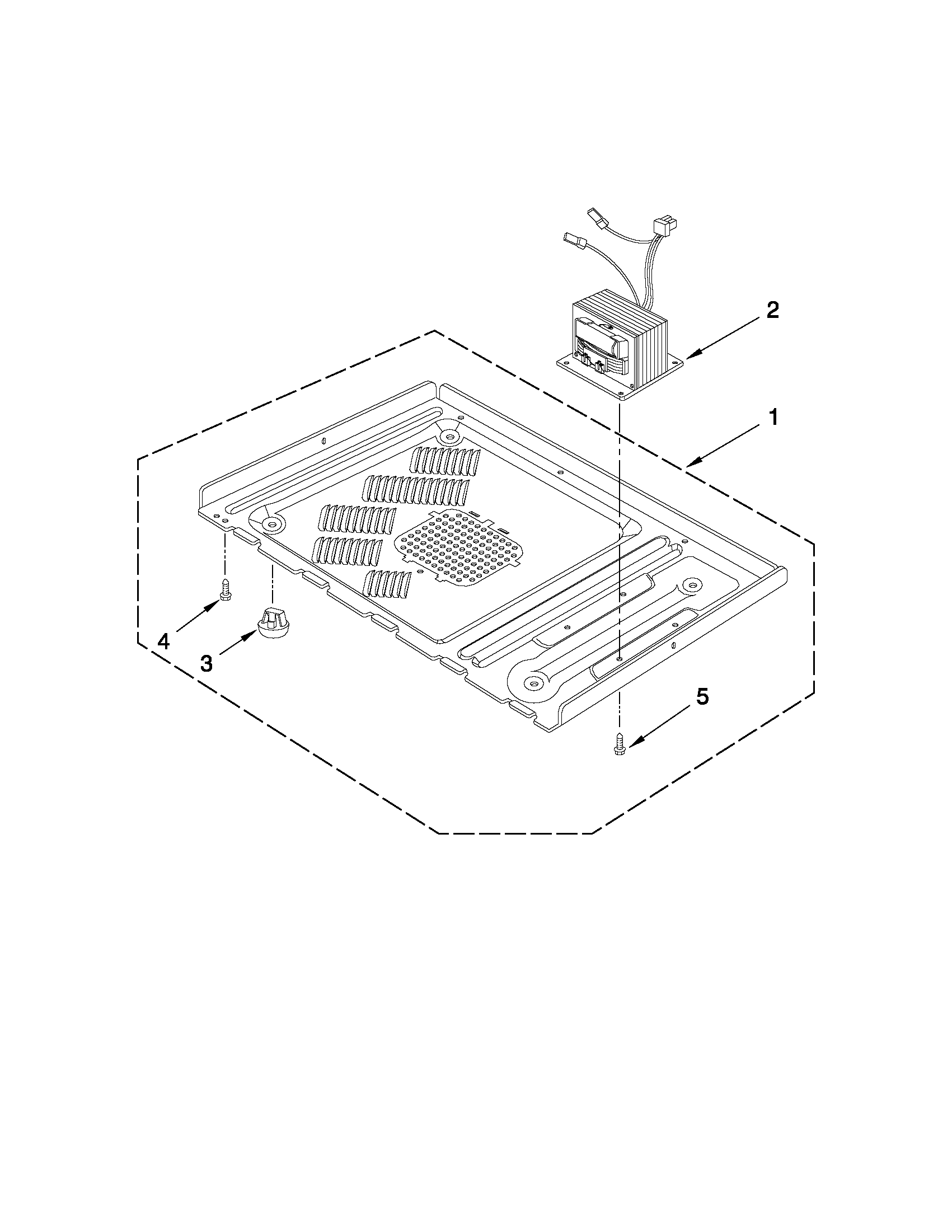

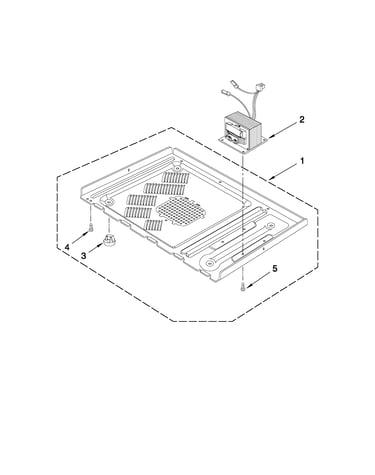

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Microwave Magnetron 8184652
#11

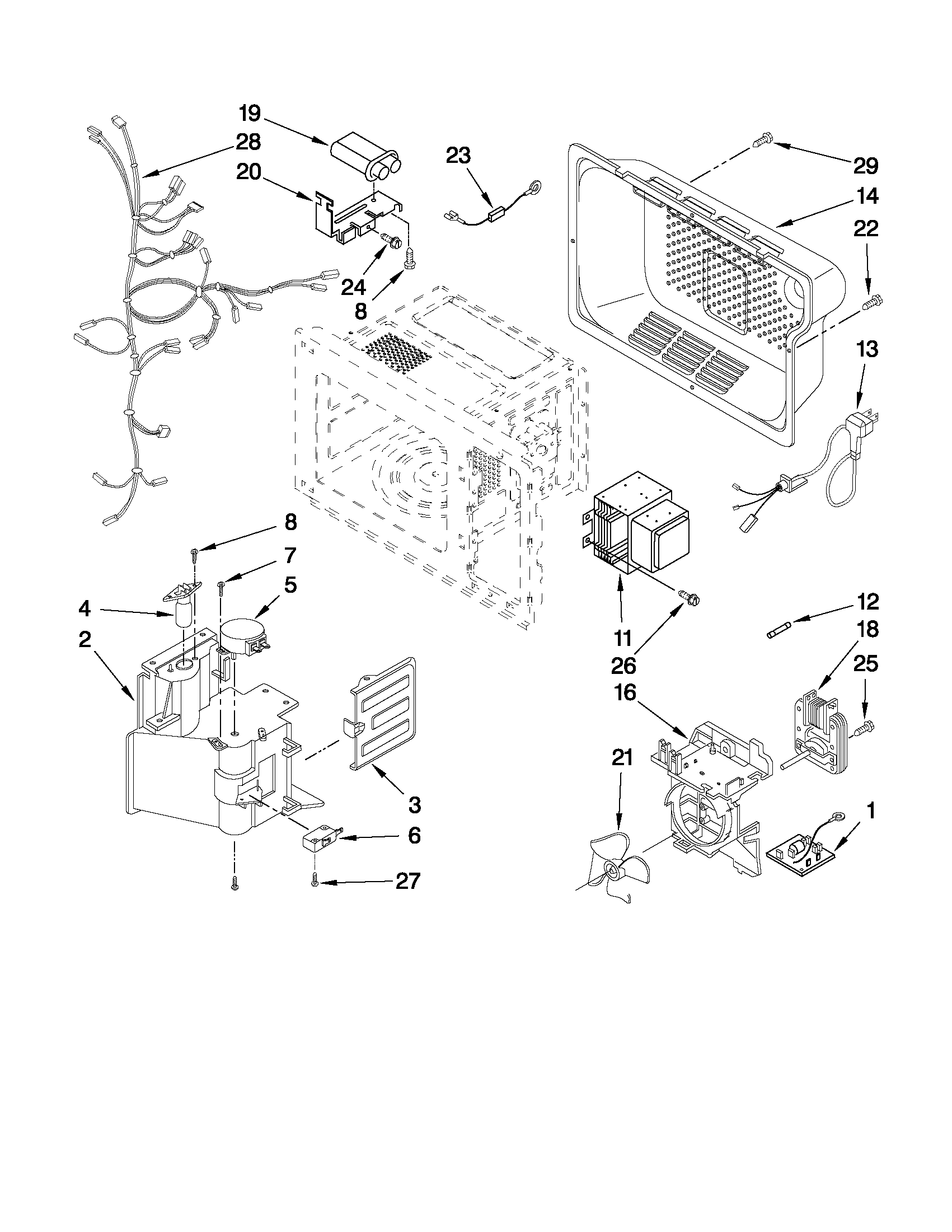

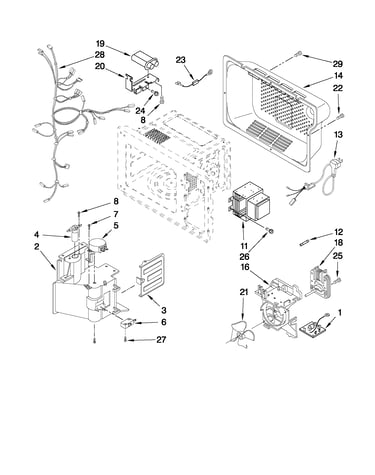

Oven interior parts diagram

Microwave magnetron

Part #8184652

The manufacturer no longer makes this part, and there's no substitute part

Switch 4158941
#4

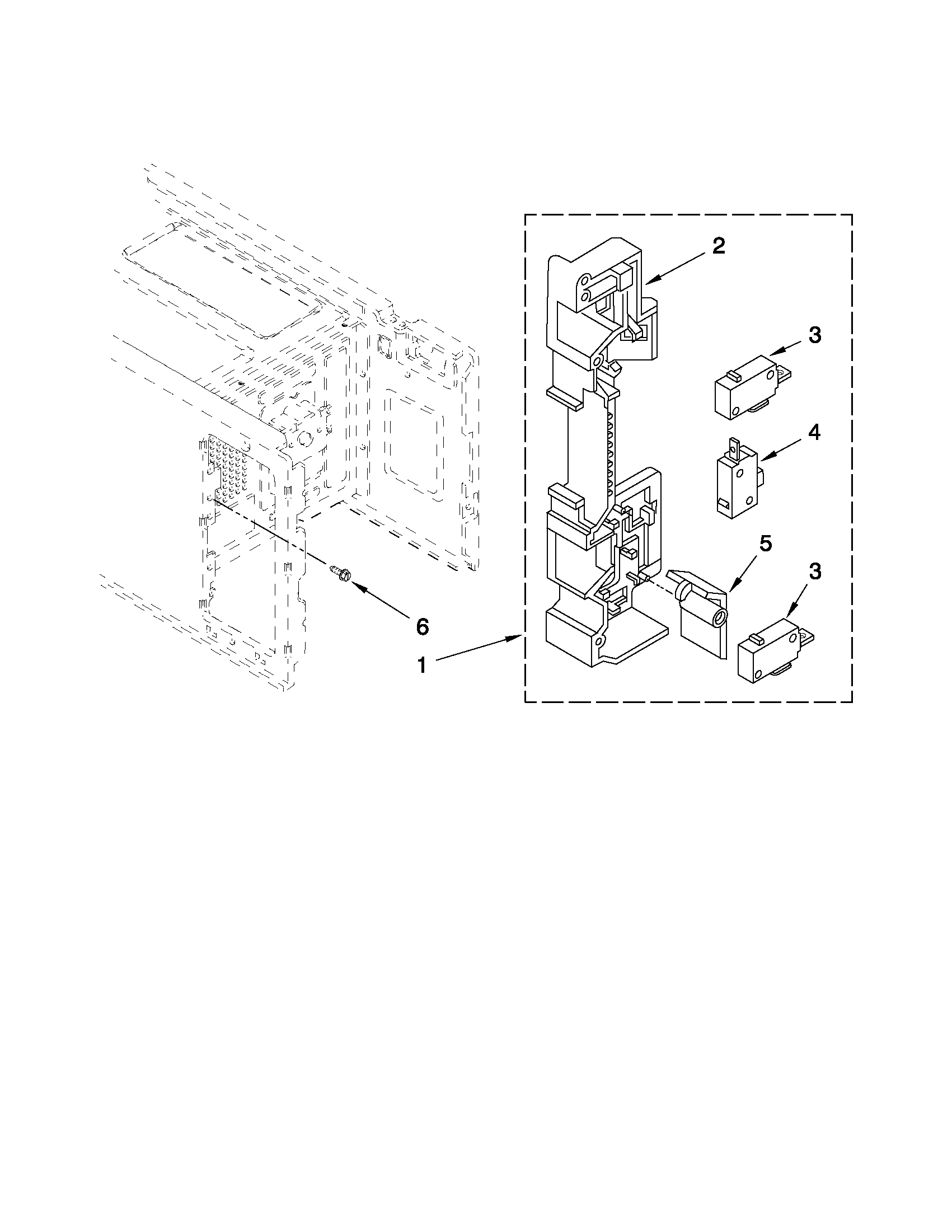

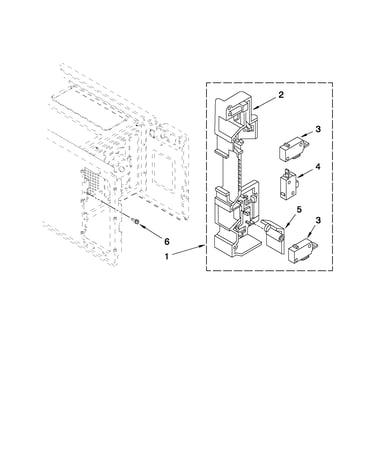

Latch board parts diagram

Switch

Part #4158941

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158941. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Switch 4158940
Switch

Part #4158940

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158940. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Screw 4358045
#13

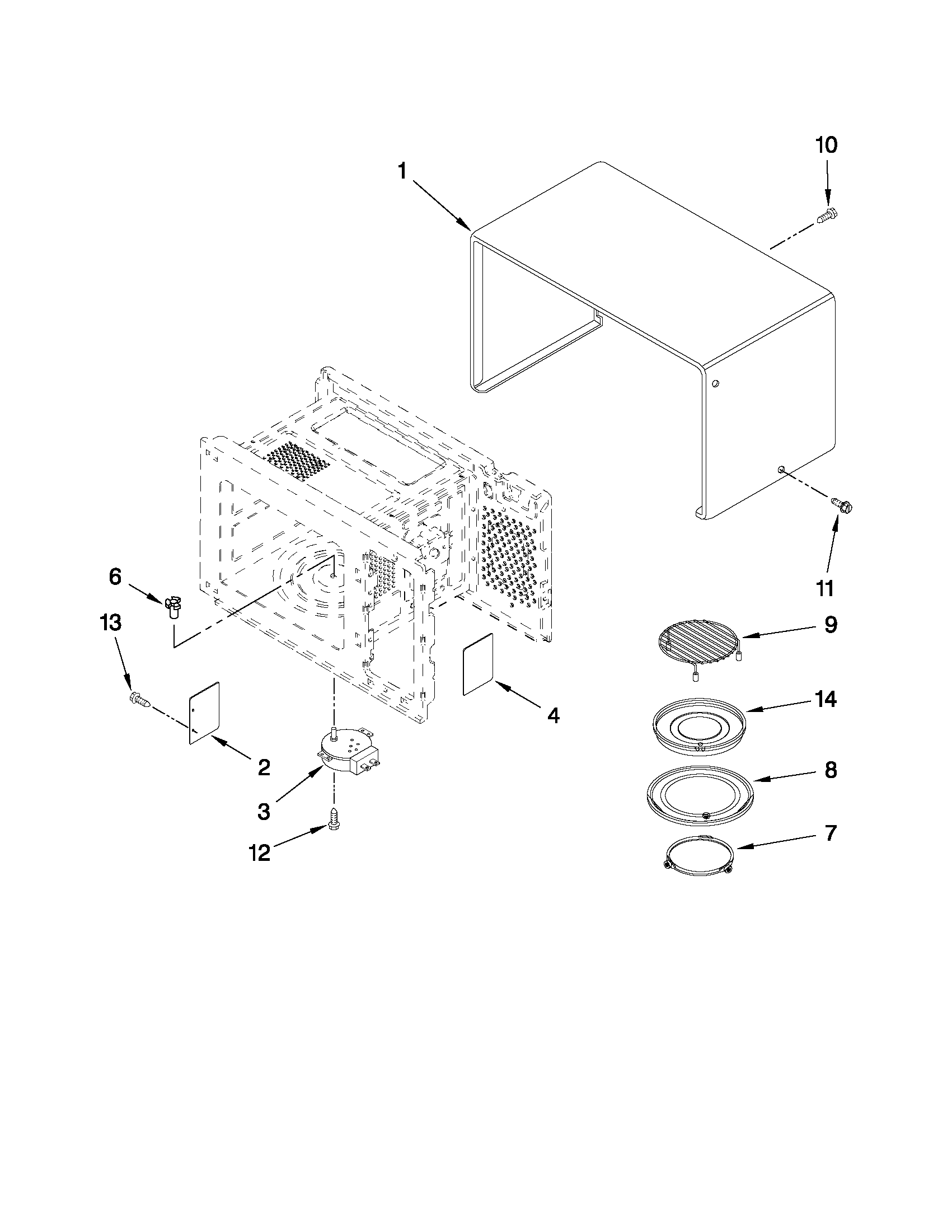

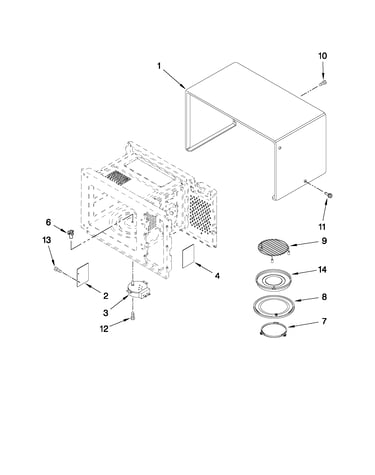

Oven cavity parts diagram

Screw

Part #4358045

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 4358045. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Microwave Glass Tray 8172138
#8

Oven cavity parts diagram

Microwave glass tray

Part #8172138

Replaced by #WP8172138

?
Manufacturer substitution
This part replaces 8172138. Substitute parts can look different from the original.
$55.28 |
10% OFF Phone Price : $61.28
In Stock
Microwave Baseless Lamp 8183592
#4

Oven interior parts diagram

Microwave baseless lamp

Part #8183592

Replaced by #WP8183592

?
Manufacturer substitution
This part replaces 8183592. Substitute parts can look different from the original.
$24.11 |
20% OFF Phone Price : $30.11
In Stock
Screw 8171862
#29

Oven interior parts diagram

Screw

Part #8171862

Replaced by #8169474

?
Manufacturer substitution
This part replaces 8171862. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
Screw 4358451
#4

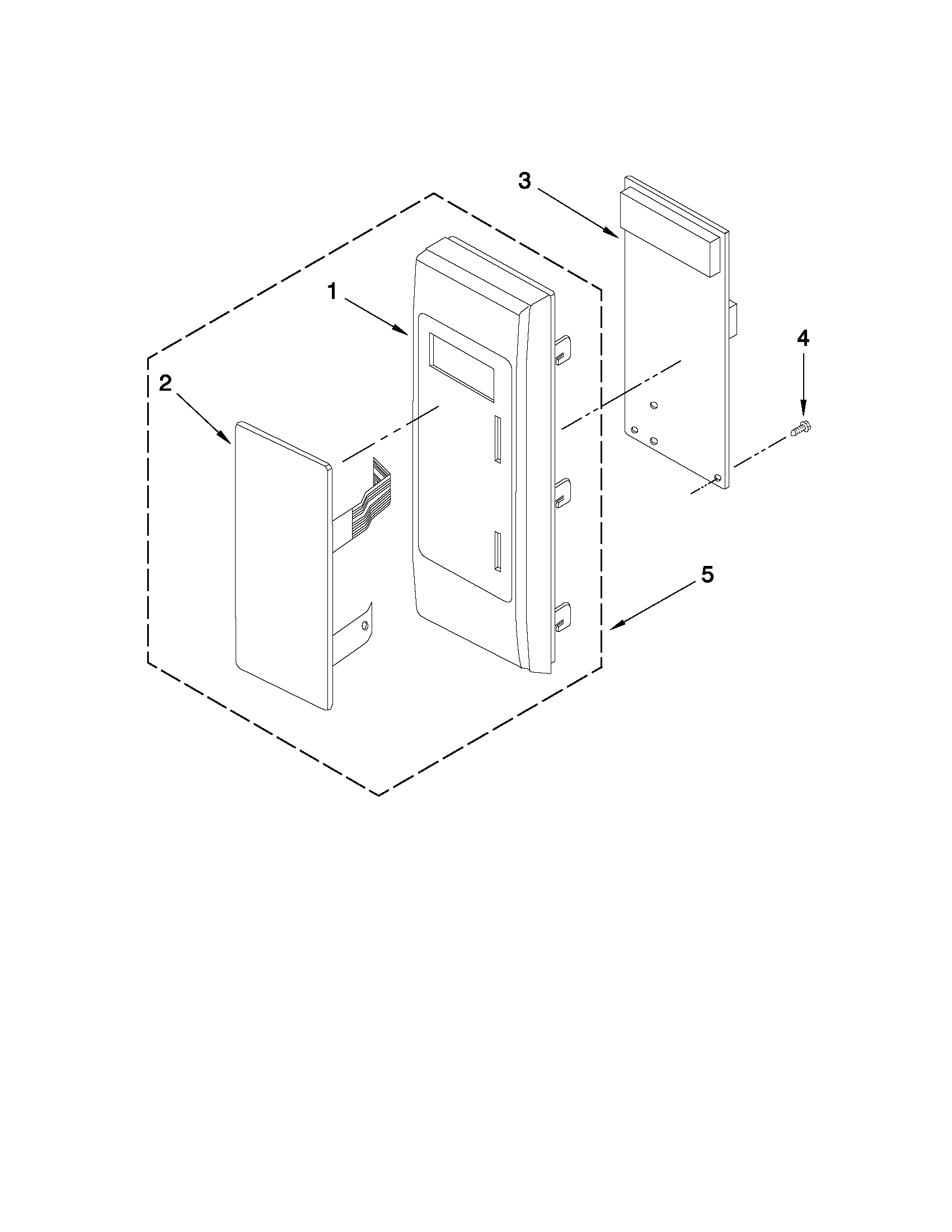

Control panel parts diagram

Screw

Part #4358451

Replaced by #8169474

?
Manufacturer substitution
This part replaces 4358451. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
Screw 4358192
Screw

Part #4358192

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4358192. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Microwave Screw 4358380
#25

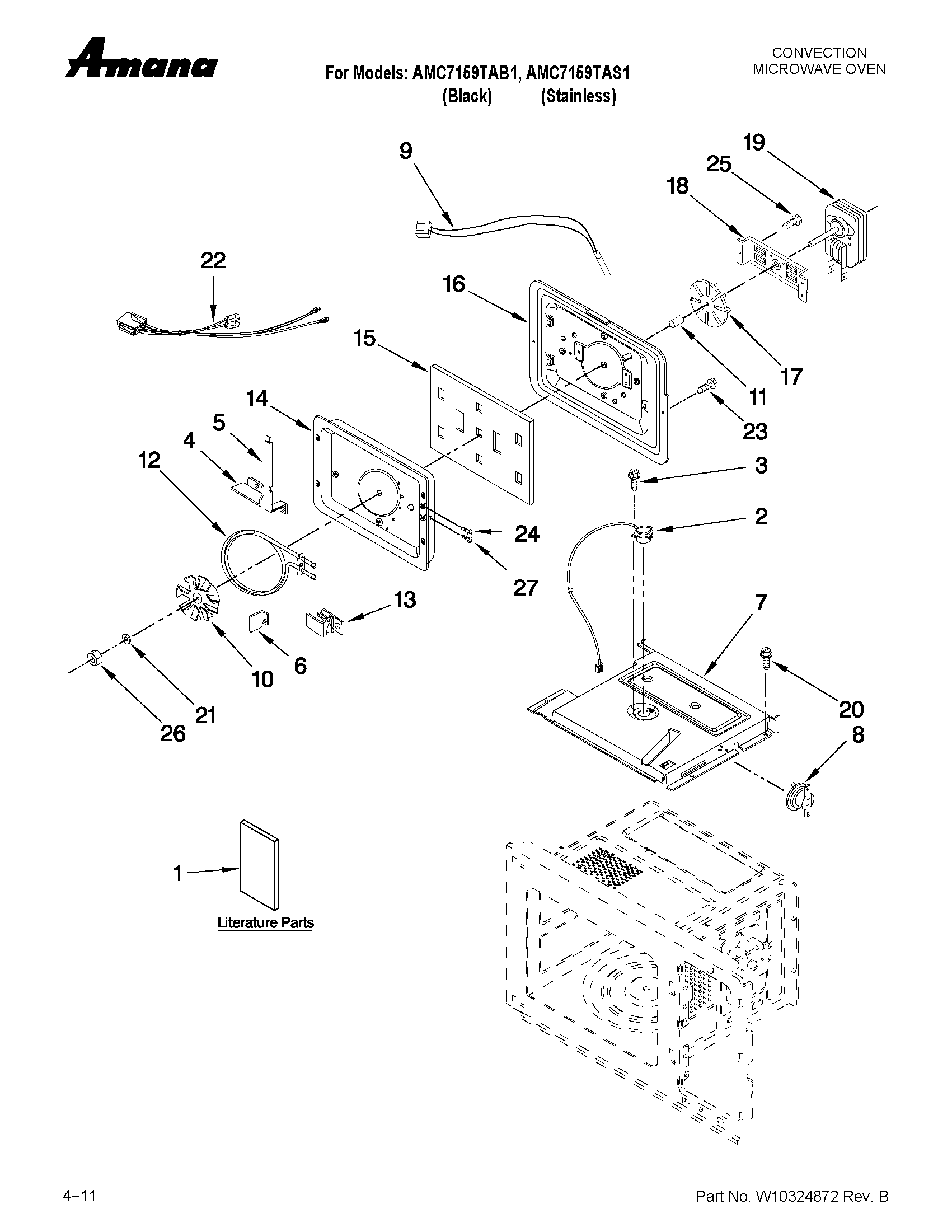

Convection oven parts diagram

Microwave screw

Part #4358380

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4358380. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
