Eureka
Canister Vacuum

Model # 6892B-1 Official Eureka canister vacuum

Here are the diagrams and repair parts for Official Eureka 6892B-1 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

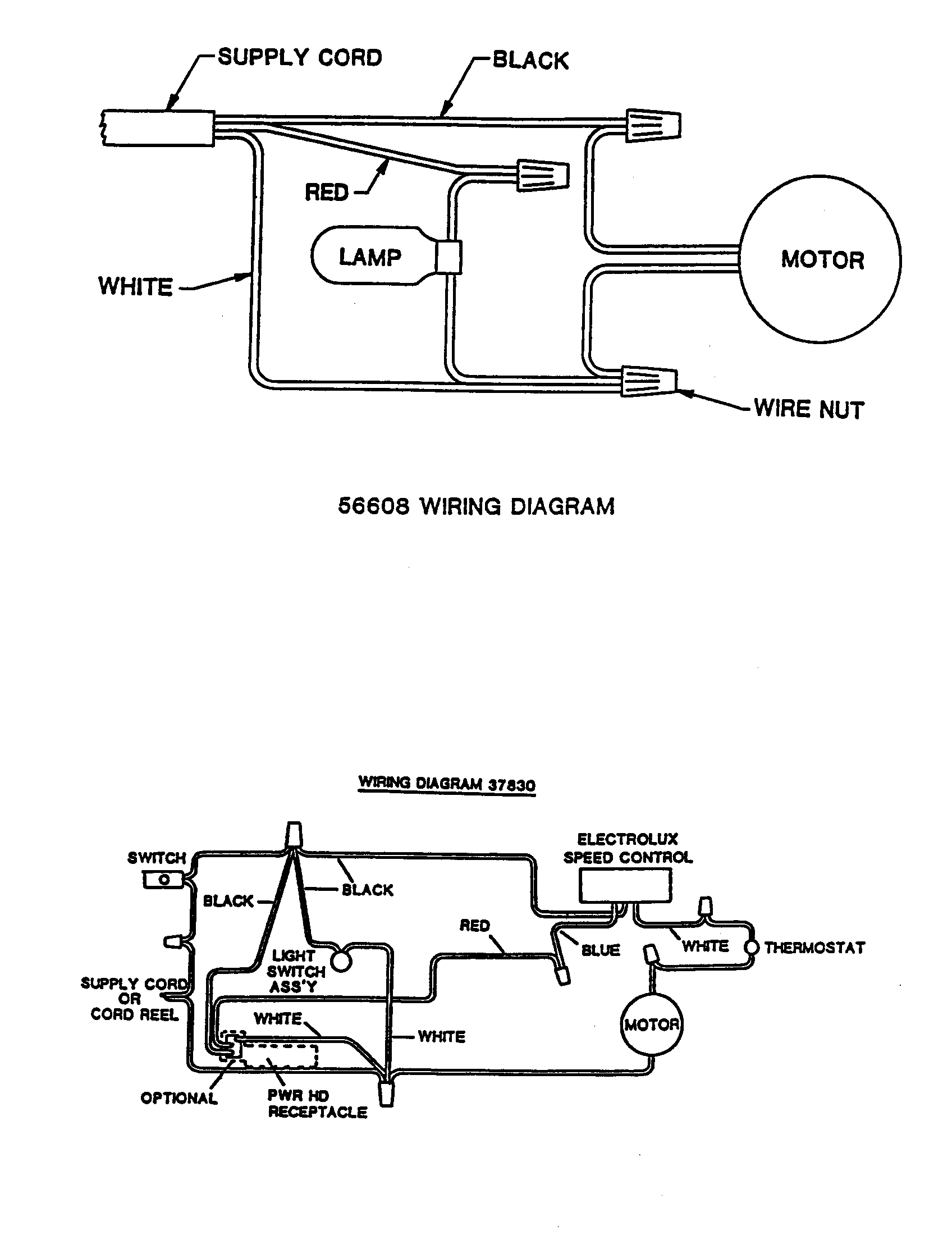

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |

Eureka Power Head 54575-20
#0

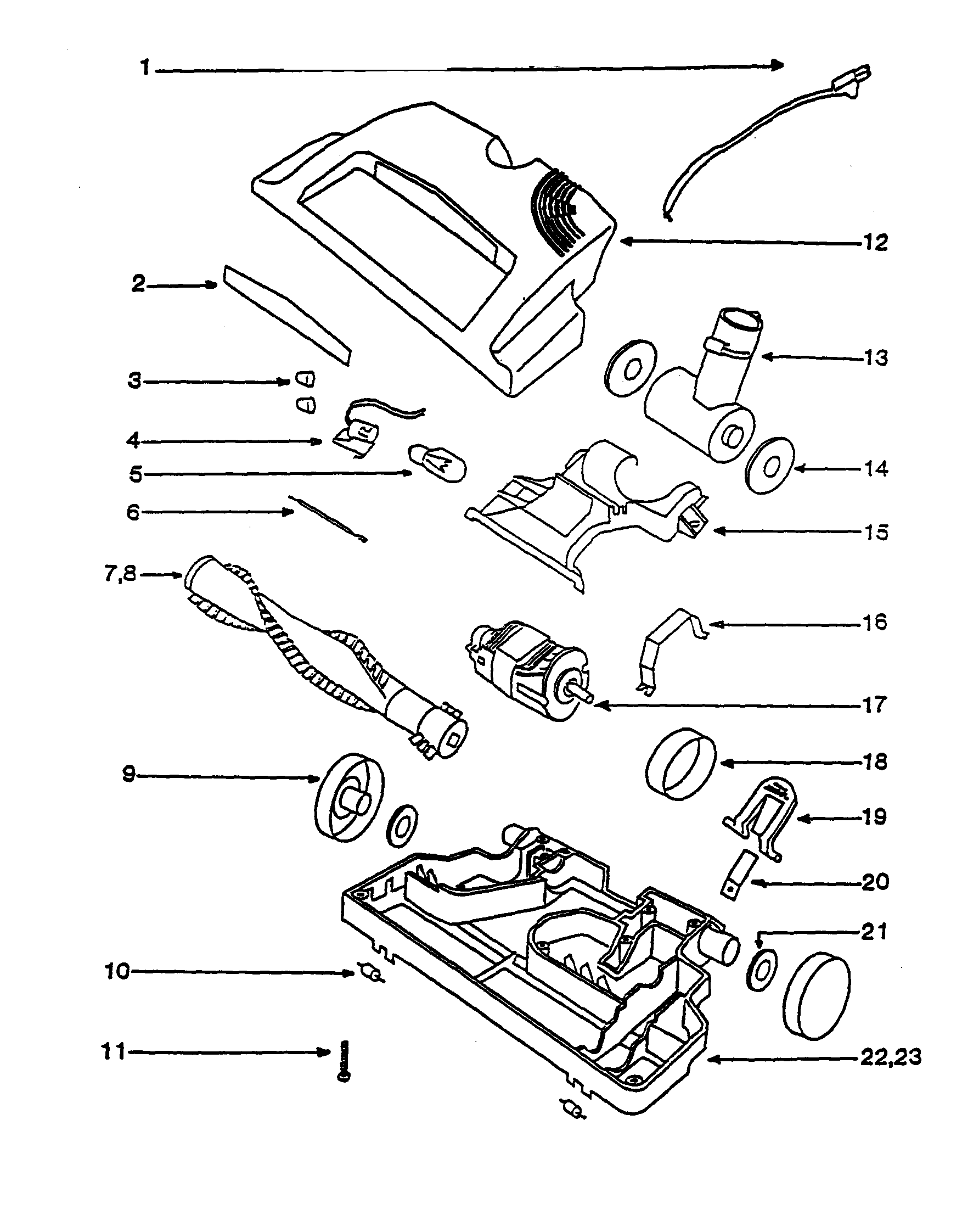

Canister diagram

Eureka power head

Part #54575-20

The manufacturer no longer makes this part, and there's no substitute part

Clip Plug 38368-1
#14

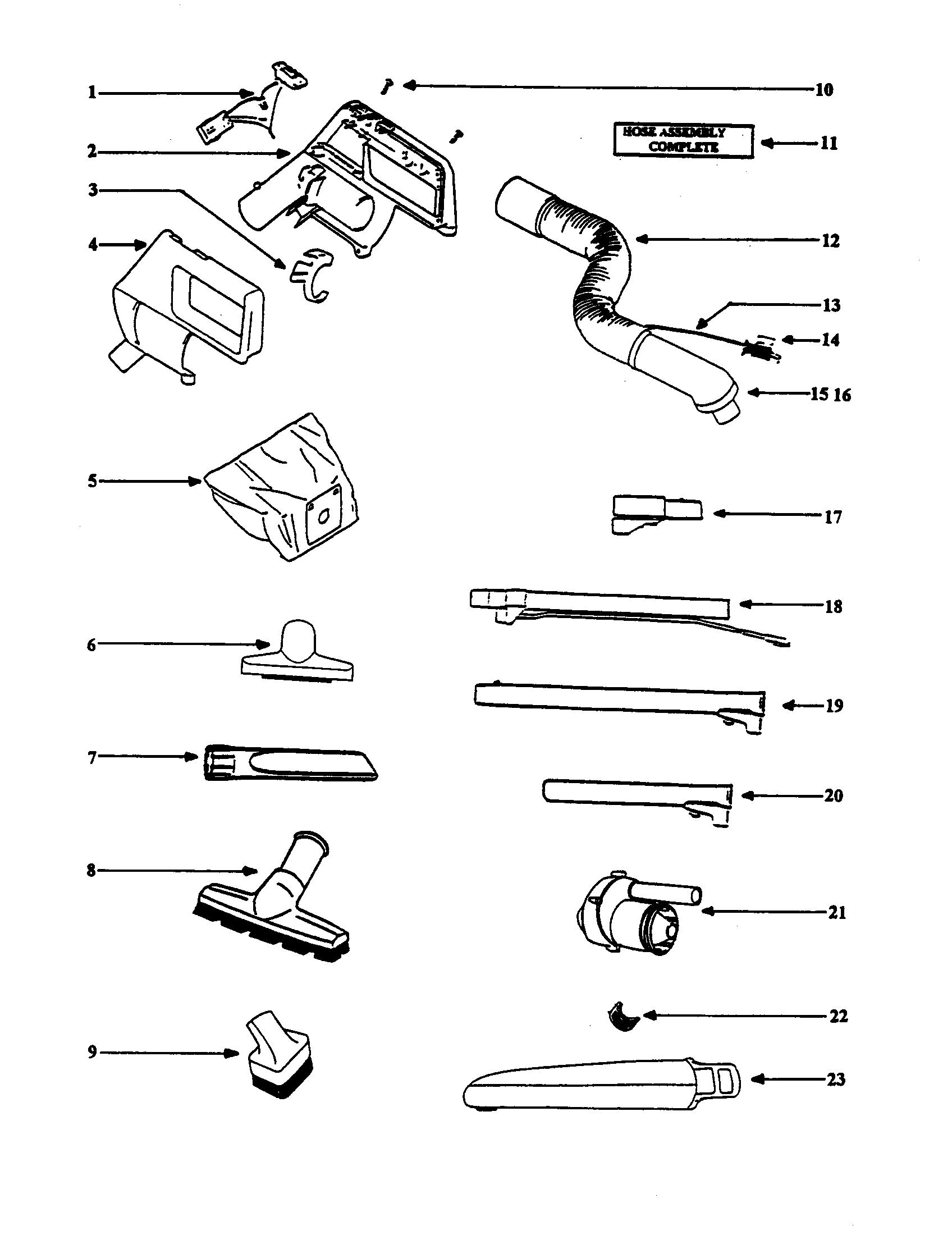

Attachments diagram

Clip plug

Part #38368-1

The manufacturer no longer makes this part, and there's no substitute part

Wand Clip 59780A
#22

Attachments diagram

Wand clip

Part #59780A

The manufacturer no longer makes this part, and there's no substitute part

Hood Lens 27397-1
#2

Canister diagram

Hood lens

Part #27397-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 53238-1
#5

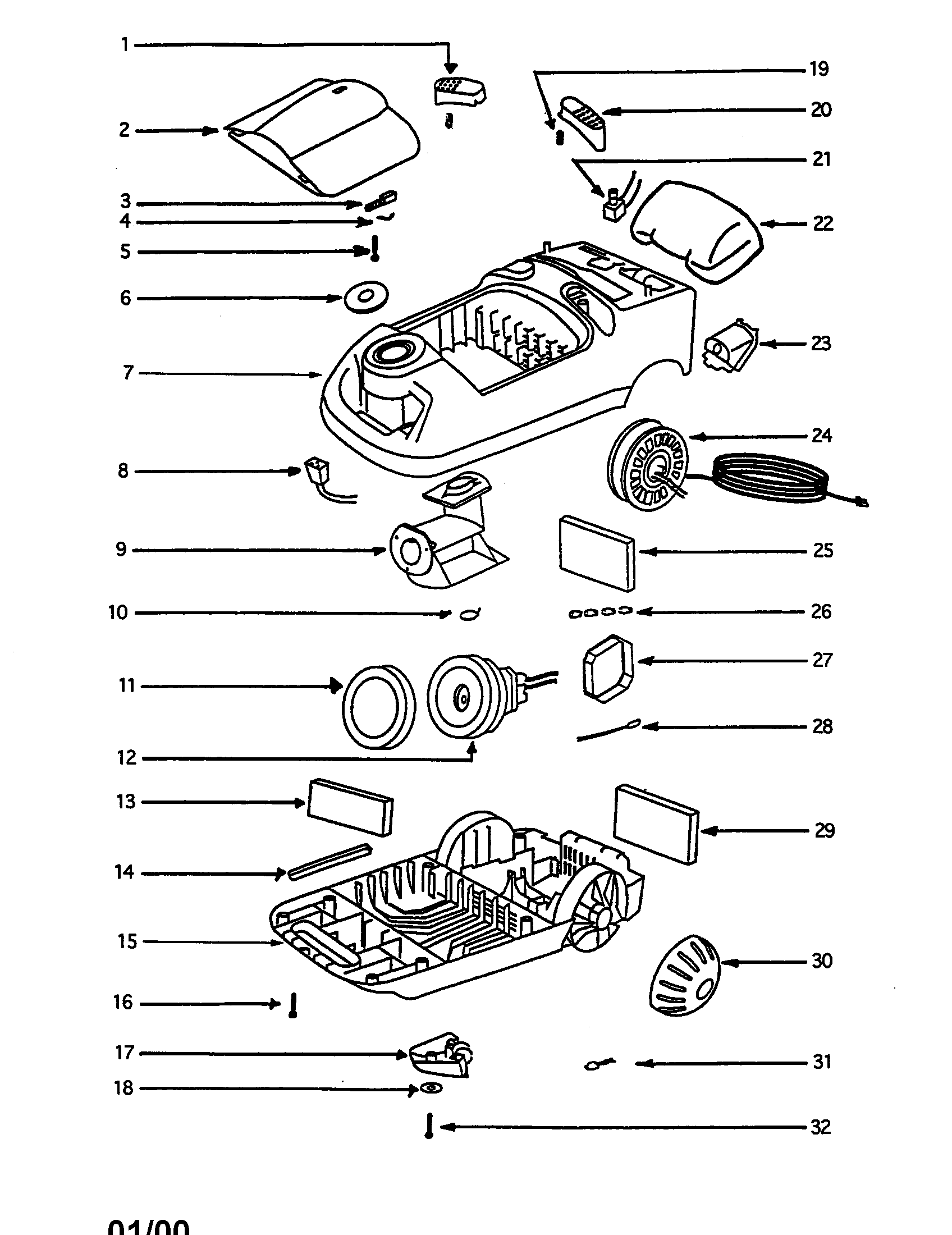

Body diagram

Screw

Part #53238-1

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Speed Control 26630-1
#31

Body diagram

Kenmore speed control

Part #26630-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 54505-3
#9

Attachments diagram

Vacuum dust brush

Part #54505-3

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Upholstery Nozzle 38284-3
#6

Attachments diagram

Vacuum upholstery nozzle

Part #38284-3

The manufacturer no longer makes this part, and there's no substitute part

Wire Tube 56326-1
#14

Body diagram

Wire tube

Part #56326-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 53257-1
#10

Attachments diagram

Screw

Part #53257-1

The manufacturer no longer makes this part, and there's no substitute part
