Model # WEBE34111B1 Official Weider pro xt20 weight system

Here are the diagrams and repair parts for Official Weider WEBE34111B1 pro xt20 weight system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Pad,foam,.75 114798
#10

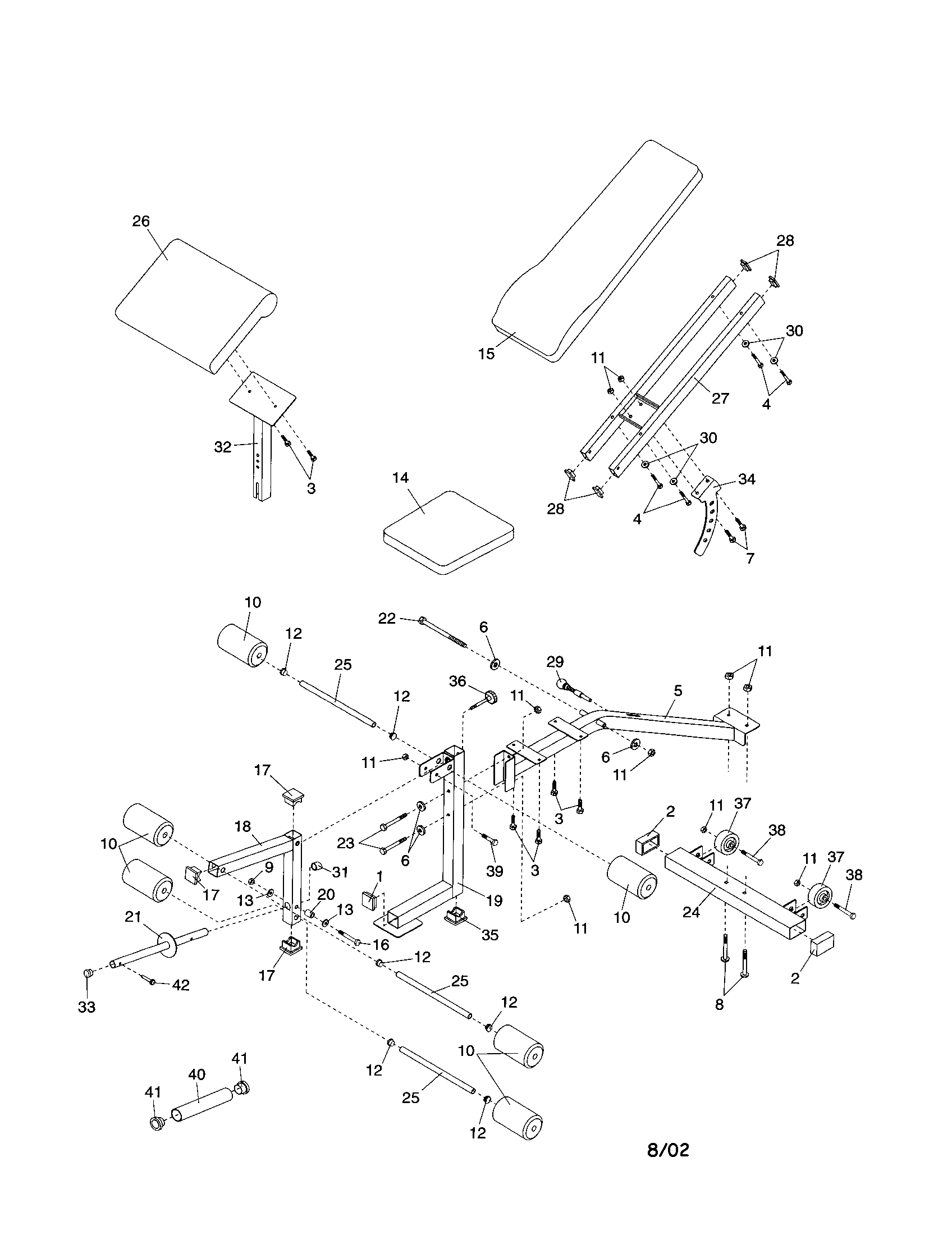

Bench frame/back rest diagram

Pad,foam,.75

Part #114798

Replaced by #208378

?
Manufacturer substitution
This part replaces 114798. Substitute parts can look different from the original.
This item is not returnable
$5.39 |
16% OFF Phone Price : $6.39
In Stock
Image Weight System Adjustment Knob 149651
#36

Bench frame/back rest diagram

Image weight system adjustment knob

Part #149651

This item is not returnable
$6.49
In Stock
Nut,hex Nyl 121050
#11

Bench frame/back rest diagram

Nut,hex nyl

Part #121050

Replaced by #148710

?
Manufacturer substitution
This part replaces 121050. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Exercise Equipment Flat Washer 014073
#13

Bench frame/back rest diagram

Exercise equipment flat washer

Part #014073

This item is not returnable
$2.16
In Stock
Reebok Internal Round End Cap, 3/4-in 115366
#12

Bench frame/back rest diagram

Reebok internal round end cap, 3/4-in

Part #115366

This item is not returnable
$2.16
In Stock
Internal Round End Cap, 1-in 120733
#33

Bench frame/back rest diagram

Internal round end cap, 1-in

Part #120733

This item is not returnable
$2.16
In Stock
Lifestyler Exercise Equipment Screw 135574
#4

Bench frame/back rest diagram

Lifestyler exercise equipment screw

Part #135574

This item is not returnable
$6.49
In Stock
Nordictrack Screw,hhcs,b 135571
#22

Bench frame/back rest diagram

Nordictrack screw,hhcs,b

Part #135571

$7.99
In Stock
Weslo Endcap,int,r 116824
#28

Bench frame/back rest diagram

Weslo endcap,int,r

Part #116824

This item is not returnable
$3.49
In Stock
Weslo Carrage Bolt 144898
#8

Bench frame/back rest diagram

Weslo carrage bolt

Part #144898

$8.49
In Stock
