Model # 38TZA030 SERIES330 Official Carrier condensing unit

Here are the diagrams and repair parts for Official Carrier 38TZA030-SERIES330 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

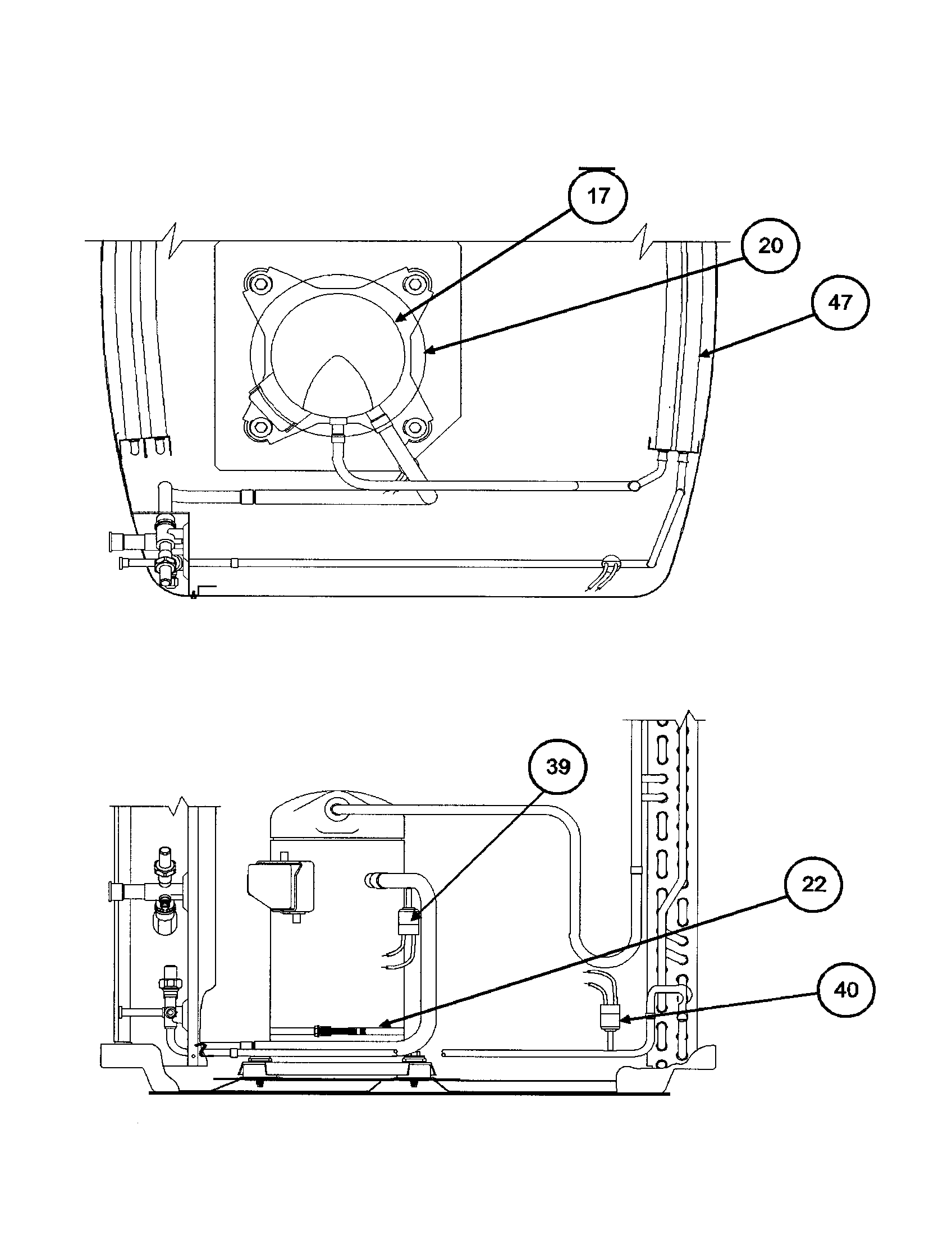

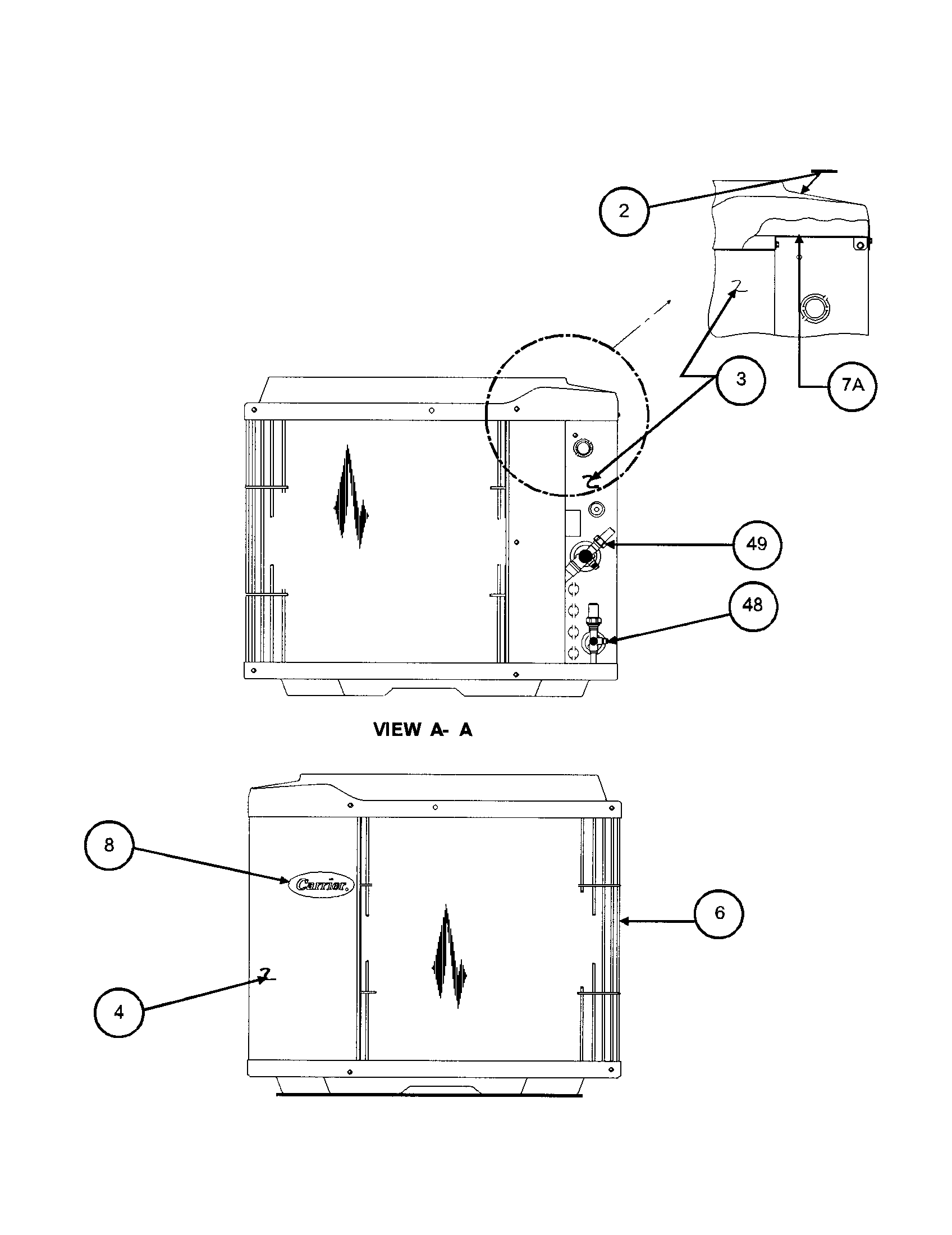

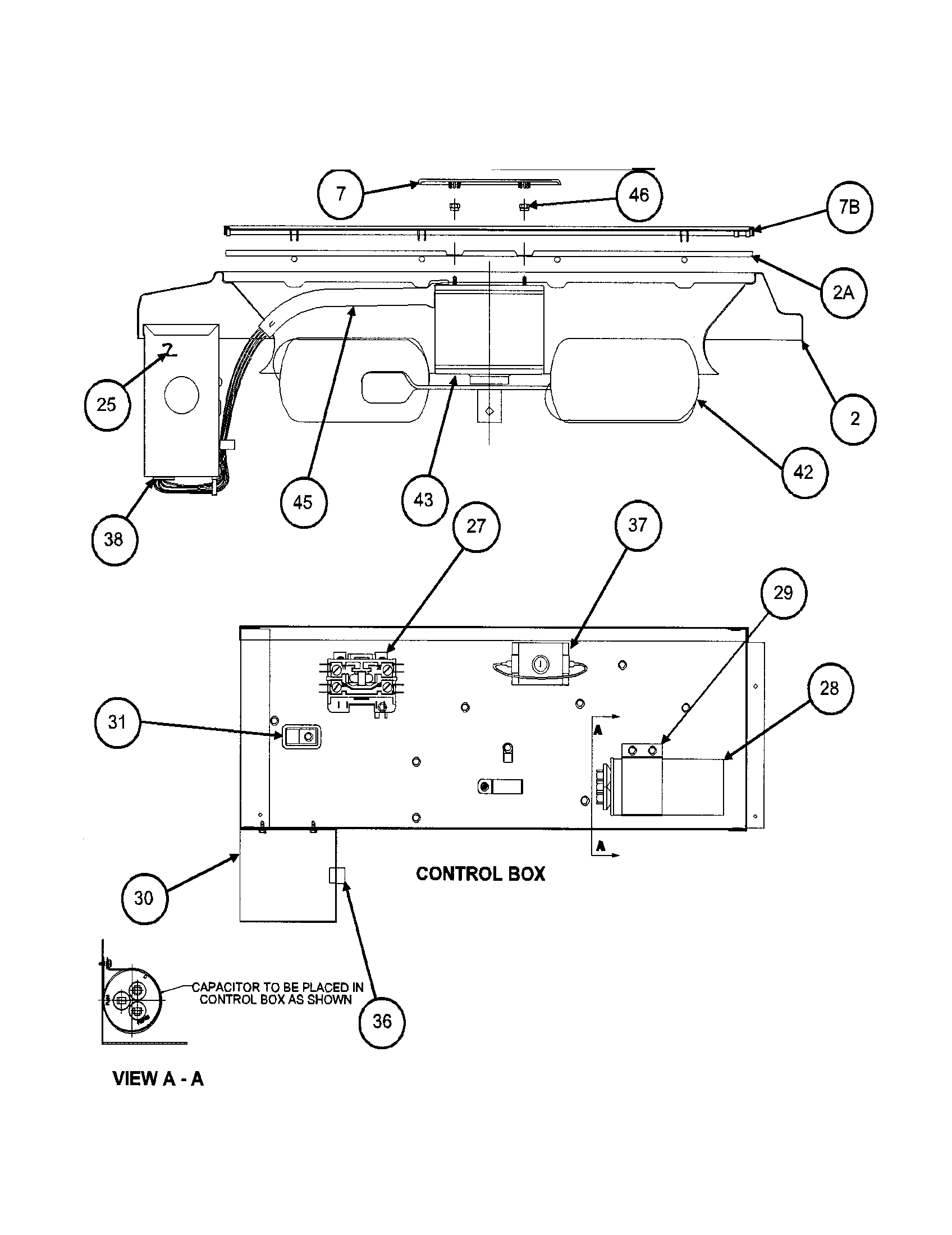

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Contactor HN51KB024

#27

All parts diagram

Contactor

Part #HN51KB024

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Condenser Fan Motor HC35GE237

#43

All parts diagram

Central air conditioner condenser fan motor

Part #HC35GE237

$369.36 |
$12.00 OFF Phone Price : $381.36
In Stock
Cap 320238-401

#7

All parts diagram

Cap

Part #320238-401

Replaced by #330798-7011

?
Manufacturer substitution
This part replaces 320238-401. Substitute parts can look different from the original.
$29.24
In Stock
Trim 320245-401

#7B

All parts diagram

Trim

Part #320245-401

$109.64
In Stock
Body 99CC502453

#87A

All parts diagram

Body

Part #99CC502453

$67.20
In Stock
Condenser Coil 321693-7241

#47

All parts diagram

Condenser coil

Part #321693-7241

$1905.42
In Stock
Kit KSALA0301410

#63

All parts diagram

Kit

Part #KSALA0301410

$661.87
In Stock
Carrier Start Assist Ptc Kit KAACS0201PTC

#78

All parts diagram

Carrier start assist ptc kit

Part #KAACS0201PTC

$242.33
In Stock
Central Air Conditioner Capacitor Strap 317739-302

#29

All parts diagram

Central air conditioner capacitor strap

Part #317739-302

$11.74
In Stock
Relay CESO130062-00

#80A

All parts diagram

Relay

Part #CESO130062-00

$144.98
In Stock
