Model # AZ45E12DBMW7 Official GE room a/c

Here are the diagrams and repair parts for Official GE AZ45E12DBMW7 room a/c, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Coil Outdoor WP87X25582
#302

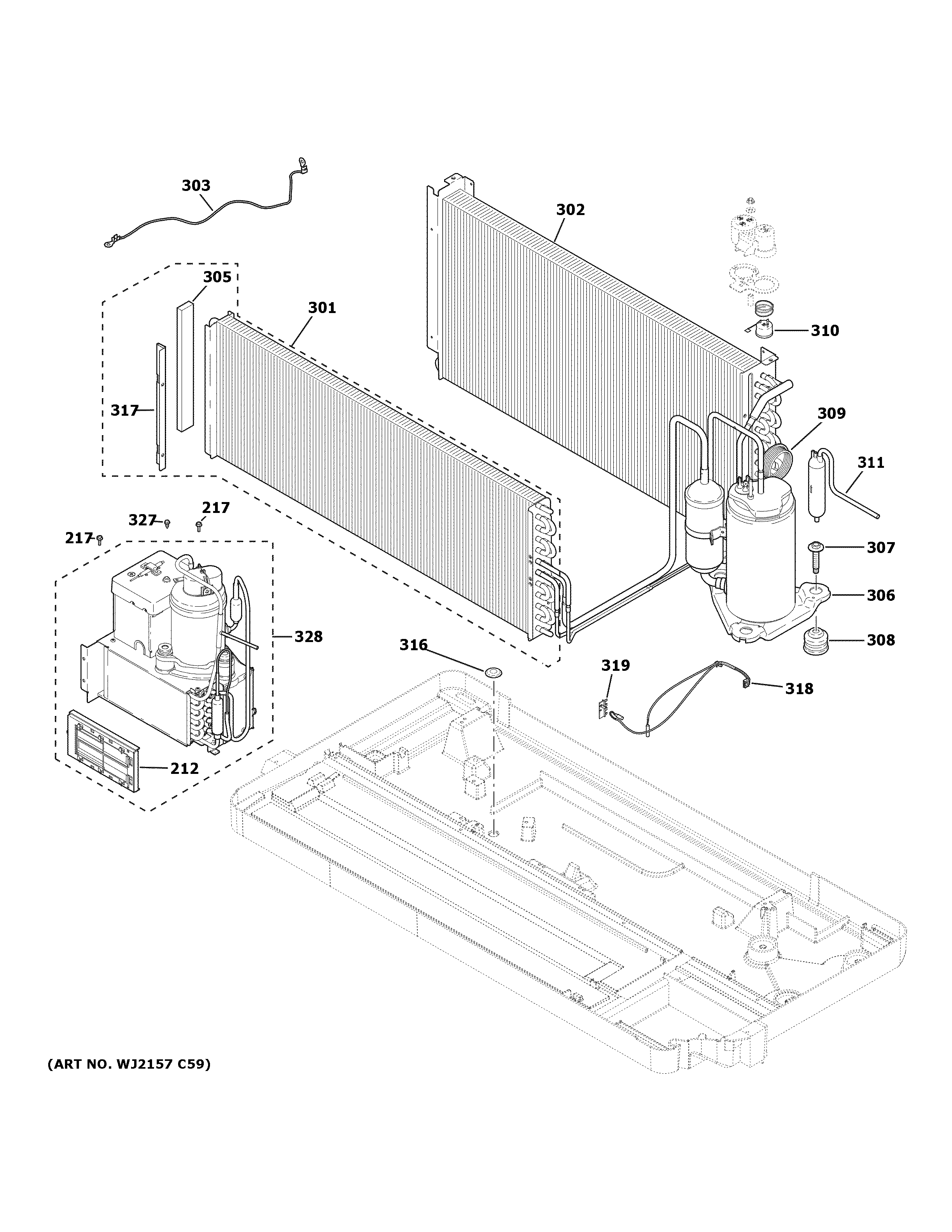

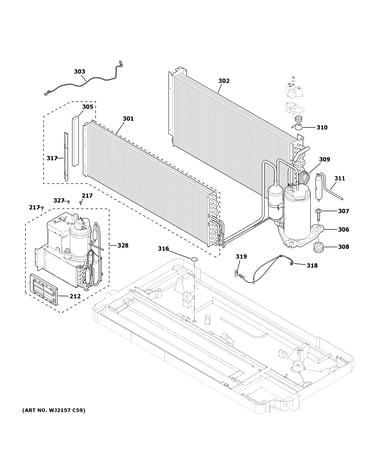

Sealed system diagram

Coil outdoor

Part #WP87X25582

$399.88
In Stock
Capacitor WP20X20915
#109

Grille & control parts diagram

Capacitor

Part #WP20X20915

$23.07 |
21% OFF Phone Price : $29.07
In Stock
Room Air Conditioner Outdoor Fan Blade WP94X20856
#208

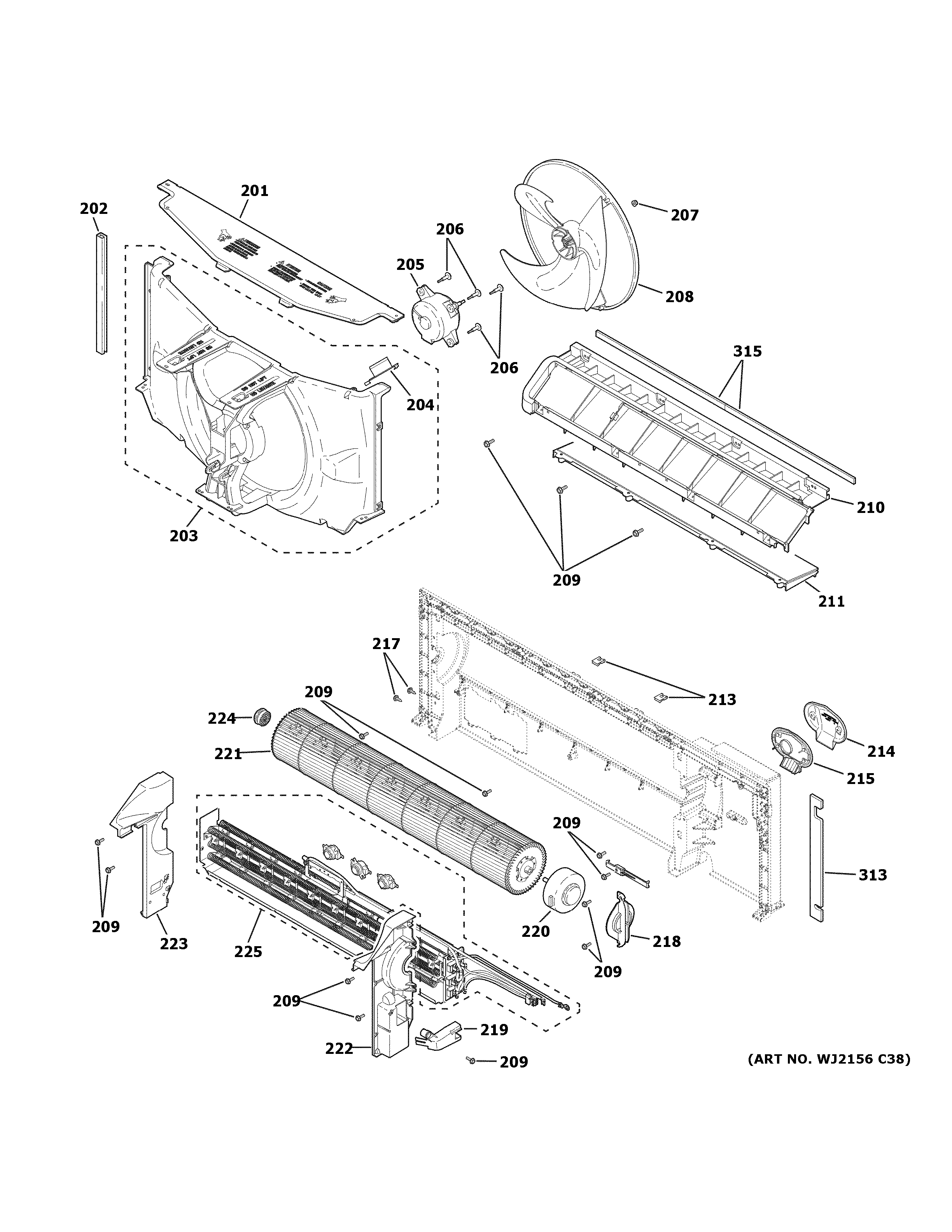

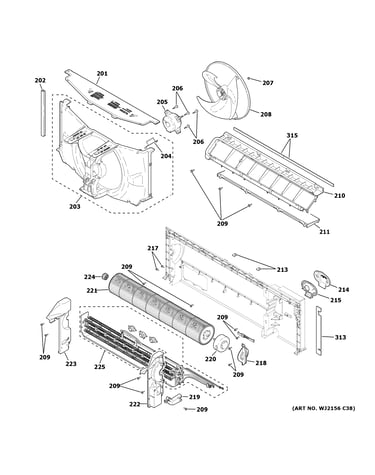

Motor & chassis parts diagram

Room air conditioner outdoor fan blade

Part #WP94X20856

$33.13 |
15% OFF Phone Price : $39.13
In Stock
Room Air Conditioner Air Filter WP85X20858
#103

Grille & control parts diagram

Room air conditioner air filter

Part #WP85X20858

This item is not returnable
$20.00 |
23% OFF Phone Price : $26.00
In Stock
Room Air Conditioner Power Cord RAK320P
#402

Optional accessories diagram

Room air conditioner power cord

Part #RAK320P

$60.00
In Stock
Control Box Cover WP76X24989
#107

Grille & control parts diagram

Control box cover

Part #WP76X24989

$24.73
In Stock
Grid Weld Wi WP71X20976
#105

Grille & control parts diagram

Grid weld wi

Part #WP71X20976

$25.20 |
19% OFF Phone Price : $31.20
In Stock
Scr 10-18 Hi WP01X20877
#209

Motor & chassis parts diagram

Scr 10-18 hi

Part #WP01X20877

$8.11
In Stock
Main Harness Muam 230v WP35X24999
#114

Grille & control parts diagram

Main harness muam 230v

Part #WP35X24999

$80.98
In Stock
Wall Gasket WP60X20975
#315

Motor & chassis parts diagram

Wall gasket

Part #WP60X20975

$7.88 |
11% OFF Phone Price : $8.88
In Stock
