Model # AGW12AHG1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AGW12AHG1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

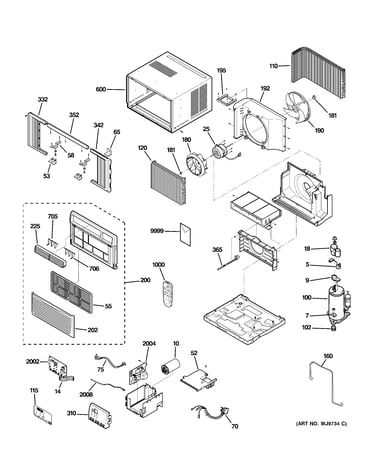

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Power Board Pcb WJ26X10166
#2002

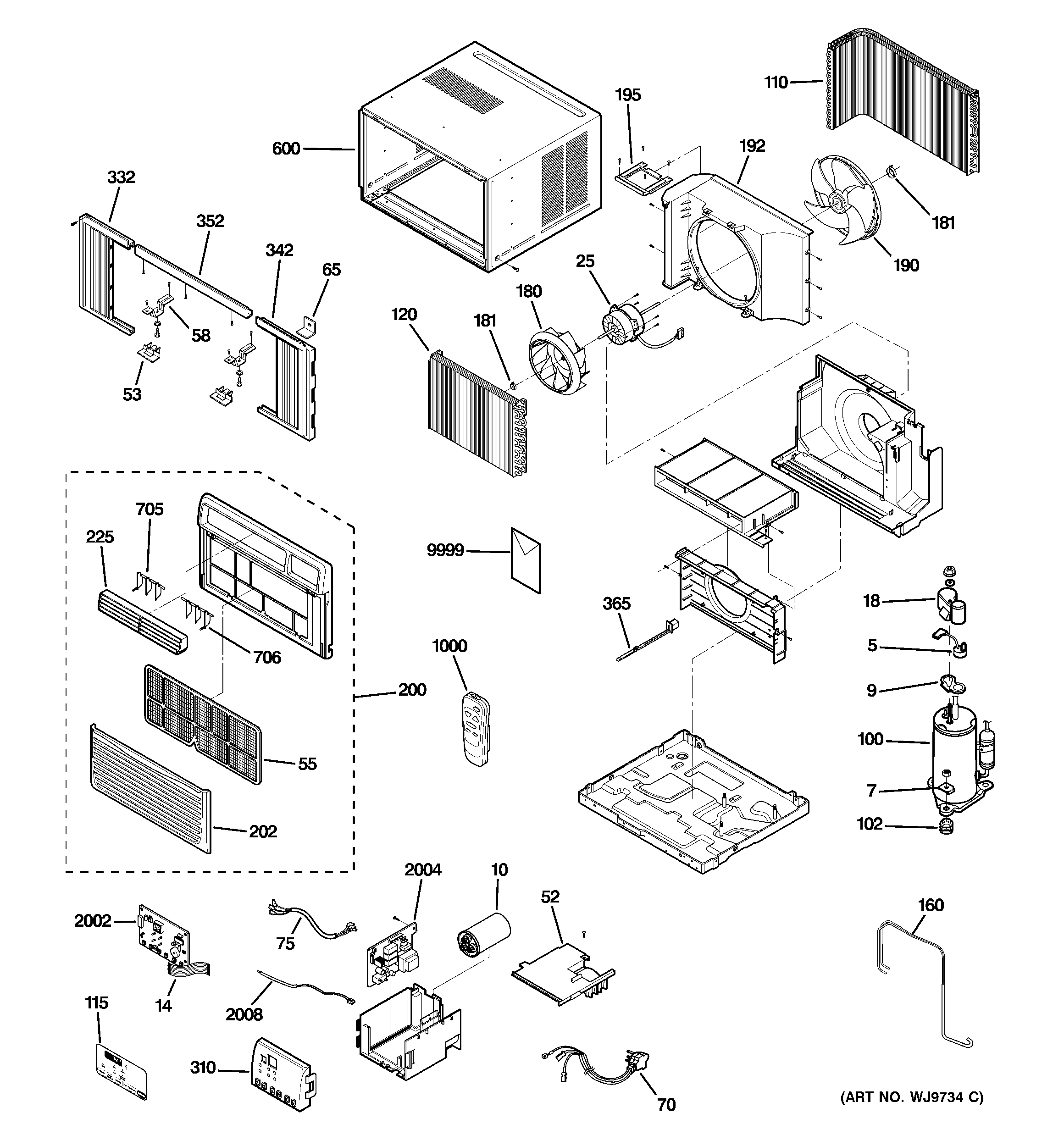

Room air conditioner diagram

Power board pcb

Part #WJ26X10166

$52.84
In Stock
Agw08/10/12 49-7493
#9999

Room air conditioner diagram

Agw08/10/12

Part #49-7493

$18.59 |
10% OFF Phone Price : $20.59
In Stock
Bracket WJ01X10234
#58

Room air conditioner diagram

Bracket

Part #WJ01X10234

The manufacturer no longer makes this part, and there's no substitute part

Louver,verti WJ71X10406
#706

Room air conditioner diagram

Louver,verti

Part #WJ71X10406

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WJ35X10101
#70

Room air conditioner diagram

Power cord

Part #WJ35X10101

The manufacturer no longer makes this part, and there's no substitute part

Guide WJ66X10018
#352

Room air conditioner diagram

Guide

Part #WJ66X10018

The manufacturer no longer makes this part, and there's no substitute part

Power Board Pcb WJ26X10165
#2004

Room air conditioner diagram

Power board pcb

Part #WJ26X10165

The manufacturer no longer makes this part, and there's no substitute part

Cover WJ79X10088
#52

Room air conditioner diagram

Cover

Part #WJ79X10088

The manufacturer no longer makes this part, and there's no substitute part

Outer Case WJ90X10088
#600

Room air conditioner diagram

Outer case

Part #WJ90X10088

The manufacturer no longer makes this part, and there's no substitute part

Gasket WJ43X10051
#9

Room air conditioner diagram

Gasket

Part #WJ43X10051

The manufacturer no longer makes this part, and there's no substitute part
